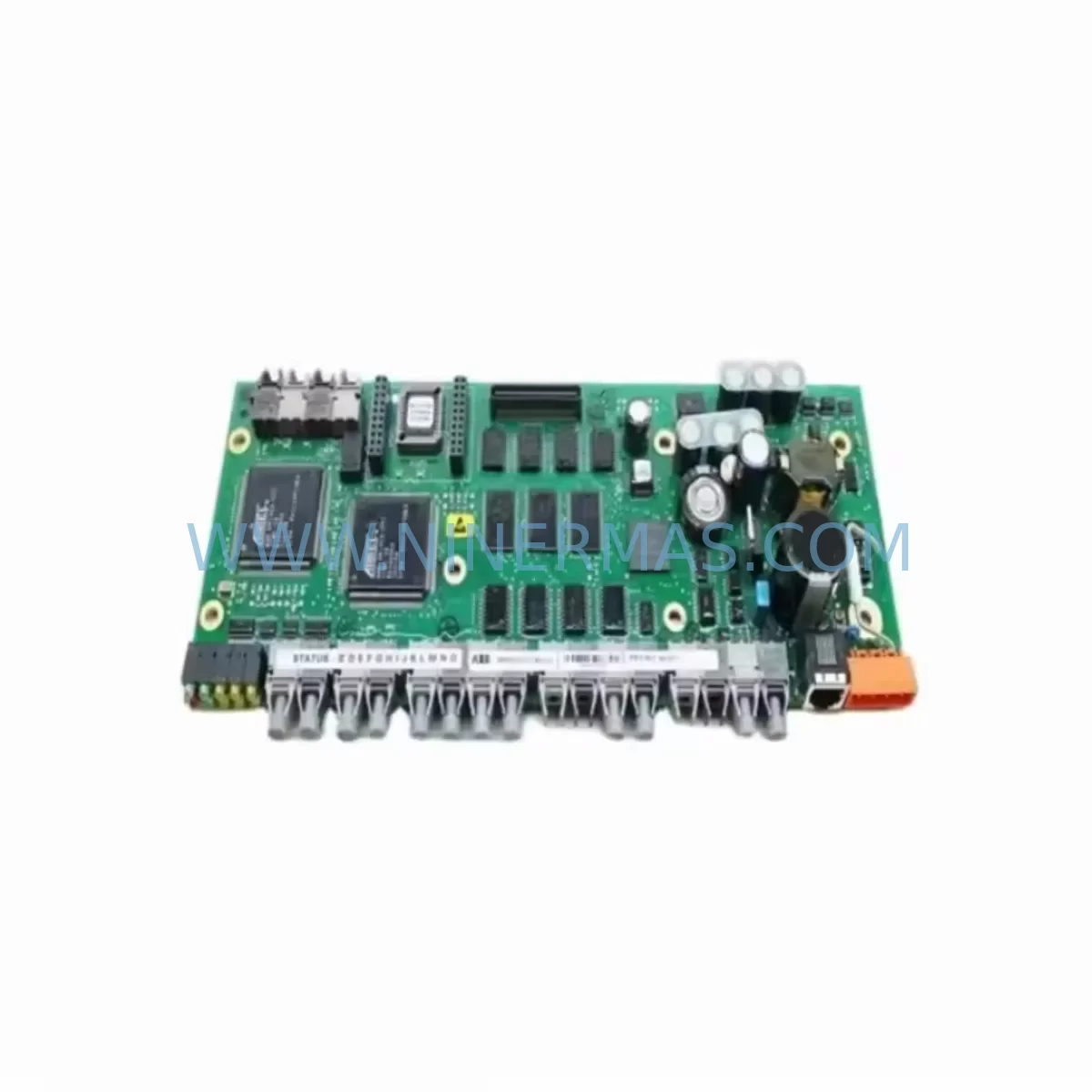

ABB C902 AE101 3BHE010751R0101 Retrofit-Compatible Excitation Board

ABB C902 AE101 3BHE010751R0101 Retrofit-Compatible Excitation Board for Legacy Systems

The ABB C902 AE101 3BHE010751R0101 is a critical excitation control board used within the ABB UNITROL series of automatic voltage regulators (AVRs) and generator excitation systems. As legacy UNITROL 1000, UNITROL 5000, and UNITROL 6000 platforms approach end-of-life, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible spare boards like the C902 AE101 to sustain continuous generator operation without committing to a full system replacement. This board serves as a direct functional replacement for failed or degraded excitation control modules, enabling a controlled, low-risk upgrade path that preserves existing wiring infrastructure, terminal layouts, and backplane connections.

In generator excitation retrofit projects, the C902 AE101 3BHE010751R0101 is typically installed alongside companion modules such as the ABB C902 AE102, C902 AE103 interface boards, and the UNITROL 1020 or UNITROL 5000 AVR controller units. Engineers replacing aging excitation chains often source the C902 AE101 together with the ABB SDCS-CON-4 converter control board and SDCS-PIN-48 power interface board when the retrofit scope extends into the drive-side of the excitation loop. For sites running ABB ACS800 or ACS880 variable frequency drives in parallel with the generator excitation system, confirming backplane slot compatibility and firmware revision alignment between the C902 AE101 and the active AVR controller is a mandatory pre-installation step.

Before proceeding with installation, maintenance engineers must verify power supply capacity at the excitation cabinet. The C902 AE101 3BHE010751R0101 operates within the standard UNITROL auxiliary power rail; however, aging 24 VDC or 48 VDC power supply modules — such as the ABB PSTX or third-party DIN-rail PSUs — should be load-tested prior to board swap to prevent nuisance trips during commissioning. Terminal wiring on the C902 AE101 follows the UNITROL standard terminal block layout, but engineers should cross-reference the original wiring diagram against the as-built cabinet documentation, particularly for sites where field modifications were made to the original OEM configuration. Signal isolation between the measurement input channels and the control output channels must be confirmed using a calibrated insulation tester before energizing the replacement board.

Module addressing is a common source of commissioning delay when replacing the C902 AE101 in multi-board UNITROL excitation racks. The board address is typically set via DIP switch or rotary selector on the module face; engineers must confirm the address matches the slot assignment defined in the UNITROL configuration file before applying power. Failure to align module addresses results in communication faults on the internal UNITROL fieldbus, which can cascade into AVR trip events. For sites using PROFIBUS DP or Modbus RTU as the supervisory communication protocol, the fieldbus node address of the excitation system controller must also be verified after board replacement to ensure the SCADA or DCS — whether a Siemens S7-300, ABB AC500, or Rockwell ControlLogix platform — can re-establish communication without requiring a full network rescan.

Program logic compatibility is another key consideration. The C902 AE101 3BHE010751R0101 does not store the AVR application program internally; the control program resides in the UNITROL AVR controller module. However, if the retrofit scope includes replacing the AVR controller alongside the C902 AE101, engineers must ensure the replacement controller carries a firmware version compatible with the existing HMI screens — typically ABB Panel Builder or a third-party SCADA display — to avoid HMI communication errors and alarm mapping mismatches. Retaining the original program backup from the ABB Drive Composer or UNITROL configuration tool before any hardware swap is a non-negotiable step in the retrofit workflow.

Installation space confirmation is required before ordering. The C902 AE101 3BHE010751R0101 occupies a standard UNITROL rack slot; engineers should measure available rack depth and confirm that adjacent modules — including I/O expansion boards, communication adapters, and power supply modules — do not obstruct the board’s connector engagement. For cabinets where rack space is constrained, a physical mock-up using the board dimensions from the ABB technical datasheet is recommended before scheduling the maintenance window.

Downtime control during the board swap is achievable with proper pre-staging. All replacement hardware — including the C902 AE101 3BHE010751R0101, any required terminal adapters, and the updated configuration file — should be staged and verified at the workshop before the maintenance window opens. A pre-tested spare board reduces on-site commissioning time to address confirmation, wiring verification, and a supervised power-on sequence. Sites with redundant excitation channels can perform a hot-standby switchover before the board swap, eliminating generator downtime entirely during the replacement procedure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful C902 AE101 3BHE010751R0101 retrofit begins with a full audit of the existing excitation cabinet. Engineers should document the current rack population, including all installed UNITROL boards, I/O expansion modules, communication adapters, and power supply units. In multi-generator plants, the excitation system for each generator unit may include different firmware revisions of the UNITROL AVR controller, making it essential to treat each unit as an independent retrofit scope rather than applying a blanket replacement strategy.

Common companion components sourced alongside the C902 AE101 in UNITROL retrofit projects include the ABB C902 AE102 and C902 AE103 interface boards, the UNITROL 1020 AVR controller module, the SDCS-CON-4 converter control board, the SDCS-PIN-48 power interface board, and the ABB NDBU-95C branching unit for DDCS fiber-optic communication. For sites migrating from legacy PROFIBUS DP to Ethernet-based communication, the ABB FPBA-01 PROFIBUS adapter or FENA-21 Ethernet adapter may be required to bridge the excitation system to the updated DCS or SCADA network. Signal isolators — such as DIN-rail mounted 4–20 mA loop isolators — are frequently added during the retrofit to protect the C902 AE101 measurement inputs from ground loop interference introduced by aging field wiring.

HMI screen updates are often required after a UNITROL board retrofit. If the plant HMI was configured against the original UNITROL firmware version, alarm tag mappings and analog display scaling may need to be re-validated after the C902 AE101 replacement. Engineers using ABB Panel Builder 800 or third-party SCADA platforms should schedule an HMI validation session as part of the commissioning plan, not as an afterthought. Programming cables — such as the ABB RUSB-02 USB-to-RS232 adapter — should be on hand during commissioning to allow direct connection to the UNITROL controller for parameter verification and fault log review.

Downtime Control During System Migration

Minimizing generator downtime during a C902 AE101 3BHE010751R0101 replacement requires a structured pre-outage preparation protocol. The replacement board should be bench-tested and address-configured before the maintenance window begins. All terminal wiring labels should be photographed and documented, and a point-to-point wiring check should be completed against the as-built drawings before the old board is removed. For sites with redundant excitation channels, the standby channel should be verified as fully operational before the primary channel is taken offline.

During the board swap, the original program backup — stored in the UNITROL configuration tool or Drive Composer — must be available on the commissioning laptop to allow immediate re-download if the replacement controller requires a firmware update. After the C902 AE101 is installed and powered, the commissioning sequence should follow the ABB UNITROL startup checklist: confirm auxiliary power rail voltage, verify module address recognition on the internal fieldbus, check measurement input signal levels, and perform a supervised AVR auto-tune sequence before returning the generator to service. Fieldbus communication to the DCS or SCADA should be verified by confirming live data updates on the supervisory display before the maintenance window is closed.

Retaining the removed C902 AE101 as a tagged spare — even if it is suspected to be faulty — is recommended until the replacement board has completed at least one full operational cycle. In some cases, the original board may have suffered a recoverable fault caused by a transient power event rather than a permanent hardware failure, and it may be refurbishable as a secondary spare after workshop testing.

Retrofit Support FAQ

Q: Is the ABB C902 AE101 3BHE010751R0101 a direct drop-in replacement for the original board in my UNITROL rack?
A: Yes, the C902 AE101 3BHE010751R0101 is designed as a direct retrofit replacement for the same part number in UNITROL excitation racks. The module occupies the same rack slot and uses the same terminal block layout as the original. Engineers must confirm the module address setting and firmware compatibility with the installed AVR controller before installation.

Q: What pre-shipment testing is performed on the C902 AE101 3BHE010751R0101?
A: Each unit undergoes functional testing prior to shipment to verify board-level operation. Units are supplied with a test report confirming operational status. The 12-month warranty covers hardware defects identified after installation under normal operating conditions.

Q: How do I confirm wiring compatibility before installing the replacement board?
A: Cross-reference the terminal block layout on the replacement C902 AE101 against the as-built wiring diagram for your cabinet. Pay particular attention to measurement input channels, control output terminals, and auxiliary power connections. If the original wiring diagram is unavailable, contact our technical team with the cabinet serial number and we will assist with wiring identification.

Q: What is the typical lead time and do you maintain stock of the C902 AE101 3BHE010751R0101?
A: We maintain inventory of the C902 AE101 3BHE010751R0101 to support urgent maintenance requirements. Contact us to confirm current stock availability and lead time. For planned retrofit projects, we recommend confirming stock allocation at least 4 weeks before the scheduled maintenance window to avoid supply delays.
