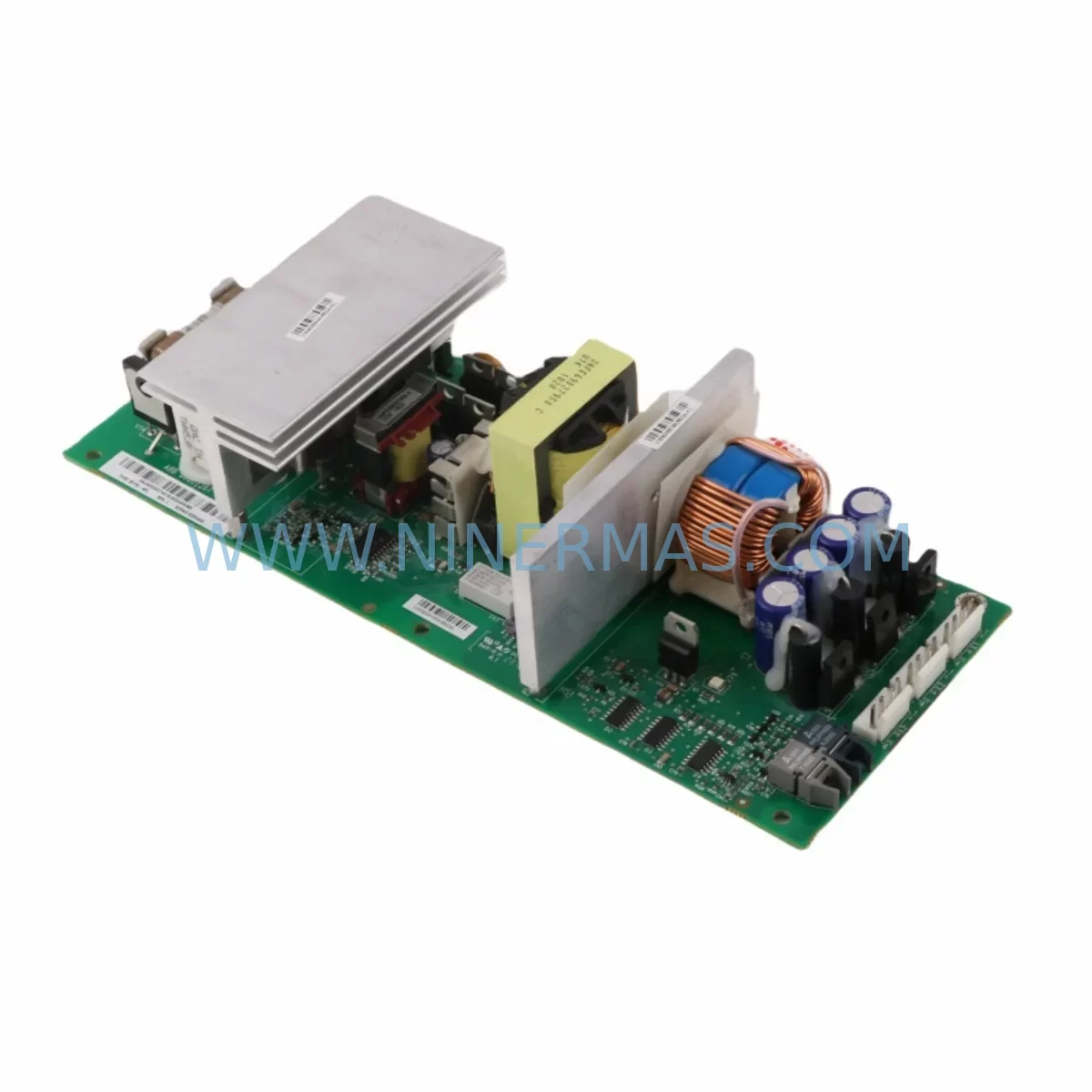

The ABB BFPS-95C (part number 3AXD50000043370) is a brake chopper and power supply unit designed for use within the ABB ACS880 industrial drive platform. As legacy automation systems age and original spare parts reach end-of-life, the BFPS-95C has become a critical retrofit component for engineers tasked with modernizing existing control cabinets, extending the operational life of installed drive systems, and replacing discontinued brake modules without requiring a full drive replacement.

This unit is engineered to integrate into existing ACS880 drive frames, providing regenerative braking energy dissipation through an external brake resistor. Its retrofit value lies in its dimensional compatibility with legacy ACS880 cabinet layouts, its support for standard DC bus connections, and its ability to restore full braking functionality to drives where the original brake chopper has failed or been discontinued from active production.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit involving the BFPS-95C 3AXD50000043370, the scope of work typically extends beyond the brake unit itself. Engineers working on ACS880-based control cabinets must assess the full drive system to ensure a smooth transition. The ACS880 control unit — often the ZCON or ZINT board — must be confirmed as compatible with the installed firmware version, since brake chopper enable logic and fault response behavior can vary across firmware releases.

In multidrive configurations, the BFPS-95C connects to a shared DC bus supplied by an ACS880 supply unit (ISU). Before installation, the DC bus voltage level, pre-charge relay status, and bus capacitor condition should all be verified. If the existing supply unit or inverter unit modules have also reached end-of-life, it is common to source replacement ACS880 inverter units and ACS880 supply units alongside the BFPS-95C to complete a comprehensive cabinet refresh in a single planned outage.

I/O wiring is another critical area. The BFPS-95C interfaces with the drive’s control wiring through the cabinet’s terminal block layout. Technicians should document existing terminal assignments — particularly the brake resistor thermal switch input, the brake chopper enable signal, and any fault relay outputs — before disconnecting the old module. In many legacy installations, these signals are routed through a DIN rail-mounted signal isolator or relay module, which should be inspected for condition and replaced if degraded.

For cabinets that also include an ACS880 I/O extension module (such as an FIO-01 or FDIO-01 option board), the I/O mapping should be reviewed in the drive’s parameter list before the retrofit. If the control program running on the ACS880’s application controller references brake chopper status signals, the program logic should be backed up using Drive Composer or a compatible programming cable before any hardware is disturbed. This protects the existing application logic and allows rapid restoration if commissioning reveals unexpected behavior.

In installations where the ACS880 communicates with a PLC or DCS via a fieldbus adapter — such as an FPBA-01 PROFIBUS adapter, an FENA-21 EtherNet/IP adapter, or an FSCA-01 CANopen module — the communication link should remain active and monitored during the retrofit window where possible. If the drive must be powered down completely, the PLC program should be placed in a safe hold state and the HMI screens updated to reflect the maintenance status, preventing operator confusion during the outage.

Physical installation space must also be confirmed. The BFPS-95C has specific frame dimensions, and the replacement unit must fit within the existing cabinet cutout without modification. If the cabinet also houses an ACS880 brake resistor mounted internally, the resistor’s thermal class and wattage rating must be re-verified against the BFPS-95C’s chopper current rating to prevent thermal overload during high-cycle braking applications.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any industrial retrofit involving a brake chopper replacement. For the BFPS-95C 3AXD50000043370, a structured pre-outage preparation process is essential. Before the scheduled maintenance window, the replacement unit should be bench-tested where possible, confirming that the module powers up correctly and that the brake chopper IGBT gate drive circuit responds as expected under a controlled DC bus simulation.

The existing ACS880 drive parameters should be exported using Drive Composer prior to shutdown. This parameter backup preserves motor control tuning, brake chopper threshold settings, fault response configurations, and any application-specific parameter sets. If the drive is running a custom application program on the ACS880 application controller, a full program backup should also be saved to a laptop or USB drive before the cabinet is de-energized.

During the physical swap, the DC bus must be fully discharged before the BFPS-95C is disconnected. ACS880 drives retain dangerous DC bus voltage for several minutes after mains power is removed — always verify bus voltage with a calibrated meter before touching internal connections. Once the old module is removed and the replacement BFPS-95C is installed, the DC bus connections, brake resistor terminals, and control wiring should be torqued to specification and inspected visually before power is restored.

After power-up, the ACS880 should be brought online in local control mode first, with the brake chopper function enabled and tested under a controlled deceleration cycle before returning the drive to remote or fieldbus control. This staged commissioning approach protects the original program logic, confirms hardware integrity, and allows the maintenance team to verify braking performance before resuming production. With proper preparation, a BFPS-95C replacement can typically be completed within a planned four-to-eight-hour maintenance window, keeping production disruption to a minimum.

Retrofit Support FAQ

Q: Is the ABB BFPS-95C 3AXD50000043370 a direct replacement for the original brake chopper in my ACS880 cabinet?
A: In most ACS880 frame configurations, yes. The BFPS-95C is designed as a compatible replacement for the brake chopper and power supply function within the ACS880 drive system. However, you should confirm the frame size, DC bus voltage rating, and brake resistor specifications match your existing installation before ordering. Our team can assist with compatibility verification based on your drive nameplate data.

Q: What pre-shipment testing is performed on the BFPS-95C before delivery?
A: Each unit undergoes a functional pre-shipment test covering power-up integrity, gate drive circuit verification, and DC bus interface continuity. Units are shipped with a test record and are covered by a 12-month warranty against manufacturing defects from the date of delivery.

Q: Can I reuse my existing brake resistor with the replacement BFPS-95C?
A: Yes, provided the existing brake resistor’s resistance value and power rating are within the BFPS-95C’s specified operating range. If the resistor has been in service for an extended period or shows signs of thermal stress, replacement is recommended to ensure reliable braking performance and to protect the new chopper module.

Q: How quickly can the BFPS-95C 3AXD50000043370 be shipped, and is stock available?
A: We maintain inventory of the BFPS-95C 3AXD50000043370 to support urgent retrofit and breakdown replacement requirements. Lead times and stock availability can be confirmed by contacting our sales team directly. Standard orders are processed promptly, and expedited shipping options are available for critical production situations.
