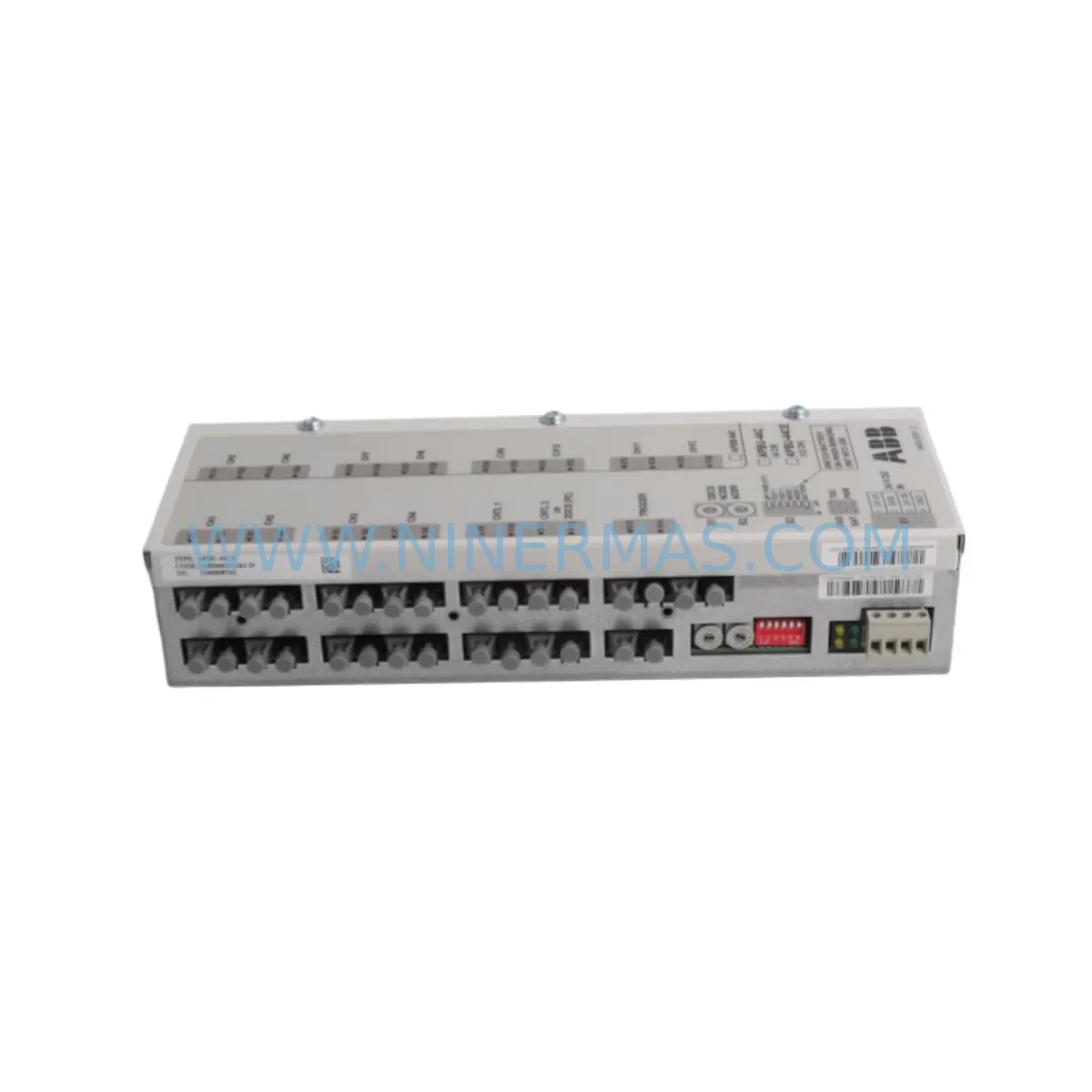

The ABB APBU-44CE (part number 3ABD68243262-D) is an original-specification gate driver and protection PCB board designed for ABB ACS800 series variable frequency drives. In industrial maintenance environments where drive availability directly impacts production throughput, holding a verified spare of the APBU-44CE is a fundamental risk-mitigation measure. This board governs IGBT gate firing, overcurrent protection, and fault signal routing — functions that are non-negotiable for safe and continuous drive operation. When this board fails, the drive is immediately non-functional, making rapid like-for-like replacement the only path to restoring output without extended downtime.

Maintenance engineers working on ACS800-series cabinets recognize the APBU-44CE as a high-criticality component. Its failure modes — including gate signal loss, nuisance overcurrent trips, and asymmetric phase firing — are often misdiagnosed at the drive level before the board is correctly identified as the root cause. Stocking a pre-tested replacement eliminates diagnostic delay and allows a direct swap during the next planned or emergency maintenance window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the APBU-44CE in an ACS800 drive is rarely an isolated event. Experienced maintenance engineers treat a gate driver board failure as a signal to inspect the broader drive assembly and associated cabinet components. During the same maintenance window, the following components should be evaluated to prevent repeat failures and ensure the drive returns to full operational health:

The AINT-02C or AINT-14C auxiliary interface board shares the same internal bus and should be checked for communication integrity after any gate driver fault. The RDCU-02C drive control unit manages fault logging and parameter storage — verify that no corrupted parameters contributed to the original board failure. Inspect the APOW-01C power supply board for output voltage stability, as undervoltage conditions are a known stressor for gate driver circuits. The IOEC-04 I/O extension module and associated terminal blocks should be checked for loose connections that may have caused intermittent fault signals prior to board failure.

On the power side, review the DC bus capacitor bank for capacitance degradation, particularly in drives with more than five years of service. Check the main contactor and pre-charge resistor circuit for wear, as repeated drive faults accelerate contactor contact erosion. The brake chopper module (if installed) should be tested independently, as a failing chopper can generate voltage spikes that stress gate driver boards. Inspect all fiber optic gate signal cables connecting the APBU-44CE to the IGBT modules — contaminated or bent fibers are a common cause of gate signal degradation that is often overlooked during board-level diagnostics.

For cabinet-level inspection, verify the cooling fan assembly and airflow path: thermal stress is the leading cause of PCB component degradation in enclosed drive cabinets. Check the EMC filter and input line reactor for signs of overheating or insulation breakdown. If the drive communicates via fieldbus, confirm that the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module is functioning correctly after the board swap, as communication faults can mask underlying hardware issues. Finally, review the ACS800 firmware version on the RDCU control unit — outdated firmware has known compatibility issues with replacement hardware revisions.

Site Replacement Workflow

Replacing the APBU-44CE 3ABD68243262-D follows a structured sequence to minimize downtime and ensure system compatibility:

1. Isolation and lockout: De-energize the ACS800 drive and follow full LOTO (Lockout/Tagout) procedure. Allow the DC bus to fully discharge — verify with a calibrated multimeter before opening the drive enclosure.

2. Documentation: Photograph the existing board orientation, fiber optic cable routing, and connector positions before removal. Record the drive’s current parameter set via the ACS800 control panel or DriveStudio software if accessible.

3. Board removal: Disconnect fiber optic gate cables and board connectors in sequence. Remove the APBU-44CE from its mounting position, noting any thermal interface material condition.

4. Replacement installation: Install the new APBU-44CE 3ABD68243262-D, reconnect all fiber optic cables and board connectors per the documented positions. Verify that the revision suffix (-D) matches the drive’s hardware generation to confirm compatibility.

5. Power-up and verification: Re-energize the drive and monitor the ACS800 fault log for any residual fault codes. Run a no-load test cycle before returning the drive to full production load. Confirm gate signal symmetry across all phases if test equipment is available.

This workflow supports a target replacement time of under two hours for a prepared maintenance team, significantly reducing the mean time to repair (MTTR) compared to sourcing a replacement board reactively during an unplanned outage.

Spare Parts Support FAQ

Q: Is the APBU-44CE 3ABD68243262-D compatible with all ACS800 drive variants?
A: The APBU-44CE is designed for the ACS800 series. Compatibility depends on the specific drive frame size and hardware revision. The -D suffix indicates a specific revision level — confirm your drive’s existing board revision before ordering to ensure a direct replacement. Our team can assist with compatibility verification based on your drive nameplate data.

Q: What pre-shipment testing is performed on this board?
A: Each APBU-44CE unit undergoes functional verification prior to dispatch, including power-on checks and gate signal output confirmation. This process is designed to ensure the board is service-ready upon arrival, reducing the risk of installing a non-functional spare during a critical maintenance window.

Q: What is the warranty coverage and what does it include?
A: This spare part is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range.

Q: Can I place a standing order or reserve stock for long-term maintenance planning?
A: Yes. For maintenance teams managing multiple ACS800 drives or planning annual overhaul schedules, we support volume orders and long-term supply arrangements. Contact our team at sale@ninermas.com to discuss inventory reservation, lead time commitments, and pricing for multi-unit procurement.
