Beijer 02640E Service-Ready Spare Part for Industrial Maintenance

Beijer 02640E Service-Ready Spare Part for Industrial Maintenance

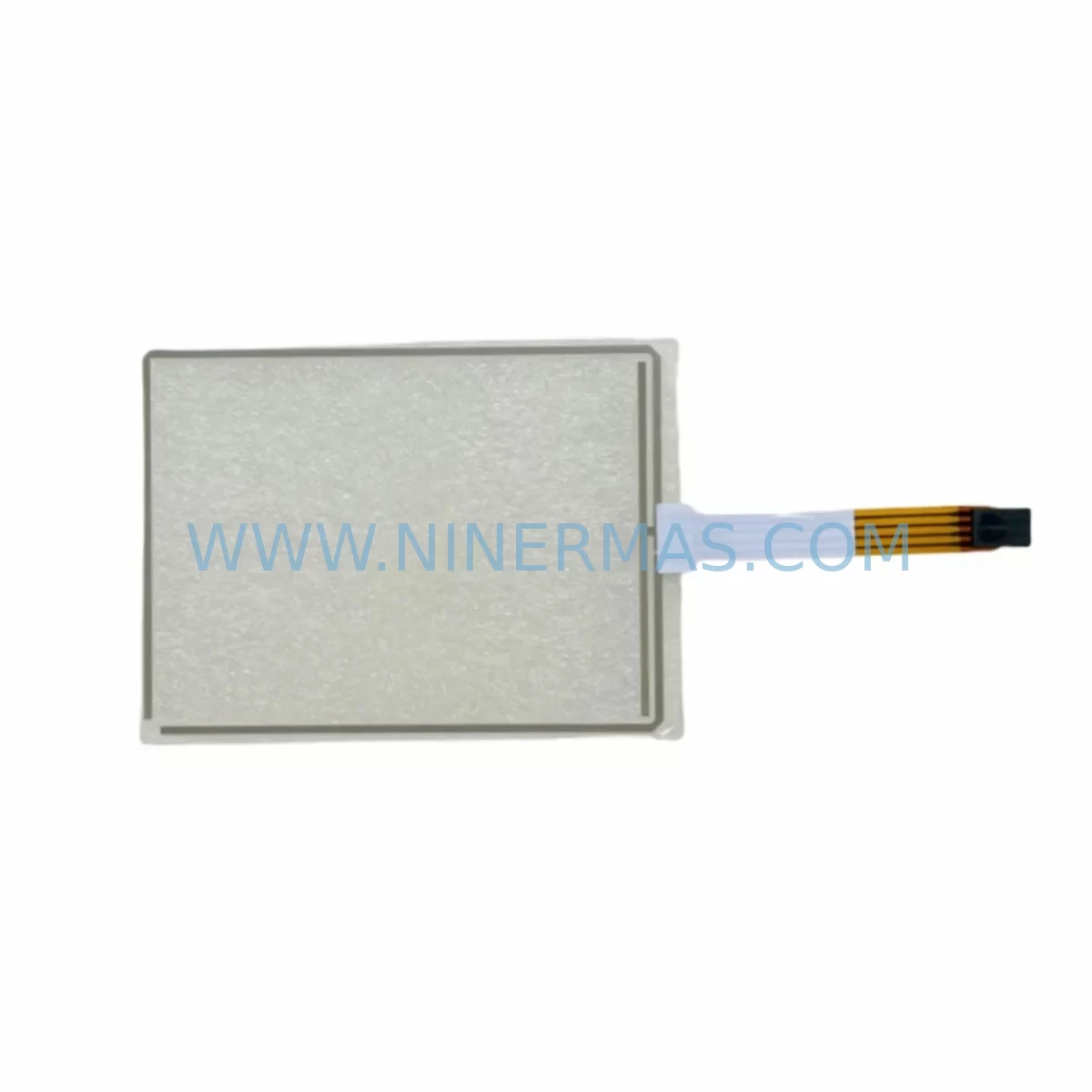

The Beijer Electronics 02640E is a ruggedized HMI touch panel module engineered for demanding industrial environments. For maintenance engineers managing aging control systems, securing a verified service-ready spare of the 02640E is a critical step in any downtime prevention strategy. Whether you are responding to an unplanned panel failure on a production line or building a proactive spare parts inventory ahead of an annual shutdown, the 02640E must be sourced from a supplier who can confirm original manufacture, pre-shipment testing, and long-term availability.

At NINERMAS, every 02640E unit is verified against original Beijer Electronics specifications before dispatch. Each spare is covered by a 12-month warranty and ships with full documentation to support your incoming inspection and installation records. For procurement engineers managing multi-site MRO budgets, our stock availability and lead-time transparency reduce the sourcing risk associated with end-of-life or low-volume HMI components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 02640E HMI panel fails or shows early degradation symptoms — such as unresponsive touch zones, display flickering, or loss of operator communication — the replacement window is narrow. In most industrial facilities, the HMI is the primary interface between the operator and the underlying PLC or DCS logic. A failed panel can halt production even when the control logic itself remains fully functional.

Experienced maintenance engineers know that replacing the 02640E in isolation is rarely sufficient for a complete cabinet restoration. During the same intervention, it is best practice to inspect and, where necessary, replace adjacent components that share the same electrical circuit or communication bus. The following components are commonly reviewed alongside the 02640E during a scheduled or emergency cabinet inspection:

• Beijer E1071 / E1101 HMI Panels — Sibling models in the E1000 Series; stocking one as a cross-compatible backup reduces panel-down risk across multi-machine installations.
• 24 VDC DIN-Rail Power Supply Units — The 02640E operates on 24 VDC. A degraded or undersized PSU is a common root cause of intermittent HMI resets and touch errors. Verify output voltage stability under load before commissioning the replacement panel.
• Ethernet Communication Modules — Where the 02640E is networked to a SCADA or MES layer, the associated Ethernet switch port, patch cable, and any media converter in the cabinet should be inspected for signal integrity.
• Serial Communication Cables (RS-232 / RS-485) — Legacy E1000 installations frequently use serial links to PLCs. Damaged or aged serial cables are a leading cause of HMI communication faults that are misdiagnosed as panel failures.
• I/O Expansion Modules — If the 02640E interfaces with discrete or analogue I/O modules on the same backplane or communication loop, verify module status and wiring integrity during the replacement procedure.
• Relay Output Modules — Control cabinets housing the 02640E often include relay modules for motor starter or valve control. Inspect relay coil resistance and contact condition as part of the annual maintenance cycle.
• Terminal Blocks and Wiring Ferrules — Loose or corroded terminal connections are a frequent source of intermittent faults in harsh-environment cabinets. Re-torque all terminals in the HMI power and signal circuit during the panel swap.
• Signal Isolators and Surge Protectors — In environments with high electrical noise (variable frequency drives, welding equipment, large motors), signal isolators on analogue inputs and surge protection on communication lines protect the replacement HMI from premature failure.
• Fuse Holders and Miniature Circuit Breakers — Confirm that the 24 VDC supply fuse or MCB protecting the HMI circuit is correctly rated and shows no signs of thermal stress or nuisance tripping history.
• Backplane Connectors and Cabinet Ventilation Filters — Dust accumulation on backplane connectors and blocked ventilation filters elevate operating temperatures, accelerating component aging. Clean or replace filters at every scheduled HMI maintenance interval.

Building a structured spare parts kit that includes the 02640E alongside these supporting components allows maintenance teams to execute a full cabinet restoration in a single planned outage, rather than returning to the line multiple times as secondary failures emerge.

Site Replacement Workflow

Replacing the Beijer Electronics 02640E on-site follows a structured sequence that minimises downtime and ensures system compatibility is maintained throughout the intervention.

Step 1 — Pre-Replacement Verification: Before removing the existing panel, confirm the replacement unit’s part number matches the installed 02640E exactly. Verify firmware version compatibility with the connected PLC or DCS. Download and archive the current HMI project file from the existing panel if it remains accessible.

Step 2 — Safe Isolation: Isolate the 24 VDC supply to the HMI circuit using the dedicated MCB or fuse holder. Apply lockout/tagout (LOTO) procedures in accordance with site safety standards. Allow capacitors to discharge before disconnecting communication cables.

Step 3 — Physical Removal: Disconnect serial or Ethernet communication cables, labelling each connector for reinstallation. Release the panel mounting clamps from the rear of the cabinet cut-out. Remove the 02640E carefully to avoid damage to the panel gasket and surrounding cabinet surfaces.

Step 4 — Inspection and Cleaning: Inspect the cabinet cut-out gasket, wiring harness, and terminal connections. Clean the mounting surface. This is the optimal moment to replace any degraded components identified during the maintenance planning phase.

Step 5 — Installation of Replacement Unit: Mount the new 02640E into the panel cut-out, ensuring the gasket seats correctly for IP65 integrity. Reconnect all communication and power cables in the correct sequence. Restore 24 VDC supply.

Step 6 — Commissioning and Functional Test: Power on the panel and confirm display initialisation. Reload the archived HMI project file. Perform a full touch calibration. Test all operator screens, alarm acknowledgements, and communication links to the PLC or DCS before returning the system to production.

This workflow applies equally to planned annual maintenance replacements and emergency unplanned interventions. Having a pre-tested, in-stock 02640E spare eliminates the sourcing delay that typically extends unplanned downtime from hours to days.

Spare Parts Support FAQ

Q1: Is the 02640E still available as a new original spare, or only as a refurbished unit?
NINERMAS supplies the 02640E as an original spare part sourced through authorised industrial distribution channels. Each unit undergoes pre-shipment functional testing. Where new stock is available, it is clearly indicated. Refurbished units, when offered, are fully disclosed and carry the same 12-month warranty with documented test records.

Q2: How do I confirm compatibility between the 02640E and my existing E1000 Series installation?
Compatibility is confirmed by matching the full part number (02640E) against your existing panel label and the Beijer Electronics E1000 Series hardware documentation. If your installation uses a specific firmware version or communication protocol configuration, share your system details with our technical team at sale@ninermas.com and we will verify compatibility before shipment.

Q3: What is included in the 12-month warranty and what does the pre-shipment test cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on verification, touch panel response check, display uniformity inspection, and communication port continuity. A test report is available upon request and can be included with the shipment documentation for your incoming quality inspection records.

Q4: Can NINERMAS support long-term supply of the 02640E for multi-year maintenance contracts?
Yes. NINERMAS specialises in long-term spare parts supply for industrial automation components, including end-of-life and low-volume HMI modules. We maintain forward stock positions on high-demand Beijer Electronics spares and can discuss annual supply agreements, consignment stock arrangements, and priority allocation for customers with multi-site maintenance programmes. Contact our procurement team to discuss your long-term supply requirements.
