ABB AI930S 3KDE175511L9300 Retrofit-Compatible HART Analog Input

ABB AI930S 3KDE175511L9300 Retrofit-Compatible HART Analog Input for Legacy Systems

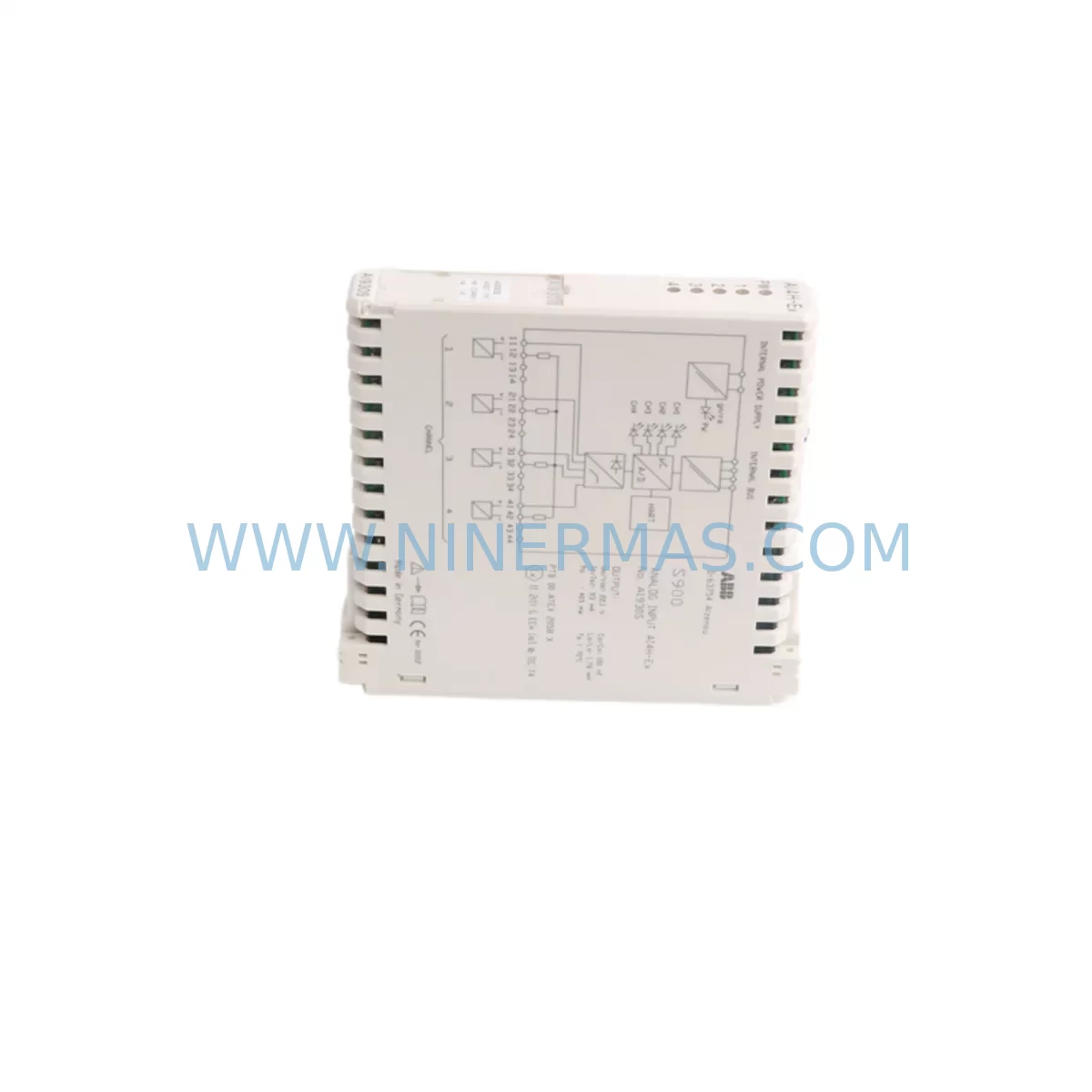

The ABB AI930S 3KDE175511L9300 is a ruggedized HART-enabled analog input module engineered for demanding industrial environments and designed to serve as a reliable retrofit solution for aging or discontinued control system components. As automation infrastructure ages across petrochemical plants, power generation facilities, water treatment stations, and continuous manufacturing lines, the need for verified, drop-in compatible replacements becomes critical. The AI930S 3KDE175511L9300 addresses this need directly — offering full compatibility with the ABB AC500 platform while meeting the mechanical and electrical requirements of legacy panel layouts.

Whether you are replacing a failed module in an existing rack, upgrading a control cabinet to extend its operational life, or migrating from an older ABB S500 I/O generation, the AI930S provides a structured path forward. Its ruggedized housing tolerates high-vibration, high-humidity, and thermally stressed environments, making it suitable for field cabinets and remote I/O stations where standard modules may fail prematurely.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading a HART analog input module in a live or recently decommissioned control system requires careful pre-installation planning. The ABB AI930S 3KDE175511L9300 fits directly into the AC500 S900 I/O backplane, but engineers should verify several key parameters before committing to the swap.

Power Budget Verification: The AI930S draws power from the S900 backplane bus. Before installation, confirm that the existing ABB AC500 power supply module — such as the PS501 or PS502 series — has sufficient headroom to support the additional channel load, particularly if HART communication is active on all 8 channels simultaneously. Overloaded backplane power supplies are a common cause of intermittent module faults during retrofit projects.

Terminal Wiring and Field Cable Compatibility: The AI930S uses a standard S900 I/O terminal block arrangement. In most legacy installations, existing field cables can be reconnected directly. However, if the original installation used an older ABB TB82 or TB52 terminal base, verify that the terminal pitch and locking mechanism match the AI930S footprint. In some cases, a terminal adapter plate may be required to bridge older wiring harnesses to the new module without re-pulling cables.

Backplane Slot and Module Address: The AI930S must be assigned the correct I/O module address within the AC500 configuration. This is done through ABB Automation Builder, the engineering software used for AC500 PLC programming and hardware configuration. If the replacement module occupies the same physical slot as the failed unit, the address assignment is typically preserved — but always verify the hardware configuration file matches the physical rack layout before going live.

HART Communication Link Integrity: After installation, use a HART communicator or HART-capable asset management software to verify that each channel is correctly communicating with its field transmitter. Common issues during retrofit include incorrect HART polling addresses, shielding discontinuities introduced during re-wiring, and ground loops caused by mixing old and new cable runs. An ABB HART multiplexer or compatible HART gateway can assist in bulk channel verification without requiring individual handheld checks.

Program Logic and HMI Screen Compatibility: If the AI930S is replacing a module with a different channel count or signal scaling, the PLC program logic — particularly analog scaling blocks and alarm setpoints — must be reviewed. HMI screens built on ABB CP600 or CP400 operator panels that display analog values from these channels should also be checked to confirm that tag addresses and engineering unit conversions remain valid after the module swap.

Signal Isolation and EMI Protection: In high-EMI environments such as motor control centers or variable frequency drive (VFD) cabinets, consider installing signal isolators or HART-transparent barriers between the AI930S input terminals and field transmitters. This protects the module from conducted interference and prevents HART signal degradation caused by capacitive loading from long cable runs. Products such as ABB HART signal conditioners or equivalent DIN-rail mounted isolators are commonly used in this configuration.

I/O Expansion During Retrofit: If the retrofit project also involves expanding the number of analog input channels — for example, to accommodate new transmitters added during a process upgrade — the AI930S can be paired with additional ABB S900 I/O expansion modules on the same backplane. Ensure the backplane coupler and communication cable between the AC500 CPU and the remote I/O station support the expanded module count.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any retrofit or module replacement project. The ABB AI930S 3KDE175511L9300 supports a structured hot-swap approach when used within an AC500 system configured for redundant or fault-tolerant I/O operation. For non-redundant systems, the following practices help reduce exposure time during the changeover:

Pre-Stage the Replacement Module: Before removing the failed or obsolete module, configure the AI930S in Automation Builder offline and verify the hardware configuration matches the target slot. Export the configuration and have it ready for download immediately after physical installation. This eliminates the engineering delay that often extends maintenance windows.

Document Existing Wiring Before Disconnection: Photograph or sketch the terminal wiring of the existing module before removal. Even when field cables are labeled, terminal positions can shift during previous maintenance activities. A wiring record prevents reconnection errors that cause signal faults or, in worst cases, process upsets.

Preserve Original Program Logic: Upload and archive the current PLC program from the AC500 CPU before beginning the retrofit. If the replacement module introduces any hardware configuration changes — even minor ones — the CPU may request a program download after the new hardware is detected. Having the archived program ready ensures the correct logic version is restored without delay.

Staged Commissioning: After installation, bring analog input channels online one at a time, verifying signal values against known process conditions or calibrated test sources before enabling control loops. This staged approach catches wiring errors or scaling mismatches before they affect process control, and it allows the operations team to confirm stable readings without interrupting production on unaffected loops.

Inventory Buffer for Critical Sites: For facilities where the AI930S is used across multiple racks or control stations, maintaining a small on-site spare inventory is strongly recommended. NINERMAS holds stock of the AI930S 3KDE175511L9300 and can support rapid replenishment orders to keep your site buffer current. All units are dispatched with pre-shipment functional test documentation and covered by a 12-month warranty.

Retrofit Support FAQ

Q1: Is the ABB AI930S 3KDE175511L9300 a direct replacement for older ABB S900 analog input modules?
A: Yes. The AI930S 3KDE175511L9300 is designed as a ruggedized, retrofit-compatible replacement for legacy ABB S900 I/O analog input modules used in AC500-based control systems. It occupies the same backplane slot and uses the same terminal block arrangement as earlier S900 analog input variants. Minor firmware or address configuration steps may be required via ABB Automation Builder, but no panel modifications or cable re-pulling are typically needed.

Q2: What pre-shipment testing is performed on each unit?
A: Every ABB AI930S 3KDE175511L9300 unit shipped by NINERMAS undergoes a full functional test prior to dispatch. This includes channel-by-channel signal integrity verification, HART communication handshake confirmation, and backplane interface continuity checks. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the AI930S be used in systems running older ABB AC500 firmware versions?
A: The AI930S is compatible with AC500 systems running current and recent firmware versions supported by ABB Automation Builder. For systems running significantly older firmware, we recommend verifying the hardware compatibility matrix in the ABB AC500 system manual or contacting your ABB regional support team before installation. NINERMAS can provide technical documentation to assist with compatibility verification.

Q4: What is the lead time and warranty coverage for the AI930S 3KDE175511L9300?
A: The ABB AI930S 3KDE175511L9300 is available from NINERMAS stock for immediate dispatch. Standard lead time is 3–7 business days depending on destination. All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Long-term supply agreements and blanket orders are available for customers requiring ongoing retrofit support across multiple sites.
