ABB AI835A Service-Ready Spare Part for Industrial Maintenance

ABB AI835A Service-Ready Spare Part for Industrial Maintenance

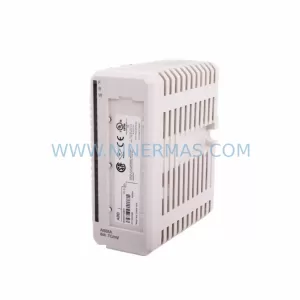

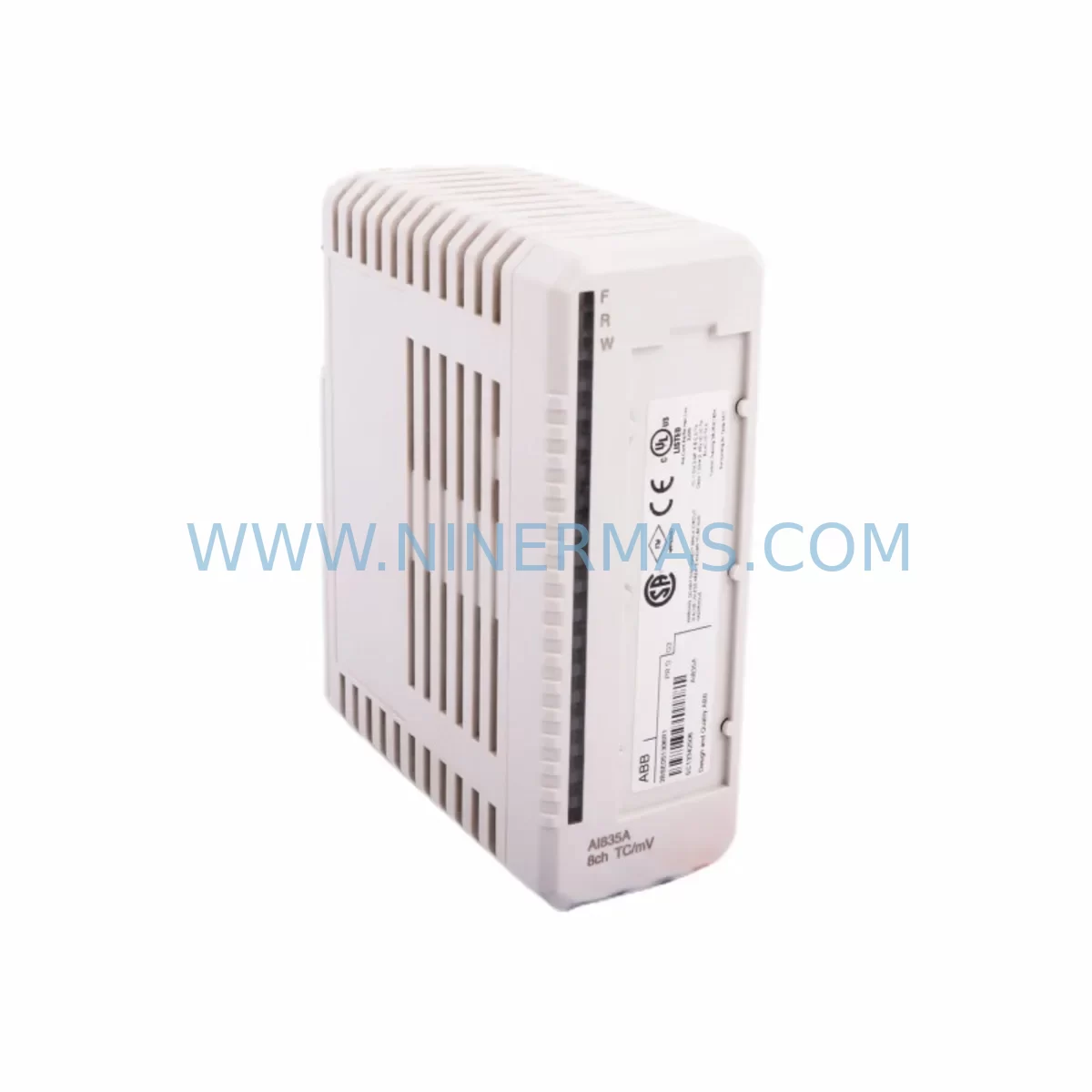

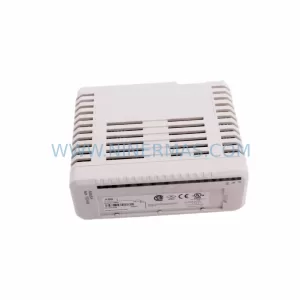

The ABB AI835A is an original analog input module designed for the ABB S800 I/O series, widely deployed in process automation, DCS control systems, and continuous manufacturing environments. As a critical field-bus connected I/O module, the AI835A handles analog signal acquisition from field instruments including pressure transmitters, flow meters, temperature sensors, and level gauges. When this module fails or degrades, the consequences extend beyond a single measurement point — entire control loops can be disrupted, triggering unplanned shutdowns and costly production losses.

At NINERMAS, we supply the ABB AI835A as a service-ready, tested spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to ensure it meets original ABB specifications before leaving our warehouse. Whether you are building a preventive maintenance stock, responding to an emergency breakdown, or planning an annual overhaul, the AI835A we supply is ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB AI835A in a live control cabinet requires a structured approach that goes beyond swapping the module itself. Maintenance engineers and procurement teams should treat this replacement as an opportunity to inspect and validate the health of the surrounding system components to prevent repeat failures and extend the operational life of the control architecture.

Before installing the new AI835A, verify the integrity of the S800 I/O backplane or carrier module (such as the TB820 or TB840 Modulebus Modem) that the AI835A mounts onto. A damaged or corroded backplane connector is a common root cause of repeated module failures that goes undetected until the replacement unit also fails. Similarly, inspect the 24 VDC power supply module feeding the I/O station — units like the ABB SD831 or SD832 power supply modules should be checked for output voltage stability and ripple, as undervoltage conditions can corrupt analog readings and damage input circuitry.

On the field wiring side, inspect the terminal units and signal cables connected to the AI835A’s input channels. Loose terminations, corroded screw terminals, or shielding breaks in the 4–20 mA signal cables will introduce noise and measurement drift even after the module is replaced. If the plant uses signal isolators or signal conditioners between field instruments and the I/O module, these should be tested for output accuracy — a failing isolator can mimic a faulty input module and lead to misdiagnosis.

For systems running on ABB AC800M controllers paired with the S800 I/O, also review the CI854 or CI858 PROFIBUS communication interface modules that link the controller to the I/O station. Communication faults at this level can cause the AI835A to appear offline even when the module itself is healthy. Checking the PROFIBUS cable termination resistors and bus topology is a low-cost step that prevents unnecessary module replacements.

Procurement engineers building a spare parts inventory around the AI835A should also consider stocking the ABB AO845A analog output module and the DI810 or DI811 digital input modules from the same S800 I/O family, as these are frequently co-located in the same I/O station and subject to similar environmental stresses. For plants running ABB Symphony Plus or AC800F controller platforms, the FI830F fieldbus interface module and associated FOUNDATION Fieldbus segment couplers should be included in the annual inspection checklist alongside the AI835A.

Finally, if the AI835A is installed in a cabinet that also houses ABB REF615 or REM615 protection relays, or any SACE Emax circuit breakers with electronic trip units, ensure these devices are also inspected during the same maintenance window. Shared cabinet environments mean that a power quality event that damages one module may have stressed adjacent protection and switching equipment as well.

Site Replacement Workflow

Replacing the ABB AI835A on-site is a straightforward process when the correct spare is available and the replacement procedure is followed systematically. Begin by documenting the current channel configuration and engineering unit scaling stored in the controller — this data is essential for restoring accurate measurements after the new module is installed. Use the ABB Control Builder or Symphony Plus engineering tools to export the I/O configuration before powering down the station.

With the I/O station de-energized, remove the faulty AI835A by releasing the module locking mechanism and sliding it out of the carrier. Inspect the carrier connector pins for damage or contamination before inserting the replacement unit. The new AI835A should be inserted firmly until the locking tab engages. Re-energize the station and verify that the module status LED indicates normal operation before re-enabling the associated control loops in the DCS.

For sites migrating from older ABB S800 I/O variants or from legacy Advant OCS I/O systems, the AI835A provides a compatible upgrade path that preserves existing field wiring and carrier infrastructure. This reduces migration cost and downtime compared to full I/O station replacements, making the AI835A a preferred choice for old system life extension projects where capital expenditure must be minimized while maintaining process reliability.

NINERMAS ships the AI835A with a pre-shipment test report confirming channel-by-channel analog accuracy verification. This documentation supports your incoming inspection process and provides traceability for maintenance records and audit requirements.

Spare Parts Support FAQ

Q1: Is the AI835A you supply an original ABB product or a compatible replacement?
All AI835A units supplied by NINERMAS are original ABB manufactured modules — not third-party compatible alternatives. We source from authorized distribution channels and verified surplus inventories. Each unit is inspected and tested before shipment to confirm it meets ABB’s original performance specifications.

Q2: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty on all AI835A units from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we will provide a replacement or full refund after technical review. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling on-site.

Q3: Can the AI835A be used as a direct replacement for older S800 I/O analog input variants?
In most cases, yes. The AI835A is designed to be backward compatible with standard S800 I/O carrier modules and backplane infrastructure. However, compatibility should always be confirmed against your specific system revision and controller firmware version. NINERMAS technical support can assist with compatibility verification before purchase if you provide your system configuration details.

Q4: How quickly can you ship, and do you support long-term supply agreements?
In-stock AI835A units ship within 1–3 business days from our warehouse. For customers with ongoing maintenance programs or annual overhaul schedules, NINERMAS offers long-term supply agreements that guarantee stock availability and fixed pricing over a defined contract period. Contact our sales team to discuss a supply arrangement tailored to your maintenance calendar.
