ABB TB807 3BSE008538R1 Retrofit-Compatible Modulebus Terminator

ABB TB807 3BSE008538R1 Retrofit-Compatible Modulebus Terminator for Legacy Systems

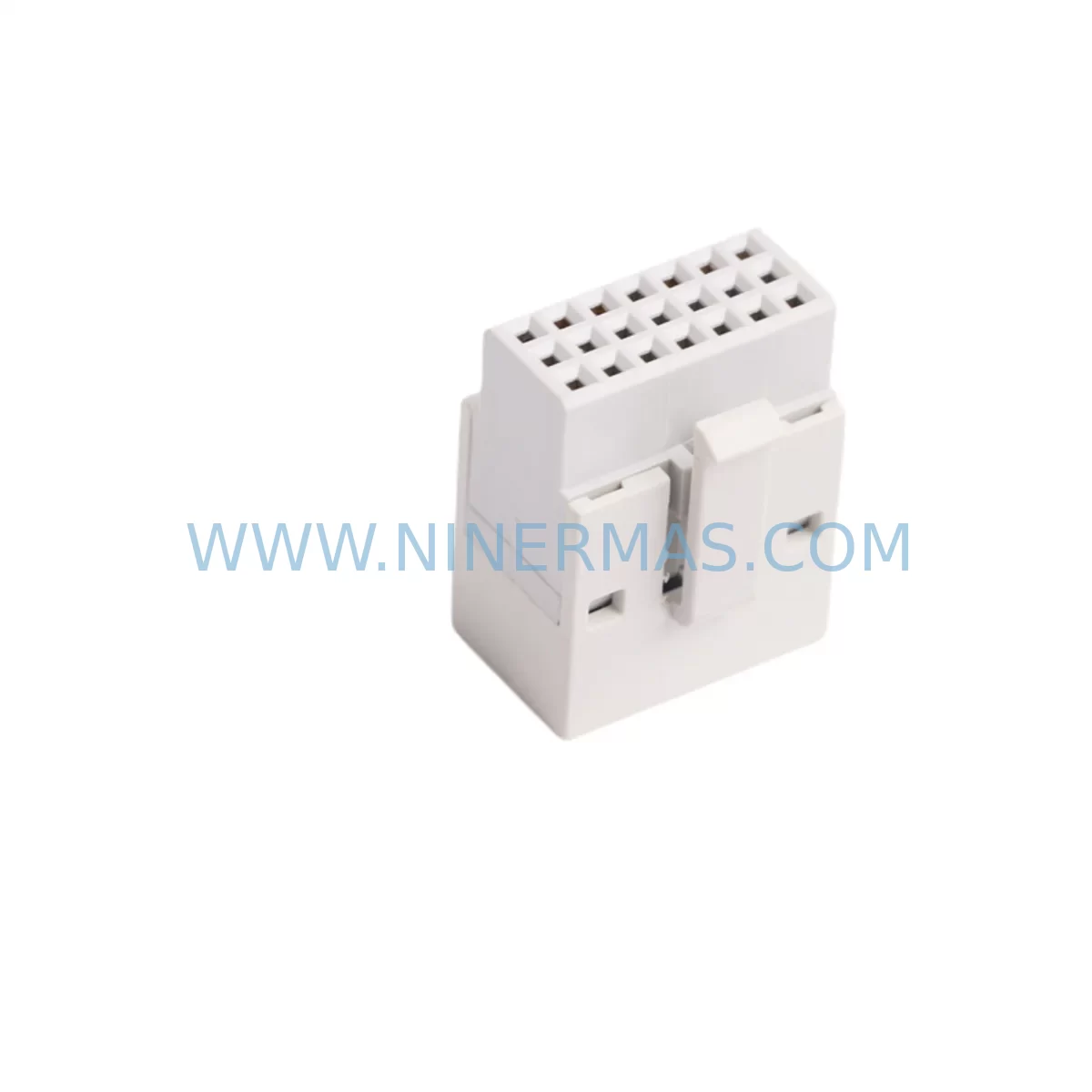

The ABB TB807 (3BSE008538R1) is a Modulebus Terminator designed for use within ABB’s S800 I/O system, commonly deployed alongside the AC800M process controller platform. As industrial facilities face the challenge of maintaining aging distributed control systems (DCS) and programmable logic controller (PLC) architectures, the TB807 plays a critical role in sustaining Modulebus communication integrity during both ongoing operations and phased system modernization projects.

In legacy automation environments, the Modulebus terminator is often overlooked until a communication fault or I/O dropout event triggers an unplanned shutdown. The TB807 terminates the Modulebus segment correctly, preventing signal reflection that can corrupt data exchange between the S800 I/O modules — such as the AI810, AO810, DI810, and DO810 — and the controller backplane. When retrofitting older control cabinets or expanding existing I/O racks, ensuring the correct terminator is installed at both ends of the Modulebus segment is a non-negotiable step in the commissioning checklist.

For facilities running mixed-generation ABB hardware — for example, integrating newer S800 I/O modules into a rack originally built around the TB810 Modulebus Optical Port or TB811 Modulebus Optical Port (Extended) — the TB807 must be verified for correct placement. Incorrect or missing termination is a common root cause of intermittent I/O faults that are difficult to diagnose without a full segment audit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit of an ABB-based control system, the TB807 is typically addressed during the I/O segment audit phase. Engineers must map each Modulebus segment, confirm the number of I/O modules per cluster, and verify that a terminator is correctly installed at the far end of each segment. In many aging plants, the original TB807 units have been in service for over a decade and may show signs of connector wear or physical damage from vibration and thermal cycling in harsh industrial environments.

A typical S800 I/O retrofit project involves replacing or requalifying the TB820 ModuleBus Modem or TB840 Redundant ModuleBus Modem alongside the terminator. If the project also involves migrating from a single-controller to a redundant AC800M architecture using PM864 or PM866 controller modules, the Modulebus topology must be re-validated from scratch. This includes confirming that the TB807 is correctly positioned at the end of each extended I/O cluster, particularly when TB811 optical extenders are used to bridge physical distance between cabinets.

Control cabinet upgrades often involve replacing aging SD802 24VDC Power Supply or SD803 24VDC Redundant Power Supply units that feed the S800 I/O racks. Before installing a new TB807, engineers should confirm that the rack power budget accommodates all installed I/O modules, as an undersized power supply can cause intermittent module resets that mimic termination faults. Terminal block wiring should also be inspected — particularly on TB805 or TB806 I/O terminal units — to ensure that signal wiring is correctly landed and that no cross-wiring from a previous configuration remains active.

For projects involving communication protocol migration — for example, transitioning field devices from HART to PROFIBUS or integrating a new CI854 PROFIBUS DP/V1 Communication Interface — the Modulebus segment carrying the I/O data must remain stable throughout the migration window. A correctly terminated TB807 ensures that the Modulebus does not introduce noise or reflection artifacts that could corrupt process values during the parallel-run phase of the migration.

HMI screen updates are another consideration during S800 I/O retrofit projects. If the plant uses ABB 800xA as the operator interface, any I/O address changes resulting from rack reconfiguration must be reflected in the control application and HMI faceplates before the new hardware is brought online. The TB807 itself does not carry an I/O address, but its correct installation is a prerequisite for the I/O modules in the segment to communicate reliably with the controller and, by extension, with the 800xA system.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer undertaking an S800 I/O retrofit. The TB807 is a passive component, but its replacement or installation must be coordinated carefully to avoid disrupting live Modulebus segments. Best practice is to perform TB807 replacement during a planned maintenance window, with the affected I/O cluster taken offline in a controlled sequence.

Before removing the existing terminator, the control program should be placed in manual mode for all loops served by the affected I/O cluster. Field operators should be stationed at critical control points to maintain process continuity manually during the switchover. The replacement TB807 should be inspected and confirmed as the correct part number before the maintenance window begins — a mismatch in terminator type can prevent the Modulebus segment from initializing correctly after power-up.

After installing the new TB807, the Modulebus segment should be powered up and the controller diagnostics checked for any I/O communication faults before returning the loops to automatic control. The AC800M controller’s built-in diagnostic tools — accessible via ABB Control Builder — can confirm that all modules in the segment are communicating correctly and that no address conflicts or configuration mismatches exist. A full I/O scan and force-test of critical signals is recommended before signing off on the retrofit.

For facilities that cannot tolerate any process interruption, a hot-standby approach using a redundant TB840 Modulebus Modem and redundant controller pair can allow the TB807 to be replaced on the non-active segment path while the redundant path maintains process control. This approach requires careful coordination with the control system vendor and a thorough review of the redundancy switchover logic before execution.

Retrofit Support FAQ

Q1: Is the ABB TB807 3BSE008538R1 a direct replacement for an existing TB807 unit in my S800 I/O rack?
Yes. The TB807 3BSE008538R1 is the standard ABB part number for the S800 Modulebus Terminator and is a direct drop-in replacement for any existing TB807 unit in a compatible S800 I/O cluster. No hardware modification or firmware update is required. Confirm the physical connector orientation before installation.

Q2: How do I verify that the TB807 is correctly installed after replacement?
After installation, power up the I/O cluster and check the AC800M controller diagnostics via ABB Control Builder. All I/O modules in the segment should report a healthy communication status. If any module shows a communication fault, verify that the TB807 is seated correctly at the far end of the Modulebus segment and that no intermediate connectors are loose or damaged.

Q3: Can the TB807 be used in a Modulebus segment that includes optical extenders such as the TB811?
Yes. The TB807 terminates the electrical Modulebus segment. When TB811 optical extenders are used to bridge between cabinets, the TB807 should be installed at the end of each electrical segment, not at the optical interface. Consult the S800 I/O system hardware documentation for the correct termination topology when optical extenders are present.

Q4: What warranty and supply assurance does NINERMAS provide for the TB807 3BSE008538R1?
NINERMAS COMPANY LIMITED provides a 12-month warranty on all TB807 3BSE008538R1 units. Each unit undergoes pre-shipment functional testing. We maintain inventory to support urgent retrofit and breakdown replacement requirements. For lead time confirmation and volume pricing, contact our technical sales team directly.
