ABB 3HAC14940-1 Safety-Reliable Wire Module for Critical Sites

ABB 3HAC14940-1 Safety-Reliable Wire Module for Critical Robotic Control Sites

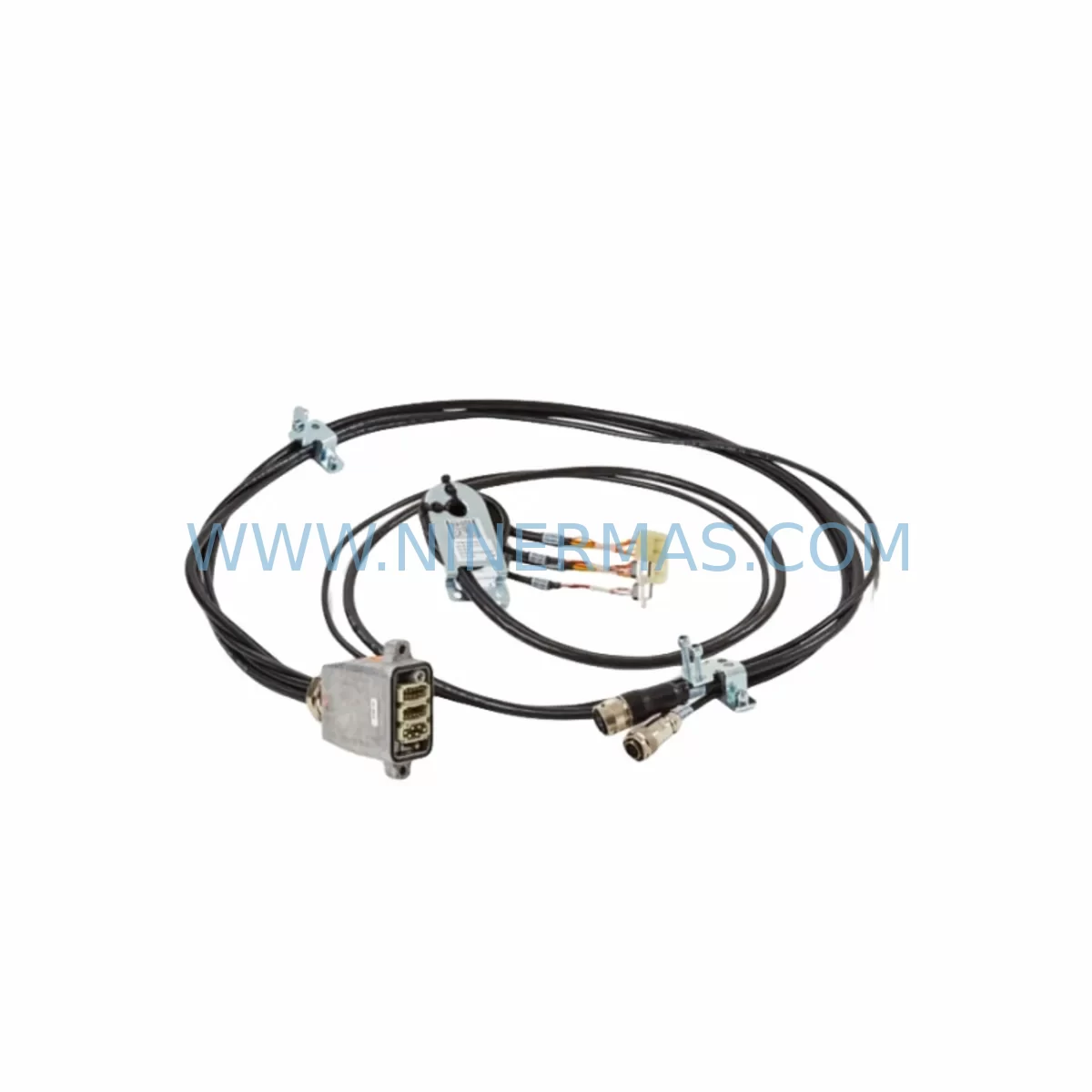

The ABB 3HAC14940-1 is a ruggedized cable wire module — commonly referred to as a dress pack or cable harness assembly — engineered for ABB IRB-series industrial robots operating under the IRC5 controller platform. Designed to route power cables, signal wires, and pneumatic lines from the controller cabinet to the robot arm with maximum mechanical protection, this module is a mission-critical component in any continuous production environment where control interruption, signal drift, or unplanned downtime carries serious operational and safety consequences.

In high-demand industrial settings — including petrochemical plants, power generation facilities, mining operations, and heavy manufacturing lines — the integrity of every cable connection within the robotic control loop directly determines system safety. A degraded or failed cable harness can trigger erratic axis movement, loss of encoder feedback, communication faults between the robot controller and field devices, or complete axis shutdown. The ABB 3HAC14940-1 addresses these risks through its reinforced sheathing, strain-relief architecture, and multi-conductor bundling that maintains signal integrity even under continuous flexing, high-cycle operation, and exposure to industrial contaminants.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Maintaining the safety and reliability of an IRC5-based robotic control cabinet requires a systems-level approach. The ABB 3HAC14940-1 cable wire module is the primary mechanical interface between the controller and the robot arm, but its performance is directly dependent on the health of every upstream and downstream component in the control loop.

Within the IRC5 cabinet, the DSQC663 power unit supplies regulated DC voltage to the drive system. Any instability in this unit — caused by surge events, thermal stress, or aging capacitors — can induce voltage transients that propagate through the cable harness and stress signal conductors. Pairing the 3HAC14940-1 with a verified DSQC663 ensures that the power delivered to the robot axes remains within specification, reducing the risk of nuisance faults and axis overcurrent trips.

The DSQC652 digital I/O module manages discrete safety signals — including emergency stop chains, safety gate interlocks, and zone monitoring outputs. When the cable harness connecting the I/O module to field devices is compromised, safety signals can be lost or delayed, creating dangerous ambiguity in the control system’s safety state. Replacing a worn 3HAC14940-1 as part of a scheduled maintenance cycle — alongside inspection of the DSQC652 wiring — eliminates this failure mode before it reaches a critical threshold.

The DSQC639 axis computer board processes encoder feedback from each robot joint. Signal degradation in the cable harness — caused by broken shield continuity or conductor fatigue — can introduce encoder noise that manifests as position errors, path deviation, or axis fault codes. Maintaining the 3HAC14940-1 in good condition is therefore a prerequisite for accurate motion control and safe path execution.

For robots operating in environments with high electromagnetic interference — such as near arc welding stations, large variable-frequency drives, or high-current bus bars — the 3HAC026525-001 SMB (Serial Measurement Board) battery backup unit ensures that encoder position data is retained during power interruptions. Combined with a properly shielded 3HAC14940-1 cable module, this pairing prevents position loss events that could require full robot re-homing and production restart.

The 3HAC044075-001 FlexPendant cable connects the teach pendant to the IRC5 controller. In facilities where the pendant is frequently moved or stored under tension, this cable is subject to similar wear mechanisms as the main dress pack. Scheduling replacement of both the 3HAC14940-1 and the FlexPendant cable during the same maintenance window reduces total downtime and ensures that the human-machine interface remains reliable during programming and manual intervention tasks.

For upper arm cable routing on IRB 7600 and related heavy-payload robots, the 3HAC14549-3 upper arm cable assembly works in conjunction with the 3HAC14940-1 to complete the full cable path from base to tool flange. Inspecting and replacing both assemblies together prevents the common scenario where one cable is replaced but the adjacent harness — already at end of service life — fails shortly afterward, triggering a second unplanned outage.

The DSQC627 power supply module and the 3HAC012158-1 process cable assembly round out the critical spare parts inventory for any facility operating ABB IRB robots in continuous production. Stocking these components alongside the 3HAC14940-1 ensures that maintenance teams can respond to cable-related faults within a single shift, rather than waiting days or weeks for emergency procurement.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In ATEX-classified zones and hydrocarbon processing environments, robotic systems are deployed for valve actuation, inspection, and material handling. The ABB 3HAC14940-1 cable module’s resistance to oil mist and chemical vapors makes it suitable for these demanding conditions. A cable failure in a petrochemical robot can trigger an uncontrolled axis movement or loss of safety interlock feedback — outcomes with potentially severe consequences. Scheduled replacement of the dress pack, combined with regular inspection of the IRC5 safety circuit wiring, is standard practice in facilities operating under IEC 61511 functional safety requirements.

Power Generation and Substation Automation: High-voltage substations and power plant control rooms present extreme electromagnetic interference challenges. Robotic inspection and maintenance systems in these environments rely on the shielded conductor architecture of the 3HAC14940-1 to maintain signal integrity in the presence of strong magnetic fields. EMI-induced signal drift in an unshielded or degraded cable harness can cause false encoder readings, leading to positioning errors that compromise both equipment and personnel safety.

Mining and Mineral Processing: Underground and surface mining operations expose robotic systems to heavy dust loading, vibration from blasting and heavy machinery, and wide temperature swings. The ruggedized construction of the ABB 3HAC14940-1 — with its reinforced outer jacket and strain-relief terminations — is specifically suited to these conditions. Maintaining a stock of replacement cable modules on-site is essential for mining operations where logistics delays can extend equipment downtime by days.

Water and Wastewater Treatment: Robotic systems in water treatment facilities operate in high-humidity environments with exposure to chlorine compounds and other corrosive agents. The 3HAC14940-1’s moisture-resistant sheathing protects internal conductors from the insulation degradation that leads to ground faults and communication errors in the robot control system.

Metallurgy and Steel Production: Foundry and steel mill environments combine extreme heat, metal splash, and heavy vibration — among the most demanding conditions for any cable assembly. Robots performing welding, casting, and material handling in these facilities require cable harnesses with superior thermal and mechanical resilience. Regular replacement of the 3HAC14940-1 on a defined maintenance interval, rather than waiting for failure, is the accepted practice in metallurgical applications where a single robot outage can halt an entire production line.

Port Logistics and Shipbuilding: Container handling robots and shipyard welding systems operate in salt-air environments with high mechanical loading. The 3HAC14940-1’s robust construction supports reliable operation in these corrosive, high-cycle applications, where cable fatigue is accelerated by the combination of continuous motion and environmental exposure.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB 3HAC14940-1?
All ABB 3HAC14940-1 cable wire modules supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC14940-1 module undergoes full electrical continuity testing across all conductors and insulation resistance verification before dispatch. Units that do not meet ABB’s original specification are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 3HAC14940-1 compatible with all IRC5 controller variants?
The 3HAC14940-1 is primarily specified for the ABB IRB 7600 series with IRC5 single and dual cabinet configurations. Compatibility with other IRB models — including the IRB 6650 and IRB 6700 — should be verified against the robot’s mechanical unit spare parts manual (document 3HAC026876-001 or equivalent). NINERMAS technical support can assist with cross-reference verification prior to order placement.

Q4: Can NINERMAS support long-term supply of the 3HAC14940-1 for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the ABB 3HAC14940-1 and related IRC5 spare parts to support planned maintenance programs, annual shutdown schedules, and emergency replacement requirements. Long-term supply agreements and volume pricing are available for facilities operating multiple ABB robot systems. Contact our team to discuss stocking arrangements tailored to your maintenance cycle.
