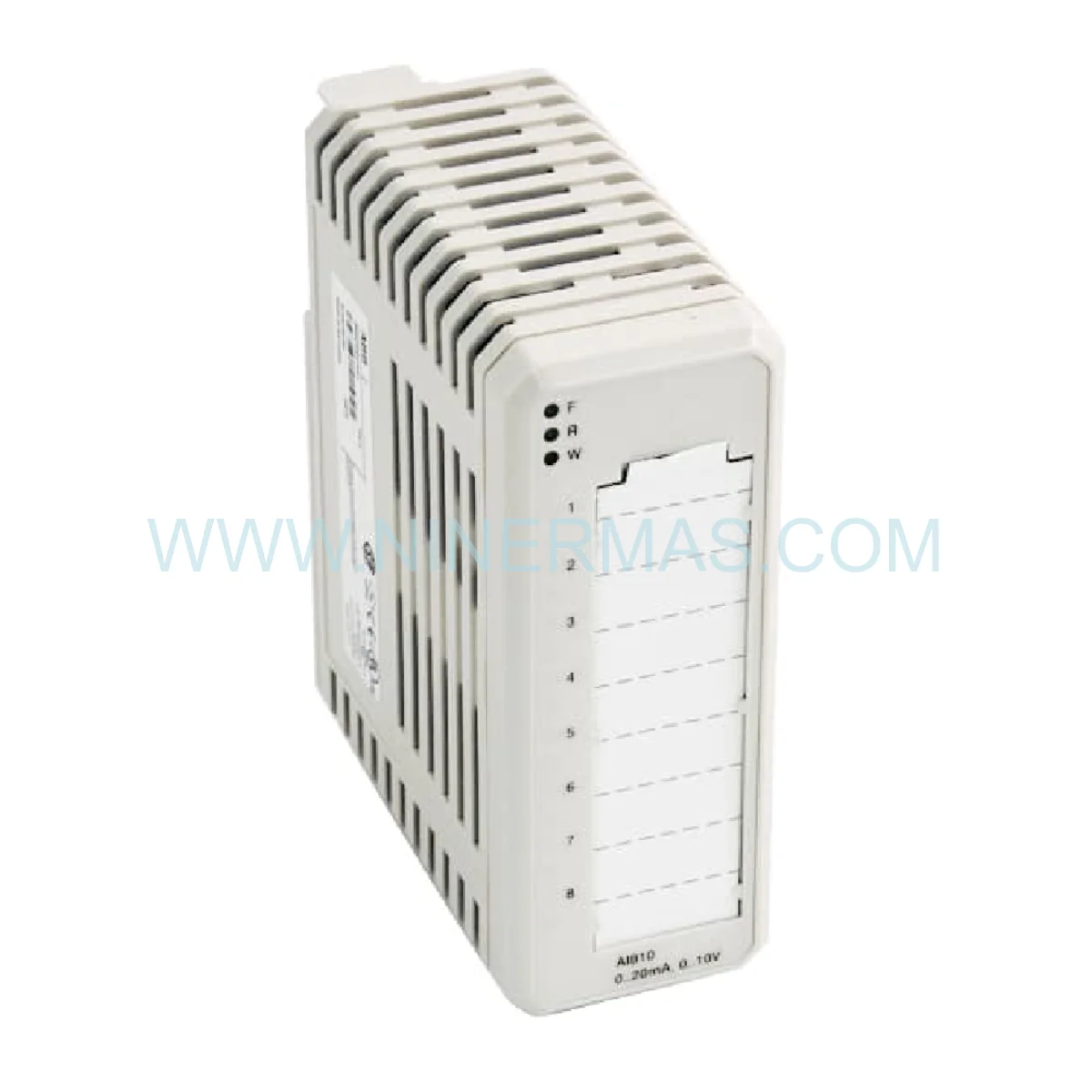

ABB AI810 3BSE008516R1 | Analog Input Retrofit & AC800M Upgrade Module

ABB AI810 3BSE008516R1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

From the perspective of a System Migration Architect, the ABB AI810 3BSE008516R1 stands as a cornerstone hardware asset in any industrial modernization initiative. As legacy DCS platforms approach end-of-life, facilities face mounting pressure to sustain operational continuity while transitioning toward modern, networked control architectures. The ABB AI810 3BSE008516R1 directly addresses this challenge — its 8-channel, 12-bit analog input capability integrates natively into the AC800M platform, enabling engineers to extend the productive lifespan of existing control infrastructure without wholesale system replacement. This targeted retrofit approach dramatically reduces capital expenditure while delivering measurable performance gains in signal fidelity and acquisition speed.

A defining advantage of this module in upgrade scenarios is its backward compatibility with the S800 I/O ecosystem. Whether your facility operates aging PM510 or PM860 series controllers, or is mid-migration toward PM865/PM867 generation hardware, the AI810 slots into existing TU810 and TU830 termination units without rewiring field instrumentation. This Legacy Compatibility eliminates the most time-consuming and risk-prone phase of any retrofit project — field cable rework — and allows phased migration strategies where old and new hardware coexist on the same CEX-Bus backplane during transition periods.

From a risk and cost management standpoint, deploying the AI810 as part of a structured Hardware Upgrade program reduces migration risk by preserving proven field wiring topologies while introducing modern diagnostics, HART protocol support, and software-configurable channel parameters. The result is a lower total cost of ownership, faster commissioning timelines, and a clear, validated upgrade path from traditional analog control to fully networked, data-rich industrial automation.

Upgrade Highlights & Compatibility

• ✅ Drop-In Legacy Compatibility: Mounts on existing TU810/TU830/TU833/TU838 termination units — zero field rewiring required during retrofit
• HART Protocol Integration: Channels 1-4 support HART communication, enabling smart transmitter diagnostics without additional hardware investment
• ✅ Multi-Signal Flexibility: Per-channel software configuration for 0-20mA, 4-20mA, or 0-10V DC — adapts to mixed legacy field device inventories
• Hot-Swap Capability: Replace modules live during system operation — zero process downtime during Performance Enhancement activities
• ✅ Wide Controller Compatibility: Supports PM510 V16 through PM867 series — spans multiple AC800M generations for Seamless Integration across upgrade phases
• Marine & Hazardous Area Certified: DNV, ABS, LRS, ATEX, IECEx — Future-proofing for regulated industries including offshore, power, and chemical sectors
• ✅ Software-Only Configuration: All channel parameters set via Control Builder M — eliminates DIP switches and jumpers that complicate legacy hardware management

Modernization Use Cases & Success Stories

DCS Modernization in Petrochemical Plants: A regional refinery operating a first-generation AC800M DCS faced increasing spare parts scarcity for its aging analog I/O tier. By deploying the AI810 3BSE008516R1 as a direct replacement within existing S800 racks, the engineering team achieved a full analog input layer refresh in under 72 hours of planned maintenance windows — with no field cable modifications. The HART-enabled channels unlocked real-time transmitter health data that had previously required manual field walks, reducing instrument maintenance labor by an estimated 30%.

Turbine Supervisory Instrumentation (TSI) Upgrade: In a combined-cycle power plant, the AI810 was deployed as part of a phased TSI modernization program. Existing vibration and temperature transmitters were retained while the I/O layer was upgraded to support HART diagnostics and higher-resolution signal acquisition. The 12-bit resolution and ±0.1% accuracy of the AI810 provided the data quality required for predictive maintenance algorithms, enabling the plant to transition from time-based to condition-based turbine overhaul scheduling — a Performance Enhancement with direct impact on availability and O&M cost.

Marine Vessel Automation Retrofit: An offshore support vessel undergoing class renewal required its aging analog I/O modules to be replaced with certified alternatives. The AI810’s DNV, ABS, and Lloyd’s Register certifications made it the only viable drop-in Retrofit Solution that satisfied classification society requirements without triggering a full system re-approval process. The hot-swap capability allowed module exchange at sea during reduced-load operations, avoiding costly dry-dock scheduling.

Pharmaceutical Batch Process Migration: A GMP-regulated batch facility migrating from a third-party PLC platform to ABB AC800M selected the AI810 as the analog input standard for its new I/O architecture. The module’s software-configurable channels simplified validation documentation, and HART support enabled direct integration with existing smart transmitters — preserving calibration records and reducing IQ/OQ scope during the System Migration qualification process.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All ABB AI810 3BSE008516R1 units are sourced as genuine ABB product with full factory traceability documentation. Each module ships in original ABB packaging with batch certification records — critical for regulated industries and insurance-compliant retrofit projects.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain ready inventory with expedited international shipping options to support facilities across Asia-Pacific, Europe, the Middle East, and the Americas. DDP and DAP Incoterms available for simplified customs clearance.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in legacy ABB S800 I/O system configurations. Whether you are replacing a failed module in an aging rack, planning a phased Hardware Upgrade program, or need compatibility verification for a mixed-generation AC800M architecture, our team provides pre-sales technical consultation and post-delivery commissioning guidance.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures under normal industrial operating conditions — with dedicated RMA support for retrofit project timelines.

Retrofit FAQ (Upgrade Guide)

Q: Can the ABB AI810 3BSE008516R1 physically replace an older S800 analog input module in an existing rack without mechanical modifications?
A: Yes. The AI810 3BSE008516R1 is designed for direct mechanical compatibility with the S800 I/O termination unit family (TU810, TU830, TU833, TU838). No rack modifications, bracket changes, or field cable rework are required. The module clips into the existing baseplate and connects via the CEX-Bus backplane — making it the ideal Retrofit Solution for like-for-like replacement scenarios.

Q: How does the AI810 handle communication with older AC800M controllers during a phased System Migration where both legacy and new hardware coexist?
A: The AI810 communicates via the standard S800 CEX-Bus protocol, which is consistent across all AC800M controller generations from PM510 V16 through PM867. During phased migrations, the module operates transparently alongside older I/O modules on the same backplane. No firmware bridging or protocol conversion is required — the controller addresses all modules uniformly, enabling Seamless Integration during transition periods.

Q: What are the options if the ABB AI810 3BSE008516R1 is not a direct functional match for a specific legacy module being replaced?
A: If the legacy module offered different channel counts, isolation levels, or resolution specifications, the AI820 (4-channel, 16-bit, galvanically isolated) or AI830A (8-channel, HART on all channels) may serve as alternative upgrade paths within the S800 family. Our technical team can perform a compatibility analysis based on your existing I/O list and field device inventory to recommend the optimal Hardware Upgrade path.

Q: Does enabling HART communication on the AI810 require changes to the existing field wiring or transmitter configuration?
A: No field wiring changes are required. HART communication is superimposed on the standard 4-20mA current loop using frequency-shift keying — the existing two-wire loop wiring supports HART without modification. HART must be enabled per-channel in Control Builder M, and the connected transmitter must be HART-capable. This makes HART activation a pure software-driven Performance Enhancement with zero field intervention.

Q: What is the recommended procedure for hot-swapping an AI810 module in a live production environment to minimize process impact?
A: Before removal, place the affected channels in a safe fallback state (e.g., last-value hold or manual setpoint) via the AC800M controller logic. Physically remove the AI810 from the TU termination unit — the CEX-Bus automatically detects module absence and reports a diagnostic alarm. Insert the replacement AI810 3BSE008516R1; the controller re-establishes communication and restores channel configuration from its internal database within seconds. No controller restart or I/O bus interruption occurs. This procedure supports zero-downtime Legacy Compatibility maintenance strategies.

Q: Is the AI810 suitable for use in new greenfield installations, or is it primarily a retrofit/replacement component?
A: The AI810 3BSE008516R1 is an Active lifecycle product fully supported by ABB for both new installations and retrofit applications. Its inclusion in greenfield projects provides Future-proofing value — facilities designed around the S800 I/O standard today can expand or replace modules using the same hardware family for the foreseeable product lifecycle, protecting the initial capital investment and simplifying long-term spare parts management.
