ABB AI810 3BSE008516R1 Retrofit Analog Input S800 I/O

ABB AI810 3BSE008516R1 Retrofit Analog Input Module: Legacy S800 I/O System Compatibility & Smooth Upgrade

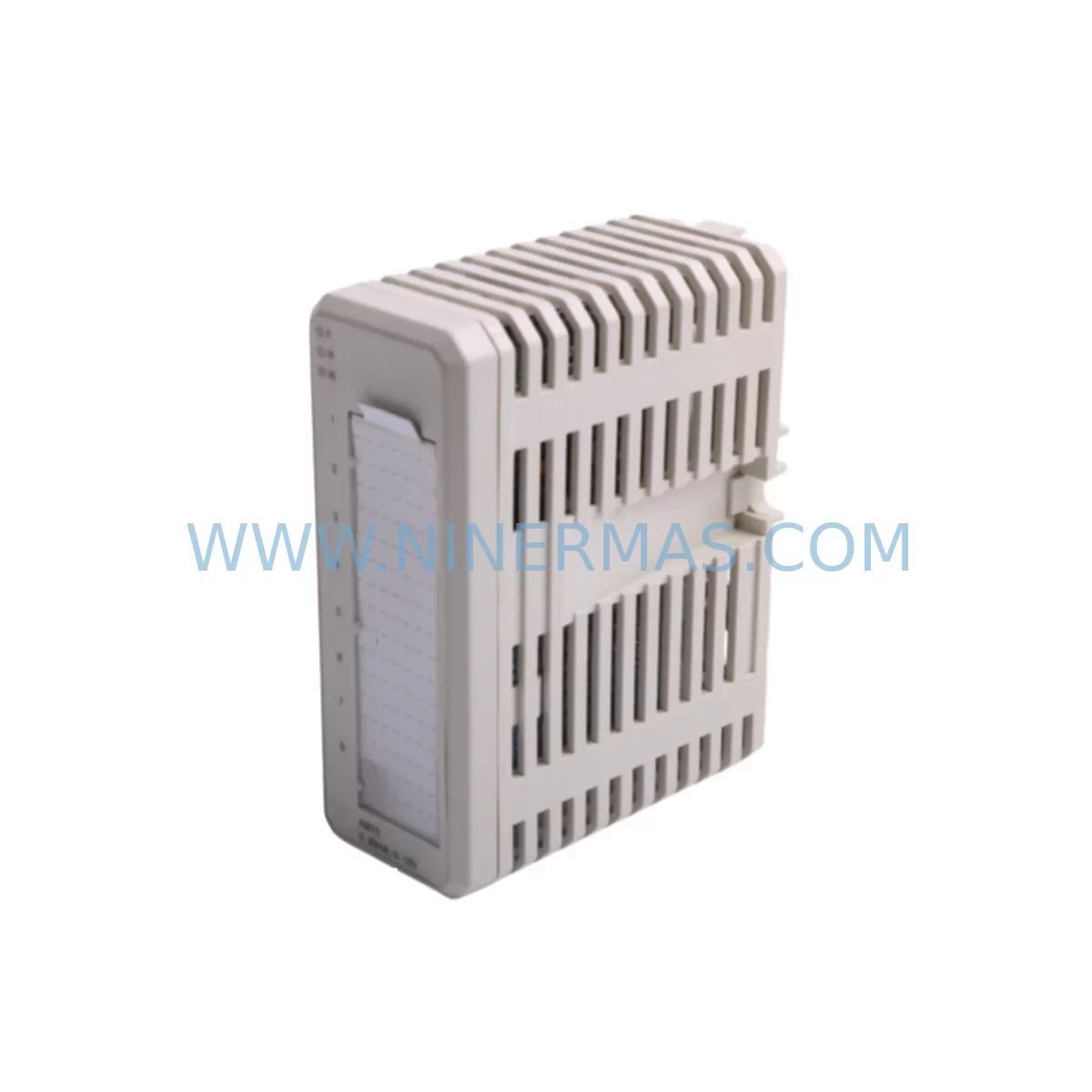

The ABB AI810 (part number 3BSE008516R1) is an 8-channel analog input module designed for the ABB S800 I/O platform, widely deployed across process automation, power generation, oil & gas, pulp and paper, and chemical manufacturing facilities worldwide. As legacy DCS and PLC installations age beyond their original design life, the AI810 has become one of the most sought-after retrofit and replacement components for engineers tasked with extending the operational life of ABB Advant, MOD 300, and System 800xA control architectures without committing to a full greenfield migration.

At NINERMAS, we maintain verified stock of the AI810 3BSE008516R1 specifically to support customers engaged in brownfield modernization projects, emergency spare procurement, and phased control system upgrades. Every unit ships with a 12-month warranty and passes pre-shipment functional testing to ensure it meets original ABB factory specifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the AI810 3BSE008516R1, the scope of work typically extends well beyond the module itself. Engineers replacing aging S800 I/O infrastructure must audit the entire I/O subsystem to identify which components are approaching end-of-life simultaneously. In many installations, the AI810 shares a rack with the AO810 3BSE008522R1 analog output module, the DI810 3BSE008508R1 digital input module, and the DO810 3BSE008514R1 digital output module — all of which may require concurrent replacement if the original installation dates from the same commissioning batch.

The terminal base is equally critical. The AI810 mounts onto a TB810 3BSE008560R1 or TB820 3BSE002812R1 terminal base, which provides the field wiring connection points and the Modulebus backplane interface. If the terminal base shows signs of corrosion, cracked housing, or damaged screw terminals, it should be replaced alongside the AI810 to avoid introducing a new failure point immediately after the module swap. Fortunately, the terminal base can often be replaced independently without disturbing the field cable bundle, significantly reducing rewiring time.

For installations where the S800 I/O rack communicates with a System 800xA controller via a CI840A 3BSE041882R1 communication interface module, engineers must verify that the CI840A firmware version is compatible with the replacement AI810 hardware revision. In most cases, the CI840A does not require replacement, but a firmware check is recommended as part of the pre-commissioning checklist. Similarly, if the control network uses an AF100 fieldbus or Profibus DP segment, the network topology and node addressing should be documented before any module is removed from the rack.

Power supply integrity is another area that deserves attention during retrofit planning. The PS800 power supply module feeding the S800 rack must have sufficient headroom to support the full complement of I/O modules after the upgrade. If the retrofit involves adding new I/O channels — for example, expanding from 8 to 16 analog inputs by adding a second AI810 — the power budget must be recalculated. In some cases, an additional PS800 or an upgraded power supply unit is required before the expanded I/O configuration can be commissioned safely.

Signal isolation is another consideration when the AI810 is used in environments with high electrical noise, ground loops, or long cable runs. In these applications, a signal isolator or signal conditioner installed between the field transmitter and the AI810 input terminal can prevent measurement errors and protect the module from transient damage. This is particularly relevant in retrofit scenarios where the original installation did not include isolation barriers but the field environment has changed over time due to the addition of variable frequency drives, large motors, or other noise-generating equipment.

For sites running ABB Freelance DCS or AC800M controllers alongside S800 I/O, the programming environment (Control Builder F or Control Builder M) should be used to export and archive the existing I/O configuration before the retrofit begins. This archived configuration serves as the baseline for post-retrofit verification and allows the commissioning engineer to confirm that all channel assignments, scaling parameters, and alarm limits have been correctly restored after the module replacement.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any operations team authorizing an S800 I/O retrofit. The AI810 3BSE008516R1 supports hot-swap replacement in System 800xA environments where the I/O configuration has been set to allow online module insertion and removal. When hot-swap is enabled, the replacement module can be inserted into the terminal base while the process continues to run, with the DCS automatically re-initializing the channel configuration from the stored project database. This eliminates the need for a planned shutdown in many retrofit scenarios.

For sites where hot-swap is not enabled or where the process cannot tolerate any interruption to the analog input signals during the swap, a structured cold-swap procedure should be followed. This involves placing the affected control loops in manual mode at the operator station, documenting the current process values for all 8 channels, removing the failed module, inserting the replacement AI810, verifying channel initialization in the DCS, and returning each loop to automatic mode in sequence. The entire procedure can typically be completed within 15 to 30 minutes for a single module, provided the replacement unit has been pre-tested and the commissioning engineer has the channel configuration documentation available on-site.

To further reduce risk, NINERMAS recommends that customers request a pre-shipment test report for each AI810 unit, confirming that all 8 channels have been verified against the specified input range before the unit leaves our facility. This eliminates the possibility of receiving a defective unit and discovering the fault only after the original module has been removed from the live system. Our 12-month warranty covers all units against manufacturing defects and early-life failures, providing additional assurance for customers operating in critical process environments.

Retrofit Support FAQ

Q1: Is the AI810 3BSE008516R1 a direct drop-in replacement for older S800 analog input modules?
Yes. The AI810 3BSE008516R1 is designed to mount directly onto the TB810 or TB820 terminal base without any modification to the field wiring or the terminal base itself. The module address and channel configuration are restored from the DCS project database upon insertion, making it a true drop-in replacement in System 800xA and compatible Freelance DCS environments.

Q2: What commissioning steps are required after installing the replacement AI810?
After physical installation, the DCS should automatically detect the new module and download the stored I/O configuration. The commissioning engineer should verify that all 8 channels are reading correctly by comparing live process values against known reference signals or field transmitter outputs. Alarm limits, scaling parameters, and filter settings should be confirmed against the archived configuration. If the module address was changed during removal, it must be reset to the original value before the DCS will recognize the module.

Q3: Can the AI810 be used in a mixed S800 rack alongside newer S800+ modules?
In most System 800xA configurations, S800 and S800+ modules can coexist in the same rack, provided the communication interface module (such as the CI840A or CI854A) supports mixed-generation I/O. We recommend consulting the ABB System 800xA Hardware Configuration guide for your specific controller version before mixing module generations in a single rack.

Q4: What is included with each AI810 3BSE008516R1 unit from NINERMAS?
Each unit includes a pre-shipment functional test report confirming all 8 channels have been verified, a 12-month warranty certificate, and standard anti-static packaging suitable for international air or sea freight. Expedited shipping is available for emergency breakdown situations. Our team can confirm stock availability and lead time within one business day of inquiry.
