ABB ACS880-M04-014A-5 Retrofit-Compatible Drive for Legacy Systems

ABB ACS880-M04-014A-5 Retrofit-Compatible Drive for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

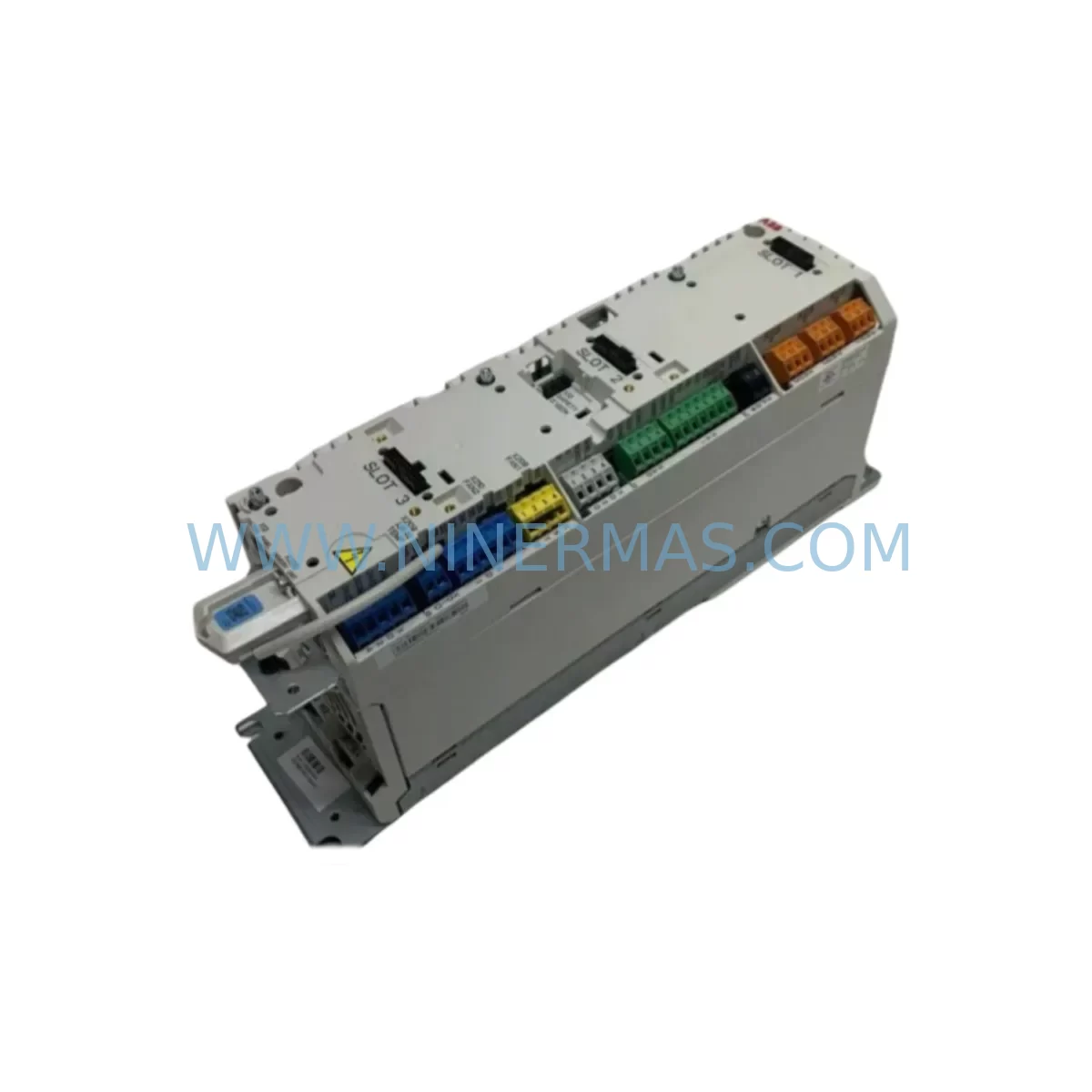

The ABB ACS880-M04-014A-5 is a high-performance AC drive from ABB’s ACS880 series, designed to deliver smooth, reliable motor control in demanding industrial environments. With a rated output current of 14A and compatibility with a wide range of motor configurations, this unit is a proven choice for engineers and maintenance teams undertaking legacy system retrofits, discontinued spare part replacements, and control cabinet modernization projects. Whether you are migrating from an obsolete ACS600 or ACS800 platform, replacing a failed drive in a legacy production line, or upgrading a control system to meet current safety and communication standards, the ACS880-M04-014A-5 provides a technically sound and commercially available solution.

At NINERMAS, we specialize in sourcing, verifying, and supplying industrial automation components for retrofit and upgrade applications. Every ACS880-M04-014A-5 unit we supply undergoes pre-shipment functional testing, and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a drive in an active production environment requires careful planning across multiple system layers. The ACS880-M04-014A-5 is frequently deployed in retrofit scenarios where the original drive — often an ACS800-04, ACS600, or a third-party equivalent — has reached end-of-life or is no longer available through standard supply channels. Before proceeding with a swap, engineers should confirm the following:

Power Supply and Cabinet Space: Verify that the existing control cabinet can accommodate the ACS880-M04-014A-5’s physical dimensions. While the ACS880 series maintains a compact footprint, older cabinets designed around ACS600 or early ACS800 frames may require bracket adapters or partial cabinet reconfiguration. Confirm that the incoming power supply — including the main circuit breaker, input fuses, and EMC filter — is rated for the drive’s input current requirements. If the existing installation uses an older ABB OINT8007C or similar input choke, verify compatibility with the ACS880 input stage.

Terminal Wiring and I/O Mapping: The ACS880-M04-014A-5 uses a standard terminal block layout for control wiring, but terminal assignments differ from legacy ACS800 and ACS600 models. Before disconnecting the old drive, document all existing terminal connections — including analog inputs (AI1, AI2), digital inputs (DI1–DI6), relay outputs (RO1–RO3), and the 24VDC control supply. Re-map these signals to the corresponding ACS880 terminals using the ACS880 hardware manual. If the system uses an RAIO-01 analog I/O extension module or an RDIO-01 digital I/O module from the legacy platform, check whether equivalent ACS880-compatible option modules are required.

Fieldbus and Communication Migration: Many legacy installations rely on PROFIBUS DP for PLC-to-drive communication, using an RPBA-01 PROFIBUS adapter on the ACS800 platform. The ACS880 series supports PROFIBUS DP via the FPBA-01 option module, which must be ordered and installed separately if not already present. For sites migrating to EtherNet/IP or PROFINET, the FENA-21 Ethernet adapter provides multi-protocol support. Confirm the PLC’s drive profile (ABB Drives profile or PROFIdrive) and ensure the fieldbus node address, baud rate, and telegram type are correctly configured in the ACS880 parameters before going live. If the control system includes a Siemens S7-300 or Allen-Bradley ControlLogix PLC, verify the drive’s EDS or GSD file version matches the PLC’s device library.

Motor and Load Compatibility: Run the ACS880’s motor identification (ID run) procedure after installation to optimize control performance for the connected motor. This is especially important when replacing a drive that was previously tuned for a specific motor — default ACS880 parameters will not replicate the legacy drive’s tuned response. If the motor is an older 4-pole induction motor previously controlled by an ACS600, confirm that the motor’s insulation class is compatible with the ACS880’s output voltage waveform (du/dt filter may be required for motors with insulation class B or older winding designs).

HMI and SCADA Integration: If the existing HMI — such as an ABB CP600 panel, a Siemens TP700 Comfort, or a Wonderware InTouch SCADA station — displays drive status, speed reference, or fault codes sourced directly from the legacy drive, the tag addresses and data types will need to be updated to match the ACS880’s parameter map. The ACS880 uses a different parameter numbering structure from the ACS800, so any HMI screen that reads drive parameters directly will require remapping. ABB’s Drive Composer Pro software can assist with parameter export and documentation during this process.

Backplane and Rack Considerations: For multi-drive installations using a common DC bus or a shared brake chopper unit — such as the ACS880-104 cabinet drive configuration — confirm that the ACS880-M04-014A-5 is compatible with the existing DC bus architecture. If the legacy system used an NBRA-6x brake resistor unit or a shared BAMU brake unit, verify the braking circuit connections and resistor ratings against the ACS880’s braking specifications.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement is a primary concern for any maintenance or engineering team. The following approach has proven effective in ACS880 retrofit projects across manufacturing, water treatment, HVAC, and material handling applications:

Pre-Staging and Bench Testing: Before the scheduled maintenance window, pre-configure the ACS880-M04-014A-5 on a bench using Drive Composer or the ACS-AP-I control panel. Enter all known motor parameters, I/O assignments, fieldbus settings, and ramp times based on the legacy drive’s documentation or a parameter printout. This reduces on-site commissioning time significantly and allows the team to identify any configuration issues before the production line is stopped.

Parallel Documentation: While the legacy drive is still operational, record all running parameters, fault history, and I/O signal states. Use a clamp meter to log actual motor current, speed reference signal levels, and relay output states under normal operating conditions. This data serves as a commissioning baseline for the ACS880 and helps verify correct operation after the swap.

Controlled Switchover: Schedule the physical swap during a planned maintenance window or shift changeover. Disconnect the legacy drive following lockout/tagout (LOTO) procedures, install the ACS880-M04-014A-5, reconnect all power and control wiring per the documented terminal map, and restore power. Perform a no-load test first — verify that the drive powers up without faults, that the fieldbus communication link is established, and that all digital and analog I/O signals are reading correctly before connecting the motor load.

Staged Load Testing: Bring the motor up to speed under reduced load first, monitoring current, speed feedback, and temperature. Gradually increase load to full operating conditions while observing drive diagnostics via the ACS-AP-I panel or Drive Composer. Confirm that all interlocks, safety functions (STO — Safe Torque Off), and process control loops are functioning as expected before returning the system to automatic operation.

Program Logic Preservation: If the legacy drive was integrated into a PLC program using function blocks or drive-specific instructions, verify that the PLC program does not require modification after the ACS880 replacement. In most cases, if the fieldbus profile and node address are maintained, the PLC program will continue to operate without changes. However, if the legacy drive used manufacturer-specific function blocks (e.g., ABB AC500 drive function blocks for ACS800), confirm compatibility with the ACS880’s communication profile before assuming transparent operation.

Retrofit Support FAQ

Q1: Is the ACS880-M04-014A-5 a direct drop-in replacement for the ACS800-04-0016A-5?
The ACS880-M04-014A-5 is functionally compatible with the ACS800-04 in equivalent current ratings and serves as the recommended upgrade path for discontinued ACS800-04 units. However, it is not a mechanical drop-in replacement — terminal layouts, mounting dimensions, and parameter structures differ. Adapter brackets and terminal rewiring are typically required. NINERMAS can provide a pre-delivery technical checklist to support your installation planning.

Q2: Has this unit been tested before shipment?
Yes. Every ACS880-M04-014A-5 unit supplied by NINERMAS undergoes pre-shipment functional testing, including power-on verification, I/O signal checks, and communication port validation where applicable. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: What fieldbus options are supported, and do I need to order additional modules?
The ACS880-M04-014A-5 base unit supports Modbus RTU via the standard RS-485 port. For PROFIBUS DP, EtherNet/IP, or PROFINET, the corresponding option module (FPBA-01, FENA-21, or FPNO-21) must be installed. If your existing installation uses PROFIBUS DP via an RPBA-01 on an ACS800, you will need to source and install an FPBA-01 for the ACS880. NINERMAS can supply these option modules alongside the drive unit — contact us to confirm availability and lead time.

Q4: What is your stock availability and lead time?
NINERMAS maintains inventory of ACS880-M04-014A-5 units and common ACS880 series accessories. Standard orders ship within 3–5 business days. For urgent retrofit projects requiring same-week dispatch, contact our sales team directly to confirm current stock levels and expedited shipping options. All units are supplied with a 12-month warranty and full pre-shipment test documentation.
