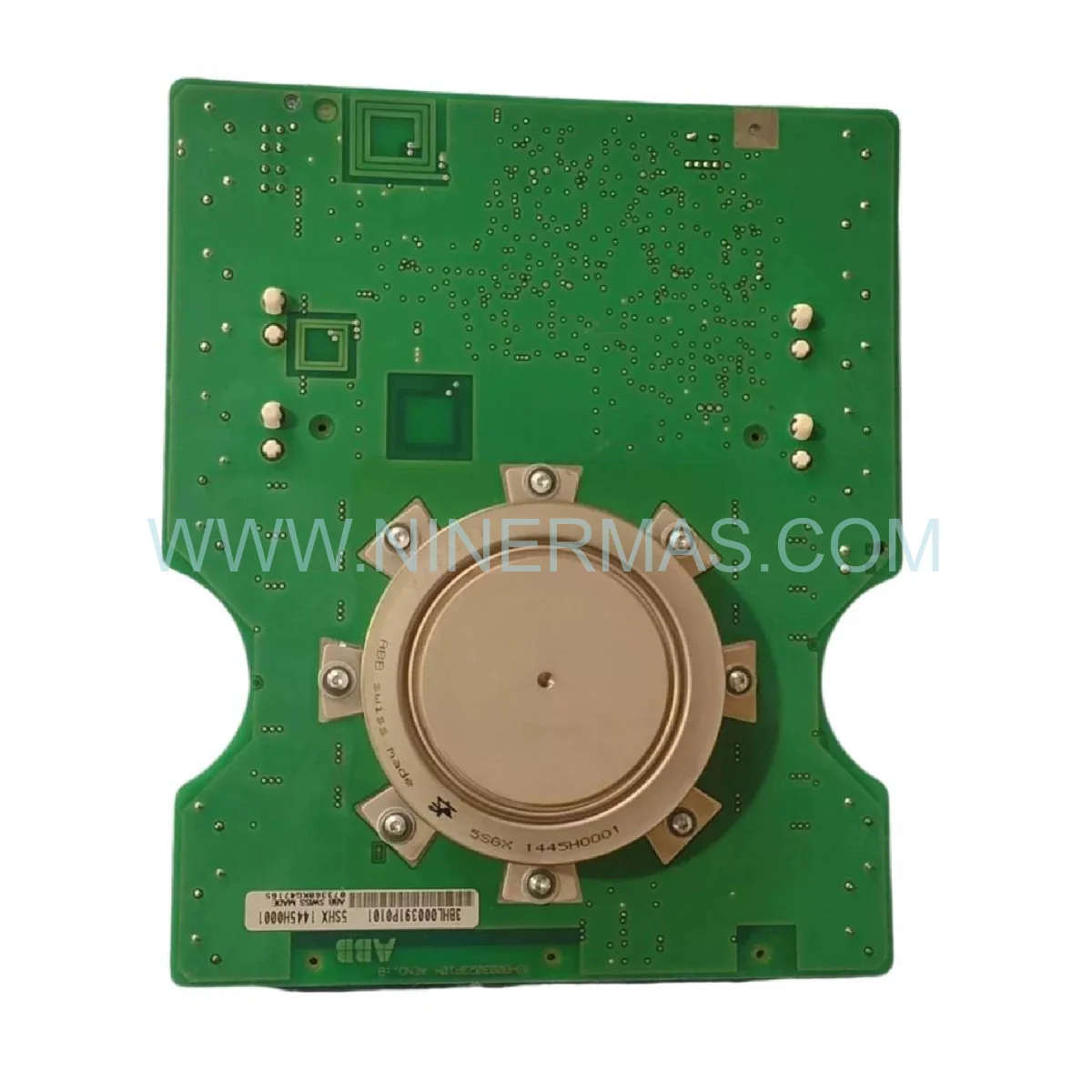

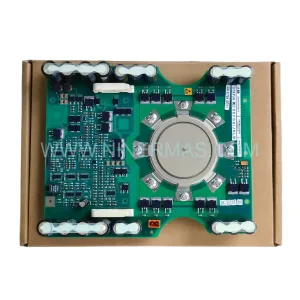

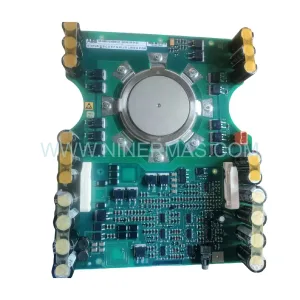

ABB 5SHX1445H0001 IGCT Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager with over a decade of experience in industrial automation procurement, I can state with confidence that the ABB 5SHX1445H0001 occupies a mission-critical position within medium-voltage power conversion architectures. This Integrated Gate-Commutated Thyristor (IGCT) module — part number 3BHL000391P0101 — serves as the core switching element in high-power DCS Hardware and Distributed Control System drive platforms, where failure is simply not an option. Its role in Process Control environments spans from variable-speed motor drives to HVDC grid interconnection, making it one of the most sought-after Legacy Components in the global industrial supply chain.

The ABB 5SHX1445H0001 (3BHL000391P0101) distinguishes itself through a unique gate-commutated topology that merges the low conduction losses of a thyristor with the controllable turn-off capability of an IGBT. This technical compatibility advantage means it can serve as a direct replacement in existing ABB ACS 6000, PCS 6000, and third-party medium-voltage converter platforms without requiring Fieldbus protocol reconfiguration or control-layer redesign. For engineers managing Legacy Upgrade projects, this cross-compatibility dramatically reduces system downtime and re-commissioning costs.

Original factory-sealed inventory of the 5SHX1445H0001 is increasingly scarce as ABB transitions its semiconductor roadmap. Our stock is sourced directly from authorized distribution channels, stored under climate-controlled conditions, and verified against ABB’s original Factory Sealed Condition standards before shipment. Procurement windows for this component are narrowing — securing your maintenance stock now is the strategically sound decision.

Key Technical Highlights

Gate-Commutated Thyristor Technology: Combines thyristor-level conduction efficiency with full turn-off controllability — ideal for high-frequency switching in medium-voltage Process Control loops.
Press-Pack Construction for Redundancy: The double-sided cooling press-pack format enables series/parallel stacking configurations, supporting N+1 Redundancy in mission-critical drive systems.
Ultra-Low Switching Losses: Achieves switching losses 30-40% lower than comparable IGBT modules at equivalent voltage classes, directly reducing converter heat load and improving system Stability.
High-Speed Commutation: Supports High-speed switching cycles required by modern PWM-controlled Distributed Control System converters operating at medium-voltage levels (2.3 kV — 6.6 kV range).
Fieldbus-Compatible Control Interface: Gate drive unit interfaces are compatible with standard Fieldbus communication protocols used in ABB 800xA and Symphony Plus DCS environments.
Proven Long-Term Stability: ABB’s press-pack IGCT technology has accumulated over 20 million operating hours globally across petrochemical, power generation, and marine sectors.

Vertical Industry Applications

The 5SHX1445H0001 IGCT module addresses the most demanding uptime requirements across multiple industrial verticals:

Petrochemical & Refining: Deployed in variable-speed compressor and pump drives at refineries where unplanned downtime costs exceed $500,000/hour. The module’s Stability under continuous high-load cycling makes it the preferred choice for critical rotating equipment control.

Mining & Mineral Processing: Used in high-torque conveyor and hoist drive systems operating in dusty, high-vibration environments. The press-pack format’s mechanical robustness eliminates bond-wire fatigue failures common in standard IGBT modules.

Marine & Offshore Propulsion: Integrated into ship propulsion converters and offshore platform power management systems, where Factory Sealed Condition components are mandatory for Lloyd’s Register and DNV certification compliance.

Renewable Energy — Wind Power: Serves as the primary switching element in multi-MW wind turbine full-power converters, where its low switching losses directly translate to higher annual energy yield and reduced LCOE.

Railway Traction & Urban Transit: Applied in traction inverters for high-speed rail and metro systems, where Emergency Repair response times are measured in hours and pre-stocked Legacy Components are essential for service continuity.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the ABB 5SHX1445H0001 (3BHL000391P0101) shipped from our facility undergoes a rigorous multi-stage verification process. First, physical inspection confirms Factory Sealed Condition packaging integrity — original ABB holographic labels, date codes, and lot traceability documentation are verified against manufacturer records. Second, electrical pre-shipment testing validates gate drive impedance and blocking voltage characteristics within ABB’s published tolerance bands.

Our supply chain is built for industrial urgency. Standard lead time is 3-7 business days for in-stock units. For Emergency Repair scenarios — where a production line or critical infrastructure asset is offline — we offer priority dispatch within 24 hours via DHL Express, FedEx International Priority, or UPS Worldwide Express, with real-time tracking provided from warehouse to destination.

All units are covered by a 12-Month Comprehensive Warranty against manufacturing defects and premature failure under normal operating conditions. Our technical support team, staffed by engineers with hands-on DCS Hardware and power electronics experience, is available to assist with installation guidance, compatibility verification, and failure analysis throughout the warranty period.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the ABB 5SHX1445H0001 I receive is 100% original and not a counterfeit?
A: Authentic units carry ABB’s original holographic security label on the press-pack housing, along with a laser-etched date code and traceable lot number. We provide the original ABB packaging, Certificate of Conformance, and upon request, a third-party inspection report. Cross-reference the part number 3BHL000391P0101 against ABB’s official product database for additional verification.

Q2: Where can I obtain the official Datasheet for the 5SHX1445H0001?
A: The official technical datasheet for the ABB 5SHX1445H0001 is available through ABB’s global semiconductor documentation portal. We can also provide the datasheet directly upon order confirmation as part of our standard documentation package, which includes the gate drive application note and thermal management guidelines.

Q3: Is the 5SHX1445H0001 compatible with older ABB ACS 6000 system versions?
A: Yes. The 5SHX1445H0001 is backward-compatible with all hardware revisions of the ABB ACS 6000 medium-voltage drive platform. System version compatibility extends to ACS 6000 firmware versions from V3.x onward. For Symphony Plus and 800xA Distributed Control System environments, no Fieldbus reconfiguration is required when replacing a like-for-like IGCT module.

Q4: What is the typical lead time for Emergency Repair orders?
A: For in-stock units, Emergency Repair orders are dispatched within 24 hours of payment confirmation. DHL Express and FedEx International Priority typically deliver to major industrial hubs in Europe, the Americas, and Southeast Asia within 2-4 business days. We provide airway bill tracking immediately upon dispatch.

Q5: Can this module be used as a Maintenance Stock spare without immediate installation?
A: Absolutely. The Factory Sealed Condition press-pack format is specifically designed for long-term Maintenance Stock storage. Units should be stored horizontally in a climate-controlled environment (10°C 35°C, relative humidity <75% non-condensing). Under these conditions, ABB certifies a shelf life of up to 5 years without performance degradation.

Q6: What distinguishes the IGCT technology in the 5SHX1445H0001 from standard IGBT modules used in DCS Hardware?
A: Unlike standard IGBT modules that use wire-bond construction, the 5SHX1445H0001 uses a monolithic press-pack structure that eliminates bond-wire fatigue — the leading failure mode in high-power semiconductor devices. This results in a mean time between failures (MTBF) that is typically 3-5 higher than equivalent IGBT solutions in continuous-duty Process Control applications. The integrated gate drive also reduces parasitic inductance, enabling faster and more controlled commutation in Distributed Control System converter topologies.
