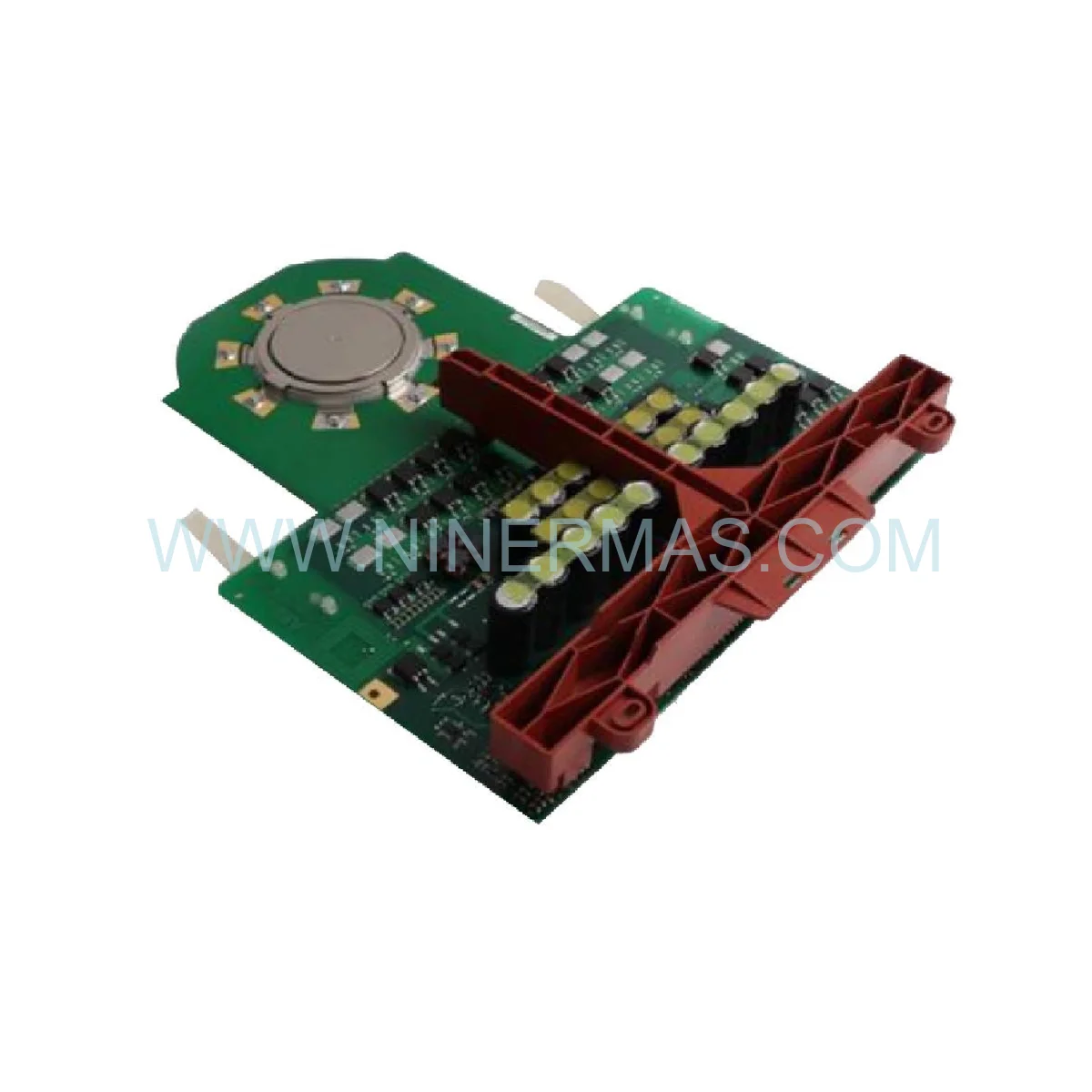

ABB 5SHX1445H0002 | 3BHL000387P0101 Retrofit & ACS1000 Upgrade Module

ABB 5SHX1445H0002 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial drive modernization across global manufacturing and energy facilities, the ABB 5SHX1445H0002 (3BHL000387P0101) stands as a cornerstone component in extending the operational life of ACS1000 medium-voltage drive systems. This 4500V-rated Integrated Gate-Commutated Thyristor (IGCT) module plays a decisive role in performance enhancement initiatives — enabling aging drive infrastructure to meet modern efficiency benchmarks without the capital expenditure of full system replacement. Its Swiss-engineered precision and proven reliability make it the preferred choice for retrofit projects in power generation, mining, and heavy process industries.

The ABB 5SHX1445H0002 (3BHL000387P0101) delivers exceptional legacy compatibility, serving as a direct drop-in replacement for earlier IGCT generations within the ACS1000 platform. Its backward-compatible 68mm coated construction preserves existing mechanical mounting configurations, while its gate-commutated switching architecture aligns with the original drive control logic — eliminating the need for firmware overhauls or auxiliary circuit redesigns. This seamless integration capability is the defining advantage for retrofit engineers who must minimize system downtime during upgrade windows.

From a migration risk and cost perspective, deploying this module as part of a targeted hardware upgrade strategy dramatically reduces the financial exposure associated with full drive replacement. By selectively renewing the power switching stage while retaining proven control and protection infrastructure, facilities can achieve a 40-60% cost reduction versus complete drive overhaul — while simultaneously restoring peak switching efficiency and extending asset service life by 8-12 years.

Upgrade Highlights & Compatibility

✅ Direct Legacy Compatibility: Replaces obsolete part HL000387P0101 with zero mechanical or electrical interface changes — plug-and-play retrofit for existing ACS1000 cabinets.

Performance Enhancement: Restores factory-rated switching efficiency at up to 500Hz, recovering energy losses accumulated through component degradation in aging systems.

✅ Future-Proofing: Swiss-manufactured to current ABB quality standards, ensuring compatibility with next-generation ACS1000 firmware updates and diagnostic platforms.

Seamless Integration: 68mm coated IGCT design maintains thermal and electrical interface specifications — no cooling system modifications required during migration.

✅ Reduced Migration Risk: Factory-sealed, brand-new condition with full traceability documentation eliminates counterfeit risk — critical for safety-certified industrial environments.

Broad Industry Applicability: Validated for use across DCS-integrated motor drive networks, TSI-monitored turbine control systems, and multi-megawatt process drive platforms.

Modernization Use Cases & Success Stories

DCS-Integrated Drive Modernization — Chemical Processing Plant:
A large-scale petrochemical facility operating ACS1000 drives integrated into a Distributed Control System (DCS) faced recurring IGCT gate driver faults causing unplanned shutdowns. By replacing degraded modules with the ABB 5SHX1445H0002 (3BHL000387P0101), the retrofit team restored full switching performance without modifying DCS communication protocols or drive parameter sets. Result: zero unplanned downtime in the 18 months following the hardware upgrade, with measurable improvement in motor torque linearity across the full speed range.

TSI-Monitored Turbine Drive Retrofit — Power Generation:
A combined-cycle power plant utilizing ACS1000 drives for boiler feed pump control required a performance upgrade to meet updated grid code harmonic distortion limits. The plant’s Turbine Supervisory Instrumentation (TSI) system demanded that all drive modifications maintain existing vibration and speed signal interfaces. The 5SHX1445H0002’s seamless integration into the existing gate driver board architecture allowed the retrofit to proceed without TSI recalibration — achieving a 15% reduction in total harmonic distortion (THD) and full grid code compliance.

Legacy System Life Extension — Mining Conveyor Drive:
An open-pit mining operation running 10-year-old ACS1000 drives on primary ore conveyor systems initiated a system migration assessment. Rather than replacing entire drive cabinets, the engineering team selected a targeted retrofit solution centered on the 3BHL000387P0101 IGCT module. The hardware upgrade restored original drive efficiency ratings, deferred capital replacement costs by an estimated $2.4M, and extended the conveyor system’s operational lifecycle by a projected 10 years.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every ABB 5SHX1445H0002 (3BHL000387P0101) unit is sourced through authorized ABB distribution channels and supplied in original factory packaging with full serial number traceability. Anti-counterfeit verification documentation is available upon request — essential for safety-critical retrofit projects in regulated industries.

Expedited Global Logistics: Our multi-region warehouse network (Switzerland, Singapore, China, USA, Australia) enables rapid deployment to retrofit project sites worldwide. Emergency shipment programs support unplanned outage scenarios with priority dispatch and real-time tracking. Export documentation, customs classification (HS Code: 8541300000), and ESD-safe packaging are handled end-to-end by our logistics team.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy ACS1000 drive architecture, providing pre-retrofit compatibility assessments, installation torque specifications, gate driver interface verification, and post-installation commissioning guidance. For facilities managing end-of-life (EOL) drive inventories, we offer long-term supply agreements to secure ongoing access to critical retrofit components.

Retrofit FAQ (Upgrade Guide)

Q1: Is the ABB 5SHX1445H0002 (3BHL000387P0101) compatible with my existing ACS1000 cabinet mounting configuration?
A: Yes. The 68mm coated IGCT format of the 5SHX1445H0002 is dimensionally identical to the original module specification for ACS1000 cabinets. No mechanical modifications to the heatsink assembly, bus bar connections, or gate driver board are required. This direct installation compatibility is a core advantage of this retrofit solution, minimizing downtime during planned maintenance windows.

Q2: How does this module handle communication between the new IGCT and the legacy ACS1000 control system?
A: The 3BHL000387P0101 interfaces with the ACS1000’s existing gate driver unit (GDU) using the original fiber-optic signal protocol. No firmware changes or GDU replacements are necessary. The module’s gate-commutated architecture is fully recognized by the drive’s protection and diagnostic logic, ensuring seamless integration with legacy control infrastructure.

Q3: What are the recommended spare part alternatives if the 5SHX1445H0002 is unavailable?
A: The closest functional alternative within the ABB IGCT family for ACS1000 applications is the 5SHX1445H0001 (3BHL000391P0101), which shares the same voltage class and physical format. However, compatibility must be verified against your specific drive serial number and software version before substitution. Our technical team can perform a compatibility assessment based on your drive nameplate data.

Q4: What installation space and clearance requirements apply during the retrofit?
A: The 5SHX1445H0002 requires standard ACS1000 IGCT bay clearances as defined in ABB’s ACS1000 Hardware Manual. Minimum clearance of 50mm around the module perimeter is recommended for thermal airflow. The 2.1kg module weight is within the handling capacity of standard IGCT installation tooling. ESD wrist straps and anti-static work surfaces are mandatory during handling.

Q5: Can this module support a system migration from fixed-speed to variable-speed drive operation?
A: The ABB 5SHX1445H0002 (3BHL000387P0101) is specifically engineered for variable-speed PWM drive applications. When integrated into an ACS1000 system migration project converting fixed-speed motor starters to variable-frequency drive control, this module provides the high-voltage switching performance required for smooth speed ramp profiles, regenerative braking, and sensorless vector control — all within the existing motor and cable infrastructure.

Q6: What documentation is provided to support regulatory compliance during the retrofit?
A: Each unit ships with ABB’s original product datasheet, CE/UL conformity declarations, country-of-origin certificate (Switzerland), and serial number traceability records. For projects requiring IEC 61800-series drive compliance documentation or site-specific FAT/SAT test records, our technical support team can provide supplementary engineering documentation packages.
