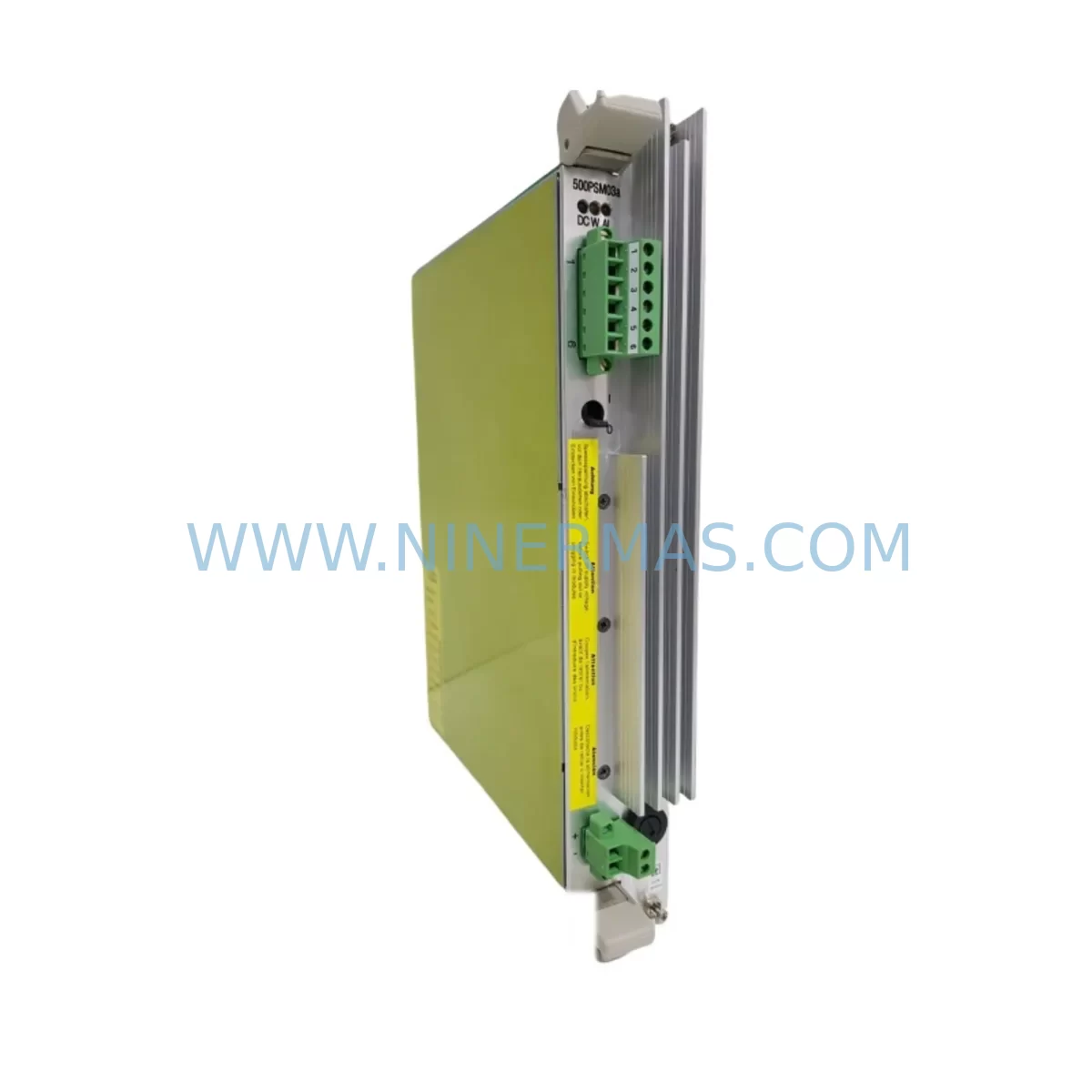

The ABB 500PSM03 is an original power supply module designed for use within the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller series in industrial automation, process control, and manufacturing environments. As a critical component in the AC500 control cabinet architecture, the 500PSM03 provides stable, regulated DC power to the CPU module, I/O expansion modules, and communication interfaces mounted on the same backplane. When this module fails or degrades, the entire PLC rack loses power integrity, leading to unplanned shutdowns, production line stoppages, and potentially unsafe control states.

For maintenance engineers managing aging automation infrastructure, keeping a verified, service-ready 500PSM03 in stock is not optional — it is a fundamental element of any responsible spare parts strategy. At NINERMAS, we supply the ABB 500PSM03 with full pre-shipment electrical testing, original packaging where available, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The ABB 500PSM03 sits at the heart of the AC500 power distribution architecture. When planning a replacement or conducting a scheduled control cabinet inspection, experienced maintenance engineers know that the power supply module rarely fails in isolation. A degraded 500PSM03 often causes cascading symptoms across connected components — intermittent CPU resets, I/O communication errors, and unstable fieldbus signals — that are frequently misdiagnosed as software or network faults before the root cause is identified.

During any 500PSM03 replacement procedure, the following components should be inspected or tested concurrently to ensure full system restoration and prevent repeat failures:

• ABB AC500 CPU Modules (e.g., PM571, PM581, PM591) — Verify firmware version compatibility and check for any fault logs stored in non-volatile memory that may indicate prior power anomalies.
• AC500 Digital I/O Modules (e.g., DC532, DC522) — Inspect for input/output channel faults that may have been triggered by power instability during the failure period.
• AC500 Analog I/O Modules (e.g., DA501, AI523) — Analog signal accuracy is highly sensitive to power rail quality; recalibrate or verify signal integrity after PSM replacement.
• AC500 Communication Modules (e.g., CM572-DP for PROFIBUS, CM589-PNIO for PROFINET) — Power interruptions frequently corrupt communication module states; perform a full re-initialization after PSM swap.
• Terminal Blocks and Field Wiring — Inspect all 24 VDC supply terminals feeding the PSM input for loose connections, oxidation, or thermal damage caused by prior overcurrent events.
• 24 VDC Industrial Power Supply (upstream SMPS) — Measure output voltage and ripple. A failing switched-mode power supply is a common root cause of repeated PSM degradation.
• Circuit Protection (Fuses and MCBs) — Replace any blown fuses or tripped miniature circuit breakers in the 24 VDC distribution circuit serving the AC500 rack.
• Signal Isolators and Barriers — In process environments, check signal isolation modules connected to analog I/O channels for ground loop issues that may have contributed to power disturbances.
• AC500 Backplane / Bus Coupler — Inspect the backplane connector for physical damage, corrosion, or bent pins that could cause intermittent power or data bus faults after PSM installation.
• HMI Panel (e.g., ABB CP600 series) — If the HMI lost communication during the PSM failure event, verify that the HMI project and communication settings are intact before returning the system to production.

Procurement engineers sourcing the 500PSM03 for annual maintenance stock should consider ordering alongside compatible I/O modules and communication cards to consolidate shipping, reduce lead times, and ensure a complete spare parts kit is available for emergency response scenarios. NINERMAS supports bulk and repeat orders with consistent pricing and long-term supply agreements.

Site Replacement Workflow

Replacing the ABB 500PSM03 on-site is a structured process that, when executed correctly, minimizes total downtime to under two hours for a prepared maintenance team. The following workflow is recommended for field engineers performing an emergency or scheduled replacement:

1. Pre-Replacement Preparation: Download and save the current PLC program from the AC500 CPU using ABB Automation Builder or Control Builder Plus software. Confirm the replacement 500PSM03 part number matches the installed unit. Gather required tools: insulated screwdrivers, multimeter, DIN rail clip tool.
2. Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Isolate the 24 VDC supply to the AC500 rack at the upstream MCB or fuse terminal. Verify zero voltage at the PSM input terminals using a calibrated multimeter.
3. Module Removal: Disconnect field wiring from the PSM input terminals. Release the DIN rail locking tab and slide the module free from the backplane. Inspect the backplane connector for damage before installing the replacement.
4. Installation of 500PSM03 Replacement: Seat the new 500PSM03 firmly onto the backplane, ensuring the bus connector is fully engaged. Secure the DIN rail locking tab. Reconnect field wiring to the correct terminals per the original wiring diagram.
5. Power-Up and Verification: Restore 24 VDC supply. Observe PSM status LEDs for normal run indication. Verify CPU module boots correctly and all I/O modules report healthy status in the diagnostic interface.
6. System Functional Test: Cycle through critical I/O points, verify fieldbus communication (PROFIBUS/PROFINET) is re-established, and confirm HMI displays correct process data before releasing the system to production.
7. Documentation: Record the replacement in the site maintenance log, including date, technician name, old module serial number, and new module serial number. Update the spare parts inventory accordingly.

For sites operating legacy AC500 systems where the 500PSM03 has been discontinued from standard distribution channels, NINERMAS maintains long-term stock specifically to support old-system life extension programs. We can supply verified original modules to extend the operational life of installed AC500 platforms without requiring a full PLC upgrade — a significant cost saving for facilities managing tight capital budgets.

Spare Parts Support FAQ

Q1: Is the ABB 500PSM03 supplied by NINERMAS an original ABB component?
Yes. NINERMAS supplies original ABB 500PSM03 modules sourced through authorized industrial distribution and surplus channels. Each unit undergoes pre-shipment electrical testing to verify functional integrity before dispatch. Where original ABB packaging is available, it is included. A 12-month warranty is provided on all units from the date of shipment.

Q2: How do I confirm compatibility between the 500PSM03 and my existing AC500 system?
The 500PSM03 is designed for the ABB AC500 PLC platform. Compatibility is determined by the CPU module generation and backplane configuration installed at your site. Please provide your existing CPU part number (e.g., PM571, PM581, PM591) and backplane model when contacting NINERMAS, and our technical team will confirm compatibility before shipment. We recommend cross-referencing with the ABB AC500 system catalog or your site’s electrical drawings.

Q3: What is NINERMAS’s lead time and long-term supply capability for the 500PSM03?
For in-stock units, standard lead time is 2–5 business days with DHL Express or equivalent international courier. For customers requiring ongoing supply — such as annual maintenance contracts or multi-site spare parts programs — NINERMAS offers reserved stock arrangements and priority fulfillment agreements. Contact our sales team to discuss volume pricing and long-term supply terms.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as defined by ABB’s published specifications for the 500PSM03. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental range. To initiate a warranty claim, contact NINERMAS with the original invoice number, module serial number, and a description of the fault. Our team will arrange return shipping and replacement or repair within the warranty period.
