ABB 3HAC021127-001 Retrofit AC Motor for IRB6600 Legacy Systems

ABB 3HAC021127-001 Retrofit AC Motor for IRB6600 Legacy Systems

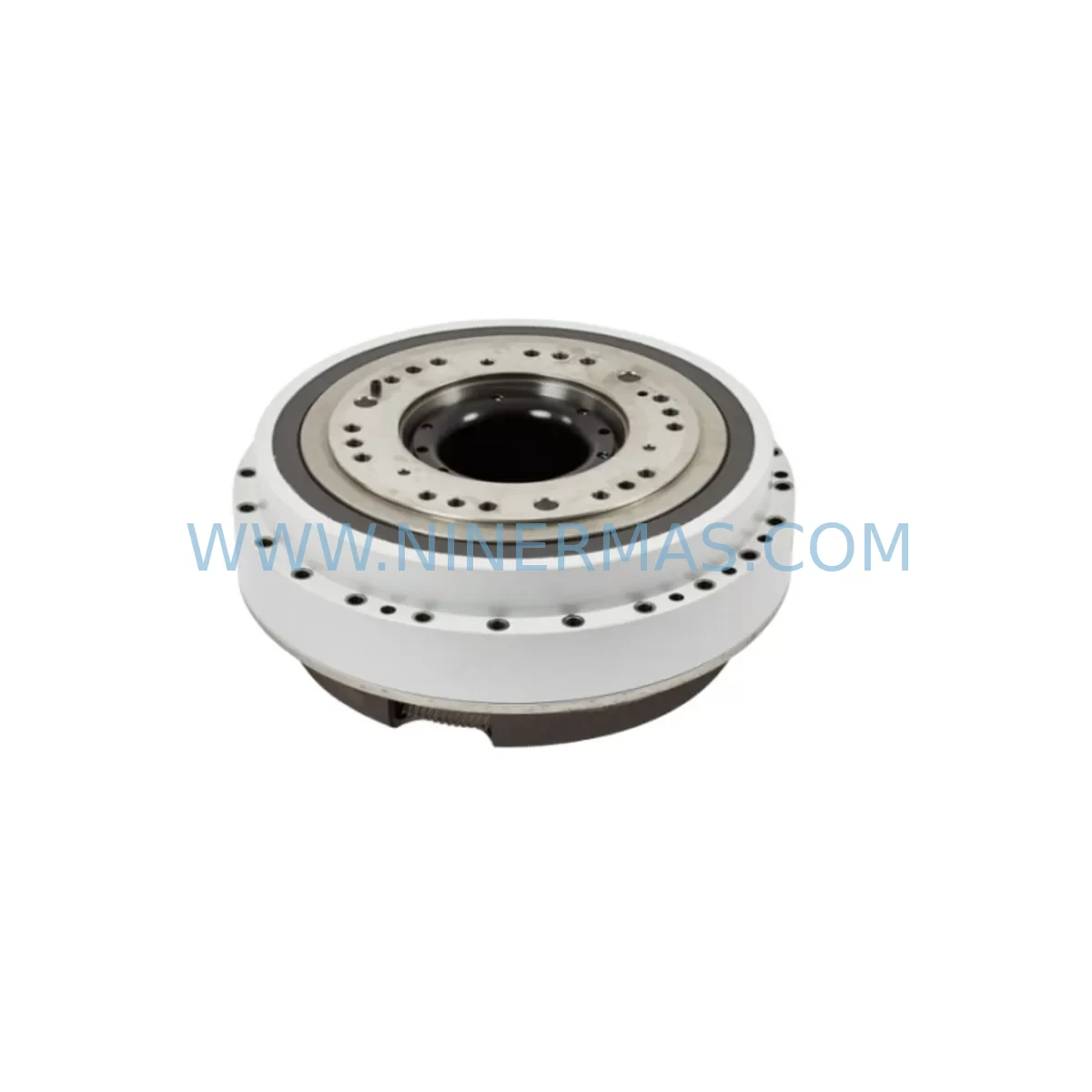

The ABB 3HAC021127-001 is a ruggedized rotational AC servo motor module engineered for the IRB6600 heavy-duty industrial robot series. As ABB progressively phases out legacy IRB6600 components, maintenance engineers and system integrators managing aging robot cells face increasing difficulty sourcing direct replacements. This unit provides a verified retrofit-compatible solution that restores full axis motion capability without requiring controller reprogramming or mechanical redesign of the robot arm assembly.

The IRB6600 platform — widely deployed in automotive body-in-white welding, heavy press tending, and foundry applications — relies on a tightly integrated drive and motor architecture. The 3HAC021127-001 motor interfaces directly with the ABB S4C+ and S4Cplus M2000 controller families, maintaining compatibility with the existing DSQC series drive modules and the IRC5 single-cabinet controller when used with appropriate axis computer configurations. Replacing this motor without disrupting the robot’s calibration data or axis parameter files is a primary concern during any retrofit project.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a motor replacement on an IRB6600 robot cell, the scope of work extends well beyond the motor itself. A structured retrofit approach begins with a full audit of the robot’s current axis configuration, drive health, and controller firmware version. The DSQC 633 or DSQC 617 drive units connected to this axis must be verified for output current capacity and checked for fault history before the new motor is commissioned. If the drive shows recurring overcurrent or resolver fault codes, it is advisable to replace the drive module concurrently to avoid repeat downtime.

The ABB 3HAC021127-001 connects to the robot’s internal wiring harness via a dedicated motor power cable and a resolver feedback cable. Before disconnecting the old motor, technicians should document the existing cable routing and label all connectors. The motor power cable — typically routed through the robot’s lower arm and base — must be inspected for insulation wear, particularly in high-cycle foundry or press-tending environments. If the cable shows signs of degradation, replacing it alongside the 3HAC021127-001 motor prevents a secondary failure within weeks of the retrofit.

The S4C+ controller’s axis computer board (DSQC 346 or equivalent) manages the resolver signal processing for this axis. If the axis computer is running on an older firmware revision, a firmware update may be required to ensure stable communication with the replacement motor’s resolver. The teach pendant — typically an ABB FlexPendant or the legacy S4C+ pendant — should be used to perform a revolution counter update and fine calibration sequence immediately after motor installation. This step is mandatory to restore the robot’s TCP accuracy and prevent positional drift during production.

For cells where the IRB6600 operates alongside a IRBP positioner or a conveyor-synchronized track unit, the axis configuration file stored in the S4C+ controller must be backed up before any hardware change. The backup should include the robot’s calibration data, system parameters, and any RAPID program modules. This ensures that if the controller requires a cold restart during commissioning, the production program can be restored without manual re-entry. The ABB RobotStudio offline programming environment can be used to verify the axis configuration before the robot is returned to production.

In multi-robot cells where several IRB6600 units share a common control cabinet with a DSQC 352 fieldbus adapter or a DeviceNet communication module, the network topology should be documented before the retrofit begins. Disconnecting a robot from the cell network during motor replacement can trigger fault states on adjacent robots if the fieldbus master is not properly configured to handle a temporary node absence. Coordinating the retrofit window with the production scheduler to allow a controlled network isolation minimizes this risk.

Downtime Control During System Migration

Minimizing unplanned downtime during an IRB6600 motor replacement requires a pre-staged parts kit and a clearly defined commissioning sequence. Before the maintenance window begins, the replacement 3HAC021127-001 motor, all required tools, the calibration pendulum or calibration pin set, and a laptop with RobotStudio or the S4C+ service tool installed should be staged at the robot cell. The controller backup should be completed and verified on a separate storage device.

The motor swap itself — mechanical removal, installation, cable reconnection, and revolution counter update — can typically be completed within a four-to-six hour window by an experienced ABB-trained technician. The most time-sensitive step is the fine calibration sequence, which requires the robot to be in a known reference position. If the robot’s calibration marks are worn or obscured, additional time must be allocated for reference position verification.

To protect the original program logic, the RAPID program should be placed in a hold state before the controller is powered down. After the motor is installed and the revolution counter is updated, the controller should be restarted in manual mode and the robot jogged through its full range of motion on the affected axis before automatic mode is re-enabled. This confirms that the motor is operating correctly and that no mechanical interference exists before production resumes.

For facilities with strict OEE targets, a parallel commissioning approach — where a pre-tested spare robot is swapped into the cell while the primary robot undergoes motor replacement offline — can reduce cell downtime to under two hours. NINERMAS maintains ready stock of pre-tested 3HAC021127-001 units to support this approach, with same-day dispatch available for urgent requirements.

Retrofit Support FAQ

Q1: Is the 3HAC021127-001 a direct drop-in replacement for all IRB6600 variants?
The 3HAC021127-001 is the standard motor module for the IRB6600 series. However, the IRB6600 was produced in multiple payload and reach variants. Before ordering, confirm the robot’s exact model designation (e.g., IRB6600-175/2.55 or IRB6600-225/2.55) and the axis number requiring replacement. NINERMAS technical support can cross-reference the part number against your robot’s serial number and axis configuration to confirm compatibility.

Q2: Does the replacement motor require recalibration after installation?
Yes. After installing the 3HAC021127-001, a revolution counter update is mandatory. Fine calibration using the robot’s calibration pin or pendulum is strongly recommended to restore full TCP accuracy. The calibration procedure is documented in the IRB6600 product manual and should be performed by a qualified ABB-trained technician.

Q3: What pre-shipment testing is performed on the 3HAC021127-001?
Each unit dispatched by NINERMAS undergoes functional rotation testing and insulation resistance measurement before shipment. Units that do not meet OEM performance specifications are not dispatched. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and stock availability?
NINERMAS maintains dedicated stock of the 3HAC021127-001 to support urgent retrofit and breakdown recovery requirements. Standard dispatch is within 1–3 business days. For large-quantity orders or long-term supply agreements, contact our sales team to discuss reserved inventory arrangements and extended lead time commitments.
