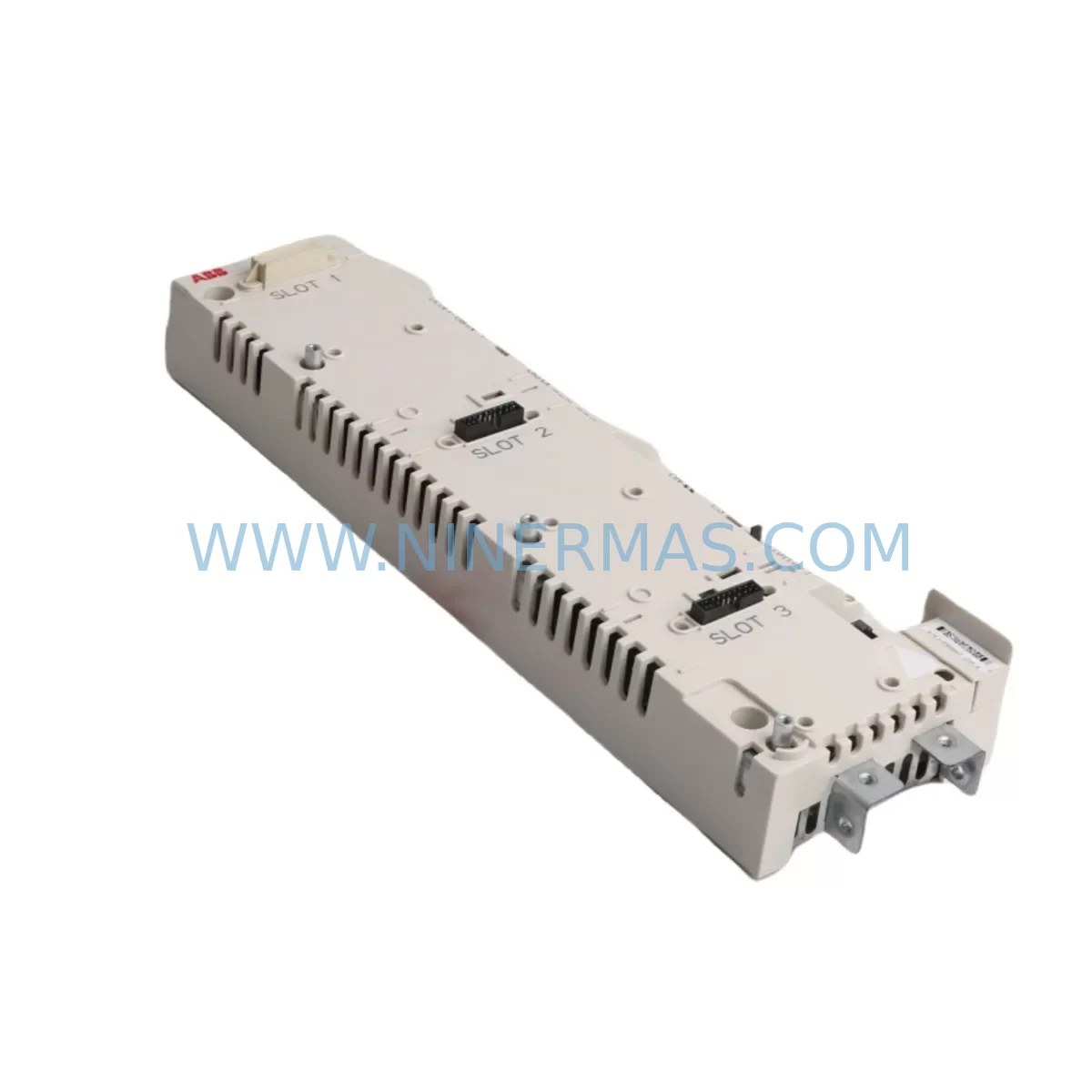

The ABB JCU-01 (Part No. 68592917N) is the dedicated control unit for the ABB ACS800 series variable frequency drive platform — one of the most widely deployed drive families in industrial automation environments worldwide. As a service-ready spare part, the JCU-01 is engineered to restore full drive functionality with minimal downtime, making it an essential component in any maintenance engineer’s spare parts inventory for motor control centers, conveyor systems, pump stations, compressor drives, and fan control applications.

When an ACS800 drive trips on a control board fault, firmware communication error, or I/O failure, the JCU-01 is typically the first board-level component to be evaluated for replacement. Its role as the central intelligence of the drive — managing speed reference processing, fieldbus communication, digital and analog I/O, and fault diagnostics — means that a failed JCU-01 can bring an entire production line to a halt. Stocking a verified replacement unit eliminates the risk of extended lead times from OEM channels and allows maintenance teams to execute a same-shift board swap.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the JCU-01 control unit in an ACS800 drive is rarely an isolated event. Experienced maintenance engineers understand that a control board failure is often symptomatic of broader electrical stress within the drive cabinet or the upstream power distribution system. A thorough site inspection should accompany any JCU-01 replacement to prevent repeat failures and ensure long-term system stability.

Begin by inspecting the ACS800 power supply section and the internal 24 VDC SMPS board, as voltage irregularities or ripple on the control supply rail are a common root cause of premature control unit failure. Check the AINT-0x inverter control interface board for signs of thermal stress or connector oxidation, as this board interfaces directly with the JCU-01 and shares the DDCS communication backbone.

If the drive is connected to a fieldbus network — PROFIBUS, Modbus RTU, or DeviceNet — verify the integrity of the RDCO-02 or RDCO-04 communication adapter seated in the JCU-01 option slot. A damaged adapter can cause persistent communication faults even after the control board is replaced. Similarly, inspect the RAIO-01 analog I/O extension module if the application uses more than two analog channels, as these modules are sensitive to ground loop interference in industrial environments.

For drives operating in closed-loop vector control mode, the RTAC-01 pulse encoder interface module should be tested for encoder signal integrity. A faulty encoder cable shield or a degraded RTAC module can cause speed feedback errors that are misdiagnosed as JCU-01 failures. Inspect the encoder cable and terminal connections at both the motor junction box and the drive terminal strip.

At the cabinet level, check the ACS800 main contactor and pre-charge circuit for contact wear, and verify that the DC bus capacitor bank is within specification using a capacitance meter. Degraded capacitors increase voltage stress on the control electronics. Inspect all control wiring terminal blocks — particularly the X1 and X2 terminal strips on the JCU-01 — for loose connections, insulation damage, or corrosion caused by condensation in humid plant environments.

If the ACS800 is part of a multi-drive system using a DDCS fiber optic ring, verify the optical power levels on all fiber connections to the master inverter unit. Dirty or cracked fiber connectors are a frequent source of intermittent communication faults that can trigger false JCU-01 fault codes. Also confirm that the ACS800 fan tray assembly is operational, as overtemperature conditions accelerate control board degradation.

For facilities running legacy ACS800 installations beyond their original design life, a proactive spare parts strategy should include not only the JCU-01 but also the AINT board, APOW power supply board, gate driver boards (AGDR series), and a set of replacement DC bus fuses. Maintaining a curated bill-of-materials for each drive frame size in your plant significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the ACS800 drive and apply LOTO procedures. Wait a minimum of 5 minutes for the DC bus to discharge below 50 VDC before opening the drive cabinet door. Verify with a calibrated multimeter.

Step 2 — Parameter Backup: If the existing JCU-01 is still partially functional, use the ABB Drive Composer or DriveWindow software to upload a full parameter backup via the USB or DDCS interface. Store the backup file with the equipment asset record.

Step 3 — Board Removal: Disconnect all control wiring from the X1 and X2 terminal strips on the JCU-01. Label each wire before removal. Carefully release the board retention clips and extract the JCU-01 from the backplane connector. Avoid touching the PCB surface or connector pins.

Step 4 — Replacement Installation: Insert the new JCU-01 68592917N into the backplane connector, ensuring full seating. Reconnect all control wiring per the original wiring diagram. Verify that any option modules (RDCO, RTAC, RAIO) are correctly reseated in their respective slots.

Step 5 — Parameter Restore & Commissioning: Power up the drive and restore the parameter backup. Verify motor data, control mode, reference source, and fieldbus node address. Run a no-load test followed by a loaded test at minimum speed before returning the drive to production.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the old board serial number, new board part number (68592917N), date, technician name, and post-replacement test results. Update the spare parts inventory accordingly.

This structured workflow minimizes re-commissioning errors, reduces the risk of repeat failures, and ensures full system compatibility is maintained after the board swap — keeping your ACS800 drive performing at specification for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the JCU-01 68592917N compatible with all ACS800 frame sizes?
The JCU-01 is the standard control unit across the ACS800 single-drive product family, covering frame sizes R2 through R8 and the cabinet-mounted ACS800-07 variants. Compatibility should be confirmed against the drive’s type designation label and the hardware manual revision. For ACS800 multi-drive systems, the JCU-01 is used in the inverter units; the master control unit may differ by configuration.

Q2: What pre-shipment testing is performed on each JCU-01 unit?
Each JCU-01 68592917N unit supplied by NINERMAS undergoes functional power-on verification, I/O channel continuity testing, and DDCS communication interface validation prior to shipment. Units are packed in anti-static ESD packaging with desiccant to prevent moisture ingress during transit. A test report is available upon request.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination. To initiate a warranty claim, contact NINERMAS with the original invoice, a description of the fault, and photographic evidence. Replacement or repair will be arranged within the agreed service timeline.

Q4: Can NINERMAS support long-term supply of JCU-01 units for multi-site maintenance programs?
Yes. NINERMAS maintains stock of JCU-01 68592917N and related ACS800 spare parts to support scheduled annual maintenance programs, emergency breakdown orders, and multi-site procurement contracts. Framework agreements with agreed pricing, lead times, and minimum stock reservations are available for facilities management companies and OEM service providers. Contact our technical sales team to discuss your site’s spare parts requirements.
