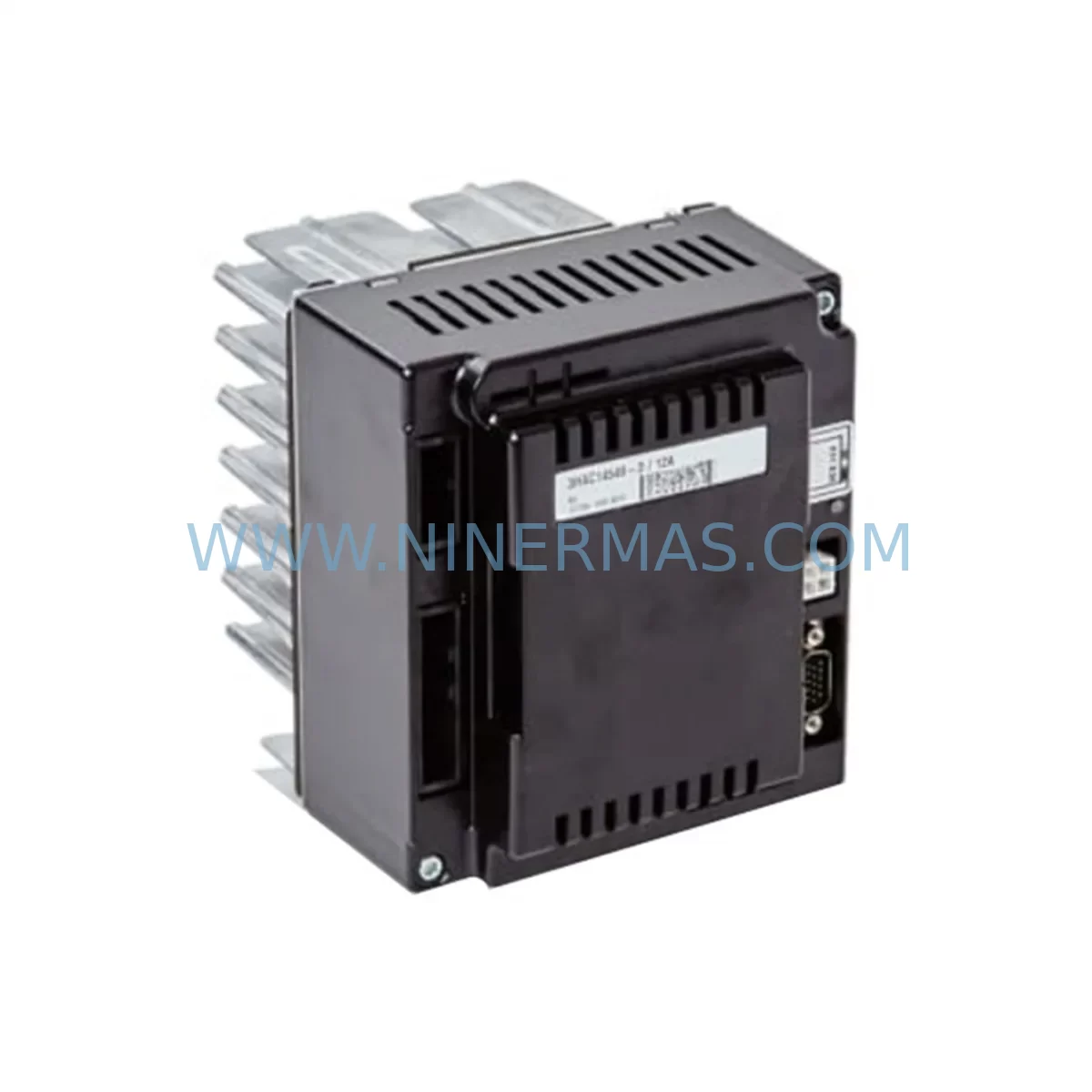

ABB 3HAC14549-3 Retrofit-Compatible Rectifier Module

ABB 3HAC14549-3 Retrofit-Compatible Rectifier Module for Legacy IRC5 Systems

The ABB 3HAC14549-3 is a DC rectifier module designed for use within the ABB IRC5 robot controller platform. As automation facilities worldwide face the challenge of maintaining aging production lines, this module has become a critical component in legacy system preservation, control cabinet upgrades, and planned migration projects. Whether you are replacing a failed unit on an active line or building a retrofit strategy for a multi-robot cell, the 3HAC14549-3 provides a reliable, drop-in compatible solution that minimizes engineering risk and reduces unplanned downtime.

NINERMAS maintains verified stock of the ABB 3HAC14549-3 with full functional testing prior to shipment, backed by a 12-month warranty. Each unit is inspected for power output stability, terminal integrity, and backplane connector condition before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the ABB 3HAC14549-3 into an existing IRC5-based robot cell requires a structured approach that accounts for the full scope of the control architecture. The rectifier module sits at the heart of the IRC5 drive system, supplying conditioned DC power to the axis computer (DSQC 661 or DSQC 679), the drive units, and the I/O modules mounted within the same cabinet. Before initiating a swap, engineers should audit the current power consumption of all installed modules — including any additional DSQC 652 digital I/O boards, DSQC 643 analog I/O modules, and any third-party fieldbus adapters — to confirm that the replacement rectifier’s output capacity is sufficient for the full load.

Wiring adaptation is typically straightforward for a like-for-like replacement of the 3HAC14549-3, but technicians should photograph the existing terminal block layout and label all conductors before disconnection. The IRC5 cabinet uses a standardized backplane, so the module seats directly without mechanical modification. However, if the retrofit is part of a broader upgrade — for example, migrating from a legacy S4C+ controller to an IRC5 platform — additional attention must be paid to differences in the DSQC 508 I/O gateway, the panel computer unit, and the teach pendant interface. In such cases, the FlexPendant (3HAC028357-001 or equivalent) must be verified for firmware compatibility with the target IRC5 software version.

For facilities running multi-robot cells coordinated through a PROFIBUS or EtherNet/IP network, the communication link must be validated after any power module replacement. The IRC5 controller’s DSQC 688 PROFIBUS adapter or DSQC 1006 EtherNet/IP module should be checked for correct node addressing and baud rate settings following the power cycle. If the cell includes a RAPID program with motion tasks synchronized across multiple robots, a dry-run simulation in RobotStudio is strongly recommended before returning the cell to production.

Signal isolation is another consideration in older facilities where the control cabinet shares a ground plane with high-current welding or press equipment. Installing a signal isolator on analog feedback lines — particularly for force control or conveyor tracking applications — can prevent ground loop interference that might otherwise be misdiagnosed as a module fault. Similarly, if the retrofit involves extending the I/O count, adding a DSQC 652 expansion board or an external remote I/O node via DeviceNet should be planned before the maintenance window to avoid secondary downtime.

Finally, confirm that the programming cable and laptop running RobotStudio are available on-site during commissioning. The IRC5 system log should be cleared of pre-existing fault codes before the new 3HAC14549-3 is energized, and a full system backup should be taken immediately after successful startup to protect the restored program logic.

Downtime Control During System Migration

Minimizing production interruption during a rectifier module replacement on an IRC5 controller begins with preparation well before the maintenance window opens. The most effective strategy is to pre-stage the replacement 3HAC14549-3 on-site, confirm its test report, and have all tools, torque specifications, and wiring diagrams ready before the line stops. A typical like-for-like swap of the rectifier module can be completed in under two hours by an experienced technician, provided the cabinet is de-energized correctly and the original program backup is intact.

Protecting the original RAPID program logic is non-negotiable. Before any hardware work begins, a full system backup should be saved to both the controller’s internal memory and an external USB drive. The backup captures all module parameters, I/O configurations, motion tasks, and safety settings. If the IRC5 system is running a coordinated multi-robot application, the backup must include the MultiMove configuration and any synchronized task data.

To maintain field control continuity during the swap, consider whether any safety PLC outputs — such as those routed through a JSHD4 safety board or an external safety relay module — can be held in a safe state without requiring a full cell shutdown. In some configurations, adjacent robots or conveyors can continue operating in a reduced mode while the affected controller is offline, reducing the impact on overall throughput.

After the 3HAC14549-3 is installed and the cabinet is re-energized, perform a controlled startup sequence: verify DC bus voltage, check for fault codes on the FlexPendant, restore the system backup, and run a low-speed jog test on each axis before returning to automatic mode. Document the commissioning results and retain the test report alongside the module’s 12-month warranty certificate for future reference.

Retrofit Support FAQ

Q1: Is the ABB 3HAC14549-3 a direct drop-in replacement for the original rectifier module in my IRC5 cabinet?
A: In the majority of IRC5 single-cabinet and dual-cabinet configurations, the 3HAC14549-3 is a direct replacement requiring no mechanical modification. You should verify the cabinet revision and the existing module’s label to confirm the part number match. NINERMAS can assist with cross-referencing if you provide your cabinet serial number.

Q2: What commissioning steps are required after installing the 3HAC14549-3?
A: After installation, restore your system backup via the FlexPendant or RobotStudio, clear any pre-existing fault logs, verify DC bus voltage on the drive units, and perform a low-speed jog test on all axes. If your system uses PROFIBUS or EtherNet/IP, confirm node addressing and communication status before returning to automatic mode.

Q3: Does NINERMAS test the 3HAC14549-3 before shipment, and what does the warranty cover?
A: Yes. Every unit undergoes functional testing for power output stability, terminal integrity, and backplane connector condition prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with a test report and warranty certificate.

Q4: What is the typical lead time, and do you maintain stock of the 3HAC14549-3?
A: NINERMAS maintains inventory of the ABB 3HAC14549-3 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact our team for real-time stock confirmation and expedited shipping options.
