ABB 3HAC14549-3/07A Safety-Reliable Rectifier for Critical Control

ABB 3HAC14549-3/07A Safety-Reliable Rectifier for Critical Control

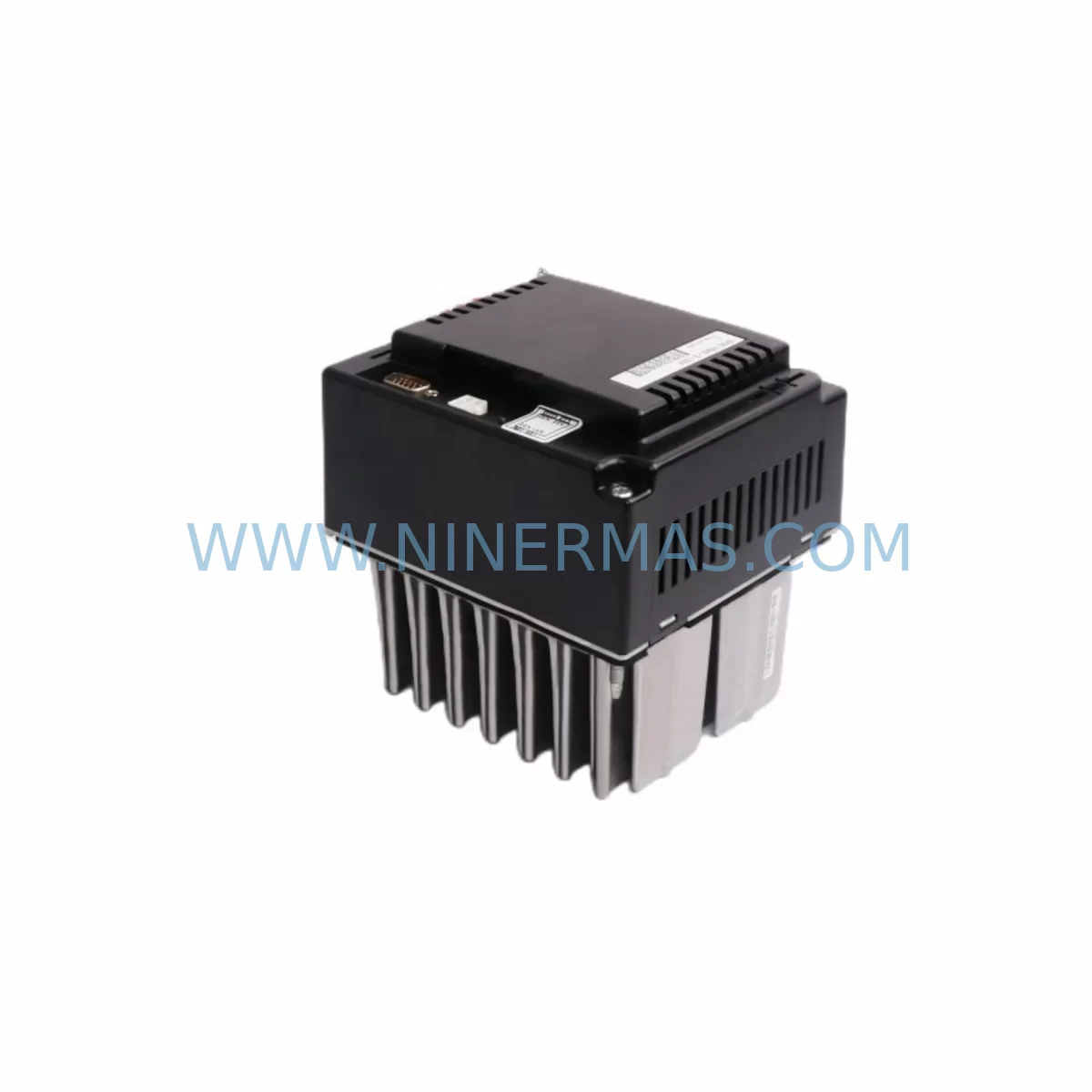

The ABB 3HAC14549-3/07A is a precision-engineered rectifier module designed for the ABB IRC5 R3 robot controller platform. As a core power conversion component within the drive unit assembly, it converts AC mains supply into stable DC bus voltage that feeds the axis drive boards, servo amplifiers, and safety I/O systems throughout the control cabinet. In continuous production environments — where unplanned downtime carries direct financial and safety consequences — the integrity of this rectifier is foundational to the entire control loop. NINERMAS COMPANY LIMITED maintains verified stock of the 3HAC14549-3/07A with full pre-shipment functional testing and a 12-month warranty, ensuring your critical site receives a reliable, drop-in replacement without extended lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Within the ABB IRC5 R3 control cabinet, the 3HAC14549-3/07A rectifier sits at the upstream end of the power chain. Any instability here — whether caused by mains voltage fluctuation, capacitor degradation, or thermal stress — propagates immediately downstream to the axis drive boards such as the ABB DSQC 661 drive unit and the 3HAC025338-001 axis computer board, triggering fault codes, servo trips, or in worst cases, uncontrolled axis movement. Replacing a degraded rectifier with a tested 3HAC14549-3/07A eliminates this upstream risk at its source.

In high-electromagnetic-interference environments — common in arc welding cells, induction heating lines, and heavy press shops — the rectifier’s DC bus stability directly affects the signal integrity of the ABB DSQC 662 I/O module and the 3HAC026254-001 safety board. A clean, regulated DC bus prevents signal drift on digital safety inputs, reduces nuisance trips on the emergency-stop circuit, and maintains reliable communication on the DeviceNet or PROFIBUS fieldbus segments connected to the IRC5 panel board.

For sites operating multiple IRC5 cabinets in a coordinated multi-robot cell, maintaining a spare 3HAC14549-3/07A alongside the ABB 3HAC14550-1 capacitor bank module and the 3HAC025562-001 main computer unit significantly reduces mean time to repair (MTTR). When a rectifier fault is detected via the IRC5 FlexPendant error log, a pre-tested replacement can be installed and the cabinet returned to production within a single maintenance window — avoiding the multi-day lead times associated with emergency OEM procurement.

In dusty or humid environments such as cement plants, food processing lines, or coastal port facilities, the rectifier’s thermal management is critical. Pairing the 3HAC14549-3/07A with a properly maintained ABB IRC5 cabinet cooling fan unit (3HAC029157-001) and ensuring the 3HAC025466-001 power supply unit filter is clean prevents thermal derating and premature component failure. Surge protection at the cabinet’s incoming power terminal — using an appropriate Type 2 SPD (Surge Protective Device) rated for the local grid — further shields the rectifier from transient overvoltage events common in industrial substations.

Critical Industrial Safety Applications

The ABB 3HAC14549-3/07A rectifier supports safe, continuous operation across the most demanding industrial sectors:

Petrochemical & Refinery: In ATEX-adjacent robot cells used for pipe welding, valve assembly, and hazardous-area material handling, DC bus stability from a reliable rectifier is a prerequisite for maintaining the safety-rated stop functions (SS1/SS2/STO) defined under IEC 62061 and ISO 13849. A rectifier fault in this environment can trigger an uncontrolled robot stop that creates secondary hazards in a live process area.

Power Generation & Utilities: Robotic maintenance systems in thermal and hydroelectric plants operate in high-vibration, high-humidity environments. The 3HAC14549-3/07A’s robust construction ensures the IRC5 controller maintains axis position accuracy and safety interlock integrity even under continuous mechanical vibration from turbine halls or pump stations.

Mining & Mineral Processing: Automated drilling, rock-breaking, and conveyor-loading robots in underground and open-cut mines face extreme dust ingress and voltage fluctuations from large motor starts on shared power networks. A tested rectifier with verified overcurrent protection prevents nuisance shutdowns during peak load events.

Water & Wastewater Treatment: Robotic sampling, valve actuation, and pipe inspection systems in water treatment facilities require 24/7 availability. The 3HAC14549-3/07A supports uninterrupted DC bus supply to the IRC5 controller, ensuring automated dosing and monitoring processes are never interrupted by a preventable power module failure.

Metallurgy & Steel Mills: In continuous casting lines and rolling mill robot cells, the combination of high ambient temperature, electromagnetic interference from induction furnaces, and mechanical shock from rolling operations places extreme demands on rectifier reliability. Verified replacement stock of the 3HAC14549-3/07A ensures that a failed module can be swapped during a scheduled roll change without extending the production gap.

Port & Shipyard Automation: Container-handling robots and automated welding systems in shipyards operate in salt-laden, high-humidity air. Maintaining a spare 3HAC14549-3/07A in the site’s critical spares inventory is a standard risk mitigation practice recommended for any facility where robot downtime directly delays vessel departure or cargo throughput.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HAC14549-3/07A?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its rated rectification function within the warranty period, NINERMAS will provide a replacement unit at no additional cost. The warranty period begins from the date of confirmed delivery to the customer’s site.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC14549-3/07A unit undergoes a 100% functional power-on test prior to dispatch. This includes verification of DC bus output voltage under load, inspection of all connector interfaces, and a visual inspection for physical damage. A test report is available upon request for customers with documented quality management requirements.

Q3: Is this rectifier compatible with all IRC5 R3 cabinet variants, including single-cabinet and dual-cabinet configurations?
The 3HAC14549-3/07A is designed for the ABB IRC5 R3 platform and is compatible with standard single-cabinet IRC5 configurations. Compatibility with dual-cabinet or IRC5 Compact variants should be confirmed against the specific cabinet’s BOM or service manual. NINERMAS technical support can assist with compatibility verification — contact sale@ninermas.com with your cabinet serial number.

Q4: Can NINERMAS guarantee long-term supply for ongoing maintenance programs?
Yes. NINERMAS maintains a dedicated inventory of ABB IRC5 series components, including the 3HAC14549-3/07A, to support customers with multi-year maintenance contracts and planned replacement programs. For facilities managing fleets of IRC5 robots, we offer reserved stock arrangements and priority dispatch agreements. Contact our team to discuss a supply agreement tailored to your site’s maintenance schedule.
