ABB 1SFB536068D1003 Service-Ready Spare Part for Industrial Maintenance

ABB 1SFB536068D1003 Service-Ready Spare Part for Industrial Maintenance

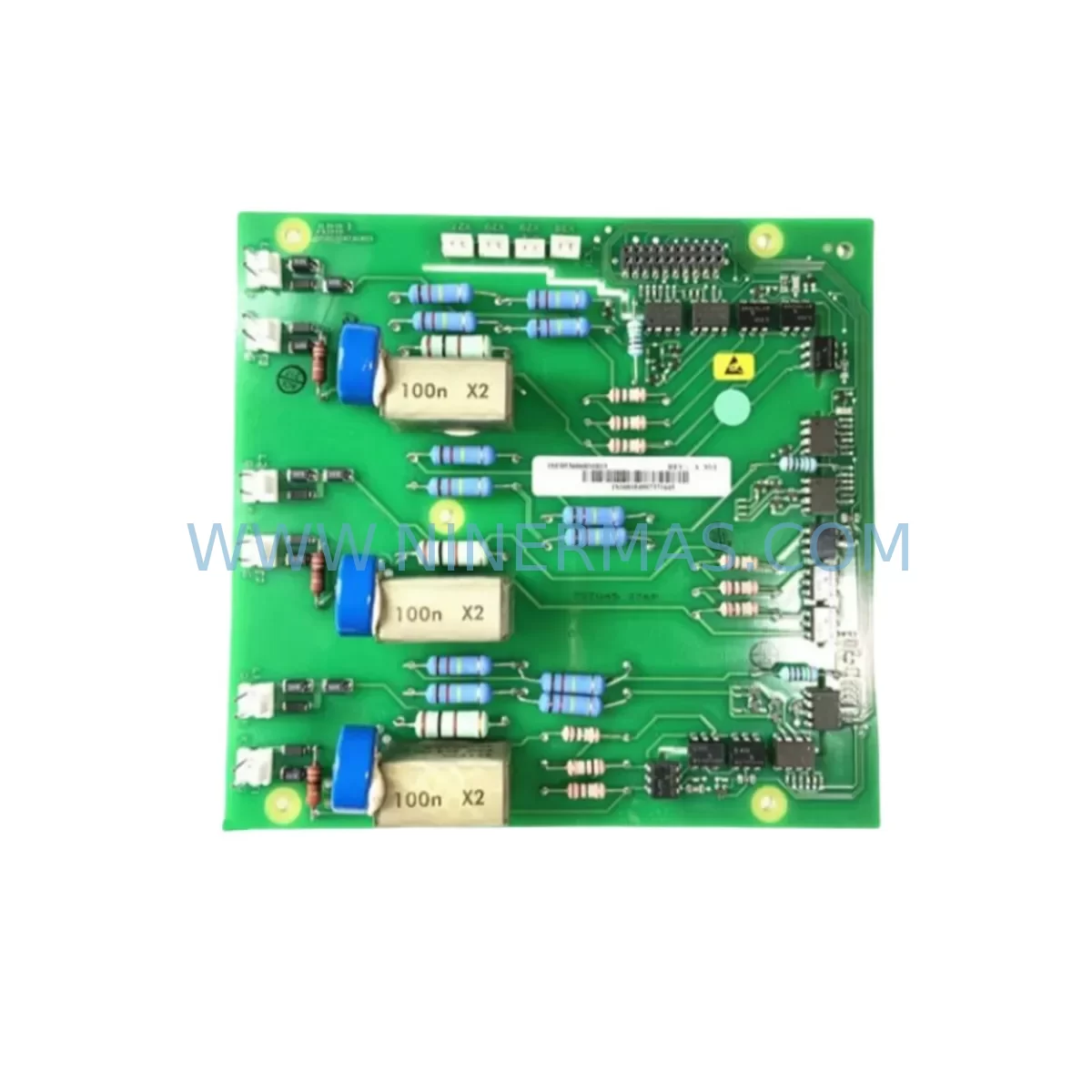

The ABB 1SFB536068D1003 is a critical voltage regulator module designed for the ABB UNITROL series automatic voltage regulator (AVR) and excitation control systems. As a service-ready spare part, it is engineered to restore generator excitation performance with minimal downtime, making it an essential component in any industrial maintenance inventory for power generation facilities, marine applications, and heavy industrial plants operating ABB UNITROL 1000, UNITROL 5000, or UNITROL 6000 series controllers.

When a generator excitation system fails unexpectedly, every minute of downtime translates directly into production loss and operational risk. The 1SFB536068D1003 module is stocked and tested to original ABB factory specifications, ensuring that your maintenance team can execute a rapid, like-for-like replacement without the need for system reconfiguration or firmware re-parameterization. Our pre-shipment functional verification process confirms that each unit meets the electrical and communication interface requirements of the UNITROL platform before dispatch.

Procurement engineers managing long-term spare parts programs for power plants, offshore platforms, or industrial facilities with ABB excitation systems should treat the 1SFB536068D1003 as a Tier-1 critical spare. Its role in maintaining generator terminal voltage stability, reactive power control, and grid synchronization makes it indispensable for continuous operation strategies. Holding at least one unit on-site significantly reduces the mean time to repair (MTTR) during unplanned outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A disciplined maintenance strategy for ABB UNITROL-based excitation systems extends well beyond the 1SFB536068D1003 module itself. Maintenance engineers conducting annual generator overhauls or responding to excitation alarms should simultaneously inspect and, where appropriate, stock replacement units for the following associated components within the same control cabinet and electrical circuit:

The ABB UNITROL power supply module (typically a 24 VDC auxiliary supply card within the UNITROL rack) should be checked for output voltage stability and capacitor aging — a degraded power supply is a common root cause of intermittent AVR faults that are misdiagnosed as module failures. Alongside this, the UNITROL I/O interface board handles analog and digital signal conditioning between the AVR and the plant DCS or PLC; worn terminal connections or signal drift on this board can cause erratic voltage regulation behavior that mimics a faulty 1SFB536068D1003.

The excitation transformer and associated thyristor bridge assembly (SCR firing board) are upstream components that directly affect the operating conditions of the voltage regulator module. Thermal stress on thyristors or a degraded firing pulse circuit will accelerate wear on the AVR module. Inspecting these during the same maintenance window avoids repeat callouts. The field current measurement shunt and transducer should also be verified for calibration accuracy, as incorrect field current feedback will cause the AVR to operate outside its design envelope.

For the control cabinet wiring harness, inspect terminal blocks and signal cables connecting the UNITROL rack to the generator protection relay panel — particularly the AVR enable/disable interlock wiring and the power factor controller (PFC) interface. Corroded or loose terminals in this circuit are a frequent source of nuisance trips. If the facility uses an ABB REG216 or REG630 generator protection relay, confirm that the protection relay firmware and AVR interlock settings remain aligned after any module replacement.

Communication-dependent installations should verify the PROFIBUS DP or Modbus RTU interface module within the UNITROL rack, as communication faults can prevent remote AVR setpoint adjustments from the plant SCADA or DCS. Finally, for facilities with parallel generator operation, the reactive power sharing (cross-current compensation) module and associated CT wiring should be tested to confirm stable load sharing after the 1SFB536068D1003 is replaced.

Stocking these components — power supply card, I/O board, SCR firing board, field transducer, terminal blocks, and communication interface module — alongside the 1SFB536068D1003 constitutes a comprehensive UNITROL excitation system spare parts kit that supports a full system restoration within a single maintenance shift.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the excitation system and confirm generator field current is at zero before opening the UNITROL cabinet.

Step 2 — Documentation: Record all existing AVR parameter settings using the UNITROL commissioning software (CMT or equivalent) before removing the module. Export the parameter file to a USB drive or plant documentation system. This step is critical — parameter loss is the most common cause of extended downtime during AVR module replacement.

Step 3 — Module Removal: Disconnect the module connectors in the sequence specified in the ABB UNITROL service manual for your specific controller variant. Label all connectors before removal to prevent mis-wiring during reinstallation.

Step 4 — Installation of 1SFB536068D1003: Insert the replacement module into the correct slot position. Reconnect all connectors and verify secure seating. Do not power up until all connections are confirmed.

Step 5 — Parameter Restore and Commissioning: Reload the saved parameter file. Perform a no-load voltage build-up test before reconnecting to the busbar. Verify terminal voltage stability, reactive power response, and AVR/manual transfer function before returning the generator to service.

Step 6 — Documentation and Handover: Record the replacement in the equipment maintenance log with the new module serial number, date, and technician sign-off. Update the site spare parts inventory to trigger reorder of a replacement 1SFB536068D1003 unit to maintain stock levels.

This workflow is compatible with both like-for-like replacement of a failed unit and proactive replacement during scheduled outages. It minimizes the risk of extended downtime and ensures system compatibility is maintained without requiring a full recommissioning of the excitation system.

Spare Parts Support FAQ

Q1: Is the 1SFB536068D1003 a direct drop-in replacement for the original ABB UNITROL module?
Yes. The 1SFB536068D1003 is sourced and verified to original ABB specifications for the UNITROL series. It is a like-for-like replacement that does not require hardware modification or firmware changes, provided the existing parameter file is backed up and restored during the replacement procedure. Compatibility should always be confirmed against your specific UNITROL controller variant and software version prior to installation.

Q2: What pre-shipment testing is performed on each unit?
Every 1SFB536068D1003 unit undergoes functional verification testing against ABB factory electrical and communication interface specifications before dispatch. Units that do not meet specification are not shipped. A test report is available upon request for critical procurement applications.

Q3: What is the warranty coverage and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Warranty claims are supported with direct technical assistance and priority replacement dispatch.

Q4: Can you support long-term supply agreements for critical spare parts programs?
Yes. For facilities managing multi-year maintenance contracts or lifecycle extension programs for ABB UNITROL excitation systems, we offer long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing. Contact our technical sales team to discuss your site’s spare parts requirements and annual consumption forecast.
