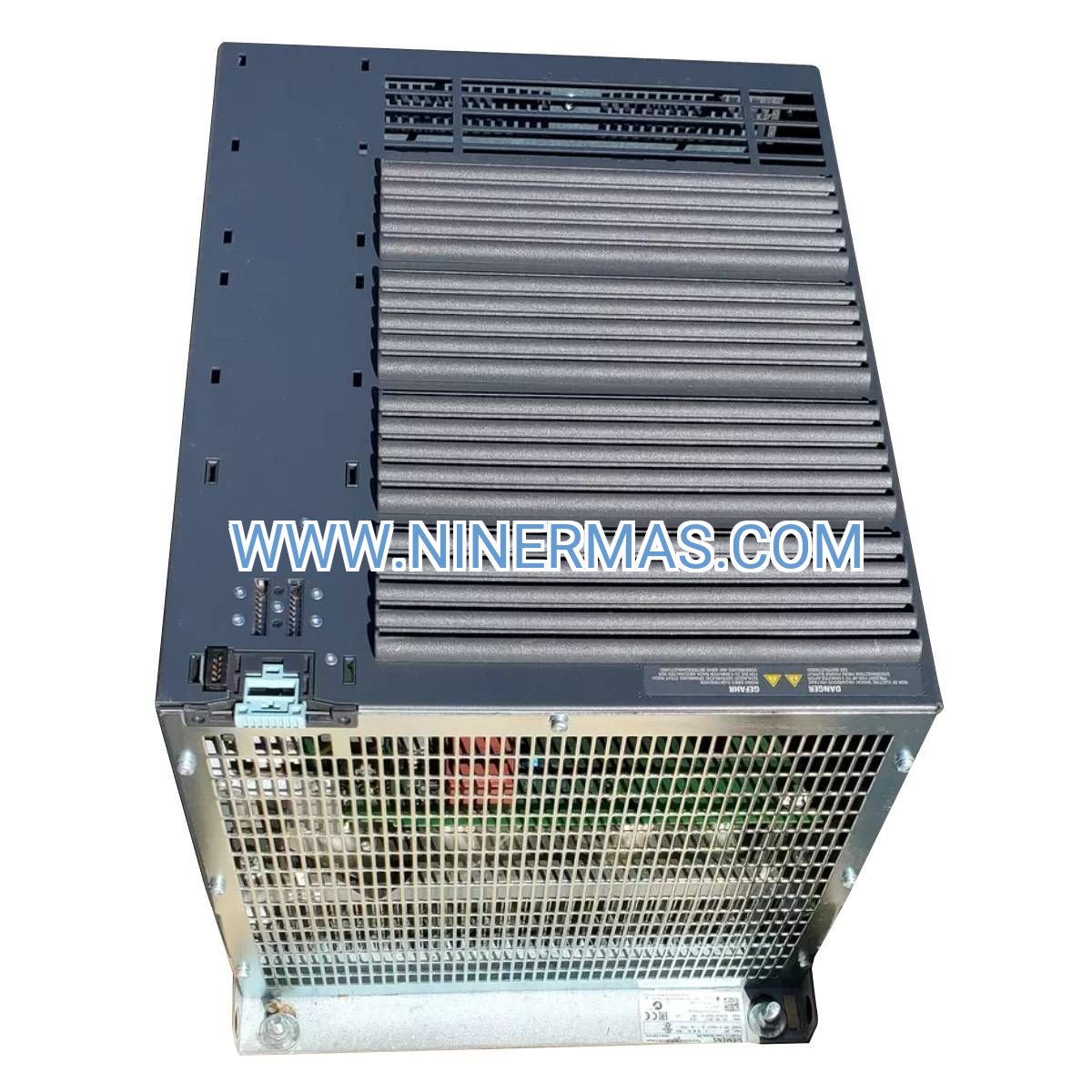

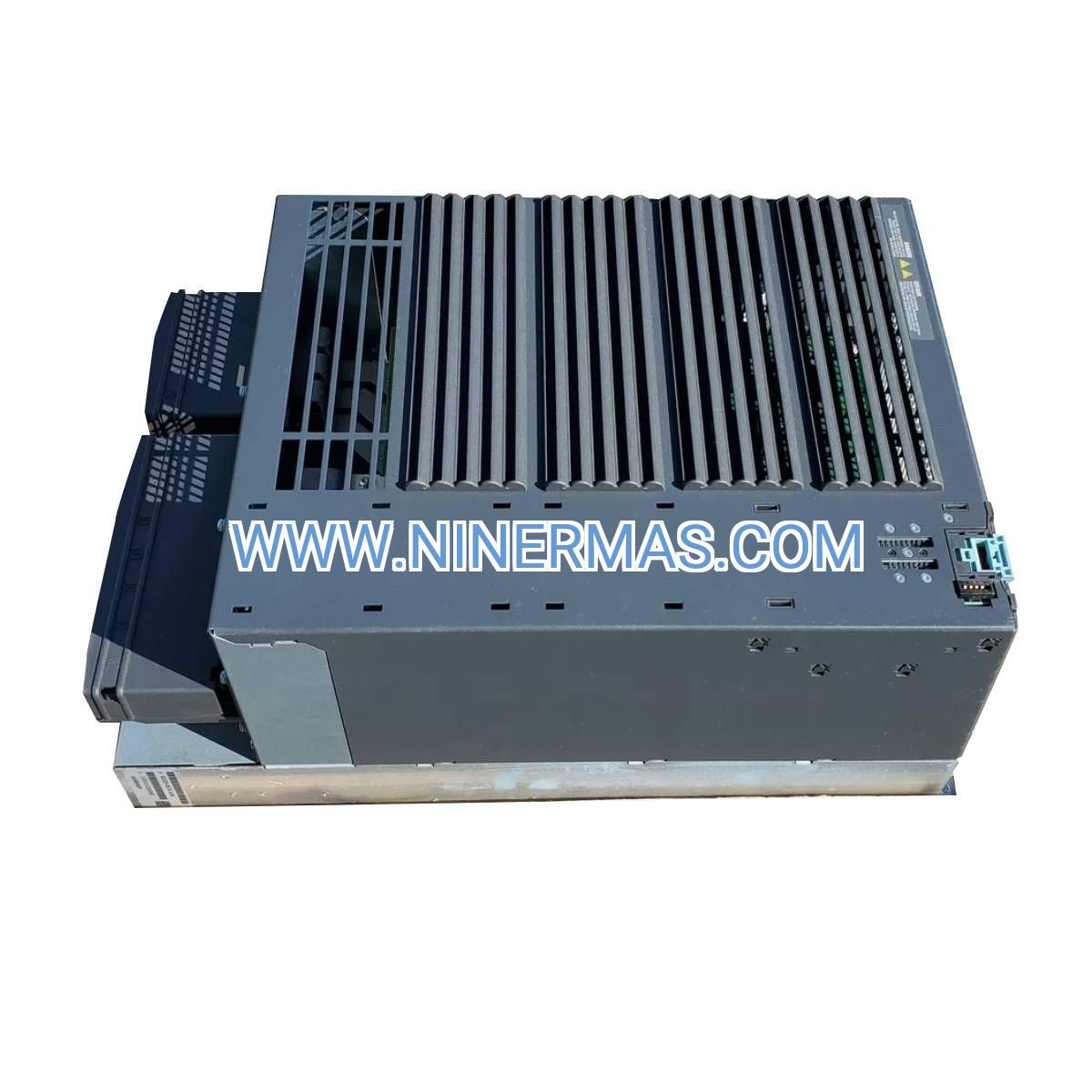

SIEMENS 6SL3224-0BE34-5UA0 Power Module (Industrial-Grade Variable Frequency Drive)

The SIEMENS 6SL3224-0BE34-5UA0 is a high-performance PM240 series power module designed for precision motor control in demanding industrial environments. Engineered to deliver 55kW continuous power with 115A rated output, this drive module provides exceptional reliability for variable speed applications across manufacturing, process control, and infrastructure systems.

Built for system integrators and automation engineers who demand proven German engineering, this power module solves critical challenges in motor efficiency, thermal management, and network integration. Whether you're upgrading legacy drive systems or designing new automation architectures, the 6SL3224-0BE34-5UA0 offers the performance headroom and diagnostic intelligence required for mission-critical operations.

Key advantages include seamless PROFINET connectivity for real-time control, integrated Safe Torque Off (STO) for compliance with machinery safety directives, and intelligent thermal algorithms that extend component lifespan while reducing unplanned downtime. With documented energy savings up to 30% compared to fixed-speed motor starters, this module delivers measurable ROI in high-duty-cycle applications.

Core Features & Technical Advantages

✓ High-Current Capacity: 115A continuous rating supports motors up to 75hp (55kW) in Low Overload mode, with 150% overload capability for 60 seconds to handle transient peak demands during startup or load surges.

✓ Wide Voltage Compatibility: 3-phase 380-480V AC input with ±10% tolerance accommodates global power standards and voltage fluctuations common in industrial facilities, eliminating the need for external voltage regulators.

✓ Extended Frequency Range: 0-650Hz output frequency enables specialized applications including high-speed spindle drives, centrifugal separators, and precision textile machinery requiring operation beyond standard 50/60Hz limits.

✓ Integrated Safety Functions: Built-in Safe Torque Off (STO) meets SIL 2 / PLd requirements per IEC 61508 and ISO 13849, reducing external safety relay costs while simplifying certification for CE and OSHA compliance.

✓ Modular Expansion Architecture: Supports plug-in encoder interfaces (HTL/TTL), additional I/O cards, and communication modules without requiring control unit replacement, protecting your automation investment as requirements evolve.

✓ Predictive Diagnostics: Real-time monitoring of junction temperatures, DC bus voltage, and load current with configurable alarm thresholds enables condition-based maintenance strategies that prevent catastrophic failures.

Application Scenarios & Industry Solutions

→ Conveyor & Material Handling Systems: Packaging lines, distribution centers, and automated warehouses benefit from precise speed synchronization and soft-start capabilities that reduce mechanical stress on gearboxes and belt systems. The module's torque control eliminates product damage during acceleration while maintaining throughput targets.

→ Pump & Fan Optimization: Water treatment plants, HVAC installations, and chemical processing facilities achieve 25-40% energy reduction by matching motor speed to actual demand rather than throttling valves or dampers. Built-in PID controllers eliminate external process controllers for simple flow/pressure regulation.

→ Machine Tool Spindle Drives: CNC machining centers and grinding equipment require the module's vector control algorithms for constant surface speed during facing operations and precise torque limiting to prevent tool breakage. Encoder feedback ensures positional accuracy within ±0.01°.

→ Textile & Web Processing: Printing presses, coating lines, and fiber production systems utilize the PM240's multi-motor synchronization via PROFINET to maintain tension control across process sections. Dancer roll feedback integration prevents material waste from speed mismatches.

→ Compressor & Refrigeration: Industrial air compressors and cold storage systems leverage variable speed operation to match compressed air demand or cooling load, reducing compressor cycling that causes valve wear and refrigerant loss while cutting electrical consumption during partial-load conditions.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 6SL3224-0BE34-5UA0, verify that your motor's rated current does not exceed 115A at the intended operating voltage. For applications requiring frequent starts/stops or high inertia loads (punch presses, centrifuges), consider the High Overload (HO) variant for 110% continuous duty. Ensure cabinet ventilation provides minimum 50 CFM airflow per module to maintain thermal performance. For altitudes above 1000m or ambient temperatures exceeding 40°C, apply derating factors per SIEMENS technical documentation.

Extended Capabilities & Integration Options

PROFINET Industrial Ethernet: Real-time cyclic data exchange with SIMATIC S7-1200/1500 PLCs enables coordinated motion control across multiple axes. Supports IRT (Isochronous Real-Time) for sub-millisecond update rates required in synchronized packaging and assembly applications.

IoT Connectivity: Optional SINAMICS G120 Smart Access module provides cloud connectivity for remote monitoring via SIMATIC MindSphere or third-party SCADA platforms. Stream operational data including energy consumption, vibration signatures, and thermal trends for predictive analytics.

Custom Parameter Sets: Factory pre-configuration service available for OEMs requiring identical drive parameters across machine builds. Reduces commissioning time from hours to minutes while eliminating human error in parameter entry.

Harmonic Mitigation: When paired with SIEMENS line reactors or active front-end modules, total harmonic distortion (THD) can be reduced below 5% to comply with IEEE 519 standards and prevent interference with sensitive instrumentation.

Delivery Timeline & Service Commitment

Standard Lead Time: Stock items ship within 3-5 business days via express courier with full tracking. Custom configurations or large quantity orders typically require 2-3 weeks for factory preparation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended warranty programs available for critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance for motor sizing, harmonic analysis, and control architecture design. Post-sales support includes parameter optimization, fault diagnosis, and firmware updates via our certified SIEMENS service partners.

Documentation Package: Each module ships with quick start guide, full operating manual (PDF), AutoCAD dimensional drawings, and sample PLC code for PROFINET integration. EPLAN macros and 3D STEP models available for download.

Frequently Asked Questions

Q: Can this PM240 module control multiple motors simultaneously?
A: The 6SL3224-0BE34-5UA0 is designed for single-motor control. For multi-motor applications, deploy individual modules per motor or consider SINAMICS G120C distributed drive systems with shared DC bus architecture to reduce cabinet space and improve regenerative energy sharing.

Q: What encoder types are compatible for closed-loop vector control?
A: The module accepts HTL (10-30V) and TTL (5V) incremental encoders via optional SMC30 sensor module. Supports up to 300kHz pulse frequency for high-resolution feedback. SSI absolute encoders require SMC30 with firmware upgrade. Resolver interfaces available through third-party signal converters.

Q: How much energy savings can I expect in variable-torque applications?
A: Typical savings range from 25-50% in centrifugal pump and fan applications where load varies with speed cubed. Actual savings depend on load profile, operating hours, and baseline efficiency. Our application engineers provide ROI calculators based on your duty cycle and utility rates.

Q: Is external braking resistor required for my application?
A: Applications with frequent deceleration, overhauling loads (downhill conveyors), or high-inertia flywheels generate regenerative energy that must be dissipated. The module includes integrated brake chopper; external resistor sizing depends on braking power and duty cycle. Contact our team for resistor selection based on your load inertia and deceleration time requirements.

Q: Can I retrofit this module into existing PM240 control unit installations?
A: Yes, the 6SL3224-0BE34-5UA0 maintains mechanical and electrical compatibility with PM240 control units (CU240 series). Verify firmware compatibility if upgrading from older power modules. Parameter backup/restore via memory card simplifies migration.

Q: What protection features prevent motor damage during fault conditions?
A: Comprehensive protections include overcurrent shutdown (150% for 60s, 200% instantaneous), overvoltage/undervoltage monitoring, motor overtemperature via PTC/KTY thermistor inputs, ground fault detection, and phase loss detection. Configurable restart attempts and fault logging aid troubleshooting.

Ready to Optimize Your Motor Control System?

Contact our industrial automation specialists for application-specific sizing, competitive quotations, and technical documentation. Whether you're upgrading a single drive or specifying a complete production line, NINERMAS delivers genuine SIEMENS components with expert support to ensure your project success.
