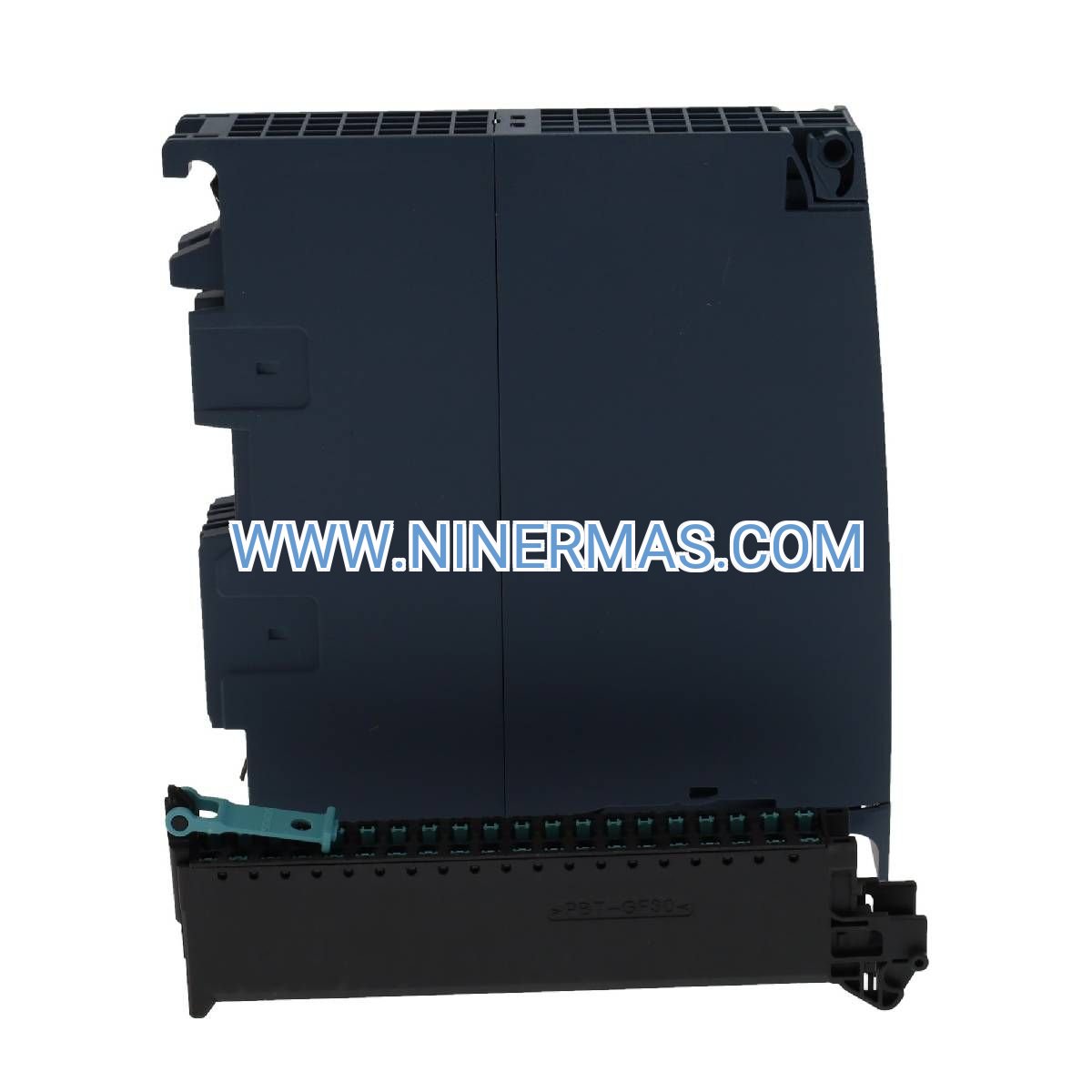

Siemens 6ES7523-1BL00-0AA0 Digital I/O Module (Industrial-Grade S7-1500 Compatible)

The Siemens 6ES7523-1BL00-0AA0 represents a professional-grade digital input/output solution engineered for SIMATIC S7-1500 programmable logic controllers. Combining 16 digital inputs with 16 digital outputs in a single compact module, this component addresses the critical need for reliable signal acquisition and control in modern industrial environments. Whether you're upgrading legacy systems or designing new automation architectures, this module delivers the performance, diagnostics, and flexibility demanded by today's manufacturing operations.

Designed for system integrators, automation engineers, and plant maintenance teams who require dependable I/O processing for discrete control applications. From automotive assembly lines to pharmaceutical packaging systems, the 6ES7523-1BL00-0AA0 provides the foundation for precise machine control and process monitoring.

Key advantages include configurable input types (sink/source), comprehensive channel-level diagnostics with LED status indicators, hot-swap capability for minimal downtime, and seamless integration with TIA Portal engineering software. The module's robust construction ensures reliable operation in demanding industrial conditions while maintaining compatibility with both centralized and distributed PROFINET architectures.

Core Features & Benefits

→ Dual I/O Architecture: Integrates 16 digital inputs and 16 digital outputs in a space-saving design, reducing rack footprint while maintaining full functionality. Each input channel accepts 24VDC signals with configurable sink/source operation, while outputs deliver 0.5A per channel for driving solenoid valves, contactors, and indicator lamps.

→ Intelligent Diagnostics System: Real-time channel monitoring detects wire breaks, short circuits, and voltage anomalies before they impact production. Individual LED indicators provide instant visual feedback during commissioning and troubleshooting, reducing mean time to repair by up to 40%.

→ Hot-Swap Capability: Replace modules during live operation without system shutdown, maintaining production continuity in 24/7 manufacturing environments. Automatic configuration recognition accelerates replacement procedures and eliminates manual parameter entry.

✓ Galvanic Isolation: Electrical isolation between field circuits and backplane bus protects sensitive controller electronics from voltage spikes and ground loops, extending system lifespan and improving signal integrity in electrically noisy environments.

✓ Configurable Response Time: Adjust input filter times from 0.1ms to 20ms to match application requirements—fast response for high-speed counting or extended filtering for noise immunity in harsh electrical environments.

✓ Push-In Terminal Technology: Tool-free wiring with spring-clamp terminals accepts 0.5-1.5mm² conductors, reducing installation time by 30% compared to screw terminals while ensuring vibration-resistant connections.

Typical Application Scenarios

Automotive Manufacturing: In body-in-white welding cells, the module interfaces with position sensors, safety interlocks, and pneumatic valve controls. It monitors robot gripper status, part presence detection, and fixture clamps while controlling spot weld guns and transfer mechanisms. The fast I/O response ensures synchronized multi-robot operations with cycle times under 60 seconds.

Pharmaceutical Packaging: Controls blister packaging machines by reading product presence sensors, carton position switches, and quality inspection gates. Outputs drive reject mechanisms, labeling applicators, and conveyor indexing systems. Channel-level diagnostics detect sensor failures before defective products reach final packaging, maintaining FDA compliance.

Water Treatment Facilities: Monitors level switches, flow sensors, and valve position feedback across filtration and chemical dosing systems. Controls pump starters, motorized valves, and alarm indicators for municipal water distribution. The module's wide operating temperature range (0-60°C) suits outdoor equipment installations.

Food Processing Lines: Manages conveyor systems, metal detectors, and checkweigher inputs while controlling diverter gates, product pushers, and reject mechanisms. Washdown-compatible front connectors withstand frequent cleaning cycles in sanitary production areas.

Material Handling Systems: Coordinates automated storage/retrieval systems (AS/RS) by processing barcode scanner triggers, position sensors, and safety light curtains. Drives conveyor motors, sortation diverters, and stacker crane controls in high-throughput distribution centers processing 5,000+ units per hour.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7523-1BL00-0AA0 when your application requires balanced I/O density (equal inputs and outputs) in a single module. For input-heavy applications (sensor monitoring), consider the 6ES7521 series with 32 inputs. For output-intensive control (actuator driving), the 6ES7522 series offers 32 outputs. Verify that your TIA Portal version supports the module firmware—V13 SP1 or higher recommended for full diagnostic functionality.

Extended Functions

PROFINET Integration: The module supports PROFINET IO communication with IRT (Isochronous Real-Time) capability for deterministic I/O updates down to 250μs cycle times. This enables synchronized motion control applications where digital I/O must coordinate with servo drives and vision systems.

TIA Portal Advanced Diagnostics: Beyond basic channel status, the module provides detailed diagnostic buffers accessible through TIA Portal. Track historical fault events, analyze intermittent wiring issues, and generate maintenance reports for predictive maintenance programs.

Distributed I/O Configuration: Deploy the module in ET 200MP distributed I/O stations positioned near field devices, reducing cabinet wiring by up to 60%. PROFINET connectivity allows I/O stations up to 100m from the controller with standard copper cables or several kilometers via fiber optics.

Customization Options: Front connector variants available with screw terminals (6ES7592-1AM00-0XB0) or pre-wired cable assemblies for rapid machine duplication. Labeling strips and color-coded markers simplify documentation and maintenance.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock items. Custom configurations or bulk orders (10+ units) ship within 7-10 business days. Expedited shipping available for urgent project requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement and return shipping for defective units.

Technical Support: Access to certified Siemens automation specialists for application engineering, configuration assistance, and troubleshooting. Support available via email, phone, and remote desktop sessions during business hours (GMT+8, 9:00-18:00).

Documentation Package: Each module ships with quick start guide, wiring diagrams, and GSD file for PROFINET configuration. Complete technical manuals, CAD drawings (EPLAN, AutoCAD), and sample TIA Portal projects available for download.

Frequently Asked Questions

Q: What is the maximum cable distance for reliable digital input operation?
A: Shielded cables support up to 1000 meters for digital inputs. Unshielded cables should not exceed 600 meters to maintain noise immunity. For longer distances, consider using remote I/O stations or signal repeaters.

Q: Can this module interface with 12VDC sensors commonly used in mobile equipment?
A: No, the 6ES7523-1BL00-0AA0 is designed for 24VDC nominal operation (11-30VDC range). For 12VDC applications, use signal level converters or select modules specifically rated for lower voltage operation.

Q: How do I perform firmware updates without removing the module from the rack?
A: Connect TIA Portal to the S7-1500 CPU via Ethernet, navigate to the module in the hardware configuration, and select "Update Firmware" from the context menu. The update process takes approximately 2-3 minutes and does not require module removal.

Q: Is this module suitable for SIL-rated safety applications?
A: No, the 6ES7523-1BL00-0AA0 is a standard I/O module without safety certification. For safety-critical applications (emergency stops, light curtains), use SIMATIC S7-1500F fail-safe I/O modules with TÜV certification.

Q: What is the recommended spare parts strategy for this module?
A: For critical production lines, maintain 1 spare module per 10 installed units. The module's hot-swap capability and automatic configuration recognition enable replacement in under 5 minutes, minimizing downtime.

Q: Can I mix this module with older S7-300 I/O modules in the same system?
A: No, S7-1500 modules are not mechanically or electrically compatible with S7-300/400 systems. However, you can integrate S7-300 systems as PROFINET devices controlled by an S7-1500 CPU during migration projects.
