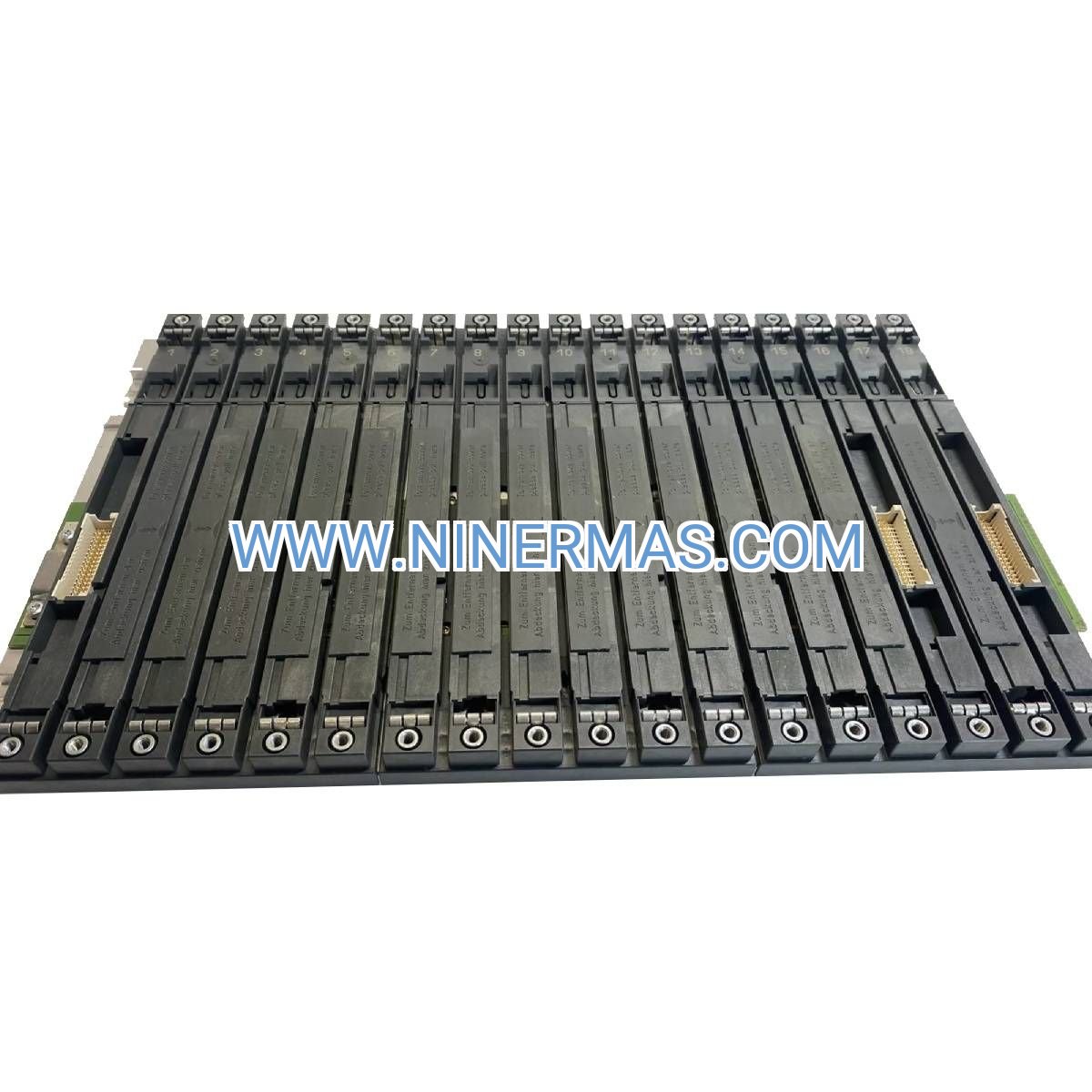

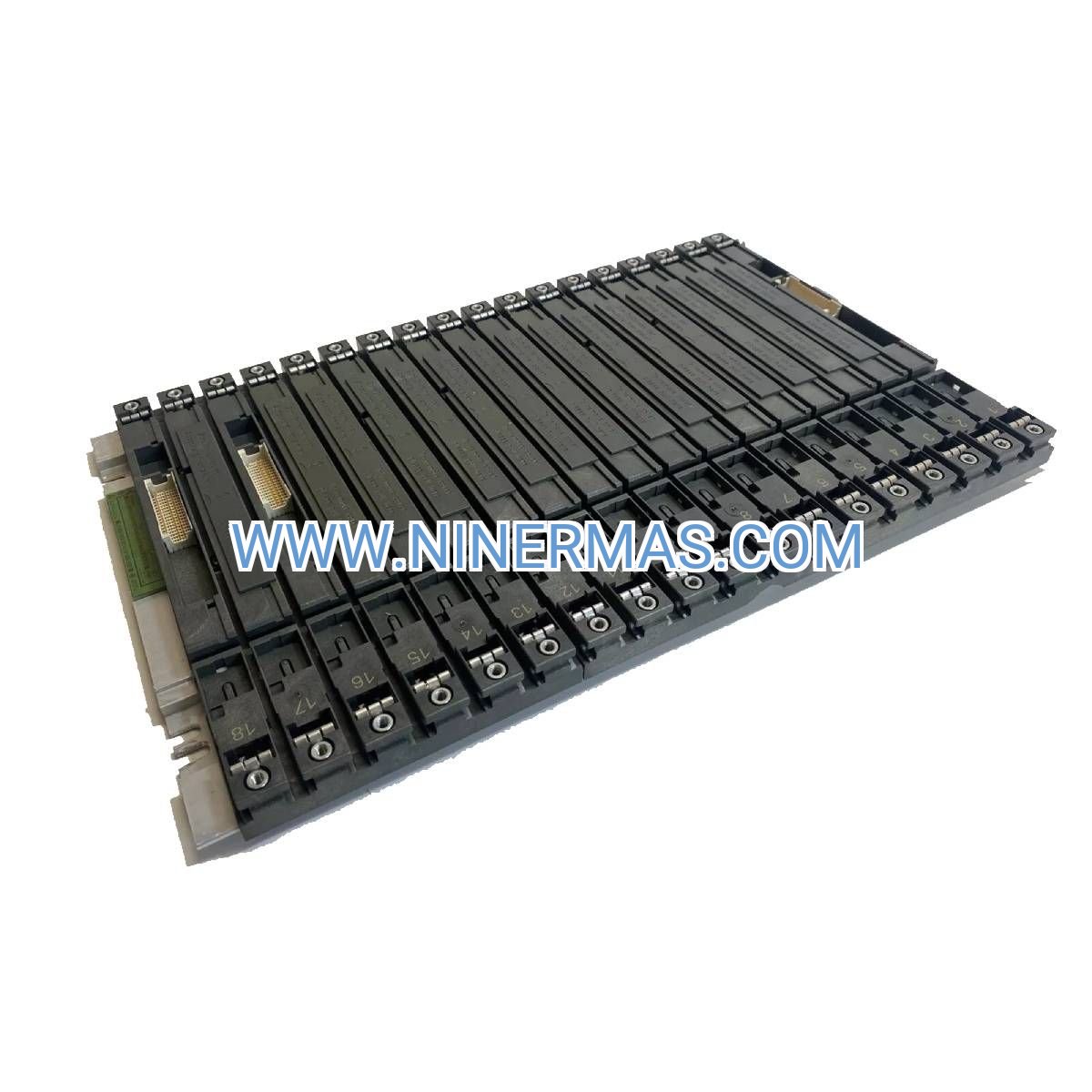

SIEMENS 6ES7403-1TA01-0AA0 Extension Rack ER1 (Industrial-Grade S7-400 Expansion Solution)

The SIEMENS 6ES7403-1TA01-0AA0 represents a professional-grade extension rack engineered specifically for S7-400 programmable logic controller ecosystems. This ER1-class expansion chassis delivers 18 configurable module slots, enabling seamless capacity growth for complex automation architectures across process control, discrete manufacturing, and infrastructure management applications.

Designed for system integrators and plant engineers facing I/O density constraints or functional module limitations, this extension rack eliminates the need for costly controller replacements. Whether you're scaling a petrochemical batch control system, expanding a water treatment SCADA network, or adding specialized communication interfaces to automotive assembly lines, the ER1 rack provides deterministic performance without compromising existing control logic.

Built to SIEMENS' industrial standards with CE, UL, and FM certifications, this rack supports mission-critical operations in harsh environments while maintaining IP20 protection and 0-60°C operational resilience. The modular architecture ensures future-proof scalability, hot-swappable maintenance, and compatibility with the full spectrum of S7-400 signal modules, communication processors, and function blocks.

Core Capabilities & Business Value

→ 18-Position Modular Architecture
Accommodates digital I/O, analog signal conditioning, communication gateways, and specialty function modules in any combination. Eliminates the 9-slot limitation of compact racks, reducing per-point installation costs by up to 35% in high-density applications.

✓ Hot-Swap Module Replacement
Replace failed or obsolete modules without system shutdown, maintaining production continuity in 24/7 operations. Reduces mean time to repair (MTTR) from hours to minutes, directly impacting overall equipment effectiveness (OEE).

✓ Redundant Power Supply Compatibility
Dual power supply slots enable N+1 redundancy configurations, ensuring uninterrupted operation during utility fluctuations or PSU failures. Critical for pharmaceutical clean rooms, data centers, and continuous process industries where downtime costs exceed $10,000/hour.

→ High-Speed Backplane Communication
Integrated K-bus architecture delivers deterministic data exchange between central controller and extension modules with sub-millisecond latency. Supports safety-rated communication for SIL 2/3 applications when paired with certified interface modules.

✓ Standard 19-Inch Rack Mounting
Fits existing control cabinet infrastructure without custom fabrication, accelerating installation timelines and reducing mechanical engineering overhead. Compatible with DIN rail accessories and cable management systems.

→ Global Certification Portfolio
CE, UL, FM, and RCM approvals streamline compliance for multinational projects, eliminating regional re-certification delays. Meets ATEX/IECEx requirements when installed per manufacturer guidelines in Zone 2/Division 2 classified areas.

Industrial Application Scenarios

Process Industry Expansion
Chemical plants and refineries frequently require additional analog input modules for temperature, pressure, and flow monitoring as production lines evolve. The ER1 rack integrates seamlessly with existing S7-400 central racks via IM 460 interface modules, preserving investment in proven control strategies while adding 50+ I/O points per rack without PLC replacement.

Discrete Manufacturing Line Integration
Automotive and electronics assembly operations demand high-speed digital I/O for conveyor interlocks, robotic cell coordination, and vision system integration. Deploying ER1 racks at distributed control nodes reduces wiring runs by 40%, lowers installation labor, and enables modular line reconfiguration as product mixes change.

Infrastructure SCADA Networks
Water treatment facilities, power substations, and building management systems leverage ER1 racks to consolidate remote I/O from geographically dispersed field devices. Fiber optic interface modules extend rack-to-rack distances beyond 10 kilometers, supporting campus-wide monitoring with centralized HMI visualization.

Retrofit & Modernization Projects
Legacy S7-400 installations approaching slot capacity can extend service life 10+ years by adding ER1 racks instead of migrating to new controller platforms. This approach preserves operator training, maintains spare parts inventory, and avoids the $50,000-$200,000 cost of full system replacement.

Safety-Instrumented System (SIS) Expansion
Functional safety applications requiring TÜV-certified fail-safe modules benefit from ER1 rack segregation, isolating safety I/O from standard process control to simplify SIL verification and reduce common-cause failure risks in accordance with IEC 61511 standards.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ER1 rack when your S7-400 central rack has exhausted available slots but the CPU capacity remains adequate. Verify that your application requires fewer than 4 extension racks per central controller (S7-400 architectural limit). For applications demanding more than 72 total slots, consider distributed I/O via PROFIBUS DP or PROFINET IO instead.

Advanced Integration Features

PROFINET IO Integration: When populated with CP 443-1 communication processors, the ER1 rack functions as a PROFINET IO controller, managing up to 128 distributed I/O devices with IRT (Isochronous Real-Time) synchronization for motion control applications requiring <1ms jitter.

OPC UA Connectivity: Install CP 443-1 OPC UA modules to expose process data directly to MES/ERP systems, enabling Industry 4.0 vertical integration without custom gateway programming. Supports secure client/server architectures with X.509 certificate authentication.

Modular Customization: Mix analog input modules (AI 16×12-bit), high-speed counters (FM 450), temperature measurement modules (RTD/TC), and communication processors within the same rack. Field-replaceable terminal blocks accelerate commissioning and reduce wiring errors.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; express shipping available for critical outages.
Custom Configuration: Pre-populated racks with specified modules ship within 7-10 business days after order confirmation.
Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures.
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and firmware updates.
Documentation Package: Includes installation manual, dimensional drawings, CE declaration of conformity, and STEP 7 hardware catalog files.

Frequently Asked Questions

Can the ER1 rack operate as a standalone controller?
No, the 6ES7403-1TA01-0AA0 functions exclusively as an extension unit. It requires connection to an S7-400 central rack equipped with a CPU module via IM 460-series interface modules. The central controller executes all control logic and coordinates I/O scanning across extension racks.

What is the maximum number of extension racks supported per S7-400 system?
The S7-400 architecture permits up to 4 extension racks per central controller, yielding a maximum of 90 module slots (18 slots × 5 racks) when using ER1/ER2 configurations. Exceeding this limit requires migrating to distributed I/O topologies.

Does this rack support redundant power supply configurations?
Yes, the ER1 rack features two power supply slots enabling N+1 redundancy. Install two PS 407 power modules (e.g., 6ES7407-0KA02-0AA0) to ensure continuous operation during single PSU failures. Load sharing occurs automatically without configuration.

How do I calculate the required power supply capacity for my module configuration?
Sum the current consumption (5V DC and 24V DC rails) of all installed modules from their datasheets. Select a PS 407 model with 20% overhead margin. For example, a rack drawing 8A at 5V requires a 10A-rated power supply to accommodate inrush currents and future expansion.

Is the ER1 rack compatible with fail-safe modules for safety applications?
Yes, when paired with F-capable CPUs (e.g., CPU 414F-3 PN/DP) and certified interface modules, the ER1 rack accommodates fail-safe I/O modules meeting SIL 3 / PLe requirements per IEC 61508. Consult SIEMENS safety manuals for approved module combinations and wiring practices.

What cable types are required to connect the extension rack to the central controller?
Standard ER1 installations use IM 460-3 interface modules with proprietary K-bus cables (max 3m). For longer distances, deploy IM 461 fiber optic interface modules supporting multimode or single-mode fiber up to 10km, ideal for distributed control rooms or hazardous area segregation.

Ready to Expand Your S7-400 System?

Contact our automation specialists today for application-specific configuration guidance, volume pricing, or technical compatibility verification. We provide same-day quotations, expedited shipping for urgent projects, and post-installation support to ensure seamless integration with your existing control infrastructure.
