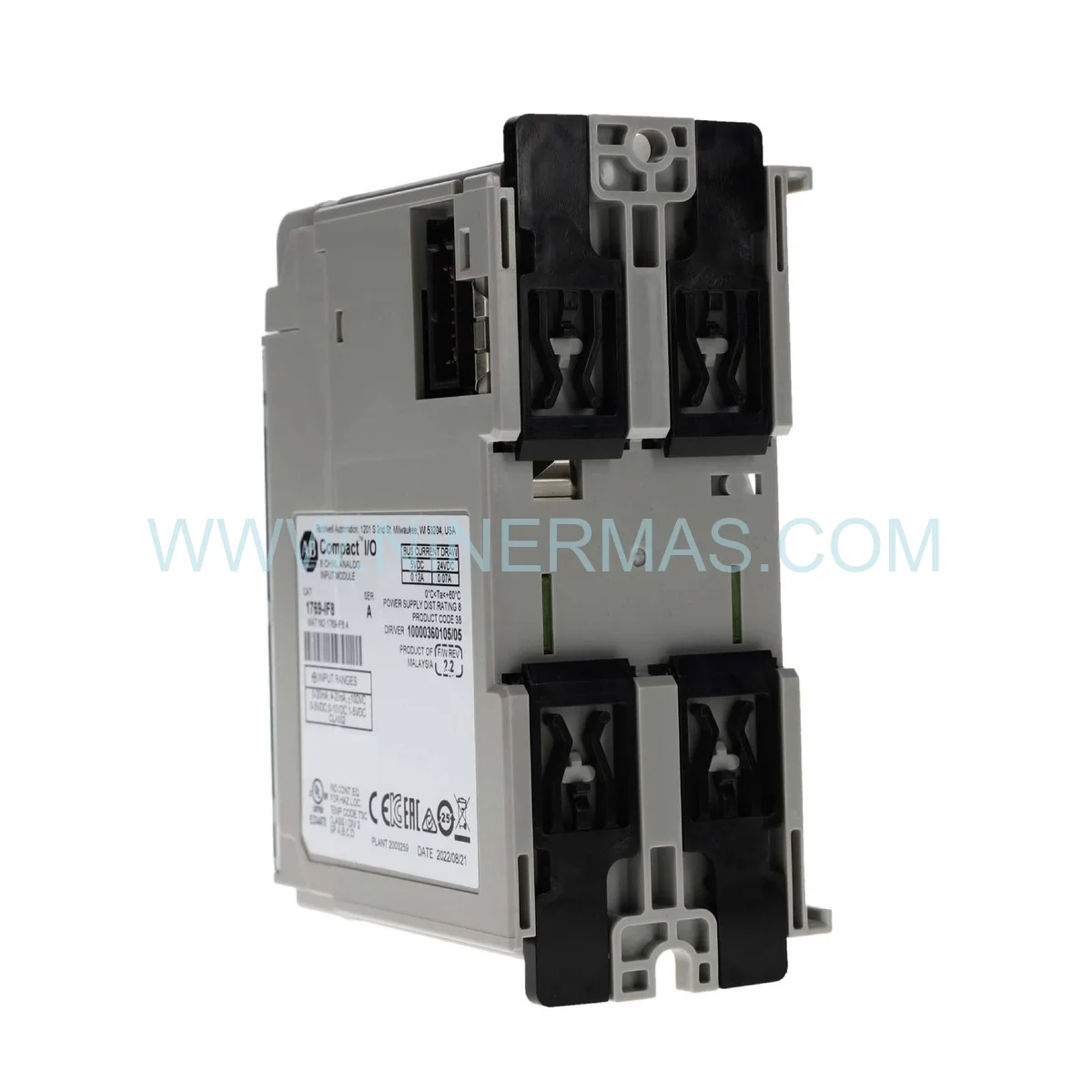

1769-IF8/A Allen-Bradley CompactLogix 8-Channel Analog Input Module — Industrial-Grade Precision

As a procurement manager sourcing critical spare parts for continuous process operations, you need components that perform without compromise. The 1769-IF8/A is a heavy-duty, 8-channel analog input module engineered by Rockwell Automation for the CompactLogix PLC system platform. Designed for seamless integration into 1769 I/O chassis, this module is 100% Brand New and Factory Sealed, ensuring full traceability and zero risk of counterfeit components entering your control architecture. The 1769-IF8/A delivers 16-bit A/D conversion across configurable voltage and current input ranges, making it a cornerstone of reliable Industrial Automation and precision process measurement.

Downtime in Oil & Gas, Power Generation, or Chemical Processing is never acceptable. The 1769-IF8/A addresses this reality by supporting hot-swap replacement under live backplane power — eliminating the need for full system shutdowns during module servicing. Whether you are maintaining an existing CompactLogix PLC System or expanding a Control Module network, this Original New spare part integrates directly with RSLogix 5000 / Studio 5000 v16+ without firmware conflicts. Procurement teams managing EOL legacy systems will appreciate its backward compatibility with all 1769-series I/O chassis.

Backed by a 1-Year Warranty and fast global logistics, the 1769-IF8/A is the dependable choice for engineers who cannot afford uncertainty in their analog signal acquisition chain. Contact our team today for a competitive quote and same-day shipping confirmation.

Technical Specifications & Selection Guide

Selection Tip: Choose the 1769-IF8/A when your application demands 8 independent analog channels with per-channel signal-type flexibility. For applications requiring only 4 channels, consider the 1769-IF4. For current-output closed-loop control, pair with the 1769-OF4CI.

Core Features & Technical Advantages

• Robust 16-Bit Resolution: Captures fine analog variations with ±0.1% factory-calibrated accuracy — critical for PID loop stability in process control applications.
• Per-Channel Signal Flexibility: Each of the 8 channels is independently configurable for voltage (±10V, 0-10V) or current (0-20mA, 4-20mA) via Studio 5000 software — no hardware jumpers required.
• Hot-Swap Capability: Modules are replaced under live backplane power, preserving production continuity in 24/7 industrial environments.
• Precision Isolation: Channel-to-backplane isolation rated at 707V peak protects the PLC System from field-side transients and ground loops.
• Removable Terminal Block (RTB): Pre-wire field connections offline; snap the RTB into the module for rapid, error-free commissioning.
• Compact DIN-Rail Footprint: 35mm mounting conserves panel space in dense enclosures without sacrificing I/O density.

Typical Application Scenarios

✅ Oil & Gas: Acquire 4-20mA signals from pressure transmitters, differential flow meters, and level sensors across wellhead and pipeline SCADA systems. The 1769-IF8/A’s robust isolation prevents ground-loop interference common in field installations spanning hundreds of meters.

Power Plants & Utilities: Monitor turbine vibration probes, generator excitation voltages, and cooling water temperatures. Integration with CompactLogix controllers via EtherNet/IP enables real-time data delivery to DCS historian platforms.

✅ Discrete Manufacturing: Interface with load cells, linear position transducers, and ultrasonic level sensors on assembly lines and robotic cells. Hot-swap capability ensures analog I/O replacement without halting production schedules.

✅ Chemical & Pharmaceutical Processing: Capture multi-point temperature and pH sensor data for batch recipe control. The module’s ±0.1% accuracy satisfies GMP validation requirements for regulated manufacturing environments.

✅ Water & Wastewater Treatment: Measure flow, turbidity, dissolved oxygen, and pump pressure across distributed lift stations. Backward compatibility with legacy 1769 I/O chassis protects existing infrastructure investments.

Logistics & Professional Service

• ✅ Condition: 100% Original and Brand New — factory sealed with full OEM packaging and documentation.
• ✅ Shipping: 2-Day Express Shipping available globally; standard air freight to most destinations within 5-7 business days.
• ✅ Warranty: 1-Year Warranty covering manufacturing defects in materials and workmanship.
• ✅ EOL System Support: We specialize in sourcing Original New Spare Parts for discontinued and end-of-life Rockwell Automation product lines — protecting your installed base without costly system redesigns.
• ✅ Documentation: Datasheet, wiring diagrams, and compliance certificates (UL, CE, RCM) provided upon request.
• ✅ Technical Support: Pre-sales engineering consultation available to confirm compatibility with your existing CompactLogix architecture.

FAQ — Frequently Asked Questions

Q: What is the price of the 1769-IF8/A and do you offer volume discounts?
A: Pricing for the 1769-IF8/A is competitive and varies based on order quantity and delivery urgency. We offer tiered volume discounts for procurement orders of 5 units or more. Contact sale@ninermas.com with your required quantity and delivery timeline for a formal quotation within 24 hours.

Q: What is the lead time for the 1769-IF8/A?
A: In-stock units ship within 1-2 business days. For larger quantities or specific series revisions, standard lead time is 3-7 business days. Expedited options are available for urgent plant shutdowns or emergency maintenance scenarios.

Q: Can you provide a Certificate of Origin and authenticity documentation for the 1769-IF8/A?
A: Yes. All units are sourced as 100% Original and Brand New from authorized distribution channels. We provide Certificate of Origin, OEM packaging photos, and traceability documentation upon request to support your incoming inspection process.

Q: Is a Datasheet available for the 1769-IF8/A?
A: The official Rockwell Automation publication 1769-UM006 covers the 1769-IF8 analog input module in full detail, including wiring diagrams, configuration parameters, and diagnostic codes. We can supply the datasheet PDF alongside your order confirmation.

Q: Is the 1769-IF8/A compatible with my existing CompactLogix system?
A: The 1769-IF8/A is compatible with all CompactLogix L1, L2, and L3 controllers running RSLogix 5000 v16 or later (Studio 5000 Logix Designer). It installs into any 1769 I/O chassis and supports hot-swap replacement without system restart.

Q: Do you support international shipping for the 1769-IF8/A?
A: Yes. We ship globally via DHL, FedEx, and UPS Express. Export documentation, commercial invoices, and HS code classification are prepared for customs clearance in all major industrial markets including the EU, Middle East, Southeast Asia, and the Americas.
