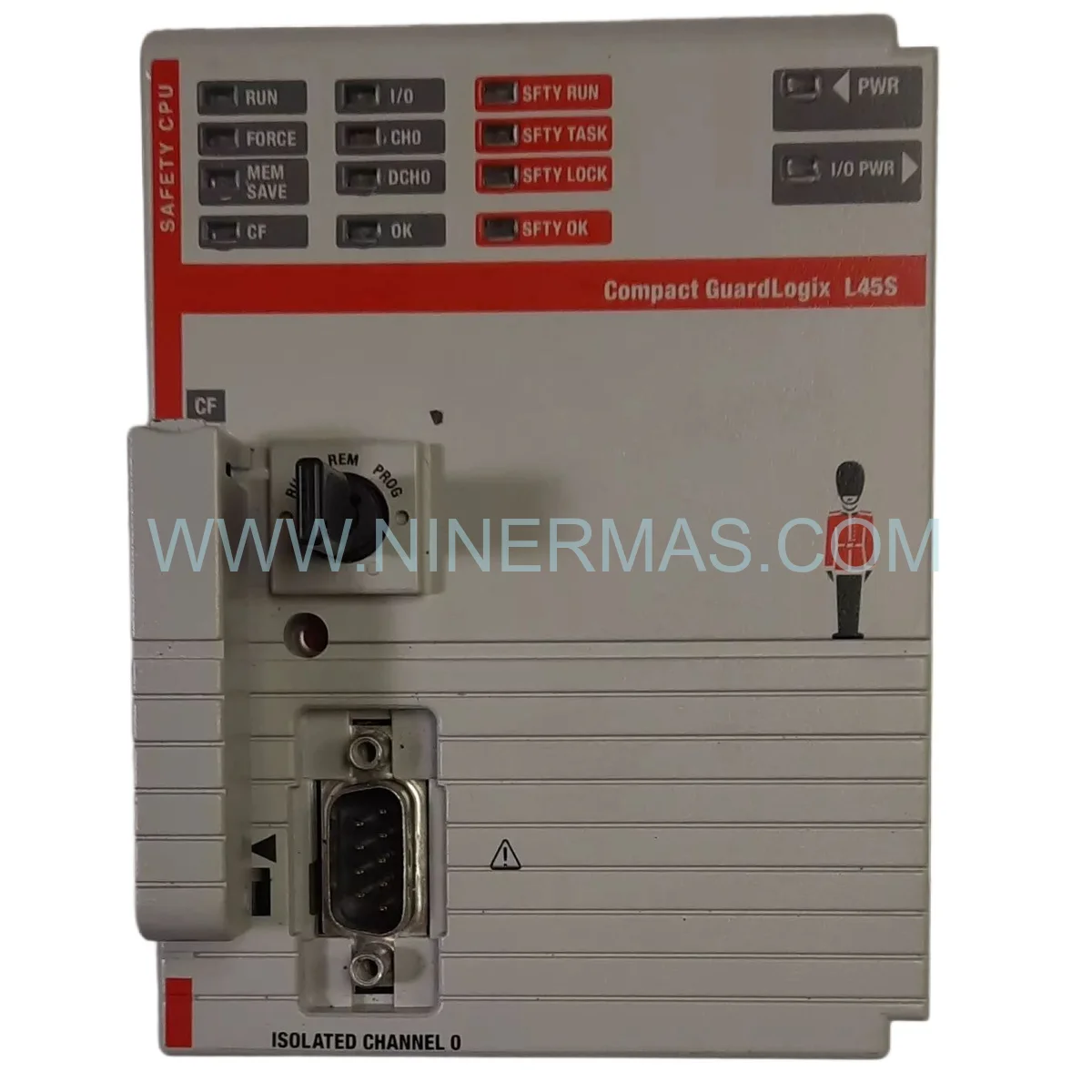

1768-L45S Compact GuardLogix Safety Controller (Allen-Bradley) – New & Original in Stock

Allen-Bradley 1768-L45S Compact GuardLogix Safety Controller | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1768-L45S represents a decisive upgrade in system availability for any facility demanding certified functional safety alongside standard process automation. The 1768-L45S integrates SIL 3 / PLe safety logic directly into the CompactLogix platform, eliminating the latency and wiring complexity of standalone safety relays — a configuration that directly reduces unplanned downtime and accelerates fault recovery across I/O Modules and motion axes. For operations where every minute of stoppage carries measurable financial consequence, this controller is a cornerstone of Operational Excellence.

Deployed across harsh industrial environments — from automotive stamping cells to chemical processing skids — the 1768-L45S demonstrates exceptional thermal resilience (0-60°C operating range) and vibration tolerance consistent with IEC 61131-2 mechanical requirements. Installation teams should note that the controller must be mounted within a 1768 CompactLogix chassis, with the safety power supply (1768-PA3 or equivalent) positioned immediately adjacent. Proper grounding of the chassis backplane is non-negotiable for maintaining CIP Safety protocol integrity across EtherNet/IP segments. Firmware version alignment between the controller and Studio 5000 Logix Designer is mandatory prior to any safety task commissioning — a step frequently overlooked during rapid System Integration deployments.

As a critical spare component, maintaining at least one 1768-L45S in bonded inventory is standard practice for facilities operating under ISO 55001 asset management frameworks. End-of-life (EOL) designation for legacy CompactLogix platforms makes sourcing from verified distributors with original factory packaging an operational imperative — not a procurement preference. Process Optimization begins with supply chain resilience.

Key Operational Features

Integrated SIL 3 / PLe Safety Architecture — Certified per IEC 61508 and ISO 13849-1 Category 4; eliminates external safety relay infrastructure
Dual-Memory Configuration — 3MB standard user memory + 1MB dedicated safety application memory for complex logic partitioning
High Availability I/O Expansion — Supports up to 4 local 1768 I/O Modules with seamless CIP Safety I/O over EtherNet/IP for distributed architectures
Redundancy-Ready Motion Control — Up to 4 integrated motion axes with safe torque-off (STO), safely-limited speed (SLS), and safe direction monitoring
Seamless Integration via EtherNet/IP — Embedded 10/100 Mbps port enables direct connection to plant-level SCADA, MES, and historian systems
Mission-Critical Certifications — UL, cUL, CE, C-Tick; T V-verified for global deployment in regulated industries

Maintenance & Performance Benchmarks

The 1768-L45S is engineered to serve as the safety and standard control nucleus across a wide spectrum of industrial network architectures. In small-scale standalone machine applications, the controller operates with local 1768 I/O Modules in a single-chassis configuration, delivering sub-10ms safety task response times suitable for light curtain and emergency stop circuits. In mid-scale cell-level deployments, distributed CIP Safety I/O nodes connect over EtherNet/IP star or ring topologies, supporting up to 256 safety input and 256 safety output points — sufficient for complex multi-zone guarding schemes.

For large-scale plant-wide architectures, the 1768-L45S integrates into Device Level Ring (DLR) networks alongside standard CompactLogix and ControlLogix peers, participating in unified tag-based data exchange without gateway overhead. Safety task scan time is configurable from 2ms to 250ms, allowing engineers to balance safety response time (SRT) requirements against controller loading — a critical parameter in ISO 13849-1 Performance Level verification calculations. Automation Components of this caliber set the technical standard for scalable, future-proof safety system design.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1768-L45S unit dispatched from our inventory ships in Original Factory Packaging — sealed, labeled, and traceable to Rockwell Automation’s manufacturing batch records. For time-sensitive maintenance scenarios, same-day dispatch is available for in-stock units confirmed before the daily logistics cutoff, with worldwide express freight options covering North America, Europe, Southeast Asia, and the Middle East within 3-7 business days.

As a recognized global supplier for EOL and legacy Automation Components, we maintain bonded stock of discontinued CompactLogix and GuardLogix modules specifically to support facilities that cannot migrate platforms mid-lifecycle. Our sourcing network spans authorized distribution channels and factory-certified refurbishment partners, ensuring every unit passes functional verification and safety integrity pre-shipment checks. Documentation packages — including Certificate of Conformance, test reports, and firmware version records — are provided upon request to satisfy incoming inspection requirements at regulated facilities.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 1768-L45S?
A: Mount the controller in slot 0 of a 1768 CompactLogix chassis. Install the 1768-PA3 power supply in the adjacent slot. Ground the chassis rail to facility earth ground ( 1Ω). Connect EtherNet/IP via the embedded RJ-45 port. Launch Studio 5000 Logix Designer v21+, create a new project selecting the 1768-L45S controller type, and configure the safety task parameters before downloading. Verify safety task execution and I/O Module status indicators prior to enabling outputs.

Q2: Which firmware versions are compatible with the 1768-L45S for safety applications?
A: The 1768-L45S requires firmware revision 20.x or later for full CIP Safety functionality. Studio 5000 Logix Designer must match the controller firmware major revision. Safety add-on instructions (AOIs) and PLCopen safety function blocks are available from revision 21 onward. Always verify firmware compatibility in the Rockwell Automation Product Compatibility and Download Center (PCDC) before upgrading production systems.

Q3: How does the warranty claim process work for the 1768-L45S?
A: Our 1-year warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact sale@ninermas.com with the unit serial number, purchase order reference, and a description of the fault symptom. We will issue an RMA number within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned module. Field-damaged or improperly installed units are assessed case-by-case.

Q4: Can the 1768-L45S safety task run concurrently with standard control tasks without performance degradation?
A: Yes. The safety task executes in a dedicated memory partition (1MB) isolated from the 3MB standard task memory, preventing cross-task interference. The controller’s dual-core architecture prioritizes safety task execution, ensuring deterministic SRT regardless of standard task loading. Engineers should configure safety task period conservatively ( 10ms) during initial commissioning and optimize after baseline performance profiling.

Q5: Is the 1768-L45S compatible with GuardLogix safety I/O modules from other Rockwell families?
A: The 1768-L45S supports CIP Safety I/O over EtherNet/IP, making it compatible with 1791DS, 1732DS, and POINT Guard I/O families. Local expansion is limited to 1768-series I/O Modules. ControlLogix 1756-series safety I/O is not directly mountable locally but is accessible via EtherNet/IP as distributed I/O nodes.

Q6: What distinguishes the 1768-L45S from the 1768-L43S in terms of system integration capacity?
A: The primary differentiation is memory capacity: the 1768-L45S provides 3MB standard + 1MB safety memory versus 2MB standard + 1MB safety for the 1768-L43S. For applications with complex standard logic alongside safety routines — such as multi-zone packaging lines with integrated motion — the 1768-L45S offers greater headroom for future program expansion without controller replacement, reducing lifecycle cost and System Integration risk.
