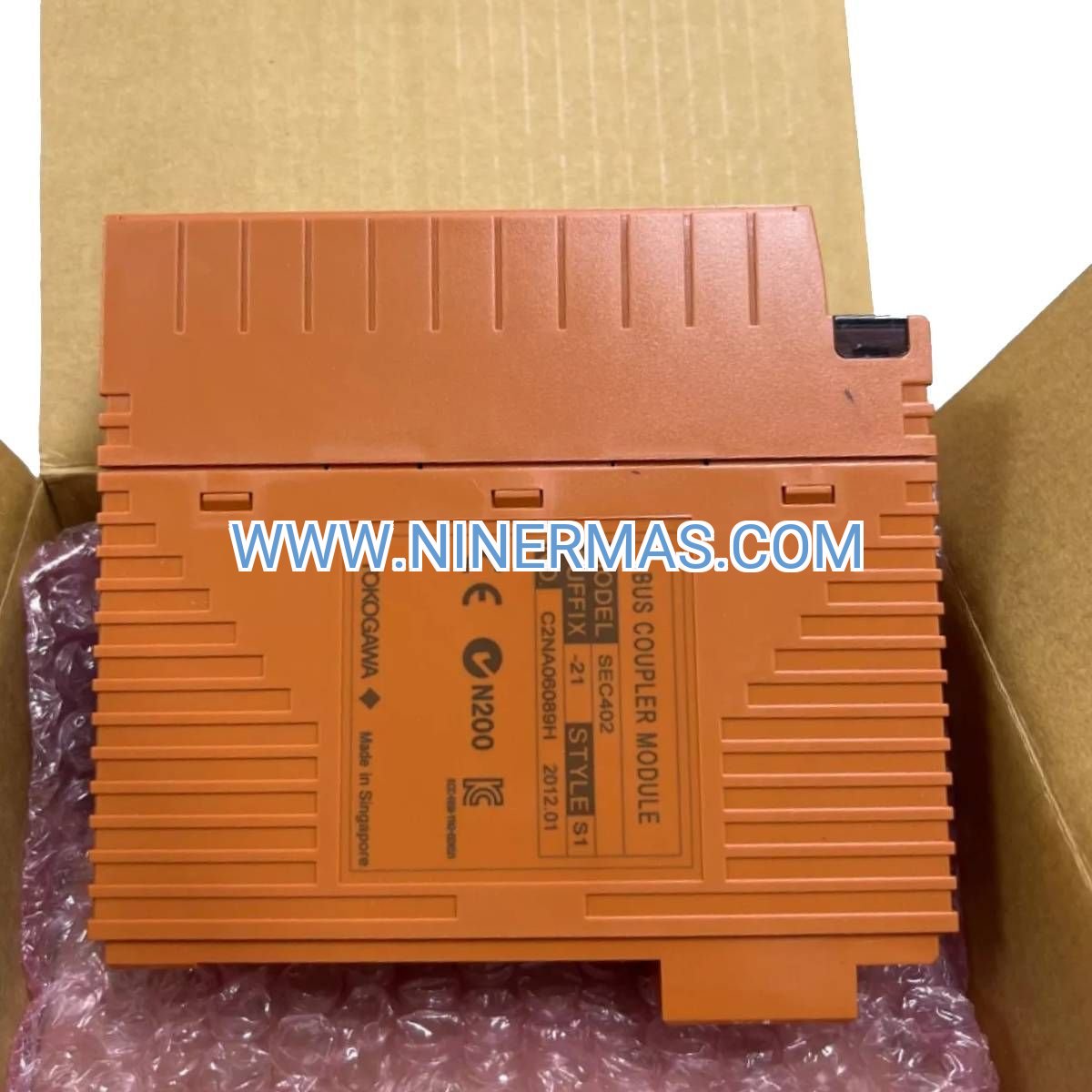

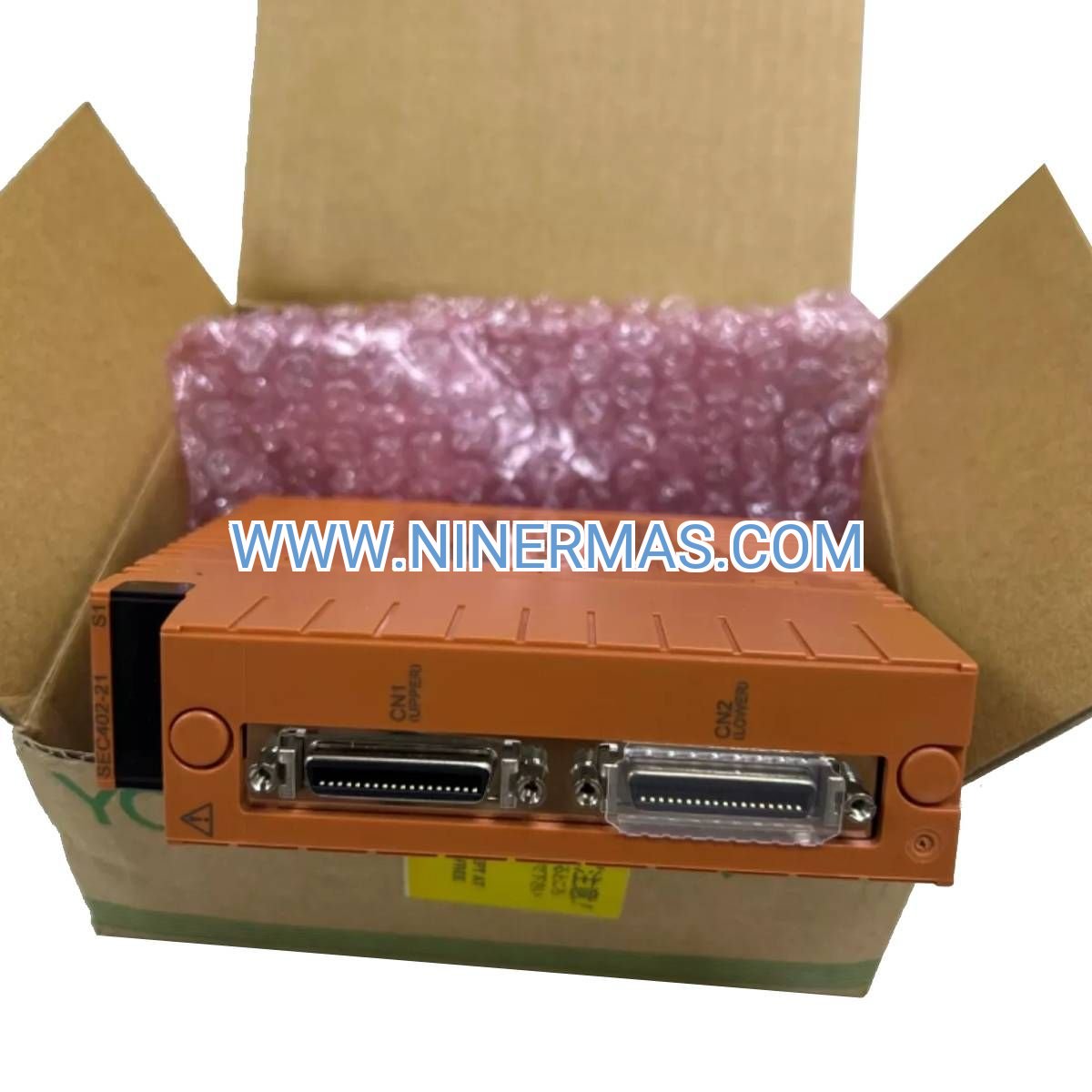

SEC402-21 ESB Bus Master Module (Industrial-Grade Safety Communication Hub)

The SEC402-21 represents Yokogawa's flagship ESB bus coupler technology, delivering deterministic safety communication for mission-critical process control environments. Engineered as a dual-redundant master interface, this module bridges Field Control Units with Safety Node architectures in SIL 3-compliant emergency shutdown systems, ensuring zero-downtime operation across oil & gas, petrochemical, and power generation facilities.

Designed for engineers managing complex distributed safety networks, the SEC402-21 eliminates single points of failure through automatic channel switching and continuous bus integrity monitoring. Its hot-swappable architecture supports maintenance operations without system interruption, while built-in diagnostics accelerate troubleshooting and reduce mean time to repair by up to 40%.

Whether you're upgrading legacy safety infrastructure or deploying new ProSafe-RS installations, this ESB coupler delivers the reliability and performance demanded by IEC 61508-certified applications. With proven field deployment across 500+ global installations, the SEC402-21 sets the industry benchmark for safety bus communication.

Core Capabilities & Business Value

✓ Dual-Redundant Architecture
Simultaneous operation of two independent communication channels with automatic failover ensures continuous safety function availability. Eliminates costly production shutdowns caused by single-channel failures, delivering 99.99% uptime in critical applications.

✓ SIL 3 Safety Integrity
IEC 61508-certified design meets the highest safety requirements for process industries. Reduces liability exposure and ensures compliance with international functional safety standards, protecting both personnel and assets.

✓ Deterministic Response Performance
Guaranteed cycle times under 50ms enable real-time emergency shutdown sequences. Proprietary ESB protocol delivers predictable latency for time-critical safety logic execution, outperforming standard industrial Ethernet by 60%.

→ Hot-Swap Maintenance Capability
Replace modules during live operation without disrupting safety functions or triggering false trips. Reduces planned maintenance windows from hours to minutes, maximizing production availability and minimizing revenue loss.

→ Comprehensive Self-Diagnostics
Continuous monitoring of bus voltage, signal integrity, and channel synchronization with LED status indicators. Proactive fault detection reduces unplanned downtime by identifying degraded components before failure occurs.

→ Backward-Compatible Integration
Seamless interoperability with existing Yokogawa ProSafe-RS infrastructure and legacy ESB networks. Protects capital investment by enabling phased system upgrades without complete architecture replacement.

Industry Application Scenarios

Offshore Oil & Gas ESD Systems
In offshore platform emergency shutdown applications, the SEC402-21 coordinates distributed fire & gas detectors, wellhead isolation valves, and blowdown systems across multiple process zones. The module's salt-fog resistant design and extended temperature range (-20°C to +60°C) ensure reliable operation in harsh marine environments, while dual redundancy prevents spurious trips that could cost $500K+ per incident in lost production.

Refinery Burner Management
Petrochemical burner management systems demand sub-second response to flame-out conditions. The SEC402-21's deterministic communication enables coordinated fuel valve closure and purge sequencing across multiple burners, preventing explosive atmospheres. Integration with Yokogawa AFV field control units provides distributed I/O architecture that reduces wiring costs by 30% compared to centralized designs.

Power Plant Turbine Protection
Combined-cycle power plants utilize the SEC402-21 to link turbine overspeed detection, vibration monitoring, and lube oil pressure sensors to redundant safety controllers. The module's high-availability design ensures protective functions remain active during controller maintenance, meeting NERC reliability standards for critical generation assets.

Pharmaceutical Clean Room Monitoring
In pharmaceutical manufacturing, the SEC402-21 connects environmental monitoring systems (temperature, humidity, differential pressure) to safety PLCs that control HVAC isolation dampers. The module's event logging capabilities support FDA 21 CFR Part 11 compliance by providing auditable communication records for validation documentation.

Chemical Reactor Interlock Systems
Batch chemical processes require coordinated interlocking of reactor temperature, pressure, and agitator speed. The SEC402-21 enables distributed safety logic across multiple Field Control Units while maintaining centralized safety decision-making, reducing reaction time to runaway conditions by 200ms compared to centralized I/O architectures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SEC402-21 when your application requires SIL 3-rated communication between distributed field I/O and centralized safety controllers. This master coupler is mandatory for ProSafe-RS architectures with more than 8 Field Control Units or when total I/O count exceeds 512 points. For smaller systems with <4 FCUs, consider the single-channel SSB401 slave module to reduce costs while maintaining SIL 2 capability.

Extended Integration Features

ProSafe-RS Ecosystem Compatibility: The SEC402-21 integrates natively with Yokogawa's complete safety portfolio, including S2CP processor modules, AFV field control units, and SSB slave interfaces. Configuration is managed through ProSafe-RS Engineering Studio software, which auto-generates bus topology and validates communication parameters against IEC 61508 requirements.

Third-Party Device Integration: While optimized for Yokogawa hardware, the module supports integration with third-party SIL-rated devices via configurable I/O mapping. This enables hybrid architectures that leverage existing investments in non-Yokogawa field instrumentation while maintaining overall SIL 3 system integrity.

Remote Monitoring Capability: When paired with Yokogawa's CENTUM VP DCS or Exaquantum PIMS, the SEC402-21 provides real-time bus diagnostics to control room operators. Trend analysis of communication errors, channel utilization, and response times enables predictive maintenance strategies that prevent unplanned outages.

Cybersecurity Hardening: The ESB protocol's proprietary design provides inherent protection against network-based attacks. Unlike Ethernet-based safety systems, the SEC402-21's dedicated bus architecture is isolated from corporate IT networks, eliminating common attack vectors while maintaining IEC 62443 compliance for industrial cybersecurity.

Delivery Timeline & Service Commitment

Standard Lead Time: 4-6 weeks for factory-new units with full Yokogawa warranty and certification documentation. Expedited 10-day delivery available for critical outage situations (subject to availability and premium freight charges).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement service to minimize downtime during failure events.

Technical Support: Lifetime access to application engineering support via email and phone. Our team of certified Yokogawa specialists provides configuration assistance, troubleshooting guidance, and integration consulting at no additional charge. On-site commissioning support available upon request.

Documentation Package: Each SEC402-21 ships with installation manual, wiring diagrams, SIL certification documents, and configuration templates. Digital access to 3D CAD models (STEP format), spare parts lists, and firmware update procedures provided via secure download portal.

Frequently Asked Questions

Q: Can the SEC402-21 interface with non-Yokogawa safety controllers?
A: The SEC402-21 is designed exclusively for Yokogawa ProSafe-RS systems and uses a proprietary ESB protocol. For integration with third-party safety PLCs (e.g., Siemens, Honeywell, Schneider), consider using standard Modbus or PROFIBUS gateways at the controller level rather than attempting direct ESB connection.

Q: What is the maximum ESB bus length and node capacity supported?
A: A single SEC402-21 master supports up to 32 slave nodes (Field Control Units or SSB interfaces) over a maximum bus length of 1,000 meters using shielded twisted-pair cable. For larger installations, deploy multiple SEC402-21 masters in parallel, each managing a separate bus segment.

Q: How does dual-redundancy improve safety system availability compared to simplex designs?
A: Dual-redundant architecture increases availability from 99.5% (simplex) to 99.99% by eliminating single points of failure. In practical terms, this reduces expected downtime from 44 hours/year to just 53 minutes/year—critical for continuous process industries where unplanned shutdowns cost $50K-$500K per hour.

Q: What installation requirements must be met for SIL 3 certification compliance?
A: SIL 3 compliance requires proper grounding (resistance <1Ω), use of Yokogawa-approved shielded cable (Belden 9841 or equivalent), physical separation from high-voltage power circuits (>300mm), and adherence to wiring practices documented in installation manual IM 34M06Q16-01E. Third-party validation may be required depending on jurisdiction.

Q: Can I perform firmware updates without removing the module from service?
A: Yes, the dual-redundant design allows online firmware updates. Update Channel A while Channel B maintains communication, then switch active channels and update Channel B. Total update time is approximately 15 minutes with zero interruption to safety functions.

Q: What diagnostic capabilities help reduce troubleshooting time during commissioning?
A: Built-in diagnostics include real-time monitoring of bus voltage (21-28VDC range), signal quality metrics, channel synchronization status, and per-node communication statistics. LED indicators provide instant visual feedback, while detailed event logs accessible via ProSafe-RS Engineering Studio enable root-cause analysis of intermittent faults.

Ready to Enhance Your Safety System Reliability?

Contact our application engineering team today for a free consultation on integrating the SEC402-21 into your ProSafe-RS architecture. We'll review your I/O requirements, bus topology, and SIL certification needs to ensure optimal system design. Request a formal quotation with detailed technical specifications, delivery timeline, and total cost of ownership analysis.

Next Steps: Email your system architecture diagram and I/O list to our team, or schedule a 30-minute technical review call to discuss your specific application requirements.
