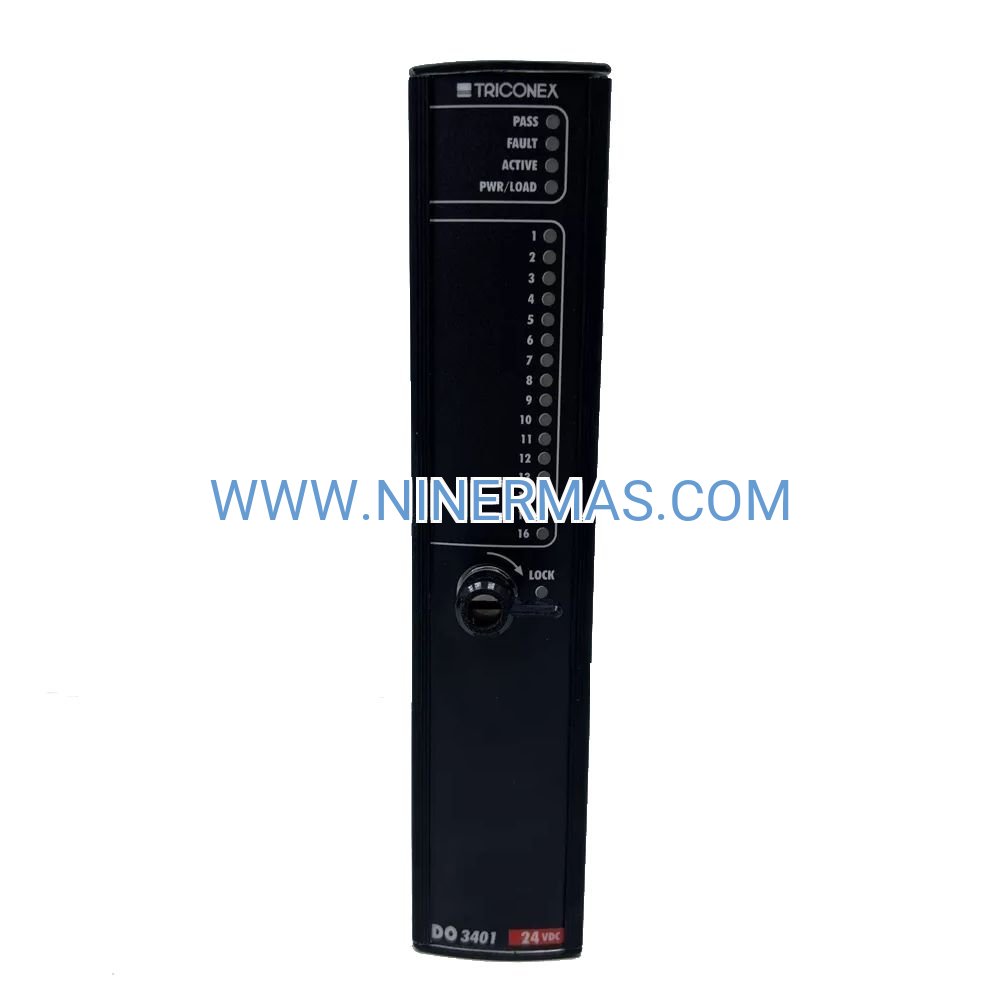

DO3401 Digital Output Module (Industrial-Grade TMR Safety Controller)

The DO3401 represents Triconex's proven approach to fault-tolerant process control, delivering 32 supervised digital outputs through a Triple Modular Redundancy architecture. This industrial output module serves as the critical interface between your safety logic solver and field devices—shutdown valves, motor contactors, alarm annunciators, and emergency isolation equipment—in applications where system failure is not an option.

Designed for engineers and plant operators managing high-consequence processes, the DO3401 addresses the fundamental challenge of maintaining continuous protection while accommodating component-level faults. Whether you're safeguarding offshore platforms, refinery units, chemical reactors, or power generation facilities, this module provides the certified safety integrity and operational flexibility demanded by modern process industries.

With field-proven reliability across thousands of global installations and comprehensive diagnostic capabilities exceeding 99% coverage, the DO3401 enables you to meet regulatory compliance requirements while minimizing unplanned shutdowns and maintenance interventions.

Core Capabilities & Technical Advantages

→ Triple Modular Redundancy (TMR) Voting Logic
Three independent output circuits operate in parallel with 2-out-of-3 voting, automatically masking single-point failures without process interruption or operator intervention. This architecture delivers continuous availability even during component degradation.

→ Supervised Output Monitoring
Real-time load current sensing detects open circuits, short circuits, and field wiring faults on every channel. The module distinguishes between commanded states and actual field conditions, providing early warning of developing problems before they impact safety performance.

→ Hot-Swap Capability Without Process Disruption
Replace failed modules during operation without de-energizing the system or halting production. The remaining two TMR legs maintain full control authority while you perform maintenance, eliminating costly scheduled downtime.

✓ SIL 3 Certification Per IEC 61508/61511
Independently verified safety integrity level 3 rating supports your most critical safety instrumented functions. Comprehensive failure mode analysis and proven-in-use data demonstrate risk reduction factors exceeding 1000:1.

✓ High-Density 32-Point Configuration
Maximize chassis utilization with 32 isolated outputs per module slot. Reduce footprint, wiring complexity, and total installed cost compared to lower-density alternatives while maintaining full diagnostic coverage.

✓ Solid-State Isolation Technology
1500 VAC channel-to-backplane isolation protects control electronics from field voltage transients and ground potential differences. Solid-state switching eliminates mechanical relay wear and contact degradation.

Industrial Application Scenarios

Emergency Shutdown (ESD) Systems
Control final shutdown elements in process safety applications—block valves, blowdown valves, depressurization systems, and isolation devices. The DO3401's supervised outputs verify valve position feedback and detect stuck valve conditions, ensuring your ESD system responds correctly during demand events. Typical deployment: 8-16 modules per safety controller managing 256-512 shutdown points across a process unit.

Fire & Gas Detection Networks
Activate suppression systems, emergency ventilation dampers, area evacuation alarms, and deluge valves in response to fire or toxic gas detection. Supervised monitoring confirms that alarm devices and suppression equipment remain functional between test intervals, addressing common-cause failures in safety-critical notification systems.

Burner Management Systems (BMS)
Manage fuel valve sequencing, pilot ignition, flame safeguarding trips, and purge cycle interlocks for industrial boilers, furnaces, and heaters. The module's fast response time (<10ms) supports rapid fuel cutoff requirements while diagnostic capabilities detect valve solenoid failures before they compromise combustion safety.

Turbomachinery Protection
Implement emergency trip logic for gas turbines, steam turbines, centrifugal compressors, and critical rotating equipment. Interface with hydraulic trip systems, lube oil pumps, seal gas supplies, and anti-surge valves to prevent catastrophic mechanical failures from vibration, overspeed, or lubrication loss.

Chemical Reactor Interlocks
Enforce permissive conditions and protective sequences for batch reactors, continuous polymerization units, and exothermic processes. Control cooling water valves, emergency quench systems, pressure relief isolation, and reactant feed cutoff to prevent runaway reactions and overpressure scenarios.

Technical Parameters & Selection Criteria

Selection Guidance: The DO3401 is optimal for safety systems requiring 24-32 output points per controller slot with SIL 3 certification. For applications with fewer outputs, the 16-point DO2401H offers similar functionality at lower cost. For high-current loads or AC voltage requirements, consider the DO3401 with external interface relays rather than direct field connection.

Advanced Integration & Customization Options

System Connectivity: The DO3401 integrates seamlessly with Triconex Tricon, TriStation, and Trident safety controllers via the proprietary TriBus backplane. For DCS integration, the module supports Modbus TCP/RTU, OPC DA/UA, and vendor-specific protocols through the main controller's communication interfaces.

Programming Environment: Configure and program the DO3401 using TriStation 1131 Developer software, which provides IEC 61131-3 compliant function block, ladder logic, and structured text editors. The software includes pre-built libraries for common safety functions and comprehensive simulation tools for offline testing.

Remote Monitoring: When paired with Triconex communication modules, the DO3401 supports remote diagnostics via Ethernet, enabling condition monitoring, alarm notification, and predictive maintenance from central control rooms or cloud-based asset management platforms.

Customization Services: Factory configuration services available for pre-programmed modules, custom cable assemblies, and application-specific testing. Contact our engineering team for projects requiring specialized validation documentation or witness testing.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock modules via express courier (DHL, FedEx, UPS). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 7-10 business days for factory-programmed modules or special testing requirements. Expedited processing available for critical outage situations.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Unlimited access to application engineers for installation guidance, configuration assistance, and troubleshooting support. Phone, email, and remote desktop support available during your local business hours.

Documentation Package: Every module ships with installation manual, wiring diagrams, safety manual addendum, and certificate of conformity. IEC 61508 certification documents and FMEDA reports available upon request.

Frequently Asked Questions

What is the expected service life of the DO3401 module in continuous operation?
The DO3401 uses solid-state switching technology with no mechanical wear components, providing a typical service life exceeding 20 years in normal industrial environments. The primary aging mechanism is electrolytic capacitor degradation, which is monitored through built-in diagnostics. Planned replacement intervals of 15-20 years are common in well-maintained facilities.

Can I mix DO3401 modules with older DO2401 modules in the same chassis?
Yes, the DO3401 is backward-compatible with Triconex chassis supporting earlier digital output modules. However, you cannot mix different module types within the same TMR triad—all three redundant modules must be identical part numbers. Consult your system configuration documentation to verify chassis slot assignments.

How do I verify that supervised output monitoring is functioning correctly?
The TriStation software provides real-time diagnostic displays showing load current, fault status, and voting discrepancies for each output point. Perform functional testing by intentionally disconnecting field wiring while monitoring diagnostic alarms—the module should detect and report the open circuit condition within one scan cycle (typically 10-20ms).

What happens if all three TMR modules fail simultaneously?
Simultaneous failure of all three modules is extremely unlikely (probability <10⁻⁹ per year) due to independent failure modes. In this scenario, all outputs de-energize to the safe state (fail-safe design). The system generates critical alarms and may initiate automatic shutdown sequences depending on your safety logic configuration.

Are firmware updates required for the DO3401 module?
The DO3401 operates with firmware managed at the main controller level rather than individual module firmware. Updates are rare and typically performed during planned maintenance outages using TriStation software. The module's hardware design ensures long-term compatibility with evolving controller firmware versions.

Can the DO3401 drive AC-powered solenoid valves directly?
No, the DO3401 is designed for DC loads only (18-30 VDC). For AC solenoid valves or other AC-powered devices, use the DO3401 to control external interface relays or contactors rated for your AC voltage and current requirements. This approach also provides additional isolation and surge protection.
