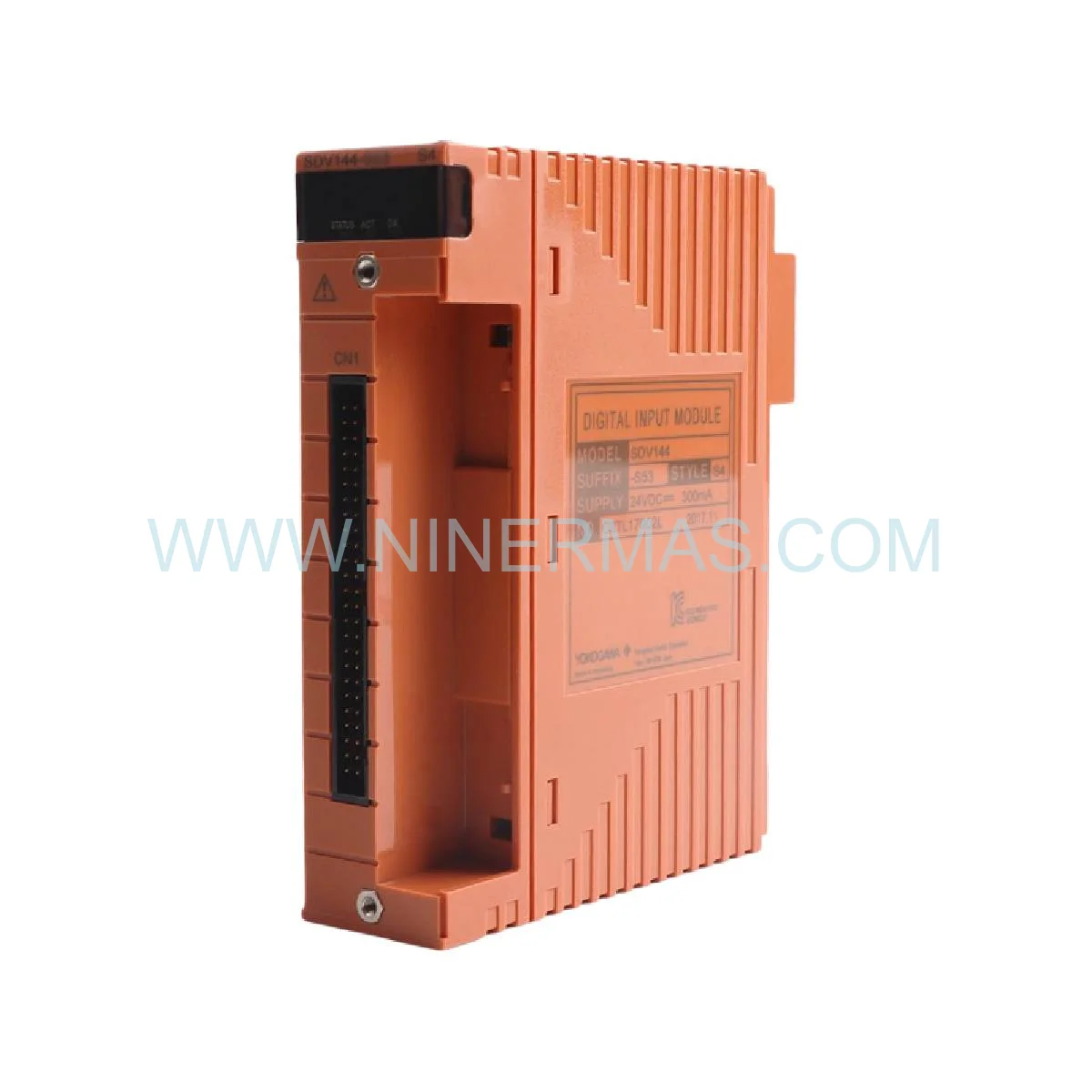

Yokogawa SDV144-S63/PRP S4 Digital Input Module (16-Ch) — New & Original

Yokogawa SDV144-S63/PRP S4 | Reliable Automation Component for Mission-Critical DCS Applications

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the SDV144-S63/PRP S4 represents a cornerstone of system availability assurance. This 16-channel digital input module integrates seamlessly into Yokogawa CENTUM VP and ProSafe-RS architectures, delivering no-voltage contact signal acquisition with dual-redundant failover logic that directly reduces unplanned downtime risk. In mission-critical applications efinery emergency shutdown systems, power plant interlock networks, and chemical reactor safety loops he SDV144-S63/PRP S4 provides the deterministic input response ( 40ms) that process automation demands.

Engineered for deployment in ISA G3-rated corrosive environments, the SDV144-S63/PRP S4 withstands coastal refinery atmospheres, offshore platform humidity cycles, and chemical plant solvent exposure without signal degradation. The /PRP false-insertion prevention mechanism eliminates mis-slot installation during hot-swap maintenance critical safeguard when technicians perform live module exchanges under operational pressure. Proper installation requires verified 24V DC external power supply (200mA minimum) and torque-controlled terminal connections to maintain 2kV AC isolation integrity.

Maintaining a certified spare unit of the SDV144-S63/PRP S4 in your critical spares inventory is a recognized best practice for facilities operating CENTUM VP or ProSafe-RS systems. As a legacy-compatible module with confirmed EOL supply constraints, securing original factory stock proactively eliminates the risk of extended lead times during emergency replacement scenarios.

Key Operational Features

Dual-Redundant Architecture — /PRP suffix enables paired-module redundancy for zero-interruption failover in SIL-rated safety loops
High Availability Design — Hot-swappable online replacement without process shutdown; supports continuous manufacturing uptime objectives
Seamless System Integration — Native compatibility with CENTUM VP FCS and ProSafe-RS SCS backplane communication protocols
False-Insertion Prevention — Mechanical keying prevents incorrect slot installation, eliminating configuration faults during maintenance windows
Multi-Interface Connectivity — Supports pressure clamp terminals, MIL connectors, and AKB331 signal cable adapters for flexible field wiring
ISA G3 Corrosion Resistance — Qualified for harsh industrial environments including offshore, petrochemical, and heavy manufacturing facilities

Maintenance & Performance Benchmarks

The SDV144-S63/PRP S4 is architected to scale across diverse industrial network topologies rom single-cabinet skid-mounted control panels to multi-node distributed DCS installations spanning large refinery complexes. Its 16-channel density optimizes cabinet space utilization while the 290mA (5V DC) / 140mA (24V DC) current draw profile allows system designers to maximize I/O density per power supply budget.

For process optimization in high-channel-count installations, the module supports channel-level diagnostic masking and configurable debounce timing via Yokogawa engineering workstations nabling operational excellence by suppressing nuisance alarms from field contact bounce without masking genuine fault conditions. Integration into Exaopc OPC server environments extends real-time I/O visibility to MES and historian platforms, supporting enterprise-level process data continuity.

Benchmark MTBF data for Yokogawa S-series I/O modules consistently exceeds 200,000 hours under rated operating conditions, establishing the SDV144-S63/PRP S4 as a technically validated choice for automation components in high-availability process control architectures.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every SDV144-S63/PRP S4 unit dispatched from our inventory ships in original Yokogawa factory packaging with intact tamper-evident seals, ensuring module integrity from warehouse to installation rack. For in-stock units, same-day dispatch is available on orders confirmed before the daily logistics cutoff, supporting emergency maintenance scenarios where production continuity cannot tolerate extended procurement cycles.

As a globally active supplier of EOL and legacy Yokogawa automation components, we maintain dedicated buffer stock of the SDV144-S63/PRP S4 to serve facilities worldwide ncluding North America, Europe, Southeast Asia, and the Middle East. Our logistics network supports DDP, DAP, and EXW Incoterms with full export documentation, CE/RoHS compliance records, and traceability certificates upon request. System Integration projects requiring multi-unit procurement benefit from consolidated shipment scheduling and dedicated account management.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the SDV144-S63/PRP S4 in a ProSafe-RS cabinet?
A: Power down the external 24V DC field supply before module insertion. Align the /PRP mechanical key with the designated slot he false-insertion prevention mechanism will physically block incorrect placement. Secure the module latch, reconnect field wiring per the terminal assignment drawing, then restore external power. Confirm channel status via the ProSafe-RS engineering workstation before returning the loop to service.

Q2: Which firmware versions of CENTUM VP are compatible with the SDV144-S63/PRP S4?
A: The SDV144-S63/PRP S4 is compatible with CENTUM VP R4.01 and later releases, including R5.x and R6.x generations. For ProSafe-RS, compatibility is confirmed from R2.02 onward. Always verify the system software revision against Yokogawa’s I/O module compatibility matrix (TI 34P02Q10-01E) before deployment in mixed-revision environments.

Q3: Can the SDV144-S63/PRP S4 be replaced online without shutting down the process?
A: Yes. The module supports hot-swap replacement in redundant (/PRP) configurations. The paired redundant module assumes full input acquisition responsibility during the swap interval. In non-redundant slots, consult your site safety management of change (MOC) procedure before performing live replacement, as input signals will be interrupted during the exchange.

Q4: What warranty coverage applies to this module?
A: All SDV144-S63/PRP S4 units supplied by us carry a 1-year warranty covering manufacturing defects and functional failures under rated operating conditions. RMA processing is initiated within 24 business hours of fault confirmation. Warranty claims require photographic documentation of the module label and a brief fault description. Extended warranty options are available for long-term maintenance contracts.

Q5: How do I verify module authenticity and traceability?
A: Each unit ships with a Yokogawa factory serial number traceable to the original production batch. We provide a Certificate of Conformance (CoC) and, upon request, third-party inspection reports. The module label includes the full model designation SDV144-S63/PRP S4, manufacturing date code, and Yokogawa part number for cross-reference against official documentation.

Q6: What are the wiring options for connecting field devices to the SDV144-S63/PRP S4?
A: Three connection methods are supported: (1) Direct pressure clamp terminal blocks for individual wire termination; (2) MIL-spec connectors for pre-wired marshalling panel integration; (3) AKB331 signal cable adapters for high-density multi-channel wiring harness configurations. Select the interface based on cabinet layout, maintenance access requirements, and existing field wiring infrastructure.
