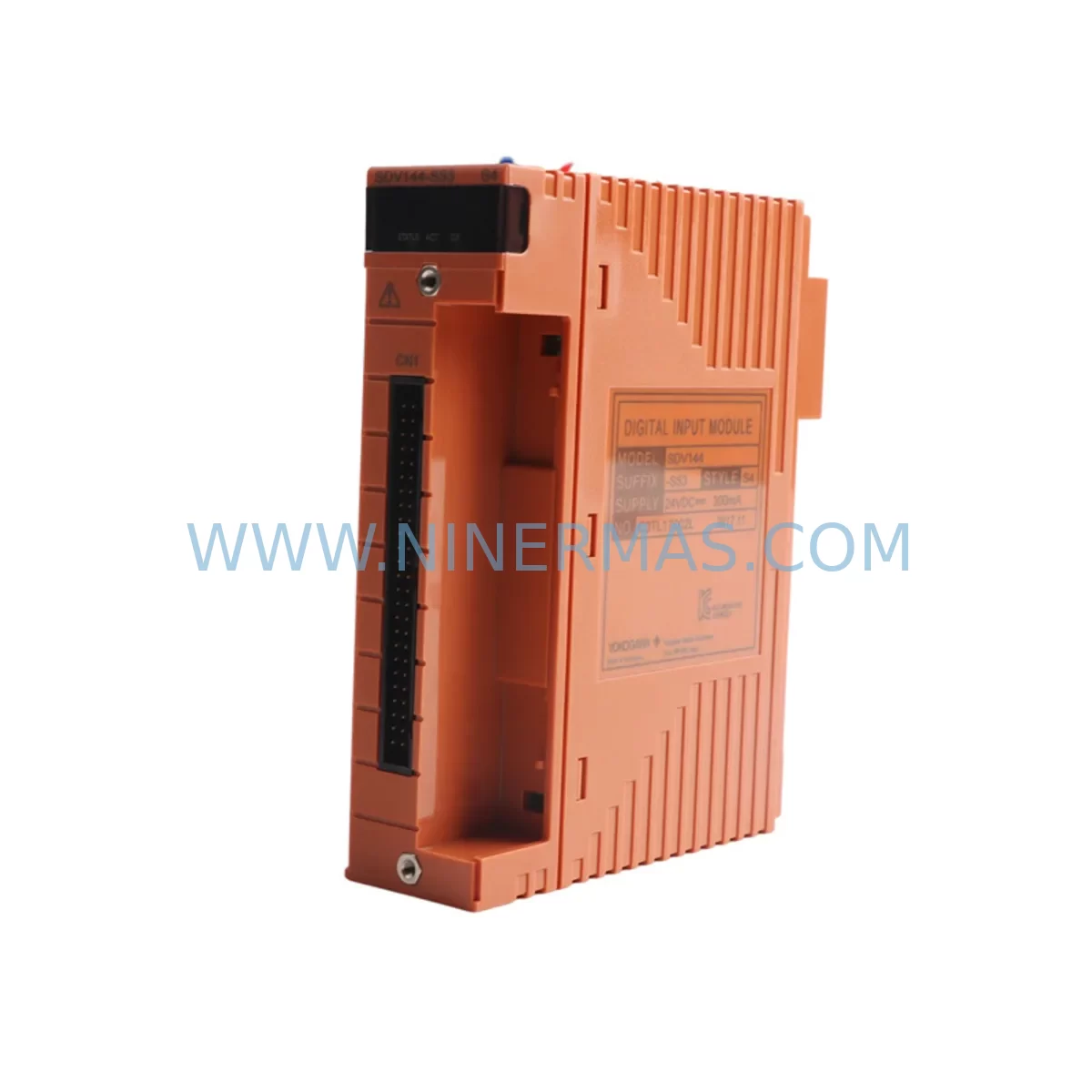

YOKOGAWA SDV144-S53 S4 Safety-Reliable I/O Module for Critical Control Sites

YOKOGAWA SDV144-S53 S4 Safety-Reliable I/O Module for Critical Control Sites

The YOKOGAWA SDV144-S53 S4 is a high-integrity digital input/output module engineered for deployment in the most demanding industrial control environments. Designed as a direct replacement and upgrade solution within the YOKOGAWA STARDOM and CENTUM series distributed control architectures, this module delivers the signal fidelity, electrical isolation, and environmental resilience that safety-critical process industries demand. Whether integrated into a continuous production line, a safety instrumented system (SIS), or a high-density control cabinet, the SDV144-S53 S4 is built to eliminate the root causes of unplanned shutdowns, control loop interruptions, and field signal degradation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets serving petrochemical reactors, power generation switchgear rooms, or mineral processing plants, a single point of I/O failure can cascade into a full process shutdown. The SDV144-S53 S4 addresses this risk through per-channel optical isolation, which physically decouples field-side wiring from the controller backplane. This architecture prevents ground faults, inductive transients from motor starters, and high-frequency EMI generated by variable frequency drives (VFDs) from corrupting digital status signals.

When deployed alongside the YOKOGAWA ADV151-P50 S4 analog input module and the YOKOGAWA ADV161-P50 S4 analog output module within the same CENTUM VP I/O nest, the SDV144-S53 S4 forms a complete mixed-signal I/O tier capable of handling both discrete interlock logic and continuous process variable monitoring. For applications requiring redundant power delivery to the I/O bus, the YOKOGAWA PW481 dual-redundant power supply module ensures that a single power rail failure does not interrupt field signal acquisition.

In safety instrumented systems where the YOKOGAWA ProSafe-RS safety controller governs emergency shutdown (ESD) and fire-and-gas (F&G) logic, the SDV144-S53 S4 can serve as the discrete I/O interface for final element feedback — valve position confirmation, motor run status, and pressure switch state — feeding directly into the safety logic solver without signal conditioning gaps. Surge protection devices such as the YOKOGAWA YS1700 series loop controllers and dedicated SPD terminal blocks are recommended upstream of the module’s field terminals in outdoor substations or cable tray environments exposed to lightning-induced surges.

For communication-intensive architectures where the YOKOGAWA YFGW410 field wireless management station aggregates data from ISA100.11a wireless instruments, the SDV144-S53 S4 provides the hardwired discrete backbone that ensures critical interlock signals — those that must never rely on wireless latency — remain on deterministic, wired I/O paths. Similarly, in Modbus RTU or FOUNDATION Fieldbus H1 segments managed by the YOKOGAWA AFV10D field communication module, the SDV144-S53 S4 handles the high-speed discrete I/O that fieldbus protocols are not optimized for, maintaining a clean separation between process data and safety-critical switching logic.

Control engineers specifying spare parts for long-term maintenance programs frequently pair the SDV144-S53 S4 with the YOKOGAWA SDV144-S53 base variant and the YOKOGAWA SCP451 sequence control processor to maintain a complete, interchangeable spare pool across multi-unit DCS installations — reducing mean time to repair (MTTR) and eliminating the risk of sourcing incompatible firmware revisions during an emergency replacement event.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units and hydrocracker control rooms, the SDV144-S53 S4 monitors discrete signals from high-integrity pressure safety valves (PSVs), motor-operated valves (MOVs), and compressor vibration switches. Its optical isolation prevents ground potential differences between field junction boxes and the central control room from introducing spurious trip signals — a leading cause of nuisance shutdowns in refinery SIS architectures.

Power Generation & Substation Automation: Thermal and combined-cycle power plants rely on the SDV144-S53 S4 to interface turbine protection relay outputs, generator breaker status contacts, and cooling system pump run/fail signals with the CENTUM VP DCS. The module’s tolerance for the high-EMI environment created by large transformer banks and bus bar switching transients makes it the preferred discrete I/O choice for balance-of-plant (BOP) control systems.

Mining & Mineral Processing: In semi-autogenous grinding (SAG) mill control systems and flotation circuit automation, the SDV144-S53 S4 handles the high-cycle discrete I/O demands of conveyor belt interlocks, crusher overload relays, and slurry pump seal water flow switches. Its vibration tolerance is critical in environments where structural vibration from crushers and ball mills is transmitted through control panel mounting structures.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating CENTUM-based SCADA systems use the SDV144-S53 S4 to monitor chlorination dosing pump status, UV disinfection system alarms, and membrane filtration differential pressure switches. The module’s humidity tolerance ensures reliable operation in pump station environments where condensation is a persistent challenge.

Metallurgy & Steel Production: In electric arc furnace (EAF) control systems and continuous casting line automation, the SDV144-S53 S4 interfaces with high-temperature limit switches, electrode position sensors, and cooling water flow interlocks. Its ability to maintain signal integrity in the presence of the intense electromagnetic fields generated by EAF electrode current — often exceeding 50 kA — demonstrates its suitability for the harshest metallurgical control environments.

Port & Marine Automation: Ship-to-shore crane control systems and vessel engine room automation platforms built on STARDOM FCN controllers use the SDV144-S53 S4 for hoist limit switch monitoring, emergency stop circuit feedback, and bilge pump status acquisition. Its compact form factor and DIN-rail compatible mounting suit the space-constrained control panels typical of marine and port infrastructure.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the SDV144-S53 S4?
All SDV144-S53 S4 units supplied by NINERMAS carry a 12-month warranty covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify channel integrity, isolation resistance, and communication handshake with YOKOGAWA controller backplanes before dispatch. Warranty claims are processed directly through NINERMAS with replacement or repair turnaround commitments agreed at the time of purchase.

Q2: What pre-shipment testing is performed on each unit?
Every SDV144-S53 S4 is subject to a multi-point outgoing quality inspection that includes power-on self-test verification, per-channel I/O continuity and isolation testing, firmware version confirmation, and physical inspection for connector pin integrity and PCB condition. Test records are available upon request for customers with IEC 61511 documentation requirements.

Q3: Is the SDV144-S53 S4 compatible with both STARDOM and CENTUM VP systems?
Yes. The SDV144-S53 S4 is designed for use within YOKOGAWA’s STARDOM FCN/FCJ controller I/O expansion architecture and is also compatible with CENTUM VP and CENTUM CS 3000 I/O nest configurations. Customers are advised to confirm the specific nest type, bus revision, and firmware version of their existing system with NINERMAS prior to ordering to ensure seamless drop-in replacement without controller reconfiguration.

Q4: Can NINERMAS guarantee long-term supply for ongoing maintenance programs?
NINERMAS maintains dedicated inventory of YOKOGAWA STARDOM and CENTUM series I/O modules, including the SDV144-S53 S4, to support long-term spare parts programs for operating plants. We work with maintenance planners to establish blanket order arrangements and reserved stock allocations, ensuring that critical spare modules are available for emergency replacement without lead-time risk — even for products that YOKOGAWA has transitioned to end-of-life status.
