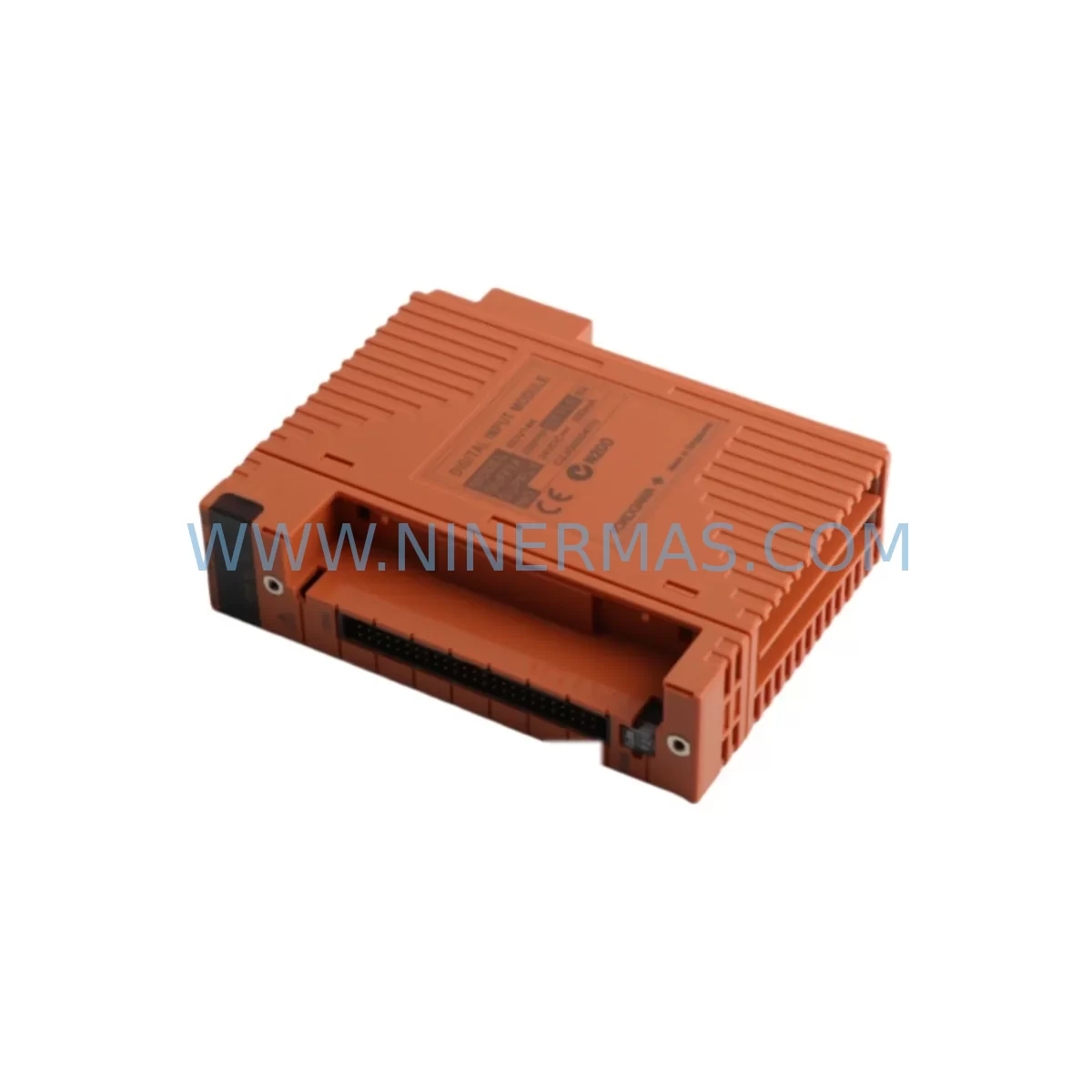

The Yokogawa SDV144-S33/PRP S3 is a safety digital voting module designed for use within the ProSafe-RS S3 Safety Instrumented System (SIS) platform. As a critical component in safety logic execution, this module handles redundant digital input voting — a function that directly governs emergency shutdown (ESD) and process safety integrity in high-demand industrial environments including oil & gas, petrochemical, power generation, and chemical processing facilities.

At NINERMAS, we supply the SDV144-S33/PRP S3 as a service-ready spare part, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid dispatch to minimize unplanned downtime. Whether you are managing a scheduled annual turnaround, responding to a field fault, or building a strategic spare parts inventory, this module is stocked and ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SDV144-S33/PRP S3 module is flagged for replacement — whether through a diagnostic self-test alarm, a proof test failure, or a field-detected voting discrepancy — the replacement event should be treated as a broader system health checkpoint. Experienced maintenance engineers know that a single module fault rarely occurs in isolation; adjacent components in the same safety loop or control cabinet often share similar operational age and stress exposure.

During the replacement of the SDV144-S33/PRP S3, it is strongly recommended to simultaneously inspect and verify the following associated components:

The ProSafe-RS S3 power supply module (such as the PW481 or equivalent S3-series PSU) should be checked for output voltage stability and ripple, as a degraded power supply can cause intermittent voting errors that mimic module faults. Alongside this, the backplane and chassis assembly of the ProSafe-RS S3 rack should be inspected for connector wear, corrosion, or mechanical damage — backplane integrity is essential for reliable PRP communication between redundant modules.

The PRP network switch and associated Ethernet communication cables (Cat5e or Cat6 shielded, per site specification) connecting the ProSafe-RS S3 nodes should be tested for continuity and latency. PRP relies on dual-path redundancy; a degraded cable or switch port can silently degrade failover performance. Similarly, the SDV144 series companion modules — including any SDV144-S33 units installed in the same voting group — should be cross-checked for firmware version alignment and diagnostic status.

Field wiring terminations at the terminal blocks and marshalling cabinets feeding the digital inputs should be inspected for loose connections, insulation degradation, or moisture ingress, particularly in outdoor or high-humidity installations. The signal isolators or Zener barriers in the intrinsically safe input circuits (where applicable) should be tested for correct clamping voltage and resistance values.

If the ProSafe-RS S3 system includes an HMI or engineering workstation running ProSafe-RS Workbench, this is an appropriate time to verify that the system configuration database is current, that the module replacement is logged in the SIS management system, and that a partial stroke test or proof test is scheduled post-replacement. The CENTUM VP DCS integration (where ProSafe-RS is coupled to a Yokogawa CENTUM VP system via Vnet/IP or ESB bus) should also be verified to confirm that safety system status signals are correctly reflected in the DCS operator station.

For sites running aging ProSafe-RS installations, this replacement event is also an opportunity to audit the stock of relay output modules, analog input modules (such as the SAI143 series), and communication interface cards within the same cabinet — ensuring that the broader spare parts inventory is aligned with the remaining operational life of the system.

Site Replacement Workflow

Step 1 — Pre-Replacement Authorization: Confirm the replacement is authorized under your site Management of Change (MOC) procedure. For SIL 3 systems, module replacement typically requires a formal bypass and inhibit procedure. Notify the control room and obtain a permit to work.

Step 2 — Compatibility Verification: Confirm that the replacement SDV144-S33/PRP S3 module matches the firmware revision and hardware revision of the installed unit, or that the ProSafe-RS S3 system supports the replacement revision. Cross-reference the module label against the ProSafe-RS engineering database. NINERMAS provides the hardware revision and firmware version on request prior to shipment.

Step 3 — Safe Removal: Place the affected voting channel into bypass/inhibit mode via ProSafe-RS Workbench or the authorized bypass key switch. Remove the faulty SDV144-S33/PRP S3 module from the chassis slot. Document the slot address and channel assignments before removal.

Step 4 — Module Installation: Insert the replacement module into the correct chassis slot. Verify that the backplane connector is fully seated. Power on the module and observe the diagnostic LEDs for normal startup indication (RUN/COMM status).

Step 5 — System Verification: Using ProSafe-RS Workbench, confirm that the replacement module is recognized by the system controller, that all 144 input channels are reporting correctly, and that PRP communication is established on both network paths. Perform a channel-level functional test on a representative sample of inputs.

Step 6 — Bypass Release and Return to Service: Remove the bypass/inhibit condition. Confirm that the safety function is restored and that the system diagnostic summary shows no active faults. Update the SIS maintenance log and MOC record. Schedule the next proof test interval per IEC 61511 requirements.

This structured workflow reduces mean time to repair (MTTR), ensures system compatibility is maintained, and supports regulatory compliance for functional safety management.
