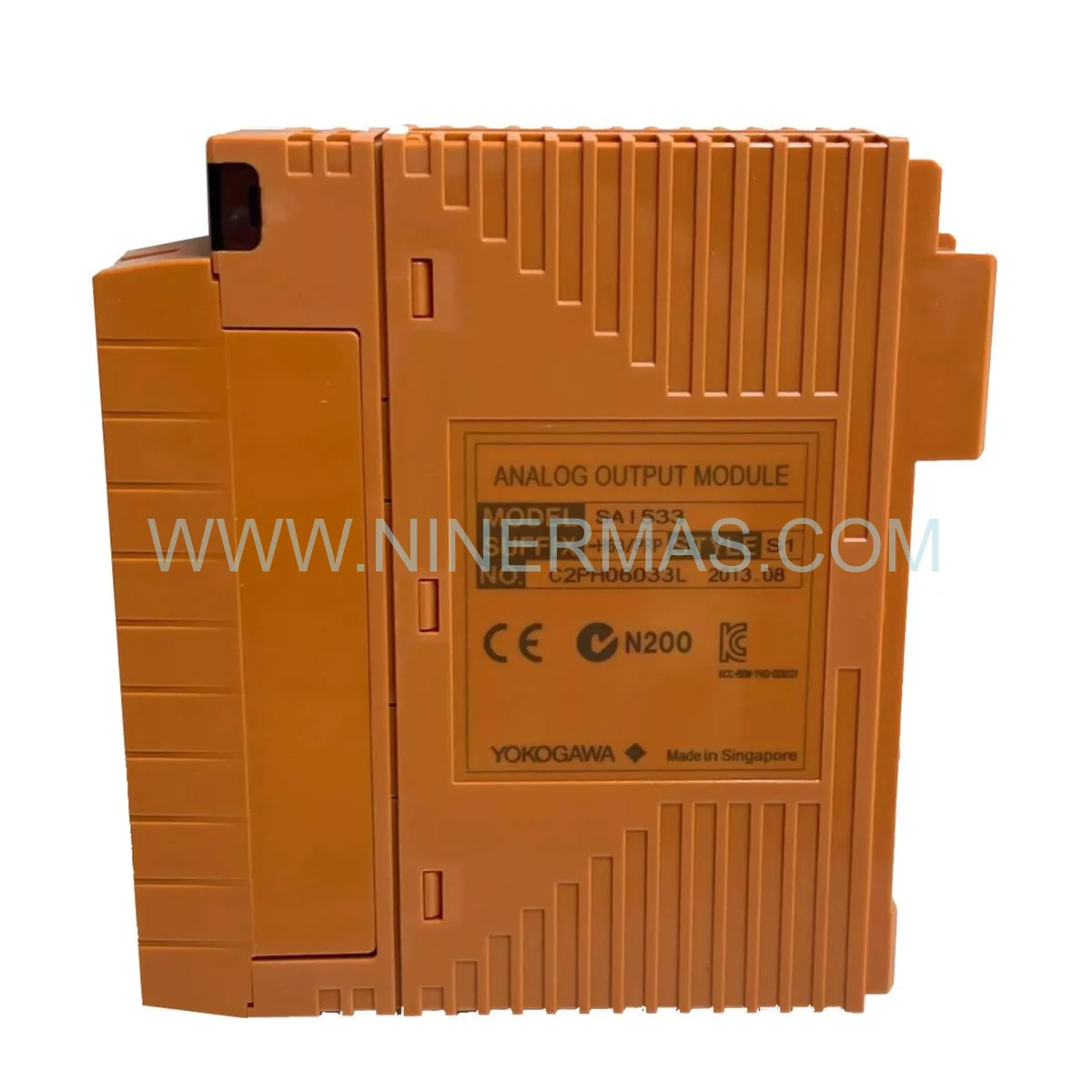

Yokogawa SAI533-H63/PRP | Industrial Safety & Performance Component

Yokogawa SAI533-H63/PRP – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Yokogawa SAI533-H63/PRP represents a cornerstone component in maintaining the operational integrity of mission-critical distributed control systems. Its Parallel Redundancy Protocol (PRP) architecture eliminates single points of failure at the communication layer, ensuring that process continuity is preserved even under adverse network conditions — a fundamental requirement for facilities operating under IEC 61511 and IEC 61508 Safety Integrity Level frameworks. The SAI533-H63/PRP is not merely a signal conditioner; it is a compliance asset that anchors the reliability architecture of the entire control loop.

Within the context of Industry 4.0 and digital transformation initiatives, the SAI533-H63/PRP demonstrates long-term compatibility with Yokogawa’s CENTUM VP and ProSafe-RS ecosystems, supporting seamless data exchange across OPC-UA and HART-enabled field device networks. Its 16-bit D/A resolution and ±0.1% full-scale accuracy sustain System Performance benchmarks across extended operational lifecycles, reducing calibration frequency and minimizing total cost of ownership. Asset Optimization is achieved through the module’s hot-swap capability, which allows in-service replacement without process interruption — a critical advantage in continuous manufacturing environments.

As a certified Original Equipment component backed by Original Documentation from Yokogawa Electric Corporation, the SAI533-H63/PRP delivers verifiable provenance and traceability. This authenticity is indispensable for facilities subject to regulatory audits, where counterfeit or non-OEM components can invalidate safety certifications and expose operators to significant liability under global Compliance Standards including ATEX, FM, CE, and UL directives.

Compliance & Safety Benchmarks

✅ Multi-Standard Certification: Fully compliant with CE, UL, FM, and ATEX directives, enabling deployment in Zone 1/Zone 2 hazardous area classifications without additional engineering modifications.

✅ Safety Integrity Level Alignment: Designed to support SIL 2 loop architectures when integrated within a validated ProSafe-RS safety instrumented system, in accordance with IEC 61511 Part 1 requirements.

Channel Isolation & Durability: 1500V DC channel-to-bus isolation voltage prevents ground loop propagation and protects downstream instrumentation from transient overvoltage events, extending field device service life.

✅ Environmental Resilience: Rated for operation across -40°C to +70°C ambient temperature range, with conformal coating options available for high-humidity and corrosive atmosphere installations.

Standard Adherence: All firmware revisions are released with accompanying validation documentation, ensuring that software lifecycle management aligns with IEC 62443 cybersecurity and IEC 61131 programming standards.

Vertical Industry Integration & Optimization

The SAI533-H63/PRP is engineered to address the precise control demands of high-consequence industrial verticals, where signal fidelity and system uptime are non-negotiable parameters:

Semiconductor Fabrication: In cleanroom environments, the module’s low-noise analog output supports sub-micron process control for chemical vapor deposition and etch rate regulation. Its galvanic isolation architecture prevents contamination of sensitive measurement circuits from power supply fluctuations inherent in high-frequency drive systems.

Pharmaceutical Manufacturing: GMP-compliant facilities benefit from the module’s deterministic output behavior and comprehensive audit trail support. The SAI533-H63/PRP facilitates 21 CFR Part 11 compliance by maintaining consistent, verifiable control signals for temperature, pressure, and flow regulation in sterile processing units.

Chemical & Petrochemical Processing: In continuous reaction environments, the PRP redundancy architecture ensures that valve positioning commands are delivered without interruption during network maintenance windows, eliminating the risk of uncontrolled process excursions that could trigger emergency shutdown sequences.

Power Generation & Utilities: Turbine governor control and boiler feedwater regulation demand the highest levels of output stability. The module’s 16-bit resolution translates to sub-milliamp positioning accuracy, enabling fuel efficiency optimization and emissions compliance under increasingly stringent environmental regulations.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Yokogawa SAI533-H63/PRP unit dispatched from our inventory is supplied in its original factory-sealed packaging, complete with manufacturer’s label, serial number, and accompanying Original Documentation. Tamper-evident seals are inspected prior to shipment to guarantee authenticity and protect against supply chain integrity risks.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, and the Americas, we provide expedited delivery timelines calibrated to minimize plant downtime. Emergency procurement requests for legacy system maintenance are accommodated with priority processing and real-time shipment tracking.

12-Month Quality Guarantee for Legacy Systems: All SAI533-H63/PRP modules are covered by a 12-month quality assurance guarantee from the date of delivery. This warranty encompasses functional verification, DOA (Dead on Arrival) replacement, and technical consultation support — ensuring that your investment in lifecycle asset management is protected throughout the initial operational period.

Technical Support Services: Our engineering team provides pre-sales compatibility assessment, installation guidance, and post-commissioning diagnostic support. Documentation packages including datasheets, firmware release notes, and compliance certificates are available upon request to facilitate regulatory submissions and internal audit processes.

Expert Technical FAQ

Q1: Does the SAI533-H63/PRP require specific firmware versions to maintain ATEX certification validity?
A: Yes. ATEX certification is tied to specific hardware revision and firmware version combinations as documented in Yokogawa’s product compliance matrix. Upgrading firmware outside of the certified revision range may invalidate the hazardous area approval. Always consult the Original Documentation and Yokogawa’s official firmware compatibility guide before performing any software updates in classified installations.

Q2: What installation compliance requirements apply when deploying the SAI533-H63/PRP in a SIL 2 safety loop?
A: Integration into a SIL 2 architecture requires that the module be installed within a validated ProSafe-RS safety instrumented system, with proof test intervals and diagnostic coverage ratios calculated in accordance with IEC 61511-1. A Safety Requirements Specification (SRS) must document the module’s role, and all wiring must comply with IEC 60079-14 for hazardous area installations. Functional safety assessment by a T V-certified engineer is recommended prior to commissioning.

Q3: How does the PRP redundancy architecture of the SAI533-H63/PRP differ from HSR (High-availability Seamless Redundancy)?
A: PRP operates by transmitting identical data frames simultaneously over two independent LAN paths (LAN-A and LAN-B). The receiving node accepts the first arriving frame and discards the duplicate, achieving zero-recovery-time failover with no protocol-level interruption. HSR uses a ring topology with a different frame tagging mechanism. For DCS environments with star-topology network infrastructure, PRP is the preferred Compliance Standard for achieving IEC 62439-3 conformant redundancy.

Q4: Can the SAI533-H63/PRP operate in high-humidity environments without additional protective measures?
A: The standard module is rated for relative humidity up to 95% non-condensing. For installations in tropical climates or environments with condensation risk, Yokogawa offers conformal coating variants that provide enhanced protection against moisture ingress and corrosive atmospheres. Environmental suitability should be verified against the site classification defined in IEC 60654-1 before module selection is finalized.

Q5: What diagnostic data does the SAI533-H63/PRP expose for predictive maintenance integration?
A: The module continuously monitors output loop integrity, channel open-circuit and short-circuit conditions, internal temperature, and communication path status for both PRP network interfaces. Diagnostic data is accessible via the CENTUM VP engineering workstation and can be integrated into plant asset management systems through OPC-DA/UA interfaces, supporting Asset Optimization strategies aligned with ISO 55000 asset management principles.

Q6: Is the SAI533-H63/PRP compatible with third-party DCS platforms or exclusively with Yokogawa systems?
A: The SAI533-H63/PRP is designed and optimized for integration within Yokogawa’s CENTUM VP, CENTUM CS 3000, and ProSafe-RS architectures. While the physical 4-20 mA output signal is universally compatible with any analog input device, the module’s advanced diagnostic, redundancy management, and configuration functions are accessible exclusively through Yokogawa’s proprietary engineering tools. Cross-platform deployment would forfeit the module’s Lifecycle Management and Safety Integrity capabilities.
