Yokogawa SAI533-H33/PRP S1 Service-Ready Spare Part

Yokogawa SAI533-H33/PRP S1 Service-Ready Spare Part for Industrial Maintenance

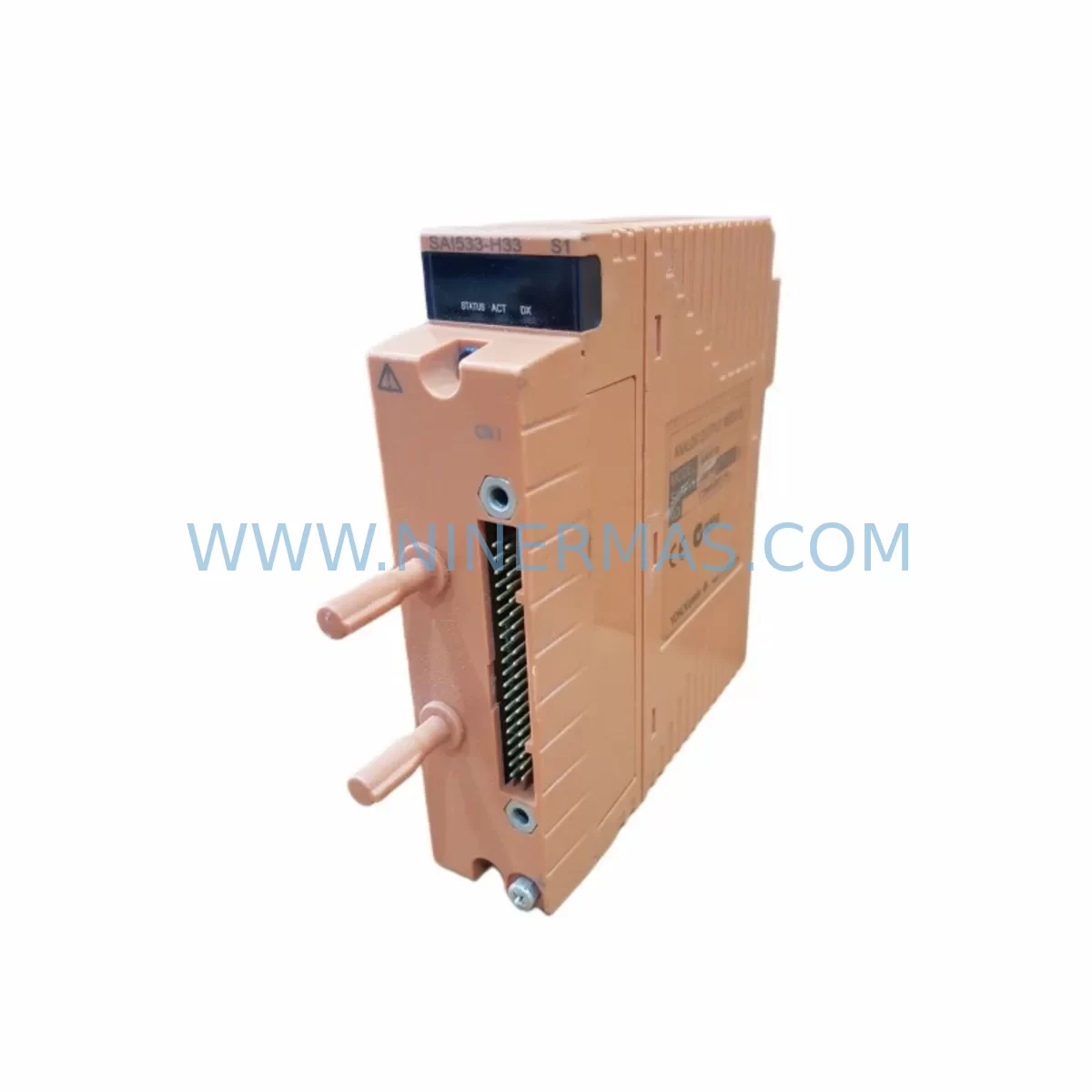

The Yokogawa SAI533-H33/PRP S1 is an original analog input module designed for deployment within Yokogawa’s CENTUM VP and STARDOM distributed control system (DCS) architectures. Engineered to support PRP (Parallel Redundancy Protocol) redundancy configurations, this module delivers high-integrity signal acquisition for process-critical applications across oil & gas, petrochemical, power generation, and advanced manufacturing environments. As a service-ready spare part, the SAI533-H33/PRP S1 is sourced, inspected, and dispatched by NINERMAS to support rapid downtime recovery, planned annual overhauls, and long-term spare parts inventory strategies.

Maintenance engineers and procurement teams managing aging CENTUM VP or STARDOM control systems understand the operational risk of running without a verified spare for a module of this class. The SAI533-H33/PRP S1 handles analog signal conditioning at the field interface level — any failure here directly impacts process visibility, loop control, and safety interlock integrity. Keeping a qualified replacement on the shelf is not optional; it is a fundamental element of any responsible maintenance strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the SAI533-H33/PRP S1, the scope of inspection should extend well beyond the module itself. In a CENTUM VP or STARDOM control cabinet, the analog input module operates as part of an interconnected signal chain. A thorough site inspection during the replacement window should include verification of the field terminal unit (FTU) and associated marshalling wiring, as loose or corroded terminations are a common root cause of intermittent AI faults that are incorrectly attributed to the module.

The Yokogawa ACM11 or equivalent communication module serving the same I/O nest should be checked for firmware version compatibility and communication health, particularly if the SAI533-H33/PRP S1 is being replaced as part of a broader system upgrade. Similarly, the power supply module feeding the I/O nest — typically a Yokogawa PW481 or PW482 series — should be load-tested and inspected for capacitor aging, especially in systems that have been in service for more than seven years.

For sites running PRP redundancy, the network switch infrastructure supporting the dual-ring Ethernet topology must be verified. A faulty managed switch port or degraded SFP transceiver can cause PRP failover events that appear as module faults in the historian. Procurement teams should consider stocking a spare Yokogawa LFCN or equivalent FCN controller node alongside the SAI533-H33/PRP S1 to cover controller-level redundancy gaps.

During annual shutdown inspections, it is also advisable to audit the SOE (Sequence of Events) recorder modules, digital output modules (SDV541 or equivalent), and any HART multiplexer units connected to the same I/O bus. HART-enabled analog inputs like those on the SAI533 series are frequently used with smart field instruments; verifying HART communication integrity during the replacement window adds significant diagnostic value at minimal additional cost.

Procurement engineers should also evaluate whether the site’s spare parts list includes a Yokogawa EJX series transmitter or equivalent field device connected to the SAI533 channels — transmitter failure can mimic module faults and lead to unnecessary module replacements. Maintaining a small buffer stock of common field transmitters alongside the SAI533-H33/PRP S1 reduces diagnostic ambiguity and accelerates fault resolution.

Finally, for control cabinets housing both the SAI533 and Yokogawa CENTUM VP HIS (Human Interface Station) workstations, a periodic review of the HIS alarm configuration and faceplates associated with the affected AI channels ensures that any replacement is immediately validated through the operator interface without requiring additional engineering intervention.

Site Replacement Workflow

Replacing the SAI533-H33/PRP S1 on a live CENTUM VP system follows a structured hot-swap procedure that minimizes process disruption. Before initiating the swap, the maintenance engineer should confirm that the PRP redundancy path is active and that the standby module (if present) is reporting healthy status in the CENTUM VP System View. If the system is operating in simplex mode due to a prior fault, the replacement must be coordinated with the control room operator to place affected loops in manual mode.

The physical replacement involves releasing the module latch, withdrawing the SAI533-H33/PRP S1 from the I/O nest, and inserting the replacement unit until the backplane connector is fully seated and the latch engages. The CENTUM VP system will automatically detect the new module and initiate a self-diagnostic sequence. Engineers should monitor the System Alarm window for any residual channel faults and verify that all AI channels return to normal scan status within the expected initialization period.

Post-replacement validation should include a loop check on all channels served by the module, confirmation of HART communication re-establishment for smart instruments, and a review of the redundancy status indicator to confirm that PRP operation has been restored. All replacement activities should be logged in the site CMMS (Computerized Maintenance Management System) with the new module’s serial number and the date of installation to support warranty tracking and future lifecycle planning.

For sites migrating from older Yokogawa CS3000 or CENTUM CS hardware, the SAI533-H33/PRP S1 represents a compatible upgrade path within the CENTUM VP architecture. NINERMAS can advise on cross-reference compatibility and assist procurement teams in identifying equivalent or upgraded replacement modules where the original part number has been superseded.

Spare Parts Support FAQ

Q1: Is the SAI533-H33/PRP S1 compatible with both CENTUM VP and STARDOM FCN systems?
The SAI533-H33/PRP S1 is primarily designed for the CENTUM VP I/O architecture. Compatibility with STARDOM FCN/FCJ nodes depends on the specific I/O nest and firmware version in use at your site. NINERMAS recommends providing your system configuration details prior to order confirmation so that compatibility can be verified against Yokogawa’s published hardware compatibility matrices.

Q2: What does the 12-month warranty cover, and how is it enforced?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, NINERMAS will arrange for replacement or repair at no additional cost. Warranty claims must be accompanied by the original invoice and a description of the failure mode observed on site.

Q3: How quickly can the SAI533-H33/PRP S1 be dispatched for emergency breakdown situations?
For in-stock units, NINERMAS targets dispatch within 3–5 business days under standard lead times. For emergency breakdown orders, expedited processing is available — contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and arrange priority shipment. We support DHL Express, FedEx Priority, and freight forwarding options for international destinations.

Q4: Can NINERMAS support long-term supply agreements for the SAI533-H33/PRP S1 and related CENTUM VP spare parts?
Yes. NINERMAS offers long-term supply agreements (LTSAs) for critical spare parts including the SAI533-H33/PRP S1 and associated CENTUM VP I/O modules. LTSAs provide price stability, reserved inventory allocation, and priority dispatch for contracted customers. This is particularly valuable for sites managing end-of-life Yokogawa hardware where OEM supply has become unreliable or lead times have extended significantly.
