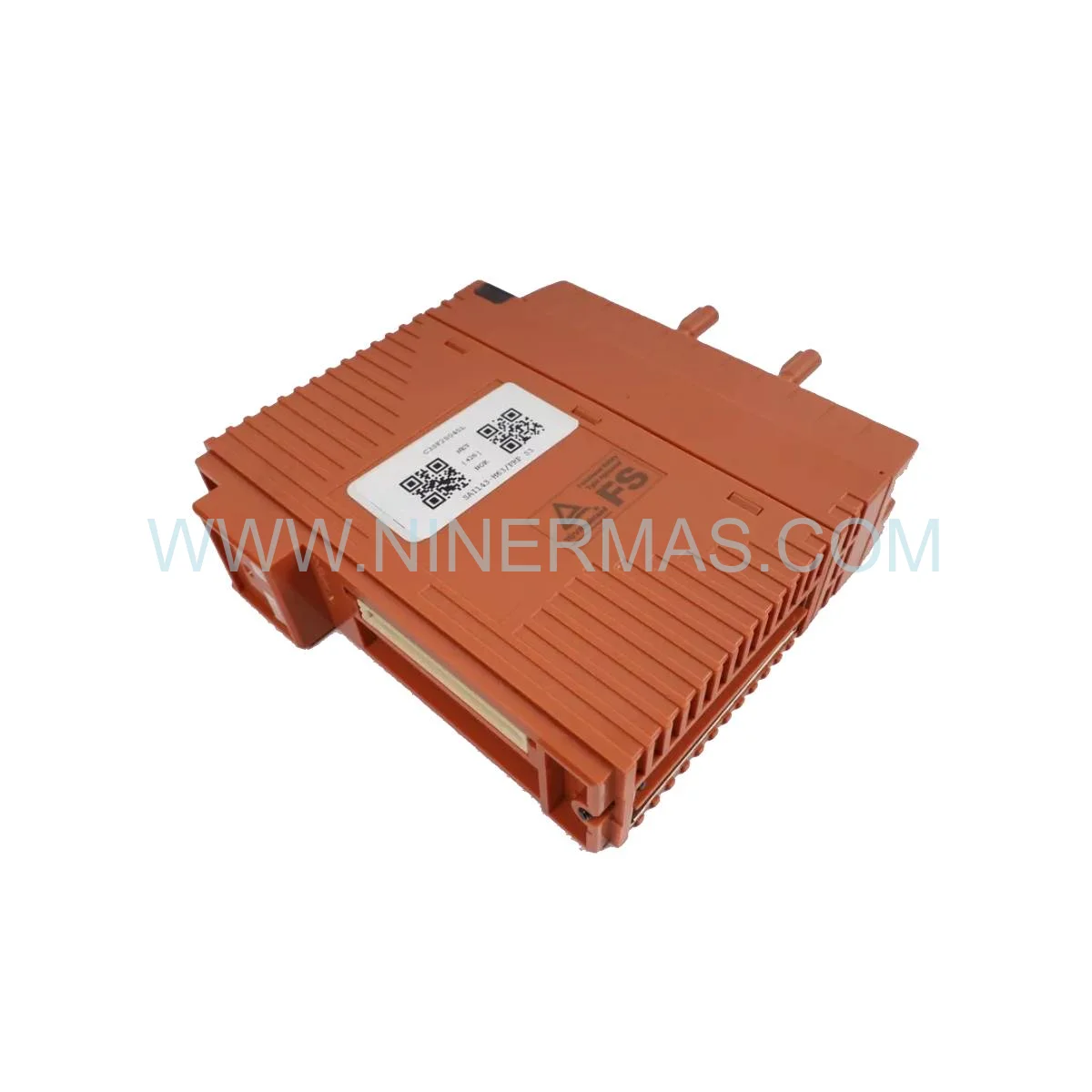

Yokogawa SAI143-H63 S4 | SIL 3 Safety Analog Input Module HART

Yokogawa SAI143-H63 S4 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Yokogawa SAI143-H63 S4 represents a cornerstone asset in maintaining the operational integrity of Safety Instrumented Systems (SIS). As a 16-channel safety analog input module certified to SIL 3 per IEC 61508, the SAI143-H63 S4 fulfills a mission-critical role: ensuring that every 4-20mA process signal entering the ProSafe-RS safety controller is acquired with uncompromising accuracy, channel isolation, and diagnostic transparency. Its deployment directly supports Compliance Standards adherence across high-consequence process environments, where signal fidelity is not a preference — it is a regulatory obligation.

Within the evolving framework of Industry 4.0 architecture, the SAI143-H63 S4 demonstrates exceptional long-term compatibility. Its integrated HART 7 communication overlay enables simultaneous process variable transmission and bi-directional digital dialogue with field instruments — without interrupting the primary 4-20mA loop. This dual-layer communication capability supports Asset Optimization strategies by enabling predictive maintenance, remote diagnostics, and continuous health monitoring of connected transmitters, all of which are foundational to sustainable System Performance over extended operational lifecycles.

As a factory-sealed, Original Documentation-backed component sourced through certified supply channels, the SAI143-H63 S4 delivers the Safety Integrity assurance that engineering teams and regulatory auditors demand. Its provenance as a genuine Yokogawa original part eliminates the risk of counterfeit-induced failure modes — a critical consideration in any lifecycle asset management program targeting zero unplanned shutdowns.

Compliance & Safety Benchmarks

✅ SIL 3 Certification (IEC 61508): Validated for use in the highest-demand safety loops, with diagnostic coverage exceeding 99% for safety-critical failure modes.
? Channel-to-Channel Isolation: Prevents fault propagation between input channels, preserving system-wide Safety Integrity under single-point failure conditions.
IEC 61511 Process Safety Compliance: Fully aligned with functional safety requirements for the process industry sector, supporting SIL verification and LOPA documentation.
? HART 7 Standard Adherence: Enables NAMUR NE 107 diagnostic classification, facilitating structured condition monitoring and regulatory reporting.
Operating Temperature Range: -40°C to +70°C: Engineered for durability across extreme ambient conditions, ensuring uninterrupted performance in harsh industrial environments.
? Hot-Swap Capability: Supports maintenance without system shutdown, reducing Mean Time To Repair (MTTR) and sustaining Operational Excellence targets.

Vertical Industry Integration & Optimization

The SAI143-H63 S4 is purpose-engineered to serve as a precision measurement backbone across industries where process deviations carry catastrophic consequences:

• Oil & Gas Upstream/Midstream: Monitors wellhead pressure, separator temperature, and pipeline flow transmitters within Emergency Shutdown Systems (ESD), enabling sub-second response to abnormal process conditions and supporting HAZOP-derived safety requirements.
• Pharmaceutical & Bioprocess Manufacturing: Acquires critical analog signals from validated transmitters in sterile environments, supporting 21 CFR Part 11 audit trails and GMP-compliant process control architectures.
• Semiconductor Fabrication: Provides high-accuracy analog input for ultra-pure chemical delivery systems and cleanroom environmental monitoring, where signal drift directly impacts yield and product quality.
• Chemical & Petrochemical Processing: Integrates with High Integrity Pressure Protection Systems (HIPPS) and Burner Management Systems (BMS), processing transmitter signals to prevent overpressure events and ensure combustion safety.
• Power Generation: Supports boiler control and turbine protection systems by delivering reliable analog acquisition from temperature, pressure, and vibration transmitters across the full operating lifecycle of the plant.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Every SAI143-H63 S4 unit dispatched through our supply chain is delivered in Factory Sealed Condition, accompanied by original Yokogawa documentation, ensuring full traceability from manufacturer to installation site. Our Rapid Global Logistics network supports expedited delivery to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas — minimizing procurement lead times for both planned maintenance and emergency replacement scenarios.

A 12-Month Quality Guarantee for Legacy Systems is extended on all SAI143-H63 S4 units, providing engineering teams with the confidence to integrate this module into both new safety system deployments and existing ProSafe-RS infrastructure upgrades. Our technical support team — staffed by certified functional safety engineers — is available to assist with compatibility verification, firmware alignment, and SIL validation documentation throughout the asset lifecycle.

Expert Technical FAQ

Q1: Does the SAI143-H63 S4 require specific firmware versions on the ProSafe-RS controller for SIL 3 operation?
A: Yes. SIL 3 operation of the SAI143-H63 S4 is contingent upon compatibility with validated ProSafe-RS firmware releases as specified in Yokogawa’s Safety Manual. Engineering teams must verify firmware version alignment during the SIL verification phase to maintain IEC 61508 certification integrity. Original Documentation supplied with each unit includes the applicable firmware compatibility matrix.

Q2: What installation compliance requirements apply when deploying the SAI143-H63 S4 in a classified hazardous area?
A: The SAI143-H63 S4 is designed for installation within the ProSafe-RS cabinet enclosure, which must itself be rated and installed in accordance with IEC 60079 area classification requirements. Field wiring connected to the module’s input terminals must comply with applicable intrinsic safety or Ex-e barrier standards as defined in the site’s electrical area classification documentation and ATEX/IECEx certification scope.

Q3: How does the HART 7 overlay on the SAI143-H63 S4 support predictive maintenance without compromising safety loop integrity?
A: The HART 7 protocol operates as a frequency-shift keyed (FSK) digital signal superimposed on the 4-20mA analog carrier. This architecture ensures that HART communication activity does not interfere with the primary safety measurement signal. Diagnostic data — including device status, process variable secondary variables, and NE 107 condition codes — can be polled continuously by an asset management system, enabling proactive maintenance scheduling without requiring safety loop bypass.

Q4: What environmental adaptability certifications does the SAI143-H63 S4 carry for offshore or marine applications?
A: The SAI143-H63 S4 is engineered to withstand the thermal cycling, humidity, and vibration profiles characteristic of offshore process platforms. Applicable environmental certifications and ingress protection ratings are detailed in the Yokogawa product specification sheet included with Original Documentation. Customers targeting marine classification society approval (e.g., DNV, Lloyd’s Register) should consult our technical support team for site-specific compliance guidance.

Q5: Can the SAI143-H63 S4 be integrated into a redundant SIS architecture, and what configuration is recommended?
A: The SAI143-H63 S4 supports both simplex and redundant (1oo2 / 2oo3) voting configurations within the ProSafe-RS platform. For SIL 3 applications requiring the highest availability, a redundant module configuration with independent power feeds and dedicated safety bus segments is recommended. Lifecycle Asset Management best practice dictates that redundant modules be sourced simultaneously to ensure firmware and hardware revision alignment.

Q6: How does sourcing a genuine SAI143-H63 S4 impact the overall SIL verification and functional safety audit process?
A: Functional safety standards, including IEC 61511, require that safety system components be used within their validated design envelope as defined by the manufacturer’s Safety Manual. Counterfeit or non-original components invalidate the SIL certification basis, exposing operators to regulatory non-compliance and unquantified risk. Sourcing the SAI143-H63 S4 through certified channels with Original Documentation ensures that all failure rate data (λD, λS) used in SIL calculations remain valid, preserving the integrity of the entire safety case.
