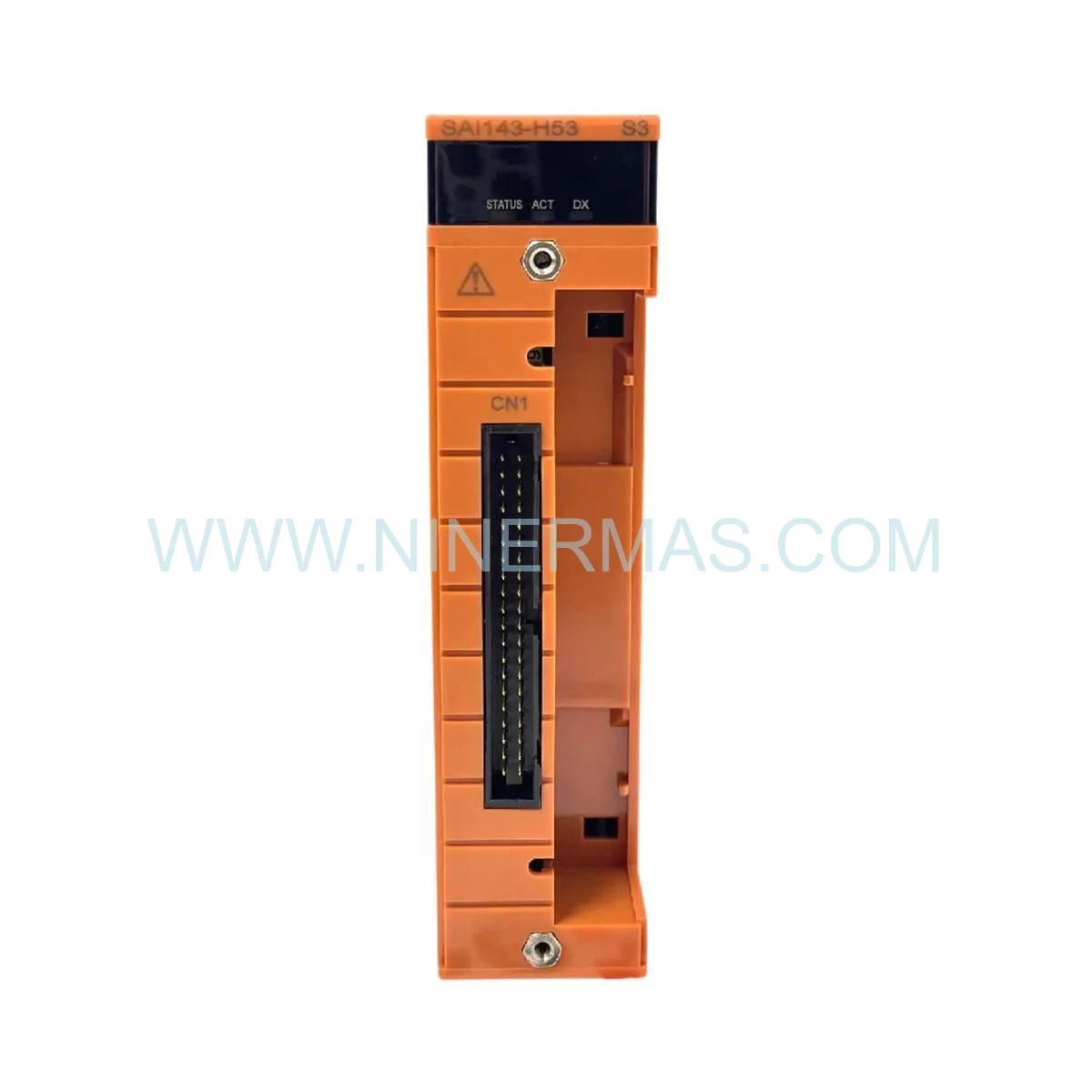

Yokogawa SAI143-H53/A4D00 | SIL 3 Safety Analog Input Retrofit Module

Yokogawa SAI143-H53/A4D00 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead working across global process industries, the Yokogawa SAI143-H53/A4D00 stands out as a cornerstone component in any safety system modernization initiative. This 16-channel SIL 3-certified analog input module plays a decisive role in extending the operational lifespan of aging control architectures — enabling facilities to achieve measurable performance gains without the cost and risk of a full platform replacement. Whether you are upgrading a legacy ESD system or expanding an existing ProSafe-RS safety instrumented system, the Yokogawa SAI143-H53/A4D00 delivers the reliability and precision that mission-critical environments demand.

From a backward compatibility standpoint, this module is engineered to slot into existing Yokogawa safety frameworks with minimal re-engineering effort. Its 4-20 mA HART signal architecture aligns with the field wiring standards of legacy installations, making it an ideal hardware upgrade path for facilities that need to preserve existing field instrumentation while modernizing the control layer. The HART communication layer further enables simultaneous process data acquisition and device diagnostics — a capability that older analog-only modules simply cannot match.

In terms of migration risk reduction, the SAI143-H53/A4D00 supports hot-swap replacement, meaning maintenance teams can execute module-level upgrades during live operations without triggering system-wide shutdowns. This dramatically lowers both the financial exposure and the operational disruption typically associated with safety system retrofit projects — making it a preferred choice for phased modernization strategies in oil & gas, power generation, and chemical processing sectors.

Upgrade Highlights & Compatibility

✅ Seamless Integration — Drop-in compatible with Yokogawa ProSafe-RS and CENTUM VP platforms; preserves existing field wiring and I/O mapping for zero-disruption deployment.

SIL 3 Safety Certification — Fully compliant with IEC 61508 and IEC 61511, ensuring your upgraded system meets the highest functional safety standards without additional certification overhead.

✅ HART Dual-Layer Communication — Simultaneous process variable transmission and remote diagnostics over a single two-wire loop — a critical performance enhancement over legacy analog-only I/O cards.

16-Bit A/D Resolution — High-precision measurement across 16 isolated channels, delivering superior signal fidelity compared to older 12-bit or 14-bit generation modules.

✅ Future-Proof Architecture — Conformal coating, wide operating temperature range (-40°C to +70°C), and TMR fault-tolerant design ensure long-term reliability in harsh industrial environments.

Hot-Swap Capability — Module replacement without system shutdown supports phased retrofit execution and minimizes production impact during hardware upgrade cycles.

Modernization Use Cases & Success Stories

DCS Safety Layer Upgrade — Refinery ESD Modernization: A major downstream oil refinery operating a 15-year-old safety instrumented system faced increasing diagnostic coverage gaps and spare parts scarcity. By integrating the Yokogawa SAI143-H53/A4D00 as a direct retrofit replacement for end-of-life analog input cards, the facility achieved a 40% improvement in diagnostic coverage and restored full SIL 3 compliance — all without replacing field transmitters or rewiring junction boxes. The HART capability unlocked remote device health monitoring, reducing unplanned maintenance interventions by an estimated 30%.

TSI System Migration — Power Plant Turbine Monitoring Upgrade: A combined-cycle power plant running a legacy turbine supervisory instrumentation (TSI) system required a performance upgrade to support new vibration and temperature transmitters with HART output. The SAI143-H53/A4D00 was deployed as the analog input backbone for the upgraded TSI architecture, enabling seamless integration between new HART-enabled field devices and the existing ProSafe-RS safety controller. The result: real-time turbine health data with millisecond-level response times, supporting predictive maintenance strategies that reduced forced outage frequency by over 25%.

Chemical Plant Safety System Expansion — Phased Retrofit Approach: A specialty chemicals manufacturer needed to expand its fire and gas detection network without interrupting continuous production. Using the SAI143-H53/A4D00’s hot-swap architecture, the retrofit team added 48 new analog input channels across three modules during live operations — achieving full system expansion with zero production downtime and maintaining uninterrupted SIL 3 safety coverage throughout the migration process.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every Yokogawa SAI143-H53/A4D00 unit we supply is sourced as genuine OEM hardware — factory sealed, serialized, and traceable to original manufacturing documentation. No refurbished, reconditioned, or third-party substitute components.

Expedited Global Logistics: We maintain dedicated inventory for safety-critical retrofit projects with expedited shipping capabilities to North America, Europe, the Middle East, and Asia-Pacific. Emergency procurement support is available for unplanned outage scenarios where lead time is mission-critical.

Technical Support for Legacy & Obsolete Hardware: Our engineering team specializes in legacy Yokogawa system compatibility analysis. Whether you are migrating from an older ProSafe or CENTUM CS generation, we provide pre-deployment compatibility verification, installation guidance, and post-retrofit commissioning support to ensure your upgrade delivers the expected performance enhancement from day one.

Retrofit FAQ — Upgrade Guide

Q1: Is the Yokogawa SAI143-H53/A4D00 physically compatible with older ProSafe-RS chassis generations?
A: Yes. The SAI143-H53/A4D00 is designed for direct mechanical and electrical compatibility with ProSafe-RS I/O chassis across multiple generations. The module’s form factor and backplane connector interface align with legacy slot configurations, eliminating the need for chassis replacement or mechanical adaptation during retrofit installation.

Q2: Can the SAI143-H53/A4D00 communicate with both legacy analog transmitters and new HART-enabled field devices simultaneously?
A: Absolutely. The module’s HART communication layer is fully backward compatible with standard 4-20 mA analog transmitters — which continue to operate as conventional analog inputs — while simultaneously enabling HART digital communication with HART-capable devices on the same loop. This dual-mode capability is a key advantage in phased migration scenarios where legacy and modern field devices coexist.

Q3: What is the recommended procedure for replacing an end-of-life analog input card with the SAI143-H53/A4D00 without triggering a safety system trip?
A: The SAI143-H53/A4D00 supports hot-swap replacement under live system conditions. The recommended procedure involves placing the affected safety function in bypass mode via the safety controller’s maintenance override, physically replacing the module, performing channel-level verification against the I/O configuration database, and releasing the bypass upon successful diagnostic confirmation. Our technical team can provide site-specific replacement procedures upon request.

Q4: Are there alternative part numbers or cross-reference options if the SAI143-H53/A4D00 is temporarily unavailable?
A: For applications where the SAI143-H53/A4D00 is the specified part, we strongly recommend against substitution without formal engineering review, as safety-certified modules carry specific SIL validation documentation tied to the exact part number. However, our procurement team can assist with identifying functionally equivalent Yokogawa safety I/O modules and coordinating the necessary re-validation documentation for your safety case update.

Q5: How does the SAI143-H53/A4D00 support predictive maintenance strategies in a modernized safety system?
A: The integrated HART communication capability enables continuous device health monitoring without interrupting the primary 4-20 mA process signal. Field transmitter diagnostics — including sensor drift alerts, loop integrity checks, and device status flags — are transmitted digitally over the HART layer and can be integrated into asset management systems such as Yokogawa’s PRM (Plant Resource Manager). This transforms the safety I/O layer from a passive signal conduit into an active predictive maintenance data source.

Q6: What documentation is provided to support safety case updates after a retrofit using the SAI143-H53/A4D00?
A: We supply full OEM documentation packages including the module’s SIL 3 safety manual, IEC 61508 certification reports, functional safety data sheets, and installation/commissioning guides. For projects requiring formal safety case revision, our team can coordinate with Yokogawa’s technical support network to provide the necessary evidence documentation for your functional safety assessment.
