Yokogawa SAI143-H03 S2 Retrofit-Compatible Signal Input Module

Yokogawa SAI143-H03 S2 Retrofit-Compatible Signal Input Module for Legacy Systems

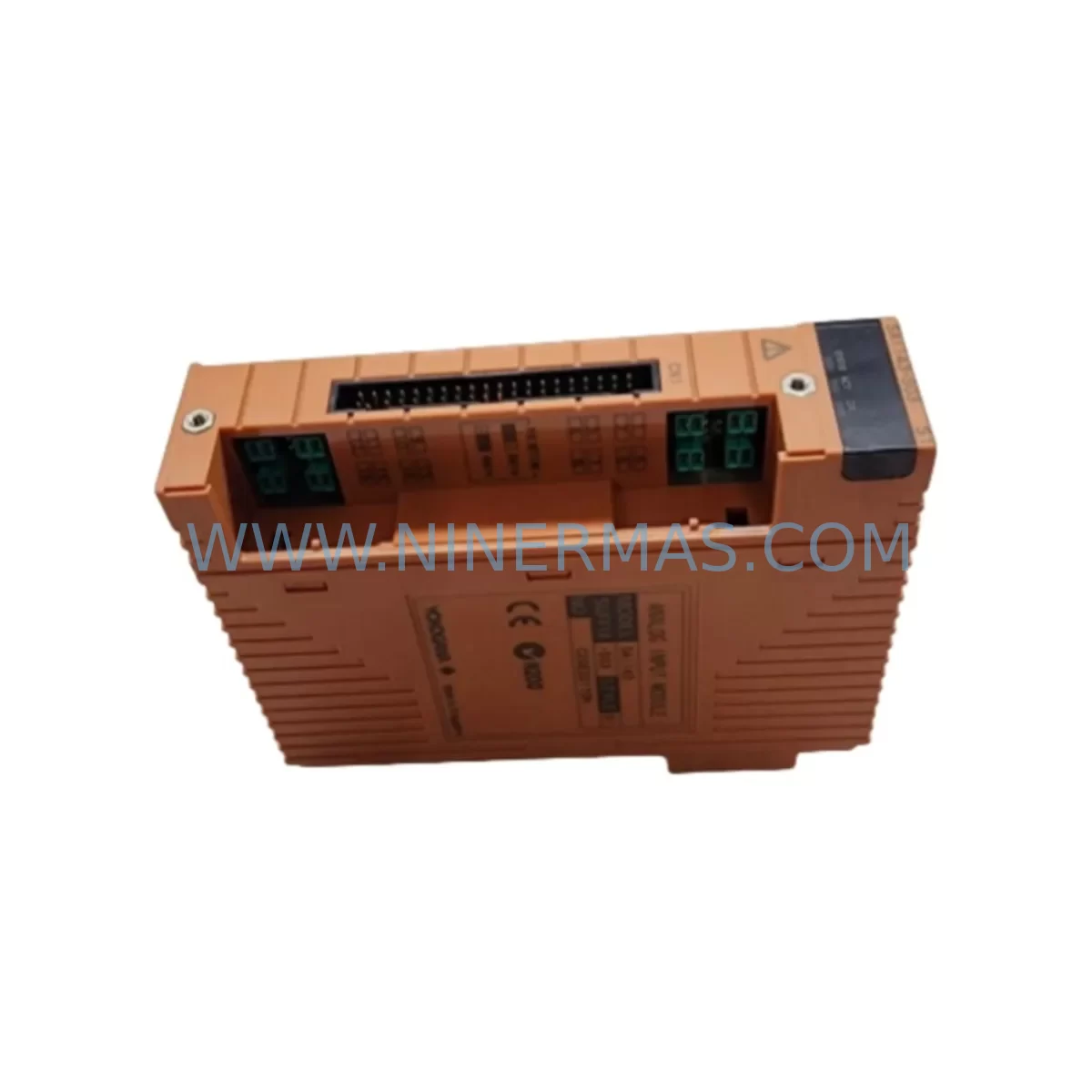

The Yokogawa SAI143-H03 S2 is a high-integrity analog signal input module designed for the ProSafe-RS Safety Instrumented System (SIS) platform. As legacy process plants face increasing pressure to extend the operational life of their safety systems while managing obsolescence risk, the SAI143-H03 S2 has become a critical retrofit and replacement component for engineers tasked with modernizing aging control architectures without triggering full system overhauls.

This module supports multi-channel analog input acquisition with built-in signal conditioning, making it directly compatible with existing ProSafe-RS backplane configurations. For facilities running end-of-life safety logic solvers or decommissioned I/O modules, the SAI143-H03 S2 provides a validated drop-in replacement path that preserves existing wiring infrastructure, terminal block layouts, and safety function logic — dramatically reducing retrofit engineering hours and minimizing unplanned downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SAI143-H03 S2 into a brownfield safety system requires a structured pre-installation assessment. Engineers should begin by auditing the existing ProSafe-RS rack assembly to confirm available slot positions, backplane revision, and power budget. The PW481 power supply module must be verified to support the additional load introduced by the replacement I/O module, particularly in high-density cabinets where multiple channels are being restored simultaneously.

Terminal wiring compatibility is a common retrofit concern. The SAI143-H03 S2 uses the standard ProSafe-RS field terminal block interface, which is mechanically compatible with legacy TB series terminal boards already installed in most ProSafe-RS marshalling cabinets. This eliminates the need for field rewiring in most cases, though engineers should inspect terminal torque values and conductor insulation condition before reconnection.

For systems that also require communication path restoration, the ACM12S communication module or equivalent Vnet/IP interface card should be confirmed as operational before the SAI143-H03 S2 is brought online. In plants where the original SCP401 safety control processor is still in service, module address configuration must be performed via the ProSafe-RS Engineering Environment (PREE) software to ensure the new I/O card is correctly mapped to the existing safety function logic.

Where HMI integration is required, engineers working with Yokogawa FAST/TOOLS or Exaquantum historian systems should verify that the tag database reflects the restored channel assignments. In parallel, any ALR111 alarm module or annunciator panel connected to the affected safety loop should be tested for correct trip signal propagation after module swap.

For plants simultaneously upgrading their process control layer, the SAI143-H03 S2 retrofit is often coordinated with replacement of adjacent AAI141 analog input modules on the CENTUM VP DCS side, ensuring that both the safety and regulatory control layers are refreshed within the same maintenance window. Signal isolators — particularly Yokogawa MTL series barriers — should be inspected and replaced if they show signs of drift, as degraded isolation can introduce measurement error that masks the performance improvement delivered by the new module.

Every SAI143-H03 S2 unit supplied by NINERMAS undergoes pre-shipment functional testing, including channel-by-channel signal verification and backplane communication handshake confirmation, before dispatch. Units are shipped with full documentation and are covered by a 12-month warranty from the date of delivery.

Downtime Control During System Migration

Minimizing production interruption is the primary constraint in any safety system retrofit. For the SAI143-H03 S2 replacement, the recommended approach is to perform all pre-work — including module address pre-configuration, terminal block inspection, and spare program backup — during scheduled maintenance periods before the actual swap window begins.

The existing safety function logic stored in the SCP401 safety control processor should be fully backed up using the ProSafe-RS Engineering Environment prior to any hardware change. This backup preserves cause-and-effect matrices, SIL assignments, and interlock logic, ensuring that a rapid restore is possible if commissioning issues arise during the swap.

During the physical module exchange, the ProSafe-RS system can often maintain partial operation through redundant I/O paths if the affected channels are temporarily bypassed under a formal Management of Change (MOC) procedure. This approach keeps the broader safety system energized and reduces the risk of spurious trips on unrelated loops. Once the SAI143-H03 S2 is seated and powered, channel-by-channel loop checks should be performed using a calibrated signal source before the bypass is lifted.

Post-installation, a full functional test of each restored safety loop — including trip simulation at the field device level — should be completed and documented before the system is returned to normal operation. NINERMAS recommends retaining the replaced module as a temporary spare for a minimum of 30 days post-commissioning to support rapid recovery in the event of an unexpected issue.

Retrofit Support FAQ

Q: Is the SAI143-H03 S2 a direct replacement for older SAI143-series modules?
A: Yes. The SAI143-H03 S2 is designed as a form-fit-function replacement for legacy SAI143-series analog input modules within the ProSafe-RS platform. Minor firmware differences may require a configuration update via PREE software, which NINERMAS technical support can assist with.

Q: What wiring changes are required during installation?
A: In most cases, no field wiring changes are required. The SAI143-H03 S2 uses the same terminal block interface as its predecessors. Engineers should verify conductor labeling and inspect terminal condition before reconnection, but rewiring is typically not necessary.

Q: How is the module tested before shipment?
A: Every unit undergoes a pre-shipment functional test that includes analog signal injection on all channels, backplane communication verification, and visual inspection. A test report is available upon request.

Q: What warranty and stock availability does NINERMAS offer?
A: All SAI143-H03 S2 units are covered by a 12-month warranty from the date of delivery. NINERMAS maintains dedicated inventory of ProSafe-RS components to support urgent retrofit and emergency replacement requirements. Contact our team for lead time confirmation and volume pricing.
