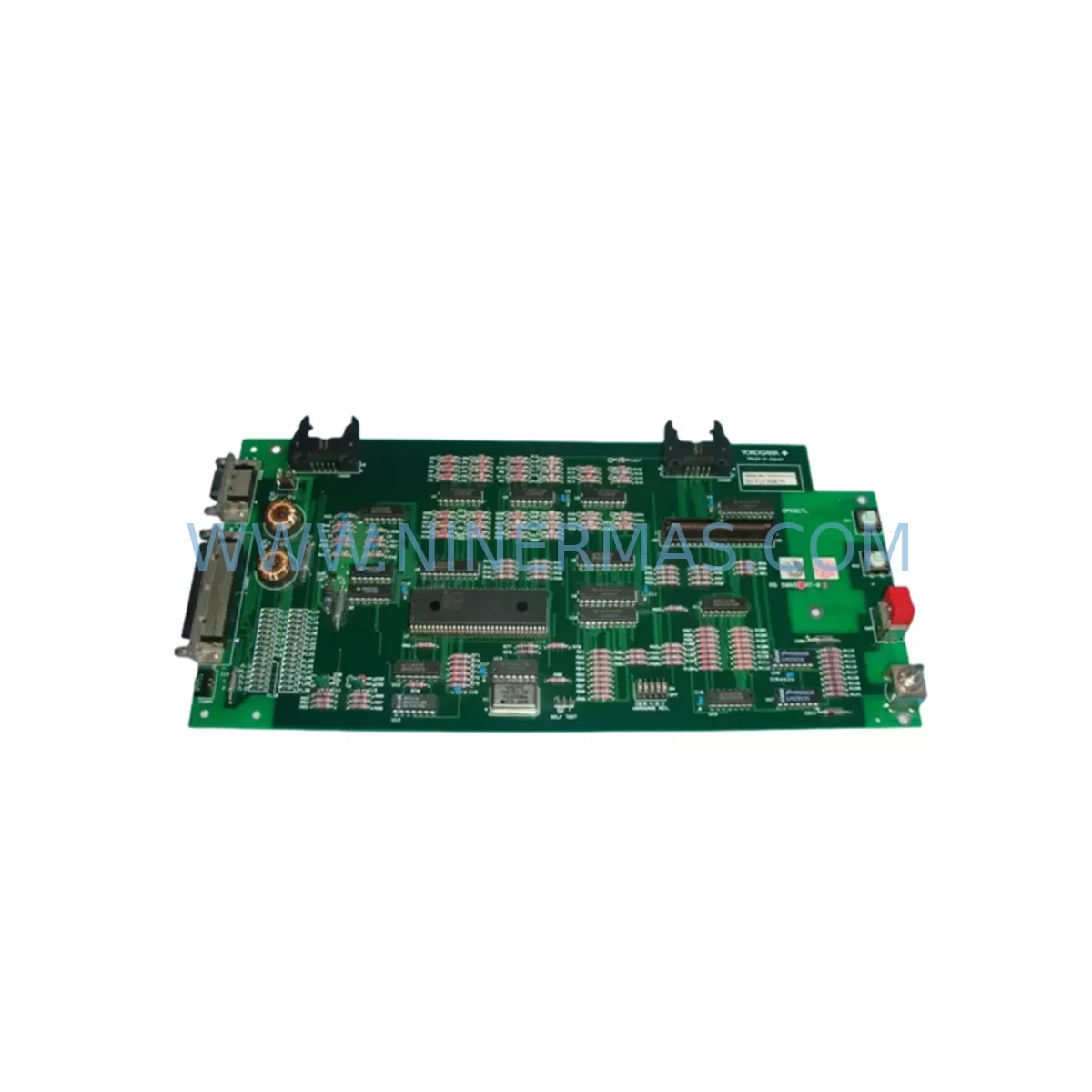

The YOKOGAWA S9930AT-01 is a critical spare module within the ProSafe-RS Safety Instrumented System (SIS) platform — one of the most widely deployed functional safety architectures in oil & gas, petrochemical, power generation, and chemical processing facilities worldwide. When a ProSafe-RS node goes offline due to module failure, the consequences extend far beyond a single I/O point: entire safety loops may be bypassed, SIL ratings may be compromised, and production shutdown timelines can escalate rapidly. Sourcing a verified, service-ready S9930AT-01 replacement is not a procurement decision — it is a risk management decision.

At NINERMAS, every S9930AT-01 unit is subject to pre-shipment functional verification, visual inspection, and packaging integrity checks before dispatch. We maintain dedicated buffer stock of ProSafe-RS modules to support emergency replacement, planned annual turnaround, and long-term spare parts inventory programs. Our 12-month warranty covers all supplied units against manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the S9930AT-01 in a live ProSafe-RS environment requires a structured approach that goes beyond swapping a single module. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the surrounding safety loop and control cabinet for latent faults that may accelerate the next unplanned outage.

Begin with the ProSafe-RS power supply modules (such as the S9930PW series) — backplane power integrity is the foundation of all module reliability. A degraded power rail can cause intermittent faults that mimic module failure, leading to unnecessary replacements. Simultaneously, inspect the ProSafe-RS backplane and chassis for corrosion, connector wear, or mechanical damage that may have contributed to the S9930AT-01 failure.

Next, review the I/O modules connected to the same safety loop — including digital input modules (DI), digital output modules (DO), and analog input modules (AI) within the ProSafe-RS rack. A failed communication or control module often masks upstream I/O faults that will surface after the primary module is restored. Modules such as the S9930DI and S9930DO series should be checked for diagnostic alarms and response time compliance.

For facilities running YOKOGAWA CENTUM VP or CENTUM CS 3000 DCS in parallel with ProSafe-RS, verify that the safety bus communication interface between the SIS and DCS layers is functioning correctly after module replacement. Communication modules and gateway cards linking ProSafe-RS to the plant DCS — including ALF111 FOUNDATION Fieldbus link modules or ESB bus couplers — should be confirmed operational before returning the safety loop to service.

Procurement engineers building annual spare parts lists for ProSafe-RS installations should also consider stocking terminal block assemblies, signal isolators for field wiring protection, 24VDC fused terminal strips, and surge protection devices on field signal cables. These passive components are frequently overlooked until they cause a nuisance trip or mask a genuine process fault. Additionally, ProSafe-RS engineering workstation software licenses and configuration backup media should be maintained to support rapid module commissioning after replacement.

For facilities with aging ProSafe-RS installations (10+ years), a proactive lifecycle review should include battery-backed memory modules, watchdog timer cards, and any HMI interface panels used for safety system status monitoring. Replacing the S9930AT-01 without addressing these adjacent components may result in a repeat failure within 12–18 months.

Site Replacement Workflow

Field replacement of the YOKOGAWA S9930AT-01 should follow a documented change management procedure to minimize downtime and maintain SIL compliance throughout the maintenance window.

Step 1 — Pre-Replacement Verification: Confirm the replacement S9930AT-01 part number, firmware revision, and hardware revision match the installed unit. Cross-reference with the ProSafe-RS system configuration file and the site’s approved spare parts register. Do not install a module with a mismatched firmware version without first consulting YOKOGAWA’s compatibility matrix.

Step 2 — Safety Bypass Authorization: Initiate the formal safety bypass procedure for the affected safety loop in accordance with the site’s Management of Change (MOC) and Safety Bypass Management (SBM) protocols. Document the bypass start time and notify the control room.

Step 3 — Module Removal: Power down the affected ProSafe-RS node if hot-swap is not supported for this module type. Remove the S9930AT-01 carefully, noting connector orientation and any field wiring terminations. Label all connections before disconnection.

Step 4 — Installation and Configuration: Install the replacement S9930AT-01 into the correct backplane slot. Restore all field wiring connections. Power up the node and confirm the module is recognized by the ProSafe-RS engineering workstation. Download the approved configuration if required.

Step 5 — Functional Test and Loop Check: Perform a full functional test of the restored safety loop, including input signal simulation, output relay actuation verification, and communication status confirmation. Confirm all diagnostic indicators are clear before releasing the bypass.

Step 6 — Documentation and Bypass Release: Record the replacement in the site maintenance management system (CMMS), update the spare parts inventory, and formally release the safety bypass. Retain the removed S9930AT-01 for failure analysis if required.

This structured workflow reduces mean time to repair (MTTR), maintains audit trail integrity, and ensures the ProSafe-RS system is returned to full SIL-rated operation without residual risk.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the YOKOGAWA S9930AT-01 supplied by NINERMAS?
All S9930AT-01 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure and manufacturing defects under normal operating conditions. Units that fail within the warranty period will be replaced or refunded subject to inspection. Warranty does not cover damage caused by incorrect installation, overvoltage, or unauthorized modification.

Q2: How do I verify compatibility between the replacement S9930AT-01 and my existing ProSafe-RS system?
Compatibility is determined by hardware revision, firmware version, and ProSafe-RS system software release. Before ordering, provide your current system configuration details — including the ProSafe-RS software version and the hardware revision of the installed module — to our technical team at sale@ninermas.com. We will confirm compatibility before shipment to eliminate installation risk.

Q3: Can NINERMAS support long-term or repeat supply of S9930AT-01 for multi-site maintenance programs?
Yes. NINERMAS maintains dedicated buffer stock of ProSafe-RS modules and can support annual procurement agreements, blanket purchase orders, and emergency call-off arrangements for multi-site operators. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your maintenance planning cycle.

Q4: What pre-shipment testing is performed on each S9930AT-01 unit?
Every unit undergoes visual inspection, functional power-on verification, and connector integrity checks before dispatch. Units are packed in anti-static ESD-safe packaging with desiccant to prevent moisture ingress during transit. A test report is available upon request for units requiring documented quality evidence for site acceptance procedures.
