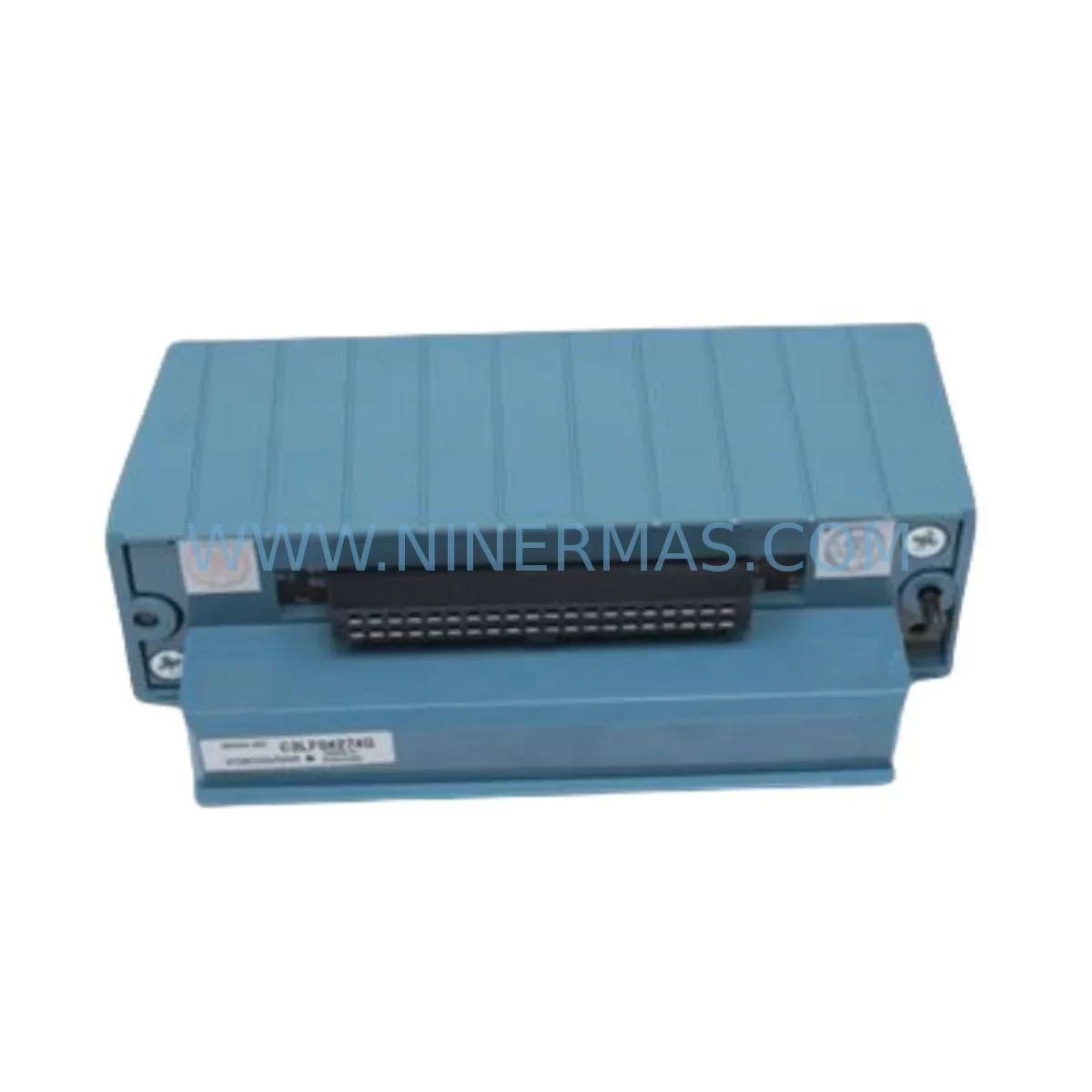

YOKOGAWA NFTR8S-10 Safety-Reliable Terminal Block for Critical Control

YOKOGAWA NFTR8S-10: Safety-Reliable Terminal Block for Critical Industrial Control Sites

The YOKOGAWA NFTR8S-10 S2 is a precision-engineered terminal block module designed to deliver uncompromising signal integrity and connection reliability in the most demanding industrial control environments. As a core wiring interface component within YOKOGAWA’s field instrumentation and DCS architecture, the NFTR8S-10 plays a critical role in maintaining continuous, fault-free signal transmission between field devices and control system I/O modules — even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and corrosive atmospheres.

In continuous process industries where unplanned shutdowns carry catastrophic safety and financial consequences, the quality of every terminal connection in the control cabinet directly impacts system availability. The NFTR8S-10 is built to YOKOGAWA’s stringent manufacturing standards, ensuring that each unit shipped has passed full functional and insulation testing before leaving the factory. With a 12-month warranty and guaranteed long-term supply availability through NINERMAS, this module is a trusted choice for maintenance engineers managing critical spare inventories at petrochemical plants, power generation facilities, mining operations, and water treatment installations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered safety control cabinet, every component in the signal chain must perform reliably under fault conditions. The YOKOGAWA NFTR8S-10 S2 terminal block module serves as the critical wiring interface between field transmitters — such as pressure, temperature, and flow instruments — and the I/O cards of YOKOGAWA CENTUM VP or ProSafe-RS safety system controllers. A degraded or failed terminal connection at this junction can cause signal drift, false trips, or loss of process visibility, all of which represent serious safety risks in interlock-critical applications.

To build a fully protected control loop, the NFTR8S-10 is typically deployed alongside complementary YOKOGAWA components. The YOKOGAWA AAI141-S00 analog input module receives the conditioned signals passed through the terminal block, while the YOKOGAWA ADV151-P00 digital output module drives final control elements such as solenoid valves and motor starters. Power stability for the entire I/O subsystem is maintained by the YOKOGAWA PW481 power supply module, which provides regulated, redundant DC power to prevent voltage sag from propagating into signal circuits.

For installations in high-EMI environments — common in heavy motor drive areas, arc furnace facilities, and variable frequency drive (VFD) cabinets — the NFTR8S-10’s robust terminal construction minimizes the risk of induced noise causing signal errors. This is further reinforced when used with shielded field cables terminated through YOKOGAWA NFDV151 field terminal assemblies and protected by surge protection devices (SPDs) installed at the cabinet entry point. In safety instrumented systems (SIS), the terminal block must maintain its isolation integrity to prevent common-cause failures from propagating across redundant safety loops.

Communication reliability is equally critical. In YOKOGAWA CENTUM VP architectures, the ESB bus coupler modules and FCN/FCJ remote I/O units depend on clean, low-resistance field wiring connections to maintain deterministic Fieldbus or HART communication. A corroded or loose terminal in the NFTR8S-10 position can introduce impedance mismatches that degrade HART signal quality, making diagnostics unreliable. Proactive replacement of aged terminal block modules during planned shutdowns — using verified OEM-compatible spares like the NFTR8S-10 — is a proven strategy for reducing unplanned communication faults.

For power distribution within the control cabinet, pairing the NFTR8S-10 with YOKOGAWA-compatible 24VDC distribution terminal blocks and fused terminal assemblies ensures that individual field loops can be isolated for maintenance without de-energizing the entire cabinet — a key requirement for hot-work permits and partial stroke testing of safety valves in live process environments.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation, reactor control, and pipeline SCADA systems, the NFTR8S-10 provides the stable field wiring interface required for pressure and temperature interlock loops. Its resistance to hydrocarbon vapors and high-humidity cabinet environments makes it suitable for Zone 2 classified electrical rooms where purged and pressurized enclosures are standard.

Power Generation & Substation Control: Turbine control systems and boiler management systems rely on precise analog signal transmission. The NFTR8S-10 ensures that thermocouple and RTD signals from high-temperature zones reach the DCS I/O cards without attenuation or ground loop interference — critical for preventing turbine trips caused by false temperature readings.

Mining & Mineral Processing: In crusher control rooms, conveyor interlock panels, and flotation cell automation cabinets, the NFTR8S-10 withstands the high vibration and dust ingress typical of mining environments. Its robust terminal clamping mechanism maintains connection integrity even under constant mechanical shock, reducing the risk of intermittent faults that can cause conveyor mistrips or crusher overload events.

Water & Wastewater Treatment: Pump station control panels and chemical dosing systems in water treatment facilities operate in high-humidity, corrosive atmospheres. The NFTR8S-10’s insulation system prevents moisture-induced leakage currents that could cause nuisance trips of critical pumping equipment or false alarms in chlorine dosing interlocks.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting control systems generate extreme electromagnetic interference. The NFTR8S-10, when properly installed with shielded wiring practices, maintains signal integrity in these ultra-high-EMI environments, supporting reliable operation of cooling water flow interlocks and mold level control loops.

Port & Marine Automation: Ship engine control rooms and port crane automation panels require components that perform reliably in salt-air environments with significant vibration from vessel movement or crane operation. The NFTR8S-10’s compact, robust construction is well-suited for these space-constrained, mechanically demanding installations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the YOKOGAWA NFTR8S-10 S2?
All NFTR8S-10 S2 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical consultation and replacement coordination to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every NFTR8S-10 S2 module undergoes 100% outgoing inspection prior to dispatch, including functional verification and insulation resistance testing. Units that do not meet YOKOGAWA’s original performance specifications are quarantined and not shipped. This ensures that every spare you receive is ready for immediate installation in your critical control system.

Q3: Is the NFTR8S-10 S2 compatible with existing YOKOGAWA CENTUM VP and CS 3000 systems?
Yes. The NFTR8S-10 S2 is designed as a direct OEM-compatible replacement for YOKOGAWA CENTUM series field terminal applications. It maintains full pin-for-pin and mechanical compatibility with standard YOKOGAWA I/O module mounting arrangements, allowing drop-in replacement without rewiring or system reconfiguration.

Q4: Can NINERMAS guarantee long-term supply availability for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated stock of the NFTR8S-10 S2 and a broad range of complementary YOKOGAWA spare modules to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing and consignment stock arrangements for your facility.
