YOKOGAWA NFPW441-10 Service-Ready Spare Part for Industrial Maintenance

YOKOGAWA NFPW441-10 Service-Ready Spare Part for Industrial Maintenance

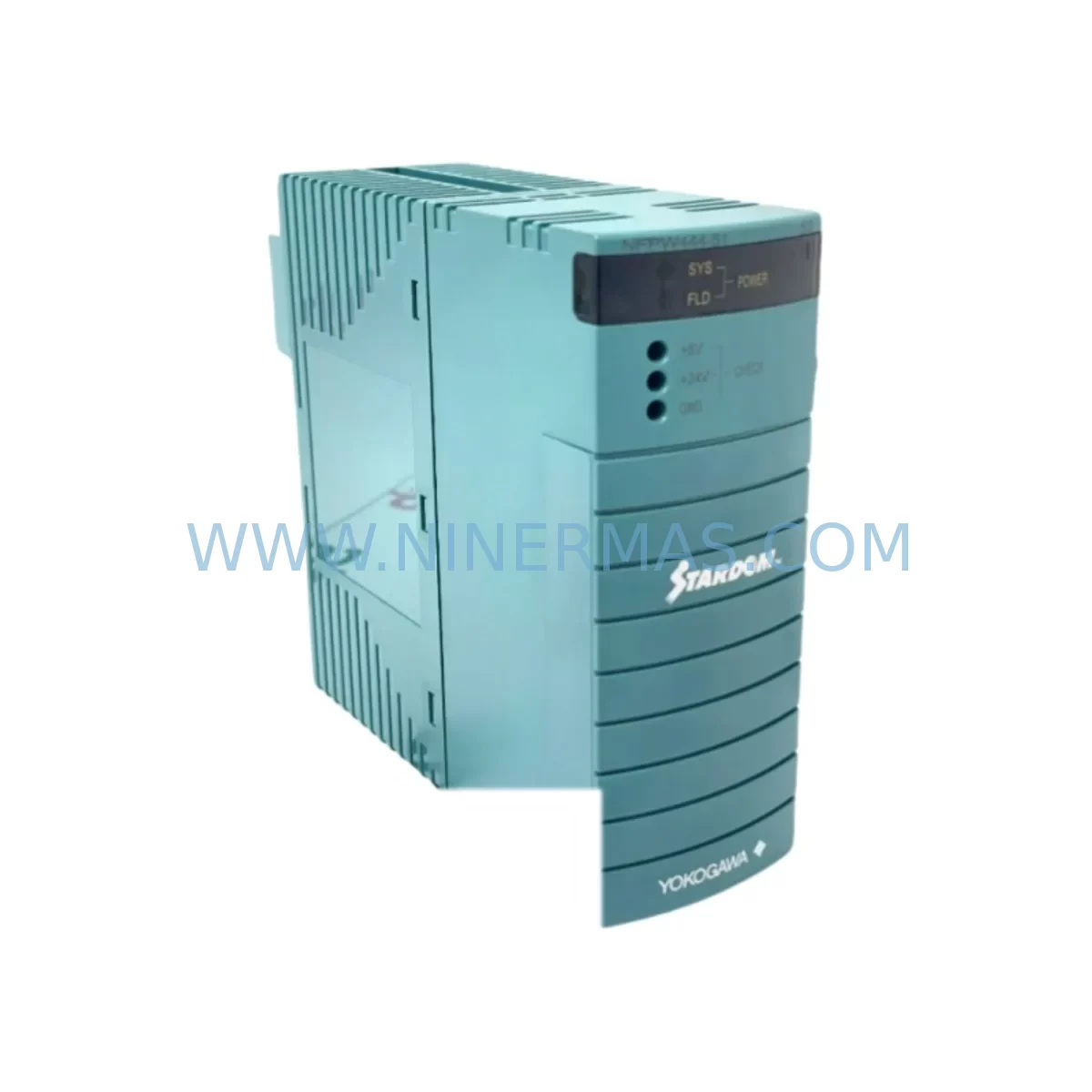

The YOKOGAWA NFPW441-10 is a field-proven DCS power supply module engineered for YOKOGAWA’s CENTUM VP and CENTUM CS 3000 Distributed Control System platforms. For maintenance engineers managing aging process control infrastructure, securing a reliable supply of the NFPW441-10 is a critical element of any preventive maintenance strategy. Whether you are responding to an unplanned fault, conducting an annual shutdown inspection, or building a strategic spare parts inventory, the NFPW441-10 represents a direct, drop-in replacement that minimizes engineering risk and reduces total downtime exposure.

Power supply modules are among the highest-priority components in any DCS cabinet. A failure in the power distribution layer can cascade across multiple I/O stations, field controllers, and communication nodes simultaneously. The NFPW441-10 provides stable, regulated DC power to the CENTUM system bus, supporting the continuous operation of Field Control Stations (FCS), remote I/O units, and associated signal conditioning equipment. Maintenance teams operating in petrochemical, refining, power generation, and pharmaceutical environments rely on this module to sustain 24/7 process continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a YOKOGAWA NFPW441-10 power module is flagged during a routine cabinet inspection or triggers a system alarm, the replacement workflow must be carefully coordinated to avoid disrupting live process control loops. Maintenance engineers should begin by verifying the input voltage supply feeding the node unit — typically 100–240 VAC — and confirming that the upstream circuit breaker and terminal block wiring are intact before inserting the replacement module.

In CENTUM VP installations, the NFPW441-10 typically operates alongside redundant power modules. If the system is configured with dual power feeds, the standby module should be confirmed as healthy before the faulty unit is extracted. This redundancy architecture is managed through the CENTUM VP system’s power monitoring function, observable via the CENTUM VP HMI workstation running YOKOGAWA’s FAST/TOOLS or Exaopc OPC server interface.

Beyond the power module itself, a thorough maintenance inspection should also cover the YOKOGAWA ANB10D or ANB11D node unit backplane, which distributes power and communication signals to all installed I/O modules. Damaged backplane connectors or corroded bus contacts can cause intermittent faults that mimic power module failures. Similarly, the YOKOGAWA AAI141-S00 or AAI143-S00 analog input modules installed in the same nest should be checked for proper seating and signal integrity, as power fluctuations can corrupt analog readings and trigger false process alarms.

Communication continuity is equally important during a power module replacement. The CENTUM VP Vnet/IP communication module — such as the YOKOGAWA CP451-10 or CP461-10 field control station processor — maintains the control logic and Vnet/IP network link. Engineers should confirm that the FCS processor remains online and that the Vnet/IP dual-ring network does not report any segment faults during the swap. If the node unit loses power entirely during replacement, the FCS will enter a safe hold state, and all output modules including YOKOGAWA AAO141-S00 analog output cards will freeze at their last commanded values until communication is restored.

For facilities managing older CENTUM CS 3000 installations, the NFPW441-10 also serves as a compatible replacement within legacy node units. Procurement engineers sourcing spares for CS 3000 systems should additionally consider stocking the YOKOGAWA NP4D-SW4 ESB bus coupler module and associated fuse holders and terminal block assemblies within the power distribution section of the control cabinet, as these components share the same maintenance cycle and are equally susceptible to age-related degradation in high-temperature or high-humidity environments. Signal isolators installed between field instruments and I/O cards should also be inspected for drift or insulation breakdown during any planned power module maintenance activity.

Site Replacement Workflow

Replacing the YOKOGAWA NFPW441-10 on an active production site requires a structured approach to minimize downtime and protect system integrity. The recommended workflow begins with a pre-replacement audit: confirm the system’s redundancy status in the CENTUM VP engineering environment, document the current power module alarm history, and verify that a tested replacement unit is on hand before initiating any physical work.

If the system is running in simplex power mode (non-redundant), a planned maintenance window must be scheduled. Coordinate with the process control team to place the affected FCS in manual hold, ensuring that all field devices connected through the node unit’s I/O modules are in a safe state. Once the FCS is in hold, de-energize the node unit following the lockout/tagout procedure, extract the faulty NFPW441-10, and insert the replacement module. Re-energize the node unit and confirm that the CENTUM VP system recognizes the new module without generating hardware fault alarms.

For redundant power configurations, the replacement can often be performed online without a process interruption. Monitor the standby power module’s load-sharing status throughout the swap, and allow the system at least five minutes to stabilize before returning the FCS to automatic control mode. After replacement, update the maintenance log with the module serial number, installation date, and test results to support future lifecycle planning and warranty tracking.

All NFPW441-10 units supplied by NINERMAS are tested under load conditions prior to shipment, with functional verification reports available upon request. Units are packaged in anti-static enclosures with humidity indicators to ensure safe transit to site.

Spare Parts Support FAQ

Q1: Is the NFPW441-10 compatible with both CENTUM VP and CENTUM CS 3000 systems?
A: Yes. The YOKOGAWA NFPW441-10 is compatible with CENTUM VP (R4, R5, R6) and CENTUM CS 3000 (R3) node units. Always verify the node unit model and power slot configuration before installation to confirm mechanical and electrical compatibility.

Q2: Can the NFPW441-10 be replaced while the system is running?
A: In redundant power configurations, hot-swap replacement is supported. In simplex configurations, a planned shutdown window is required. Consult your CENTUM VP system documentation and coordinate with your process safety team before performing any live maintenance.

Q3: What testing is performed before shipment?
A: Every NFPW441-10 unit undergoes functional load testing and visual inspection before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q4: How do you support long-term spare parts supply for discontinued or aging YOKOGAWA components?
A: NINERMAS maintains dedicated inventory for YOKOGAWA CENTUM VP and CS 3000 spare parts, including power modules, I/O cards, communication modules, and processor units. We provide long-term supply commitments and can source hard-to-find components to support plant life extension programs beyond the original manufacturer’s support period.
