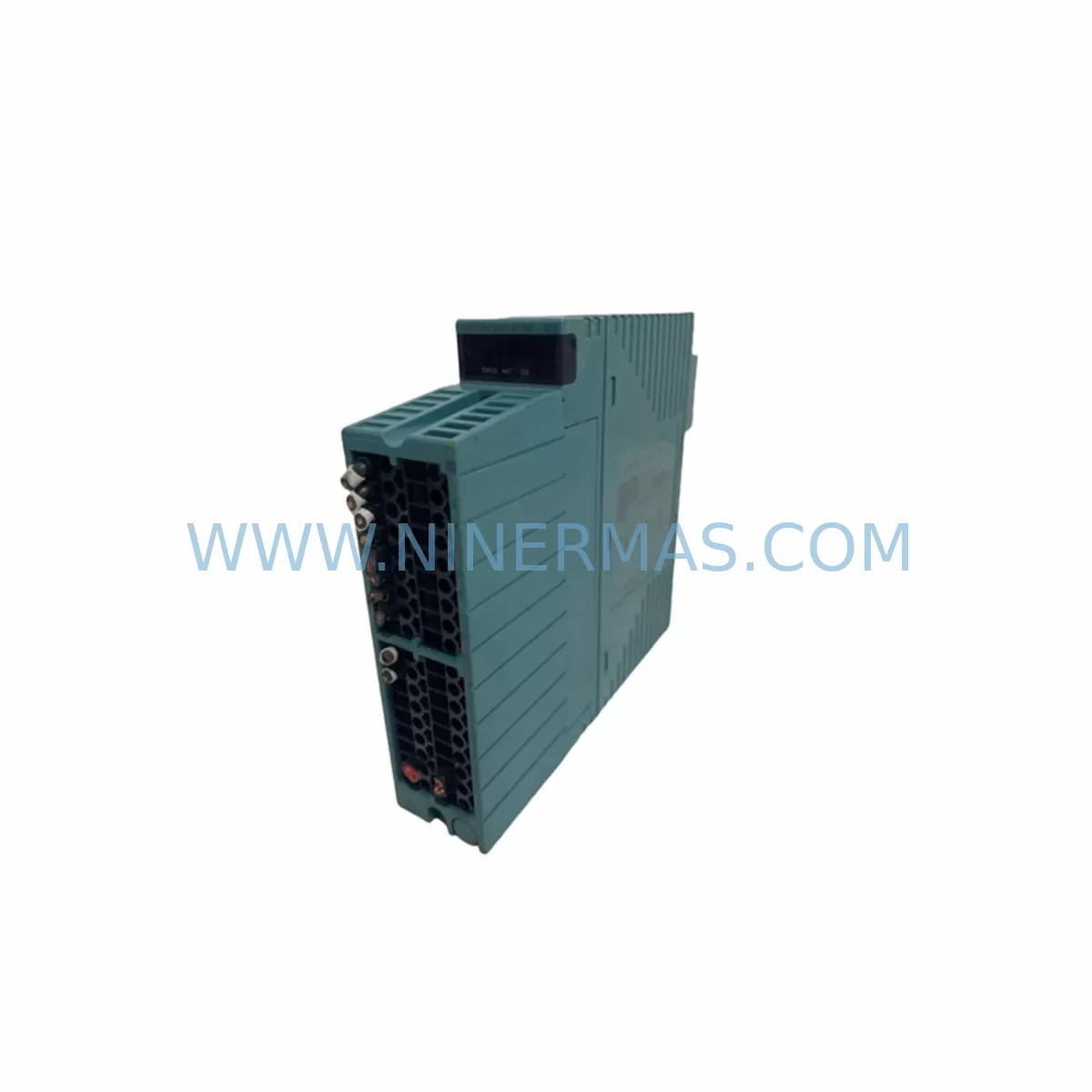

The Yokogawa NFDV561-P51 S2 is a high-integrity safety instrumented system (SIS) module engineered for the ProSafe-RS Series — Yokogawa’s dedicated safety controller platform designed to meet the rigorous demands of IEC 61508 and IEC 61511 functional safety standards. In continuous process industries where unplanned shutdowns carry catastrophic operational and safety consequences, this module delivers the deterministic, fault-tolerant performance that critical control sites demand.

Sourced and verified by NINERMAS COMPANY LIMITED, the NFDV561-P51 S2 is stocked as a long-term spare part commitment — ensuring your safety loop integrity is never compromised by supply chain gaps. Every unit undergoes pre-shipment functional testing and ships with a 12-month warranty, backed by our global industrial automation procurement network.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a safety-critical control cabinet, the NFDV561-P51 S2 does not operate in isolation — it is one node in a carefully engineered safety architecture. Its reliability directly influences the integrity of the entire safety instrumented function (SIF). When deploying or replacing this module, the surrounding system components must be equally robust to prevent common-cause failures and maintain SIL compliance.

Within the ProSafe-RS controller chassis, the NFDV561-P51 S2 works in coordination with the NFCP522 CPU module, which governs the safety logic execution and watchdog supervision. Power integrity is maintained by the NFPS522 power supply module, which provides regulated, surge-protected DC power to the safety backplane — a critical factor in environments prone to voltage transients from heavy motor starts or capacitor bank switching.

For field signal conditioning and I/O marshalling, the NFDV561-P51 S2 interfaces with terminal units and I/O modules such as the NFAI143 analog input module and NFDO522 digital output module, both of which are designed for high-noise industrial environments. In high electromagnetic interference (EMI) zones — common in arc furnace facilities, variable frequency drive (VFD) rooms, and high-voltage switchgear panels — proper shielding and the use of EMI-rated cables alongside the NFCP522 and NFDV561-P51 S2 combination is essential to prevent signal drift and spurious trips.

Communication integrity between the ProSafe-RS safety controller and the plant’s main CENTUM VP distributed control system (DCS) is maintained via the NFEB501 Ethernet communication module, enabling seamless safety-to-process integration without compromising the independence of the safety layer. In facilities where the safety bus must be isolated from the process control network, dedicated communication gateways and fiber-optic links are recommended to eliminate ground loop interference.

Surge protection at the cabinet entry points — using DIN-rail mounted surge protective devices (SPDs) rated for the signal and power circuits — is a complementary measure that protects the NFDV561-P51 S2 and associated I/O modules from lightning-induced transients and switching surges. Similarly, IDEC safety relays and Pilz PNOZ series safety relay modules are often deployed in the same safety cabinet to handle emergency stop (E-stop) and light curtain interlock circuits, forming a layered protection strategy around the ProSafe-RS core.

For facilities managing long cable runs to field instruments in dusty, humid, or high-temperature environments — such as cement plants, chemical reactors, or offshore platforms — the use of Yokogawa EJA series smart transmitters with HART communication provides loop-powered diagnostics that complement the safety monitoring capabilities of the NFDV561-P51 S2, enabling early detection of sensor degradation before it escalates to a safety demand.

Critical Industrial Safety Applications

The Yokogawa NFDV561-P51 S2 is deployed across the most demanding process safety environments globally, where control interruption is not an option and every millisecond of response time matters.

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the ProSafe-RS system with NFDV561-P51 S2 modules governs emergency shutdown (ESD) systems, high-integrity pressure protection systems (HIPPS), and burner management systems (BMS). The module’s deterministic response and SIL 2/3 capability ensure that overpressure, high-temperature, and flame-failure events trigger safe-state transitions within the required response time — preventing catastrophic releases.

Electric Power Generation and Transmission: In thermal power stations and combined-cycle gas turbine (CCGT) plants, the NFDV561-P51 S2 supports turbine protection systems and boiler safety interlocks. Its resistance to high-frequency electrical noise from generator excitation systems and bus bar switching makes it a reliable choice for safety loops in high-voltage environments.

Mining and Mineral Processing: Underground mining operations and surface mineral processing plants rely on ProSafe-RS-based safety systems for conveyor belt protection, crusher interlock systems, and ventilation safety controls. The NFDV561-P51 S2’s tolerance for vibration and temperature variation makes it suitable for installation in mobile or semi-permanent control cabinets near processing equipment.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use ProSafe-RS safety controllers to manage chemical dosing interlocks, pump protection, and overflow prevention systems. In these environments, the NFDV561-P51 S2 must perform reliably in high-humidity conditions and resist corrosion from chlorine and other treatment chemicals present in the ambient air.

Metallurgy and Steel Production: Electric arc furnaces (EAF) and continuous casting lines generate extreme electromagnetic interference. The NFDV561-P51 S2, when properly installed within a shielded ProSafe-RS cabinet with adequate grounding and EMI filtering, maintains signal integrity for safety interlocks controlling electrode positioning, ladle transfer, and cooling water systems.

Port Logistics and Heavy Lifting: Port crane control systems and ship-to-shore (STS) gantry cranes increasingly incorporate SIL-rated safety controllers for anti-collision, overload protection, and emergency stop functions. The compact form factor and robust communication architecture of the ProSafe-RS system make the NFDV561-P51 S2 a viable safety module for these mobile heavy-load applications.

Continuous Manufacturing and Pharmaceutical: In continuous manufacturing lines and pharmaceutical batch reactors, where process deviations can result in product loss or personnel hazard, the NFDV561-P51 S2 supports safety interlocks for reactor temperature, pressure relief, and agitator protection — maintaining GMP compliance and process safety simultaneously.

Safety and Quality FAQ

Q1: Does the NFDV561-P51 S2 come with a warranty, and what does it cover?
Yes. Every NFDV561-P51 S2 unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit is pre-shipment tested to verify operational integrity before dispatch. Our warranty support includes technical consultation and replacement coordination to minimize your site downtime.

Q2: How is the NFDV561-P51 S2 tested before shipment?
All units undergo a structured pre-shipment inspection process that includes visual inspection for physical damage, functional power-on verification, and communication interface checks where applicable. Units that do not pass inspection are quarantined and not shipped. Test records are maintained internally and can be referenced in the event of a warranty claim.

Q3: Is the NFDV561-P51 S2 compatible with existing ProSafe-RS installations?
The NFDV561-P51 S2 is designed for integration within the Yokogawa ProSafe-RS safety controller platform. Compatibility depends on your specific system revision, firmware version, and chassis configuration. We recommend verifying the system revision level and consulting Yokogawa’s ProSafe-RS hardware compatibility matrix before installation. NINERMAS technical support can assist with compatibility assessment based on your system documentation.

Q4: Can NINERMAS support long-term or bulk procurement of the NFDV561-P51 S2?
Yes. NINERMAS operates a dedicated long-term spare parts program for critical industrial automation components, including the ProSafe-RS series. We support blanket purchase orders, scheduled delivery programs, and safety stock arrangements for facilities with planned maintenance cycles or multi-site procurement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your procurement needs.
