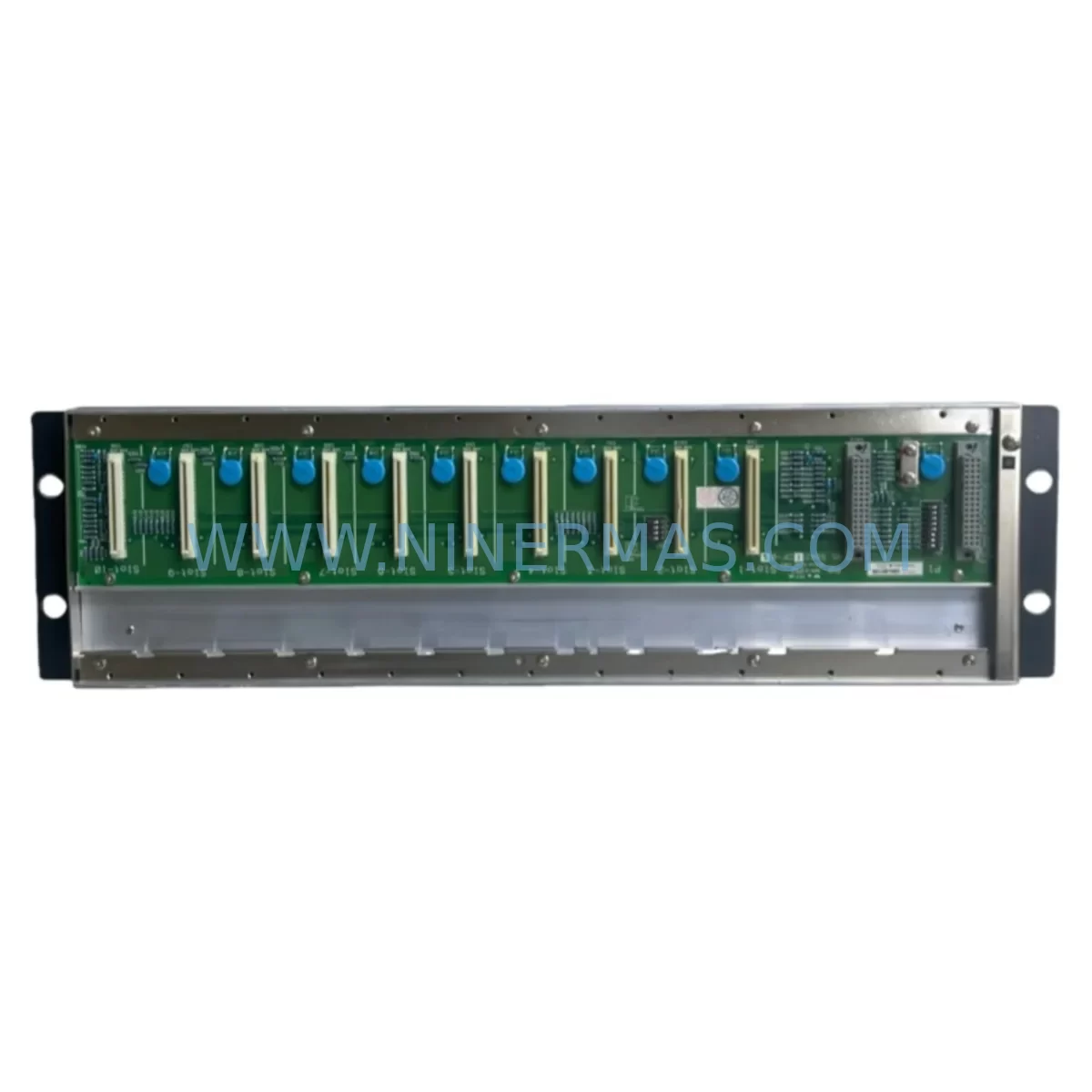

Yokogawa NFBU200-S05 S2 Safety-Reliable Base Module

Yokogawa NFBU200-S05 S2 Safety-Reliable Base Module for Critical Control Sites

In the most demanding industrial environments — where continuous production cannot be interrupted, where safety interlocks must respond without hesitation, and where control cabinet reliability is non-negotiable — the Yokogawa NFBU200-S05 S2 Base Module delivers the structural and electrical foundation that critical automation systems depend on. Designed for integration within Yokogawa’s CENTUM VP distributed control system architecture, this base module provides stable, low-impedance backplane connectivity for I/O modules, communication cards, and field signal processors operating under harsh conditions including high electromagnetic interference, dust ingress, humidity fluctuation, and mechanical vibration.

The NFBU200-S05 S2 is a ruggedized variant engineered to maintain signal integrity and power distribution stability across all installed modules. In petrochemical plants, power generation facilities, and metallurgical processing lines, where a single point of control failure can trigger cascading shutdowns or safety system activations, the backplane module must perform without degradation over extended operational cycles. The S2 designation confirms enhanced environmental tolerance, making it suitable for deployment in control rooms adjacent to high-vibration machinery, offshore platforms, and mining automation cabinets where temperature swings and condensation are routine challenges.

When integrating the NFBU200-S05 S2 into an existing CENTUM VP or CENTUM CS 3000 control architecture, engineers must verify slot compatibility with installed I/O modules such as the AAI141-S, AAI543-H, or ADV151-P analog input and output cards. The base module’s backplane bus must align with the communication protocol stack used by the field control station, particularly when the system relies on Vnet/IP or Foundation Fieldbus H1 segments for real-time process data exchange. Power supply modules such as the Yokogawa PW481 or PW482 must be confirmed to deliver adequate current capacity across all populated slots, especially when high-density I/O configurations are deployed in a single field control unit.

For control cabinets operating in environments with significant electrical noise — common in arc furnace control rooms, variable frequency drive enclosures, and high-voltage switchgear proximity — the NFBU200-S05 S2’s shielded backplane design reduces susceptibility to conducted and radiated interference. This directly supports the reliability of safety instrumented functions running on connected SIL-rated modules, preventing spurious trips and ensuring that emergency shutdown sequences are initiated only by genuine process deviations rather than signal noise or power transients.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the NFBU200-S05 S2 as the backplane foundation of a critical control cabinet requires a systematic approach to risk reduction across every layer of the automation architecture. Beginning at the power distribution level, the Yokogawa PW481 redundant power supply module should be installed in parallel configuration to eliminate single-point power failure risk. Voltage monitoring relays and surge protection devices positioned at the cabinet entry point protect the backplane from grid-borne transients that are common in industrial facilities with large motor loads or frequent switching operations.

At the I/O layer, analog input modules such as the AAI141-S and AAI543-H provide the signal conditioning necessary to maintain measurement accuracy even when field wiring runs through high-noise cable trays. Digital output modules including the ADV151-P must be verified for compatibility with the base module’s slot addressing scheme before installation. For safety-critical loops, signal isolators and galvanic separation barriers installed between field transmitters and the I/O module inputs prevent ground loop interference from corrupting process variable readings.

Communication reliability is maintained through the Vnet/IP dual-ring network architecture, where the field control station connected to the NFBU200-S05 S2 participates in automatic network reconfiguration if a primary link fails. Engineering workstations running CENTUM VP’s HIS (Human Interface Station) software maintain continuous visibility of all field control unit statuses, enabling operators to detect backplane communication anomalies before they escalate into process upsets. For legacy systems being upgraded from CENTUM CS 3000 to CENTUM VP, the NFBU200-S05 S2 supports migration paths that preserve existing I/O wiring and field instrument calibrations, reducing the scope and cost of the modernization project.

In control cabinets installed in water treatment facilities, port automation systems, and continuous casting lines, the S2 ruggedization rating of the NFBU200-S05 S2 provides confidence that the module will maintain mechanical and electrical integrity through years of operation without requiring preventive replacement. Paired with Yokogawa’s PFCS (Process Field Control Station) or SFCS (Safety Field Control Station) controllers, this base module forms the backbone of a control architecture that meets the reliability expectations of SIL 2 and SIL 3 safety instrumented systems.

Critical Industrial Safety Applications

The NFBU200-S05 S2 is deployed across a wide range of critical industrial sectors where control system reliability directly impacts personnel safety, environmental compliance, and production continuity. In petrochemical refineries and LNG processing terminals, the module hosts I/O cards that monitor pressure, temperature, and flow variables in high-pressure reaction systems, where any control interruption risks flare activation or emergency depressurization. The S2 ruggedization ensures stable operation in control rooms exposed to hydrocarbon vapors and elevated ambient temperatures.

In thermal and hydroelectric power generation facilities, the NFBU200-S05 S2 supports turbine control and boiler management systems where millisecond-level response to process deviations is required to prevent equipment damage. Mining and mineral processing operations rely on this base module within crusher control systems, conveyor automation cabinets, and flotation cell controllers, where vibration levels and dust concentrations would compromise standard-grade backplane modules. Water and wastewater treatment plants use the NFBU200-S05 S2 in pump station automation and chemical dosing control systems, where continuous operation is mandated by environmental regulations and public health requirements.

Port and terminal automation systems, including ship-to-shore crane controllers and automated stacking crane systems, deploy this module in outdoor-rated control enclosures where temperature cycling and salt air exposure demand the highest levels of environmental protection. In steel and aluminum smelting operations, the module operates within electrode regulation systems and casting machine controllers where electromagnetic interference from high-current bus systems is a constant challenge to signal integrity and control loop stability.

Safety and Quality FAQ

Q: Does the NFBU200-S05 S2 come with a warranty, and what does it cover?
A: Yes. Every NFBU200-S05 S2 supplied by NINERMAS includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement unit dispatch.

Q: What pre-shipment testing is performed on the NFBU200-S05 S2?
A: Each unit undergoes a full functional test prior to dispatch, including backplane bus continuity verification, slot interface integrity checks, and power distribution pathway testing. Test records are available upon request.

Q: Is the NFBU200-S05 S2 compatible with both CENTUM VP and CENTUM CS 3000 systems?
A: The NFBU200-S05 S2 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 installations depends on the specific field control station configuration and I/O module types in use. NINERMAS technical support can assist with compatibility verification based on your system’s existing hardware list.

Q: Can NINERMAS support long-term supply of the NFBU200-S05 S2 for ongoing maintenance programs?
A: Yes. NINERMAS maintains inventory of the NFBU200-S05 S2 and related Yokogawa CENTUM VP components to support planned maintenance schedules, emergency replacement requirements, and multi-year spare parts programs. Contact our team to discuss volume availability and lead time commitments.
