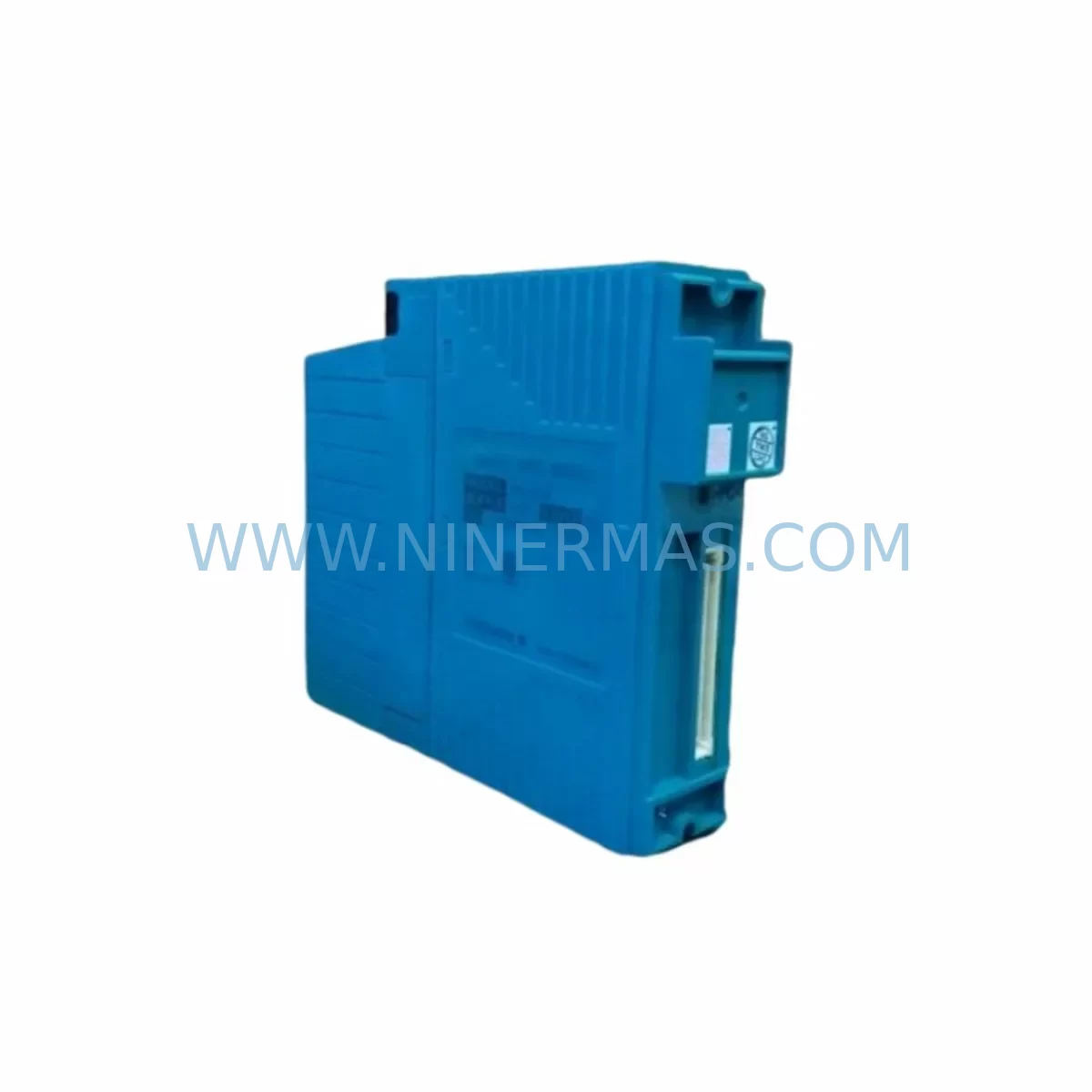

YOKOGAWA NFAI135-S01 Safety-Reliable Analog Input Module

YOKOGAWA NFAI135-S01 Safety-Reliable Analog Input Module for Critical Control Sites

The YOKOGAWA NFAI135-S01 is a high-precision analog input module engineered for the CENTUM VP distributed control system (DCS), purpose-built to deliver uninterrupted signal acquisition in the most demanding industrial environments. Whether deployed in continuous petrochemical processing, power generation control loops, metallurgical furnace regulation, or water treatment automation, the NFAI135-S01 provides the signal integrity and operational stability that safety-critical sites cannot compromise on.

In high-stakes control architectures, analog input modules are the first line of data acquisition — converting field-level 4–20 mA or voltage signals from transmitters, sensors, and transducers into reliable digital values for the DCS controller. Any signal drift, noise interference, or module failure at this stage can cascade into process upsets, safety interlock activations, or unplanned shutdowns. The NFAI135-S01 is designed to eliminate these risks through robust hardware filtering, high common-mode rejection, and galvanic isolation that guards against ground loops and electromagnetic interference common in heavy industrial cabinets.

NINERMAS supplies the NFAI135-S01 as a fully tested, service-ready spare part — inspected against original YOKOGAWA specifications before shipment, backed by a 12-month warranty, and available for long-term procurement to support both emergency replacement and planned maintenance programs.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Maintaining signal reliability in a CENTUM VP control cabinet requires a systems-level approach. When replacing or inspecting the NFAI135-S01, maintenance engineers should simultaneously evaluate the health of adjacent components that share the same electrical environment and safety loop.

The NFAI135-S01 draws its operating power from the I/O bus supplied by the CENTUM VP power supply unit — typically the NFCP100 or NFCP101 power module. A degraded or under-spec power supply will introduce ripple noise directly into analog signal conditioning circuits, causing measurement instability that is often misdiagnosed as a faulty input module. Always verify power supply output voltage and ripple before condemning an analog input card.

Signal integrity upstream of the NFAI135-S01 depends on the quality of field wiring and termination. Inspect the YOKOGAWA NFTB series terminal boards and marshalling panels for corroded terminals, loose connections, or moisture ingress — particularly in coastal, humid, or chemically aggressive environments. Shielded twisted-pair cables with proper grounding at a single point are essential to prevent common-mode noise from overwhelming the module’s rejection capability.

In safety-instrumented systems running alongside the CENTUM VP, the NFAI135-S01 may interface with YOKOGAWA ProSafe-RS safety controllers. In these architectures, the analog input data feeds into safety logic that governs emergency shutdown (ESD) sequences. Any measurement error or module dropout can trigger spurious trips or, worse, fail to detect a genuine process hazard. Pairing the NFAI135-S01 with a healthy NFSV series signal validator or a YOKOGAWA YS1700 loop controller as a backup path adds a critical layer of redundancy.

Communication health between the I/O nest and the field control station (FCS) should also be verified. The NFCP701 or NFCP702 communication bus coupler modules that link the I/O nest to the Vnet/IP or ESB bus must be inspected for firmware version compatibility and physical connector integrity. A degraded bus coupler can cause intermittent data loss from multiple I/O modules simultaneously — a failure mode that is difficult to trace without systematic cabinet inspection.

For sites operating in high-vibration environments such as compressor stations, mining conveyors, or offshore platforms, the NFAI135-S01’s backplane connector seating should be verified during every scheduled maintenance window. Vibration-induced micro-disconnections are a leading cause of intermittent analog faults. Supplementing the module with YOKOGAWA NFCP series backplane retaining clips and periodic torque checks on the I/O nest mounting screws significantly reduces this risk.

Finally, in cabinets where variable frequency drives (VFDs), large contactors, or high-current switching devices operate in proximity, installing YOKOGAWA-compatible surge protection devices on analog input field cables and ensuring proper cabinet grounding and shielding will protect the NFAI135-S01 from transient overvoltage events that can degrade or destroy input channel circuitry over time.

Critical Industrial Safety Applications

The NFAI135-S01 is deployed across a wide spectrum of safety-critical industries where continuous, accurate analog signal acquisition is non-negotiable.

In petrochemical and refinery operations, the module monitors pressure transmitters, temperature sensors, and flow meters across distillation columns, reactor vessels, and pipeline networks. Signal accuracy directly influences the performance of advanced process control (APC) strategies and safety interlock systems that prevent overpressure or runaway reactions.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the NFAI135-S01 acquires analog feedback from turbine speed sensors, generator excitation systems, and boiler instrumentation. Reliable analog input is essential for load-following control and grid synchronization sequences where millisecond-level response accuracy matters.

In metallurgical and steel production environments, the module operates in high-temperature, high-EMI conditions near electric arc furnaces, rolling mills, and continuous casting lines. Its robust isolation and filtering make it suitable for environments where lesser modules would suffer from induced noise and premature failure.

In water and wastewater treatment facilities, the NFAI135-S01 supports flow control, chemical dosing, and level monitoring across treatment trains. Regulatory compliance in these facilities depends on accurate, continuous measurement — making module reliability a public safety issue, not merely an operational one.

In mining and mineral processing, the module is used in crusher control systems, flotation cell automation, and conveyor load monitoring — environments characterized by heavy vibration, dust, and wide temperature swings that demand industrial-grade hardware with proven field reliability.

Safety and Quality FAQ

Q1: Does the NFAI135-S01 come with a warranty, and what does it cover?
Every NFAI135-S01 supplied by NINERMAS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing against original YOKOGAWA specifications to ensure it performs correctly upon installation.

Q2: How do I confirm compatibility with my existing CENTUM VP system before ordering?
The NFAI135-S01 is designed for CENTUM VP and CENTUM CS 3000 I/O nests. Compatibility is determined by the I/O nest model, firmware version of the field control station (FCS), and the system builder configuration. Share your FCS model and I/O nest type with our technical team at sale@ninermas.com and we will confirm compatibility before shipment.

Q3: Can NINERMAS support long-term or recurring supply of the NFAI135-S01 for planned maintenance programs?
Yes. NINERMAS maintains stock of YOKOGAWA CENTUM VP spare parts including the NFAI135-S01 to support both emergency replacement and annual maintenance procurement. We offer stable long-term supply agreements for facilities that require guaranteed availability of critical spare parts.

Q4: What is the lead time and how is the module packaged for safe shipment?
In-stock units are typically dispatched within 2–5 business days. Each module is packaged in anti-static ESD-safe materials with protective foam inserts to prevent physical and electrostatic damage during international freight. Export documentation including commercial invoice, packing list, and test report is provided with every shipment.
