YOKOGAWA F3XP02-0H Service-Ready Spare Part for Industrial Maintenance

YOKOGAWA F3XP02-0H Service-Ready Spare Part for Industrial Maintenance

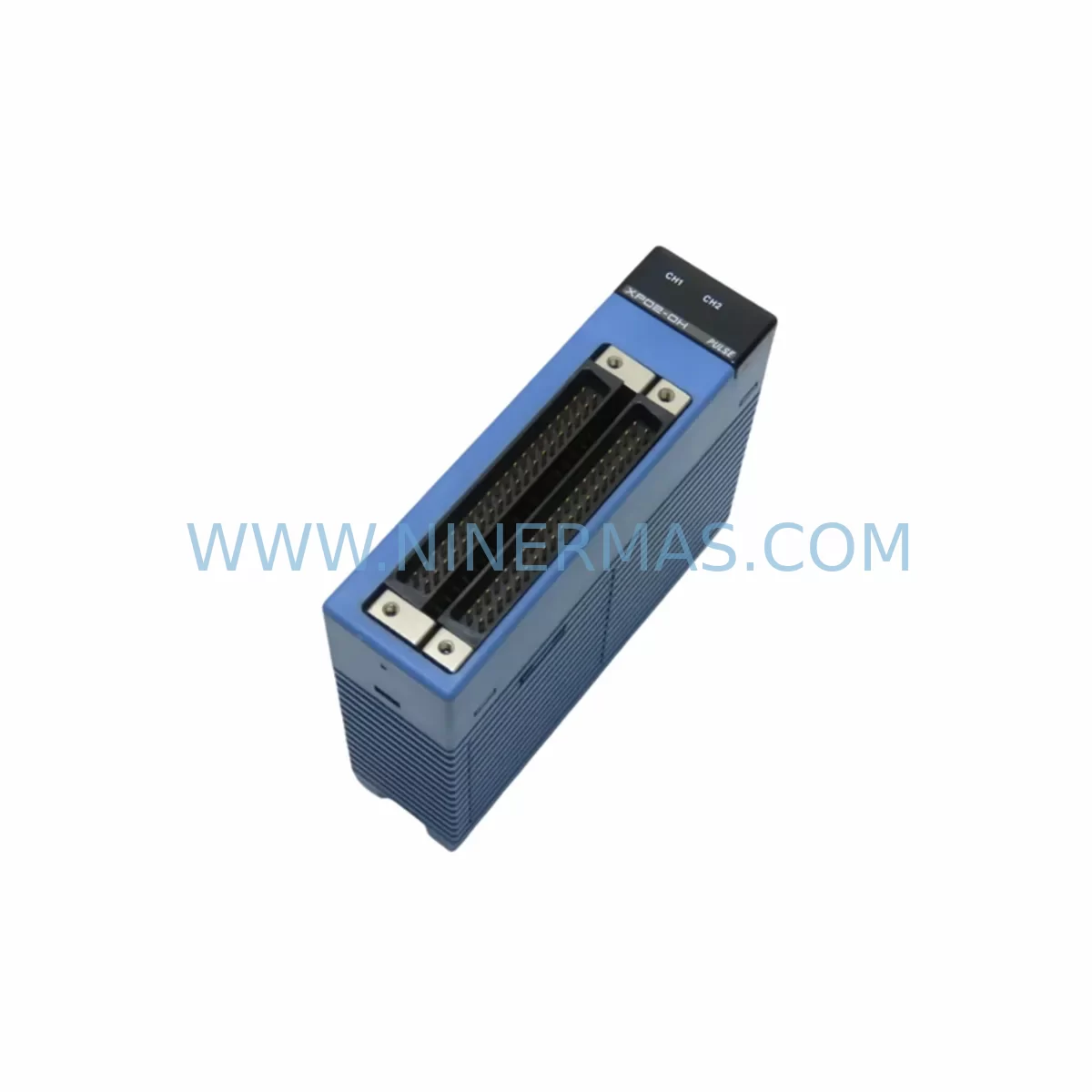

The YOKOGAWA F3XP02-0H is a ruggedized high-speed counter module designed for the FA-M3 series programmable logic controller platform — one of YOKOGAWA’s most widely deployed process and discrete automation systems. As a purpose-built spare part for industrial maintenance, the F3XP02-0H supports high-frequency pulse counting applications including encoder feedback, flow metering, rotational speed monitoring, and position tracking in demanding plant environments. Maintenance engineers managing aging FA-M3 installations rely on this module to restore counter functionality rapidly following unexpected failures, minimizing unplanned downtime and protecting production continuity.

The F3XP02-0H is engineered for ruggedized operation, making it suitable for environments with elevated vibration, temperature variation, and electrical noise — conditions common in petrochemical, power generation, water treatment, and discrete manufacturing facilities. Its compatibility with the FA-M3 backplane architecture means replacement can be performed without system reconfiguration when the correct slot assignment and I/O mapping are maintained. This plug-and-replace characteristic is a key advantage for maintenance teams operating under tight recovery windows.

At NINERMAS, every F3XP02-0H unit is sourced as an original YOKOGAWA component and subjected to pre-shipment functional testing to verify counter channel integrity, input signal response, and communication with the FA-M3 CPU module. Units are shipped with full documentation support and backed by a 12-month warranty, providing procurement engineers with the confidence needed for both emergency replacement and planned spare parts inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the F3XP02-0H in an FA-M3 control cabinet is rarely an isolated task. Experienced maintenance engineers treat a counter module failure as a signal to inspect the broader electrical environment of the affected rack and associated field circuits. During the same maintenance window, it is advisable to verify the condition of the FA-M3 CPU module — such as the F3SP28-3N or F3SP38-6N — which coordinates counter data acquisition and ladder logic execution. A degraded CPU can cause intermittent counter read errors that mimic module faults, leading to unnecessary module replacements.

The FA-M3 power supply module, typically an F3PU20-0S or F3PU10-0S, should be checked for output voltage stability and ripple, as under-voltage conditions are a leading cause of high-speed counter module malfunction. Alongside the power supply, the backplane unit itself — whether an F3BU04-0N or F3BU08-0N — should be inspected for connector wear, corrosion on the module edge connectors, and any signs of thermal stress that could affect signal integrity between the F3XP02-0H and the backplane bus.

Field wiring connected to the counter module inputs deserves equal attention. Encoder cables carrying A/B/Z phase signals are susceptible to insulation degradation, connector oxidation, and shield continuity loss — all of which introduce noise that can corrupt high-speed pulse counts. Terminal blocks and cable entry points should be inspected and torqued to specification. If the application uses proximity sensors or magnetic pickups as pulse sources, the sensor supply voltage and output signal amplitude should be verified against the F3XP02-0H input threshold specifications.

For facilities running mixed I/O architectures, the adjacent F3AD08-6R analog input modules or F3YD08-0N digital output modules in the same rack should be checked for cross-interference, particularly in high-noise environments. Communication modules such as the F3LE01-5T Ethernet interface or F3LC11-1F MECHATROLINK module, if present in the same base unit, should be confirmed as operational to ensure that counter data is correctly transmitted to SCADA or historian systems following the module replacement.

Procurement engineers building annual spare parts kits for FA-M3 installations should consider stocking the F3XP02-0H alongside CPU modules, power supply units, and at least one spare backplane to cover the most common failure modes. NINERMAS supports long-term supply agreements with fixed lead times, enabling maintenance teams to maintain buffer stock without capital overcommitment.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the F3XP02-0H, record the current counter preset values, count mode configuration (up/down, quadrature, single-phase), and any latch or comparison output settings from the FA-M3 engineering tool (Wide Field2 or ToolBox). Export the project file as a backup.

Step 2 — Safe Isolation: Place the FA-M3 CPU in STOP mode. De-energize the field-side 24 VDC supply to the counter module inputs. Do not remove the module under power if the system design does not support hot-swap for this slot.

Step 3 — Module Removal and Inspection: Remove the F3XP02-0H by releasing the module locking lever and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new F3XP02-0H into the same slot position. Confirm the module locking lever engages fully. Reconnect field wiring to the terminal block, verifying wire assignments against the original I/O drawing.

Step 5 — Configuration Restore and Commissioning: Restore the project file to the CPU using Wide Field2 or ToolBox. Re-enter counter presets and operating mode parameters. Return the CPU to RUN mode and verify counter channel operation using live pulse input or a signal generator. Confirm that count values are correctly read by the ladder program and transmitted to any connected SCADA or DCS system.

Step 6 — Documentation Update: Record the replacement date, new module serial number, and post-replacement test results in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the F3XP02-0H compatible with all FA-M3 base units?
The F3XP02-0H is designed for the FA-M3 Wide Series backplane architecture. It is compatible with standard FA-M3 Wide base units including the F3BU04-0N, F3BU08-0N, and F3BU16-0N. Compatibility with compact or legacy FA-M3 base units should be verified against the YOKOGAWA FA-M3 hardware manual prior to installation. NINERMAS technical support can assist with compatibility confirmation based on your existing system configuration.

Q2: What pre-shipment testing is performed on the F3XP02-0H?
Each F3XP02-0H unit supplied by NINERMAS undergoes functional verification including counter channel input response testing, backplane communication check, and output signal integrity verification. Units that do not meet YOKOGAWA original performance specifications are not shipped. A test record is available upon request for quality-critical procurement programs.

Q3: Can NINERMAS support long-term supply of the F3XP02-0H for multi-year maintenance contracts?
Yes. NINERMAS offers long-term supply agreements for FA-M3 spare parts including the F3XP02-0H, with committed lead times and volume pricing available for annual maintenance programs. This is particularly relevant for facilities operating FA-M3 systems beyond the standard product lifecycle, where OEM availability may be limited. Contact our sales team to discuss stock commitment and delivery scheduling.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the YOKOGAWA FA-M3 hardware documentation. Warranty claims are supported by NINERMAS directly, with replacement or repair options available. The warranty period begins from the shipment date. Damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification is not covered.

—
