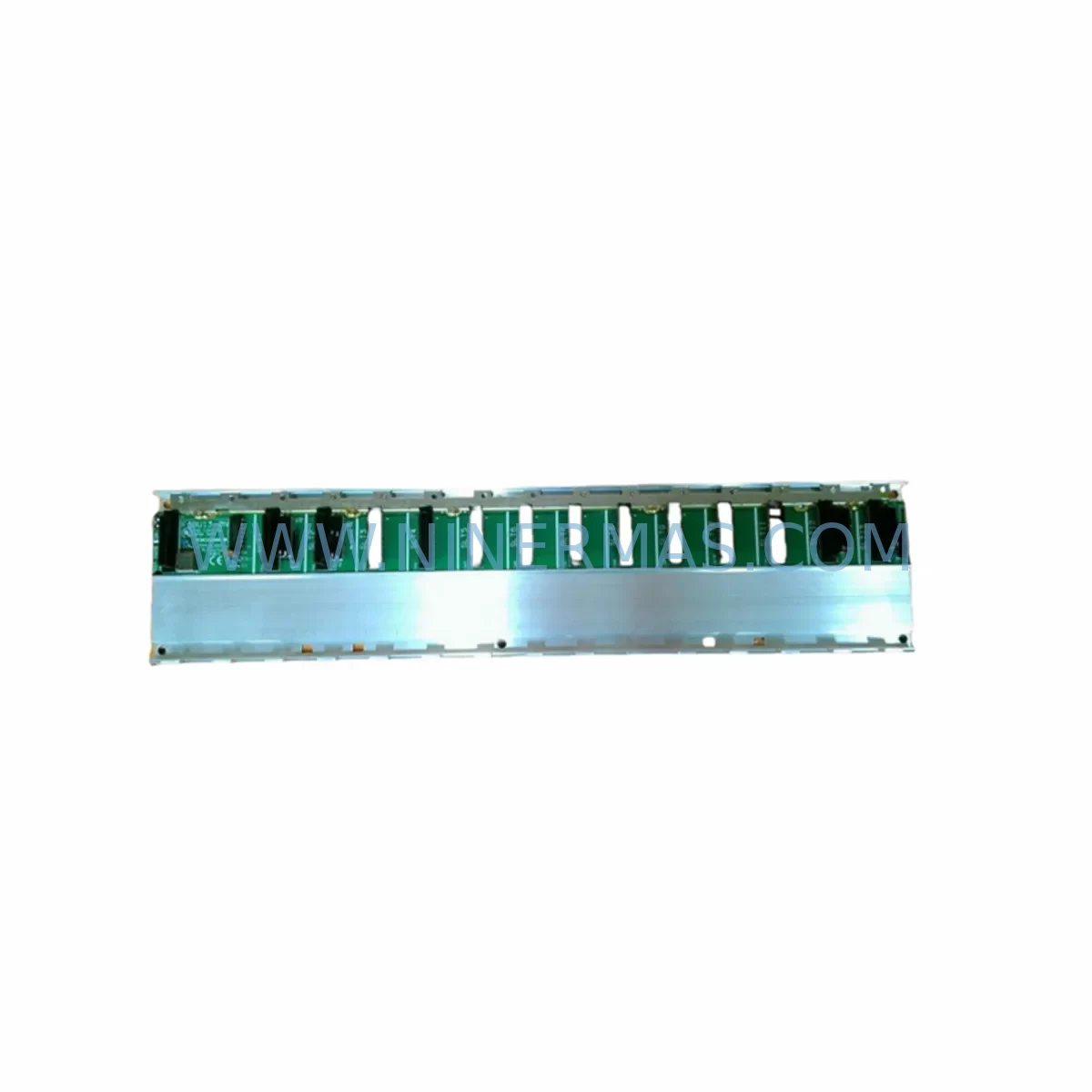

The YOKOGAWA F3BU13-0N is a ruggedized base module engineered for demanding industrial environments where legacy control infrastructure must remain operational or be systematically upgraded. As a critical backplane and mounting foundation within the YOKOGAWA STARDOM FCN/FCJ distributed control architecture, the F3BU13-0N provides the structural and electrical backbone for I/O module population, power distribution, and inter-module communication across the control rack. For facilities managing aging automation assets, discontinued spare inventories, or phased migration programs, this module represents a reliable, drop-in-compatible solution that minimizes retrofit risk and preserves existing program logic.

At Ninermas, we maintain verified stock of the F3BU13-0N to support emergency replacement, planned lifecycle extension, and multi-site spare parts programs. Every unit ships with a 12-month warranty and passes pre-shipment functional verification to ensure field-ready performance upon arrival.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading a base module in an active production environment requires careful pre-engineering to avoid unplanned downtime and configuration errors. The F3BU13-0N is most commonly deployed in retrofit scenarios where the original base unit has suffered physical damage, backplane connector wear, or has reached end-of-support status under YOKOGAWA’s product lifecycle policy.

Before initiating a base module swap, engineers should document the full I/O population of the existing rack — including every installed F3-series digital input, digital output, analog input, and analog output module — and verify that module slot assignments match the current PLC program’s I/O address map. If the system uses an F3SP71-4N or F3SP76-7N CPU module, confirm that the firmware version supports the F3BU13-0N backplane revision in use. Mismatched firmware can cause module recognition failures during cold start.

Power budget validation is equally critical. The F3PU20-0S power supply module or its equivalent must be rated to support the full load of all populated I/O slots. When adding new I/O modules as part of the upgrade — such as additional F3AD08-6R analog input modules or F3YD32-0P transistor output modules — recalculate the total current draw against the PSU’s rated output before energizing the new base.

For systems that include communication modules such as the F3LE01-5T Ethernet interface or F3LC11-1F FL-net module, verify that network configuration parameters (IP address, node number, station name) are backed up prior to the base swap. These settings are typically stored in the CPU module’s non-volatile memory, but communication module parameters may require re-entry after a rack rebuild. Coordinate with the SCADA or DCS host to confirm that the communication link is re-established and all tag subscriptions are active before returning the system to automatic control.

In multi-rack configurations, where the F3BU13-0N serves as an expansion base connected to a master rack via an F3BU04-0N or similar inter-rack cable, confirm that the rack number and station address settings are correctly restored. Incorrect rack addressing is a common source of I/O scan errors following base module replacement and can be difficult to diagnose without access to the original system documentation.

For control cabinets undergoing broader modernization — including migration from legacy serial communication to Ethernet-based protocols, or integration of new HMI panels — the F3BU13-0N provides a stable, standards-compliant foundation that accommodates both legacy F3-series modules and newer compatible I/O types. This makes it a preferred choice for phased upgrade programs where full system replacement is not operationally feasible.

Downtime Control During System Migration

Minimizing production interruption during a base module replacement requires a structured migration plan that accounts for both the physical swap and the software restoration sequence. The recommended approach is to perform a full program backup using YOKOGAWA’s engineering workstation software — capturing the CPU program, I/O configuration, communication parameters, and any motion or sequence logic — before any hardware is disturbed.

Where possible, pre-configure the replacement F3BU13-0N with all I/O modules installed and addressed in a bench environment before bringing it to the field. This allows functional verification of the new base assembly — including power-on self-test, module recognition, and communication link establishment — without consuming time on the production floor. Pre-tested assemblies can reduce field installation time to a single planned maintenance window, often achievable within a standard 4–8 hour shift.

During the cutover, maintain a parallel record of all terminal wiring connections before disconnecting field cables. Use numbered cable markers or photographic documentation to ensure accurate rewiring to the new base. For systems with dense terminal blocks — particularly those using F3-series terminal adapter modules or third-party marshalling panels — a wiring schedule cross-referenced to the I/O address map is essential for error-free reconnection.

After physical installation and wiring restoration, perform a controlled cold start with the CPU in STOP mode. Verify that all modules are recognized in the engineering tool’s online monitor before transitioning to RUN mode. Confirm analog signal scaling, digital I/O status, and communication link health before releasing the system to the process operator. This structured commissioning sequence protects the original program logic, preserves field control continuity, and reduces the risk of process upsets during the transition.

Ninermas supports time-critical retrofit projects with priority dispatch and pre-shipment testing. For urgent requirements, contact our team directly to confirm lead time and stock availability before scheduling your maintenance window.

Retrofit Support FAQ

Q1: Is the YOKOGAWA F3BU13-0N a direct drop-in replacement for my existing base module?
The F3BU13-0N is designed for use within the YOKOGAWA STARDOM FCN/FCJ platform and is compatible with the full range of F3-series I/O and communication modules. Before ordering, confirm the backplane revision and rack generation of your existing installation. In most cases, the F3BU13-0N is a direct mechanical and electrical replacement, but firmware compatibility between the CPU module and the base should be verified using YOKOGAWA’s compatibility matrix or by consulting your system documentation.

Q2: What pre-shipment testing does Ninermas perform on the F3BU13-0N?
Every F3BU13-0N unit supplied by Ninermas undergoes functional verification prior to dispatch, including power-on self-test, backplane continuity check, and visual inspection for connector integrity and physical condition. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request for quality-critical procurement programs.

Q3: Can I reuse my existing I/O modules and wiring when replacing the base module?
Yes. The F3BU13-0N accepts the same F3-series I/O modules as the original base unit. Existing field wiring connected via terminal adapter modules or direct terminal blocks can be transferred to the new base without modification, provided the slot assignments and I/O addresses are preserved. Document all wiring connections and module positions before disassembly to ensure accurate restoration.

Q4: What is the typical lead time and do you maintain stock for emergency requirements?
Ninermas maintains inventory of the F3BU13-0N to support both planned procurement and emergency replacement scenarios. Standard lead time for in-stock units is 3–7 business days depending on destination. For urgent requirements, contact sale@ninermas.com or call +0086 187 5021 5667 to confirm real-time availability and arrange priority dispatch.
