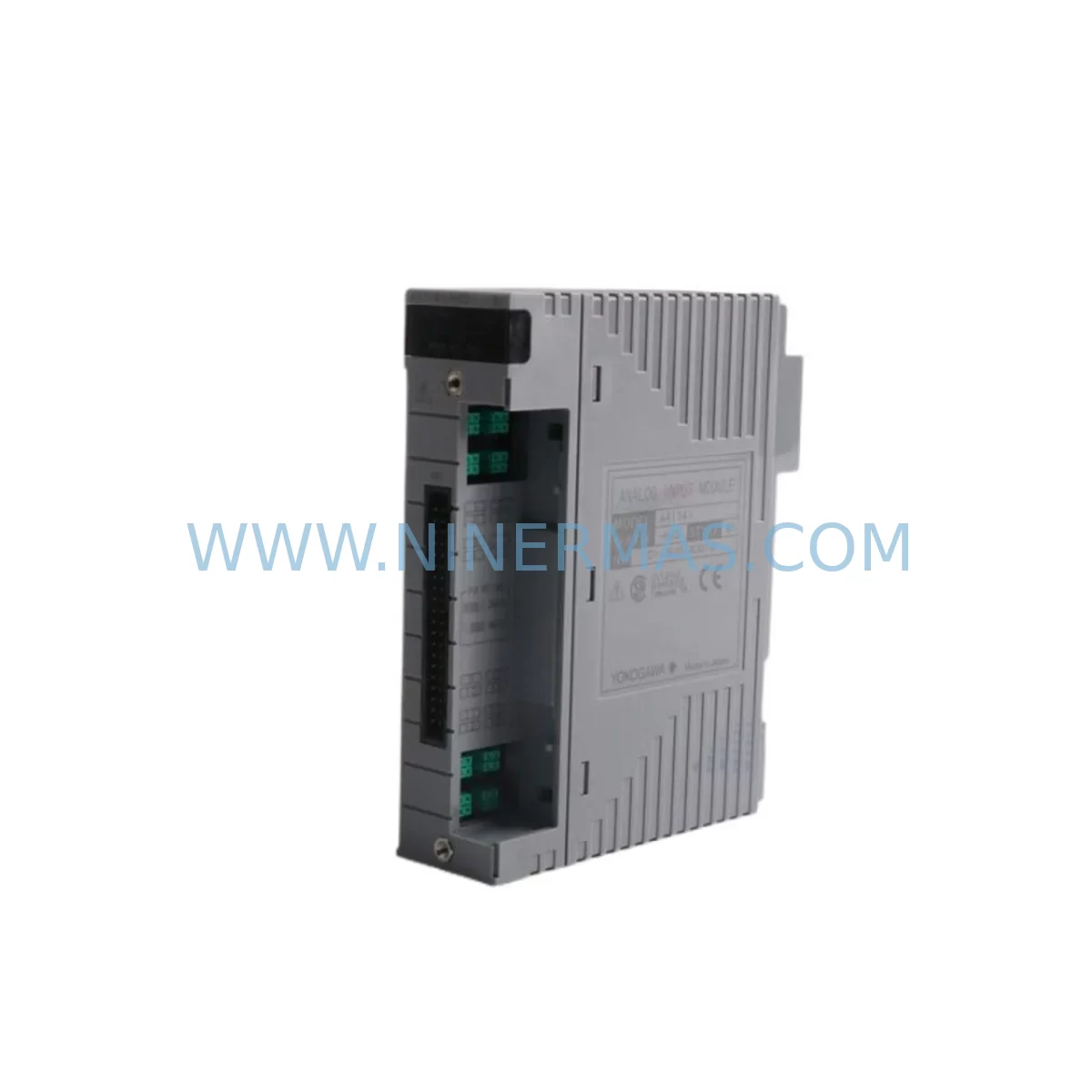

YOKOGAWA ATA4D-00 S2 Retrofit-Compatible Analog Input Module

YOKOGAWA ATA4D-00 S2 Retrofit-Compatible Analog Input Module for Legacy Systems

The YOKOGAWA ATA4D-00 S2 is a high-precision analog input module designed for the CENTUM VP distributed control system platform. As legacy CENTUM CS and CENTUM CS 3000 installations reach end-of-life, the ATA4D-00 S2 has become a critical component in plant-wide DCS modernization projects — offering a reliable, drop-in-compatible upgrade path that minimizes engineering rework and reduces unplanned downtime. Whether you are replacing a failed module in an aging control cabinet, expanding I/O capacity in an existing field control station (FCS), or migrating from an earlier CENTUM generation, the ATA4D-00 S2 delivers the signal accuracy and backplane compatibility required for seamless integration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ATA4D-00 S2 into an existing CENTUM VP or legacy CENTUM CS 3000 system begins with a thorough pre-retrofit audit. Engineers should document the current I/O card slot assignments within the field control station, confirm available backplane slots, and verify that the node address configuration does not conflict with other installed modules such as the AAI141-S00 multi-channel analog input card or the AAI543-H analog output module already present in the same FCS node.

Power budget verification is essential before adding or replacing any I/O module. The FCS power supply unit — commonly the PW481 or PW482 series — must have sufficient headroom to support the ATA4D-00 S2 alongside co-installed modules. If the existing power supply is operating near capacity, a parallel power supply or a cabinet power audit should be completed before the retrofit window opens. Overlooking this step is one of the most common causes of unexpected module faults during post-replacement commissioning.

Terminal wiring compatibility must also be confirmed. The ATA4D-00 S2 uses the standard CENTUM VP terminal block interface. If the existing field wiring was originally connected to an older CENTUM CS module with a different terminal pitch or connector type, a terminal adapter or rewiring of the marshalling cabinet may be required. Technicians should photograph and document all existing wiring before disconnection, and verify signal polarity for each 4–20 mA loop connected to the module’s input channels.

For installations where the CENTUM VP system communicates upstream via Vnet/IP to a plant-wide SCADA or historian — such as Exaquantum or a third-party OPC DA/UA server — no changes to the communication layer are typically required when performing a same-generation module swap. However, if the retrofit is part of a broader migration from CENTUM CS 3000 to CENTUM VP, the Vnet/IP network configuration, domain settings, and FCS node addresses must be re-established in the System View of CENTUM VP Engineering Builder. During this phase, the ESB (Engineering Support Bus) connection between the engineering workstation and the FCS should be verified, and a full download of the control database should be scheduled during a planned maintenance window.

I/O expansion projects that involve adding new ATA4D-00 S2 modules alongside existing AAB841 or AAT141 signal conditioner cards should account for the physical installation space within the control cabinet. Rack units, DIN rail clearance, and cable management channels must be measured before procurement to avoid on-site installation delays. In some older CENTUM CS cabinets being retrofitted to CENTUM VP, the addition of a new RIO (Remote I/O) node using an ESB bus coupler may be the most practical approach to expanding analog input capacity without replacing the entire FCS chassis.

Before the retrofit window, it is strongly recommended to export and archive the current control logic from the FCS using CENTUM VP Engineering Builder, and to verify that the HMI faceplates on the Human Interface Station (HIS) correctly reflect the tag names and engineering units assigned to the ATA4D-00 S2 input channels. Any discrepancies in tag mapping between the old and new module configurations should be resolved in the engineering database before the physical swap takes place.

Downtime Control During System Migration

Minimizing production downtime during a CENTUM VP module replacement requires careful pre-planning and a structured cutover sequence. The recommended approach is to perform all engineering database changes, tag verifications, and HMI screen updates during normal operations — before the physical module is touched. This allows the actual hardware swap to be completed within a narrow maintenance window, often as short as 30 to 60 minutes for a single-module replacement.

Where process conditions allow, individual control loops connected to the ATA4D-00 S2 should be placed in manual mode prior to module removal. This protects the downstream control logic from reacting to invalid input signals during the swap interval. For critical loops that cannot be placed in manual — such as safety-instrumented inputs monitored by a co-located Prosafe-RS safety controller — a bypass procedure must be coordinated with the safety team and documented in the management of change (MOC) record before work begins.

After the new ATA4D-00 S2 is seated in the backplane and the FCS has recognized the module, a partial download of the I/O assignment should be performed from Engineering Builder to re-establish the tag-to-channel mapping without interrupting other running control functions. Signal verification — confirming that each input channel reads the correct process value from the field transmitter — should be completed before returning loops to automatic mode. A loop check sheet, signed off by both the instrument technician and the control engineer, provides the documentation trail required for post-retrofit audit compliance.

For larger migration projects involving multiple FCS nodes, a phased cutover strategy — replacing one node at a time while keeping adjacent nodes in service — is the most effective way to maintain plant-wide control continuity and limit the blast radius of any unexpected commissioning issue.

Retrofit Support FAQ

Q1: Is the ATA4D-00 S2 a direct replacement for the ATA4D-00 S1?
In most CENTUM VP installations, yes. The S2 revision incorporates minor hardware improvements but maintains the same backplane pinout, slot form factor, and I/O tag structure as the S1. After installation, a re-download of the I/O assignment in Engineering Builder is required to register the new module revision. Always verify the revision compatibility note in the CENTUM VP hardware release documentation for your specific system version.

Q2: What pre-shipment testing is performed on each unit?
Every ATA4D-00 S2 unit is functionally tested prior to shipment. Testing includes power-on verification, channel signal integrity checks across the full 4–20 mA input range, and backplane interface continuity confirmation. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q3: Can this module be used in a CENTUM CS 3000 system?
The ATA4D-00 S2 is natively designed for CENTUM VP. Use in a CENTUM CS 3000 system requires careful verification of backplane compatibility, power supply specifications, and Engineering Builder version support. In many CS 3000 to CENTUM VP migration projects, the ATA4D-00 S2 is introduced as part of the new CENTUM VP FCS node rather than being retrofitted into the legacy CS 3000 chassis. Consult your YOKOGAWA system integrator or contact us for application-specific guidance.

Q4: What is the typical lead time and do you maintain stock?
We maintain ready stock of the ATA4D-00 S2 to support urgent replacement and planned maintenance requirements. Standard orders ship within 3–5 business days. For large-quantity orders or long-term supply agreements supporting multi-year maintenance contracts, please contact our sales team to discuss inventory reservation and pricing. All units ship with a 12-month warranty and full functional test documentation.
