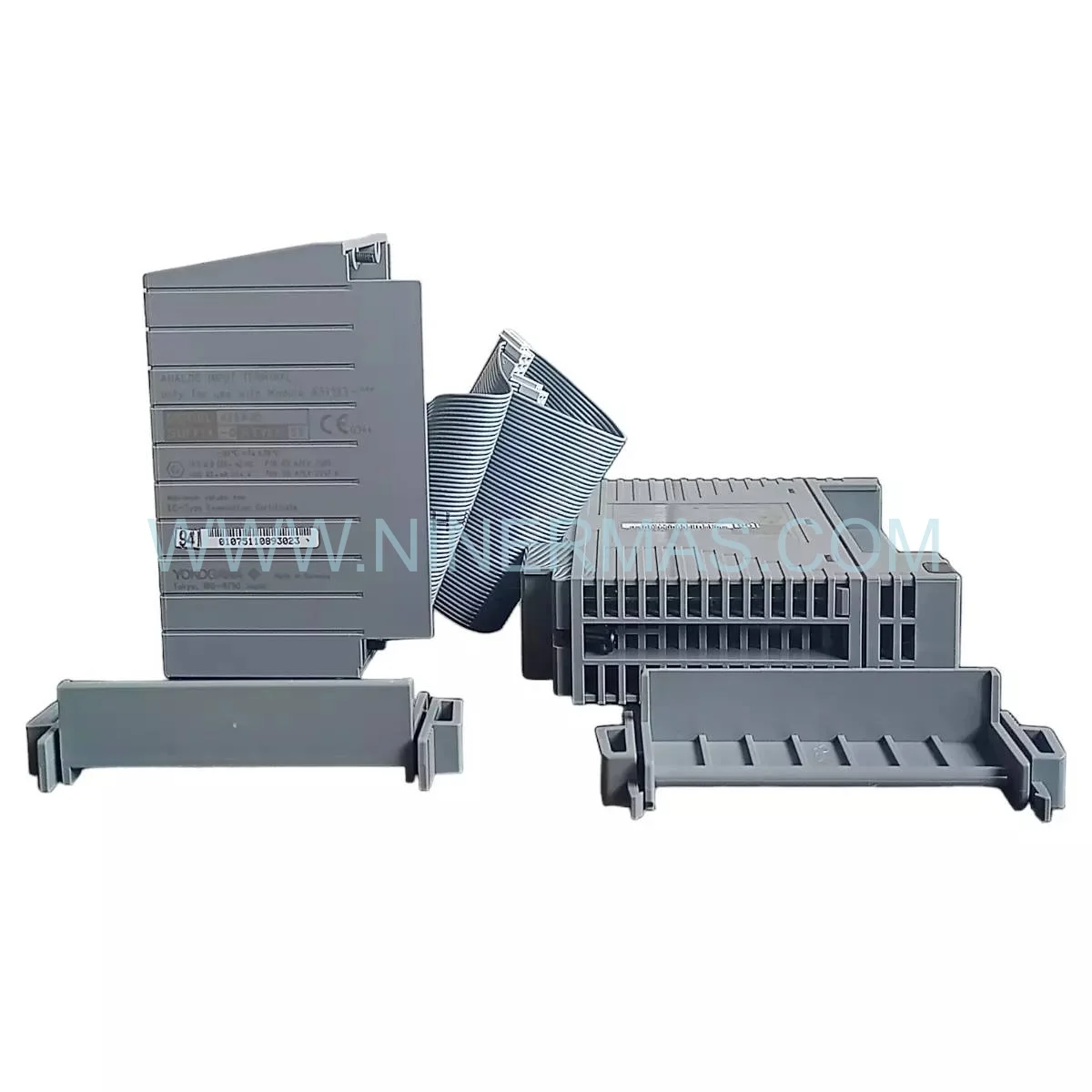

Yokogawa ASI133-H00 | Intrinsically Safe Analog Input Module

Yokogawa ASI133-H00 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Yokogawa ASI133-H00 represents a cornerstone component in maintaining the operational integrity of safety-critical process control architectures. As an 8-channel intrinsically safe analog input module with integrated barrier technology, the ASI133-H00 is engineered to eliminate signal interference risks at the source, ensuring that field instrumentation data reaches the control layer with uncompromised fidelity — a non-negotiable requirement in environments governed by IEC 61511 and IEC 61508 functional safety frameworks.

Within the evolving paradigm of Industry 4.0, long-term compatibility and sustained system performance are evaluated not merely at commissioning, but across the full asset lifecycle. The ASI133-H00’s native HART 7 protocol support enables seamless integration with digital asset management platforms, facilitating predictive maintenance workflows, remote diagnostics, and firmware-level compliance auditing — capabilities that align directly with the Asset Optimization mandates of modern industrial enterprises.

As a factory-sealed, certified original component, the ASI133-H00 carries the full weight of Yokogawa’s quality assurance infrastructure. Its ATEX, IECEx, FM, and CSA certifications are not supplementary attributes — they are fundamental prerequisites for deployment in Zone 0 and Zone 1 classified areas, where Safety Integrity Level (SIL) compliance is a regulatory obligation rather than an operational preference.

Compliance & Safety Benchmarks

✅ Multi-Standard Certification: ATEX / IECEx / FM / CSA — validated for global hazardous area deployment across North American, European, and Asia-Pacific regulatory jurisdictions.

✅ Intrinsic Safety Architecture: Built-in barrier eliminates the need for external Zener barriers or galvanic isolators, reducing potential failure nodes and simplifying Standard Adherence during third-party safety audits.

SIL-Capable Design: Engineered in alignment with IEC 61508 functional safety requirements, supporting SIL 2 loop configurations when deployed within a validated ProSafe-RS or CENTUM VP safety instrumented system.

✅ Channel Isolation Integrity: Full channel-to-channel and channel-to-system galvanic isolation ensures that a fault in one measurement loop cannot propagate system-wide — a critical Durability benchmark for continuous process operations.

Environmental Durability: Rated for operation across -40°C to +70°C, with resistance to vibration, humidity, and electromagnetic interference consistent with IEC 60068 environmental stress standards.

Vertical Industry Integration & Optimization

The ASI133-H00 delivers measurable process optimization value across precision-critical industrial verticals:

• Semiconductor Manufacturing: Ultra-clean process environments demand signal acquisition modules with zero cross-contamination risk. The ASI133-H00’s isolated channel architecture and HART diagnostics support real-time monitoring of ultra-high-purity chemical delivery systems, enabling sub-ppm process variance control.
• Pharmaceutical & Biotech: GMP-regulated facilities require instrumentation that supports 21 CFR Part 11 audit trails and validated calibration cycles. The ASI133-H00’s HART communication layer facilitates electronic documentation of loop performance data, directly supporting Original Documentation requirements for regulatory submissions.
• Chemical & Petrochemical Processing: In environments where explosive atmospheres are a constant operational reality, the ASI133-H00’s intrinsic safety barrier eliminates ignition risk at the field interface level, enabling safe deployment of transmitters in Zone 0 classified areas without additional protective apparatus.
• Power Generation & Utilities: Turbine control and boiler management systems require analog input modules capable of sustaining measurement accuracy under high-vibration, high-temperature conditions. The ASI133-H00’s 16-bit A/D resolution and ±0.1% span accuracy ensure that control decisions are based on data of the highest fidelity.
• Oil & Gas Upstream & Midstream: Offshore platforms and pipeline monitoring stations operating under ATEX Zone 1 classifications rely on the ASI133-H00 for certified, maintenance-efficient signal acquisition — reducing the frequency and cost of hazardous area interventions.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every ASI133-H00 unit dispatched by NINERMAS COMPANY LIMITED is sourced directly from Yokogawa’s authorized distribution network and shipped in its original, factory-sealed packaging. Tamper-evident seals and original documentation — including calibration certificates and compliance declarations — are included with each shipment, ensuring full traceability from manufacturer to end-user.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, and the Americas, NINERMAS maintains an average dispatch lead time of 3-7 business days for in-stock ASI133-H00 units. Expedited air freight options are available for critical system restoration scenarios, with real-time shipment tracking provided as standard.

12-Month Quality Guarantee for Legacy Systems: Recognizing that many industrial facilities operate Yokogawa CENTUM VP and ProSafe-RS platforms well beyond their original design lifecycle, NINERMAS provides a 12-Month Quality Guarantee on all ASI133-H00 modules. This guarantee covers manufacturing defects and performance deviations from published specifications, with direct technical support from our engineering team available throughout the warranty period.

Technical Documentation Support: Upon request, NINERMAS can provide access to Yokogawa’s Original Documentation package for the ASI133-H00, including installation manuals, functional safety data sheets, and HART device description files — supporting your compliance audit and system validation requirements.

Expert Technical FAQ

Q1: Is the ASI133-H00 suitable for SIL 2 safety instrumented functions without additional external components?
A: The ASI133-H00 is designed in alignment with IEC 61508 functional safety principles and is capable of supporting SIL 2 loop configurations when integrated within a validated Yokogawa ProSafe-RS safety instrumented system. Formal SIL verification requires a complete loop assessment including transmitter, logic solver, and final element — NINERMAS can provide the relevant Yokogawa safety documentation to support your SIL verification process.

Q2: What installation compliance requirements apply when deploying the ASI133-H00 in ATEX Zone 1 environments?
A: Installation must conform to IEC 60079-14 (Electrical Installations in Hazardous Areas) and the specific entity parameters defined in the ASI133-H00’s ATEX certificate. The module’s integrated barrier eliminates the need for external Zener barriers, but field wiring must remain within the certified entity parameters (Ui, Ii, Pi, Ci, Li) to maintain intrinsic safety compliance. NINERMAS recommends engaging a certified Ex installation contractor for initial commissioning.

Q3: How does the ASI133-H00 support predictive maintenance and Lifecycle Management in aging DCS architectures?
A: The ASI133-H00’s HART 7 communication capability enables continuous monitoring of connected field devices, including transmitter diagnostics, loop integrity status, and sensor degradation indicators. When integrated with Yokogawa’s PRM (Plant Resource Manager) or third-party asset management systems, this data supports condition-based maintenance scheduling — a core pillar of modern Lifecycle Management strategy for legacy CENTUM VP installations.

Q4: What firmware version compatibility considerations apply when replacing an existing ASI133-H00 in a running CENTUM VP system?
A: Yokogawa maintains backward firmware compatibility across ASI133-H00 production revisions. However, NINERMAS recommends verifying the target system’s CENTUM VP software version against Yokogawa’s hardware compatibility matrix prior to installation. Our technical support team can assist with compatibility verification and provide access to the relevant Compliance Standards documentation upon request.

Q5: Can the ASI133-H00 operate in environments with ambient temperatures exceeding 60°C?
A: The ASI133-H00 is rated for operation up to +70°C ambient temperature, providing a 10°C margin above the standard 60°C industrial threshold. For installations in high-ambient environments, NINERMAS recommends reviewing the module’s derating curves (available in the original technical manual) and ensuring adequate cabinet ventilation to maintain System Performance within certified parameters.

Q6: What documentation is provided to support regulatory audits and Compliance Standards verification?
A: Each ASI133-H00 unit supplied by NINERMAS is accompanied by a Certificate of Conformity, original Yokogawa packing documentation, and — upon request — copies of the applicable ATEX/IECEx certificates and functional safety data sheets. This documentation package is designed to satisfy the evidentiary requirements of IEC 61511 management of functional safety audits and ISO 9001 quality management system reviews.
