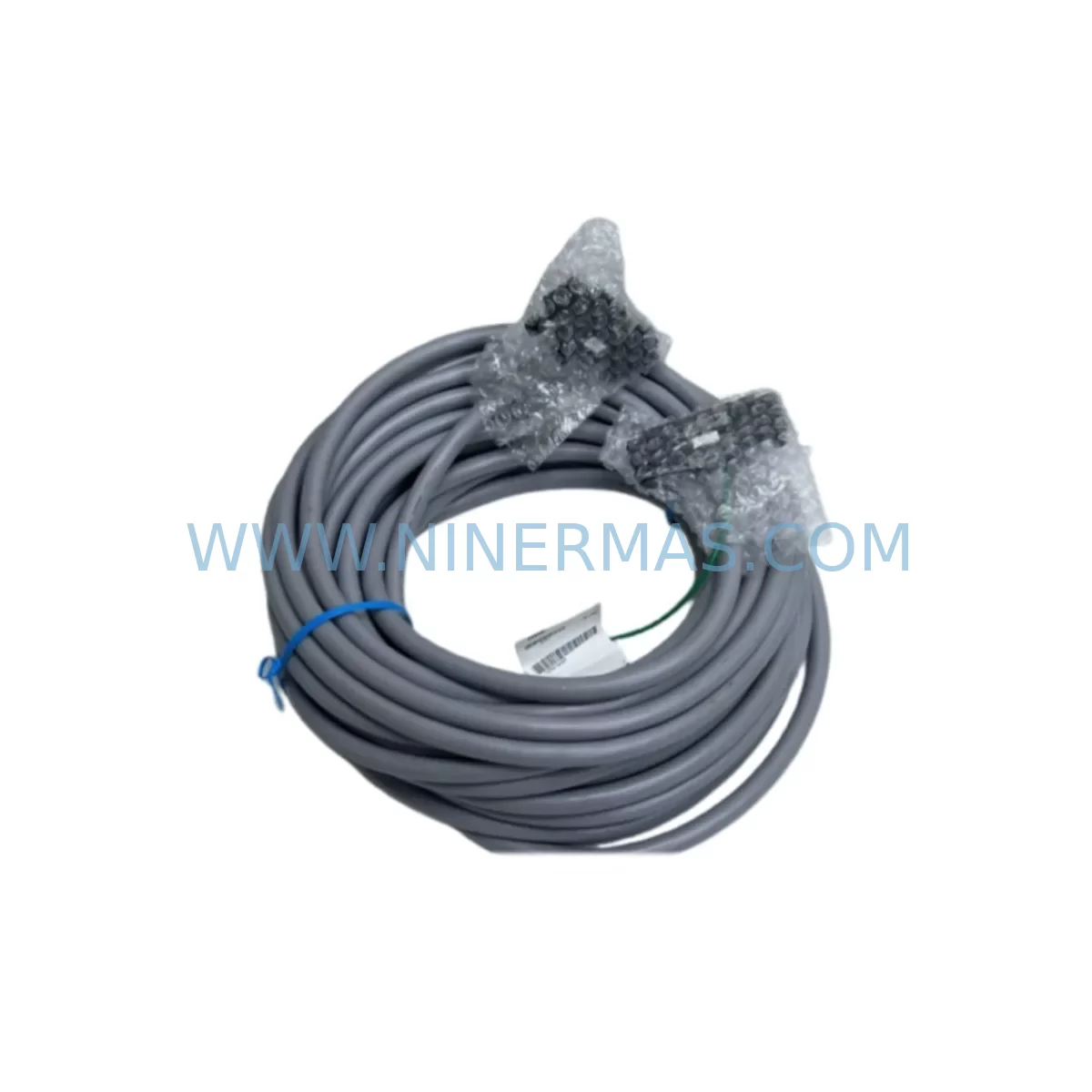

The Yokogawa AKB331-M020 is an original signal cable designed for use within the CENTUM CS and CENTUM VP distributed control system (DCS) platform — one of Yokogawa’s most widely deployed process automation architectures across refining, petrochemical, power generation, and pharmaceutical industries. As a service-ready spare part, the AKB331-M020 plays a critical role in maintaining signal integrity between field instruments, I/O modules, and the control station backplane. When this cable degrades or fails, the consequences can range from intermittent signal loss to complete loop failure — triggering unplanned shutdowns and costly production interruptions.

At NINERMAS, we stock the AKB331-M020 as part of our dedicated Yokogawa CENTUM spare parts inventory, ensuring that maintenance engineers and procurement teams can source this component quickly — without waiting weeks for factory lead times. Every unit is tested prior to dispatch and backed by a 12-month warranty, giving your team the confidence to restore operations without compromise.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Signal cables such as the AKB331-M020 are often overlooked during routine inspections — yet they are among the most failure-prone components in aging DCS cabinets. Mechanical stress from repeated panel access, thermal cycling, and connector oxidation all contribute to gradual signal degradation. Maintenance engineers working on CENTUM CS 3000 or CENTUM VP systems should treat this cable as a scheduled replacement item, not a reactive one.

When planning a replacement of the AKB331-M020, a thorough inspection of the surrounding control cabinet is strongly recommended. Begin with the Yokogawa ACM12 or ACM22 communication modules, which rely on stable signal paths to maintain field bus integrity. Check the ADM12 or ADM51 I/O modules for any signs of connector pin damage or corrosion that may have been caused by the same cable fault. The AIP588 or AIP828 power supply modules should also be verified for output stability, as voltage fluctuations can accelerate cable insulation breakdown over time.

In marshalling cabinets, inspect the terminal blocks and field terminal assemblies (FTAs) — particularly the ANT series FTAs — for loose terminations or moisture ingress. If the system includes signal isolators or barriers (such as Yokogawa’s MTL or equivalent third-party units), verify that isolation resistance remains within specification. For systems with CENTUM VP HIS (Human Interface Station) connectivity, confirm that the communication path through the ESB bus or Vnet/IP network is unaffected after cable replacement.

Procurement engineers building a preventive spare parts kit for a CENTUM CS/VP system should consider stocking the AKB331-M020 alongside related consumables: fuse holders and blade fuses for I/O power rails, relay output modules such as the RIO series, and bus cable assemblies for the ESB backplane. Having these components on-site reduces mean time to repair (MTTR) significantly during emergency callouts and annual turnarounds.

Site Replacement Workflow

Replacing the AKB331-M020 on a live or recently shut-down CENTUM system requires a structured approach to avoid secondary faults and ensure full signal restoration:

Step 1 — Pre-Replacement Verification: Before removing the cable, document the current signal status of all loops routed through the affected I/O module. Use the CENTUM VP Field Communicator or HART handheld to confirm which channels are impacted. Cross-reference with the loop diagram and cabinet wiring schedule.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. For hot-standby redundant systems, confirm that the redundant controller has taken over before isolating the affected module. Do not remove the cable under live signal conditions unless the system architecture explicitly supports hot-swap.

Step 3 — Cable Removal and Inspection: Carefully disconnect the AKB331-M020 from both ends. Inspect the connector housings for cracked latches, bent pins, or contamination. If the connector on the module side shows damage, the I/O module itself may require replacement — check the ADM or AAI series module accordingly.

Step 4 — Installation of Replacement Unit: Insert the new AKB331-M020 firmly until the connector latch clicks. Avoid excessive cable bending near the connector. Secure the cable routing with the original cable ties or clamps to prevent mechanical stress on the connector joint.

Step 5 — Signal Verification and Loop Test: After restoration, perform a full loop check on all channels previously routed through the cable. Confirm signal values match field instrument readings within acceptable tolerance. Log the replacement in your CMMS (Computerized Maintenance Management System) with the date, part number, and technician ID.

This workflow applies equally to legacy CENTUM CS 1000 and CS 3000 installations where the AKB331-M020 may be used as a direct form-fit-function replacement for older cable assemblies. Compatibility should always be confirmed against the system’s hardware revision and the relevant Yokogawa engineering drawing before installation.

Spare Parts Support FAQ

Q1: Is the AKB331-M020 compatible with both CENTUM CS and CENTUM VP systems?
The AKB331-M020 is designed for use within the Yokogawa CENTUM platform and is applicable across multiple generations including CENTUM CS 1000, CS 3000, and CENTUM VP (R5/R6). However, compatibility depends on the specific I/O module and cabinet configuration. We recommend confirming the hardware revision and system drawing before ordering. Our technical team at NINERMAS can assist with compatibility verification upon request.

Q2: How does NINERMAS verify the condition of spare parts before shipment?
Every AKB331-M020 unit in our inventory undergoes pre-shipment inspection covering connector integrity, cable continuity, and insulation condition. Units that do not meet our quality threshold are quarantined and not dispatched. Each shipment includes a test record and is covered by a 12-month warranty from the date of delivery.

Q3: What is the recommended inventory strategy for signal cables in a CENTUM DCS environment?
For plants operating CENTUM CS or VP systems with more than 500 I/O points, we recommend maintaining a minimum of 2–4 units of critical signal cables (including the AKB331-M020) as on-site cold spares. Cable failures are often sudden and cannot be predicted by standard condition monitoring. Having spares on-site eliminates procurement lead time as a factor in unplanned downtime recovery.

Q4: Can NINERMAS support long-term supply of the AKB331-M020 for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts support for industrial automation systems, including discontinued and hard-to-source Yokogawa components. We can arrange blanket purchase agreements, reserved stock allocations, and scheduled delivery programs to support your annual maintenance planning. Contact our sales team to discuss your site’s specific requirements.
