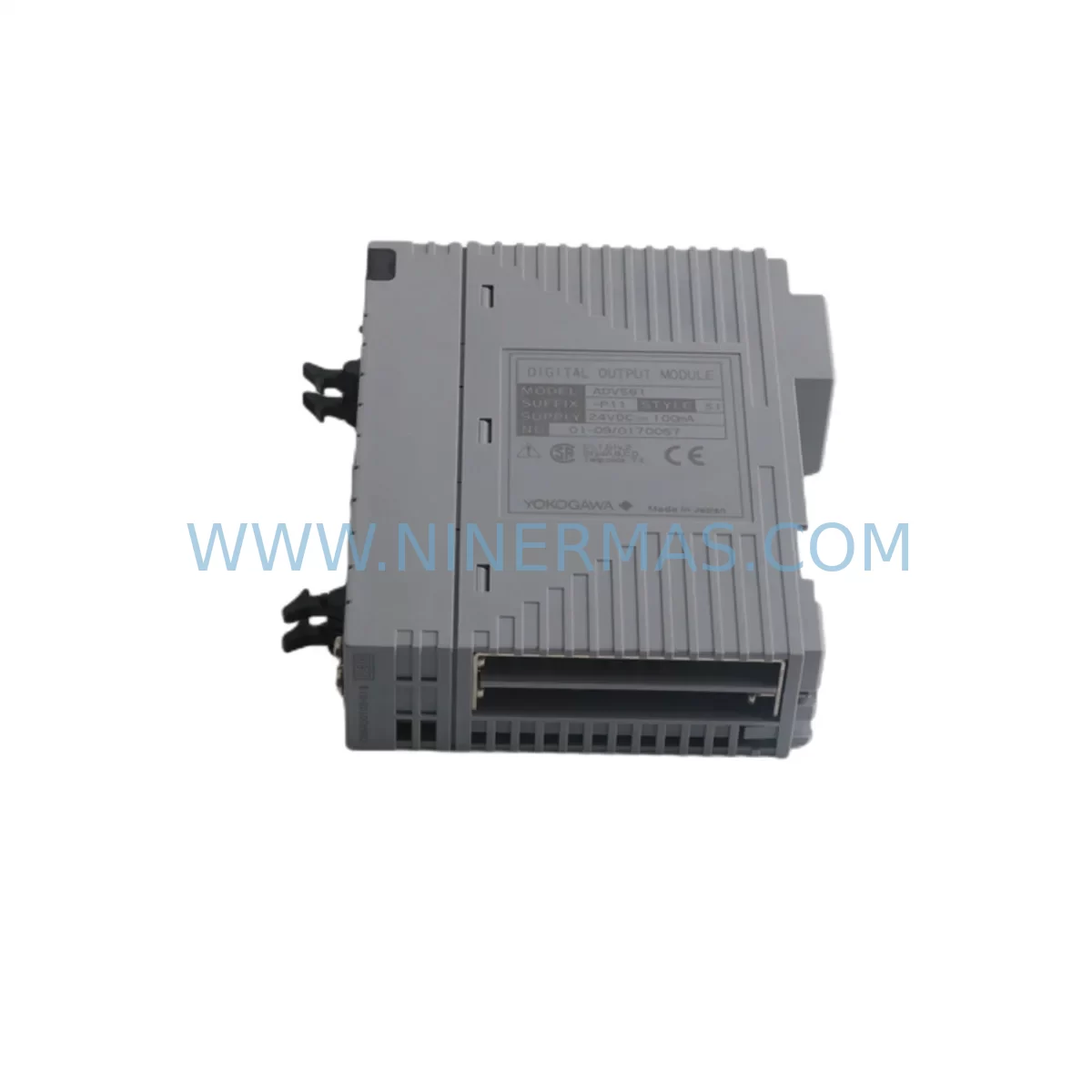

YOKOGAWA ADV561-P11 S1 Retrofit-Compatible Digital Output Module

YOKOGAWA ADV561-P11 S1 Retrofit-Compatible Digital Output Module for Legacy System Modernization

The YOKOGAWA ADV561-P11 S1 is a ruggedized digital output module engineered for demanding industrial environments and designed to integrate seamlessly into existing CENTUM VP and CENTUM CS 3000 distributed control system (DCS) architectures. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the ADV561-P11 S1 represents a proven, field-validated solution for engineers and maintenance teams undertaking control system retrofits, panel upgrades, and I/O expansion projects without the disruption of a full platform migration.

Whether you are replacing a discontinued output module in a running production line, restoring a degraded control cabinet, or extending the service life of a YOKOGAWA-based automation system, the ADV561-P11 S1 delivers the signal integrity, environmental resilience, and backplane compatibility required for smooth, low-risk integration. NINERMAS maintains verified inventory of this module and offers pre-shipment functional testing, ensuring every unit dispatched meets original YOKOGAWA performance specifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ADV561-P11 S1 into an operational plant begins well before the module arrives on site. Retrofit planning for YOKOGAWA CENTUM-based systems requires a structured review of the existing control architecture, starting with the AFV10D or AFV30D node units that house the I/O modules. Engineers must confirm that the target rack has an available slot of the correct type and that the node’s total power budget — supplied through the PW481 or PW482 power supply modules — can accommodate the additional load without triggering power fault alarms.

Terminal wiring is one of the most critical steps in any digital output module replacement. The ADV561-P11 S1 connects to the field through a dedicated TB481 or equivalent field terminal block, and all existing loop wiring should be documented and photographed before disconnection. Cross-referencing the as-built loop drawings against the current terminal block layout prevents miswiring during reinstallation and reduces commissioning time significantly.

For systems where the original ADV561-P11 (non-S1 ruggedized variant) or an earlier-generation digital output module such as the ADV151 or ADV161 is being retired, engineers should use the CENTUM VP engineering workspace to export the existing module configuration before removal. This preserves tag assignments, I/O channel parameters, and interlock logic that would otherwise need to be manually re-entered. After installing the ADV561-P11 S1, the saved configuration can be imported and downloaded to the new module, dramatically reducing the risk of logic errors during startup.

In control cabinets where communication infrastructure is also being modernized, the ADV561-P11 S1 retrofit may coincide with the replacement of ACM12 or ACM22 communication modules responsible for Vnet/IP or Ethernet-based supervisory connectivity. If the plant is migrating from an older CENTUM CS 3000 backbone to a CENTUM VP network, the node bus architecture remains largely compatible, but the engineering team should validate that all FCS (Field Control Stations) — including the AFV10S or AFV30S controllers — are running firmware versions that recognize the S1 ruggedized module variant.

Where I/O expansion is part of the modernization scope, the ADV561-P11 S1 is frequently deployed alongside AAI141 or AAI841 analog input modules and ADV151 digital input modules to build out a complete I/O node refresh. Signal isolators — such as YOKOGAWA’s JUXTA series signal conditioners — are often added at this stage to protect new modules from field-side voltage transients in older wiring systems that were not originally designed to modern EMC standards.

For plants operating HMI systems based on CENTUM VP HIS (Human Interface Stations), the module swap should be followed by a full HMI screen verification pass. Operators should confirm that all digital output faceplates, status indicators, and manual override functions display correctly and that no alarm suppression or tag inhibit conditions were inadvertently left active during the maintenance window.

Downtime Control During System Migration

Minimizing production downtime is the primary operational constraint in any live-system retrofit. When replacing the ADV561-P11 S1 or an equivalent digital output module in a CENTUM VP environment, the recommended approach is to schedule the physical swap during a planned maintenance window and to prepare all configuration files, spare terminals, and test equipment in advance.

Before powering down the target node, the control engineer should place all affected output channels into manual mode at the FCS level, ensuring that field devices — valves, actuators, motor starters — hold their last commanded state and do not respond to undefined output signals during the module exchange. This step protects both the process and the field equipment from uncontrolled state changes during the hardware transition.

Once the ADV561-P11 S1 is seated in the rack and the node is powered back up, the CENTUM VP system will perform an automatic module recognition sequence. The engineer should monitor the system alarm console for any node communication faults or module mismatch warnings and resolve these before returning channels to automatic control. A channel-by-channel output verification — using a loop calibrator or by commanding each output from the HIS and confirming field response — should be completed before the maintenance window closes.

NINERMAS ships all ADV561-P11 S1 units with a pre-shipment functional test report, reducing the risk of receiving a non-functional module and eliminating one of the most common causes of extended unplanned downtime during spare part replacements. Units are available from verified inventory with typical lead times suitable for both planned maintenance and emergency breakdown scenarios.

Retrofit Support FAQ

Q1: Is the ADV561-P11 S1 a direct drop-in replacement for the standard ADV561-P11?
The S1 suffix designates the ruggedized variant of the ADV561-P11, offering enhanced resistance to vibration, humidity, and temperature extremes. In most CENTUM VP and CENTUM CS 3000 installations, the S1 variant is mechanically and electrically compatible with the standard slot and terminal block configuration. However, engineers should confirm firmware compatibility with the host FCS before installation, particularly on older CS 3000 systems.

Q2: What wiring checks are required before installing the replacement module?
Prior to installation, verify that all field wiring connected to the terminal block is correctly documented, that no open-circuit or short-circuit conditions exist on the output channels, and that the 24 VDC field power supply feeding the output loads is within specification. Confirm terminal block screw torque and inspect for corrosion or insulation damage on older wiring harnesses.

Q3: Does NINERMAS provide pre-shipment testing for the ADV561-P11 S1?
Yes. Every ADV561-P11 S1 unit dispatched by NINERMAS undergoes functional verification testing prior to shipment. A test report is included with the delivery. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical availability and lead time for the ADV561-P11 S1?
NINERMAS maintains stock of the ADV561-P11 S1 to support both planned maintenance schedules and emergency breakdown requirements. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for current inventory status and delivery timelines.
