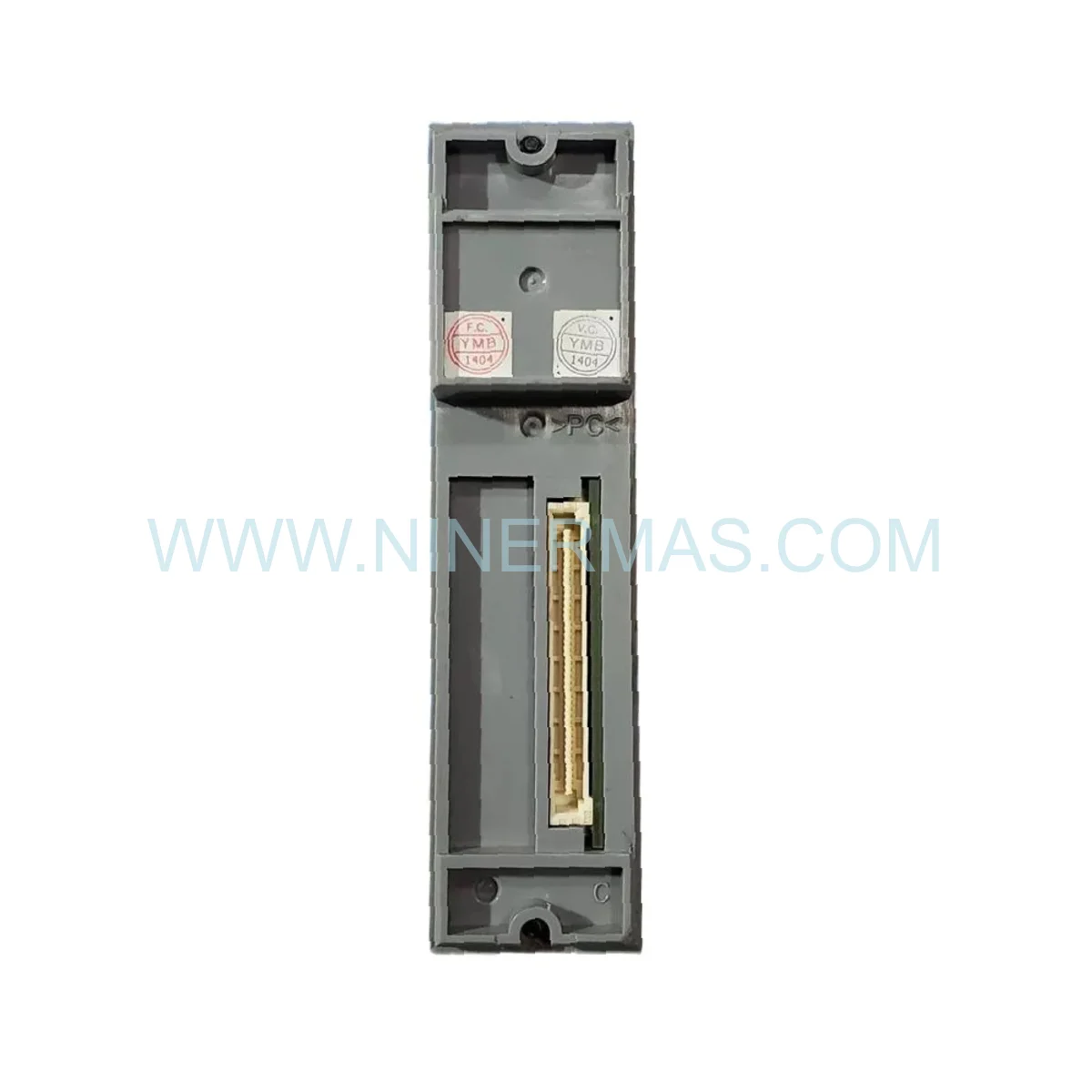

Yokogawa AAT145-S50 S1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a System Migration Architect, the first challenge in any DCS modernization project is identifying which field I/O modules can anchor the transition without disrupting live production. The Yokogawa AAT145-S50 S1 stands out as a critical enabler in this role — its 16-channel isolated TC/mV input architecture delivers the measurement precision and signal diversity that aging analog front-ends simply cannot match. By deploying the Yokogawa AAT145-S50 S1 as the temperature acquisition backbone, engineers can achieve measurable performance gains — up to ±0.1% span accuracy — while preserving existing sensor wiring and field termination infrastructure.

Legacy DCS platforms often rely on single-type input cards with limited thermocouple support, creating bottlenecks during system expansion or sensor standardization. The AAT145-S50 S1 resolves this by supporting 12 thermocouple types (B, C, E, J, K, L, N, R, S, T, U, W), Pt100/JPt100 RTDs, millivolt, and potentiometer signals — all on a single module. This multi-signal compatibility makes it the ideal retrofit solution for facilities migrating from obsolete I/O racks to modern CENTUM VP architectures, eliminating the need for costly signal converters or parallel wiring runs.

From a migration risk perspective, the AAT145-S50 S1 dramatically reduces deployment uncertainty. Its 500V DC channel-to-channel isolation eliminates ground loop interference that commonly plagues legacy installations, while built-in cold junction compensation and burnout detection ensure measurement continuity throughout the cutover window. The result: lower migration cost, shorter commissioning time, and a future-proofed temperature measurement layer that scales with your modernization roadmap.

Upgrade Highlights & Compatibility

✅ Multi-Signal Flexibility: Handles TC, RTD, mV, and POT inputs on a single card — replace multiple legacy single-type modules with one unified retrofit solution.

Enhanced Measurement Accuracy: ±0.1% span precision surpasses most first-generation DCS I/O cards, delivering immediate performance enhancement post-migration.

✅ Seamless Integration: Native ESB bus compatibility ensures plug-and-play deployment within existing CENTUM VP field control unit enclosures — zero custom interfacing required.

Legacy Compatibility: Supports the same thermocouple and RTD sensor types used in predecessor Yokogawa systems, protecting your existing sensor investment during hardware upgrade cycles.

✅ Future-Proofing: DIN rail mounting and standard I/O bus architecture ensure the AAT145-S50 S1 remains compatible with next-generation CENTUM expansions and IIoT gateway integrations.

Redundancy-Ready: Supports fully redundant field control configurations when paired with dual ESB bus node units — critical for high-availability retrofit projects in power and chemical sectors.

Modernization Use Cases & Success Stories

Chemical Plant DCS Migration (Legacy CENTUM CS — CENTUM VP):
A regional petrochemical facility operating a 15-year-old CENTUM CS platform faced escalating spare parts costs and declining measurement reliability across 200+ thermocouple loops. By deploying the AAT145-S50 S1 as the primary temperature I/O replacement, the retrofit team consolidated three legacy single-type input cards into one module per rack slot — reducing panel footprint by 40% and cutting wiring rework by retaining original field terminations. Post-migration, temperature loop availability improved from 94.2% to 99.6%.

Turbine Supervisory Instrumentation (TSI) Modernization:
Gas turbine monitoring systems demand sub-100ms scan rates and fail-safe burnout detection. The AAT145-S50 S1’s 100ms per-channel conversion speed and automatic upscale/downscale burnout indication made it the preferred hardware upgrade for a power generation retrofit project replacing obsolete TSI front-end cards. Engineers achieved seamless integration with the existing vibration and speed monitoring network, with zero unplanned shutdowns during the phased cutover.

Pharmaceutical Batch Reactor Upgrade:
A GMP-compliant manufacturing site required a performance upgrade to its temperature measurement layer to meet tightened FDA validation requirements. The AAT145-S50 S1’s ±0.1% accuracy and channel isolation eliminated cross-talk errors that had caused batch deviations in the legacy system. The retrofit solution was validated in under 3 weeks, with full IQ/OQ documentation support from the project team.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Yokogawa AAT145-S50 S1 unit is sourced as genuine OEM hardware — factory sealed, serialized, and traceable to Yokogawa’s manufacturing records. No refurbished or grey-market stock.

Expedited Global Logistics: We maintain ready inventory to support time-critical retrofit and emergency replacement scenarios. Express air freight to major industrial hubs in Asia, Europe, the Middle East, and the Americas — typical lead time 3-7 business days.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in legacy DCS compatibility assessments. Whether you’re migrating from an EOL platform or maintaining an aging CENTUM CS installation, we provide configuration guidance, I/O mapping support, and cross-reference analysis to ensure your retrofit project stays on schedule.

Warranty: 12-month warranty covering manufacturing defects and workmanship, with RMA support and replacement logistics managed end-to-end.

Retrofit FAQ (Upgrade Guide)

Q: Will the AAT145-S50 S1 physically fit in my existing CENTUM CS I/O enclosure?
A: The AAT145-S50 S1 uses standard DIN rail mounting and is dimensionally compatible with CENTUM VP I/O nest slots. For CENTUM CS enclosures, a nest adapter or new I/O carrier may be required depending on your specific rack generation. We recommend sharing your enclosure model number with our team for a pre-migration compatibility assessment.

Q: Can the AAT145-S50 S1 communicate with older Yokogawa controllers that use V-net or SB bus?
A: The AAT145-S50 S1 is designed for ESB bus architecture used in CENTUM VP. For V-net or SB bus legacy systems, a bus conversion node unit (such as the ANB10D) is required to bridge communication between old and new bus protocols — a standard step in phased system migration projects.

Q: Are there direct replacement alternatives if the AAT145-S50 S1 is unavailable?
A: For applications requiring only RTD inputs, the AAR181-S50 (12-channel RTD) is a compatible alternative. For mixed analog signal acquisition including 4-20mA, the SAI143-S53 provides a broader input range. Our team can provide a full cross-reference and selection guide based on your channel count and signal type requirements.

Q: How long does it take to commission the AAT145-S50 S1 during a live plant retrofit?
A: With pre-configured I/O builder files and existing sensor wiring retained, commissioning typically takes 2-4 hours per module in a planned maintenance window. Hot-swap capability within redundant FCU configurations allows installation without full system shutdown in many cases.

Q: Does the module support HART or fieldbus communication for IIoT integration?
A: The AAT145-S50 S1 operates as a conventional analog input module via ESB bus. For HART-enabled sensor integration, a HART multiplexer or gateway device is recommended as part of the broader IIoT migration architecture. This approach preserves the module’s high-speed scan performance while enabling asset management data extraction.

Q: What documentation is available to support FAT and SAT during a retrofit project?
A: We provide the Yokogawa AAT145-S50 S1 hardware manual, I/O builder configuration guide, and wiring diagrams upon request. For regulated industries (pharma, nuclear), we can assist with IQ/OQ template preparation and traceability documentation aligned to your validation protocol.
