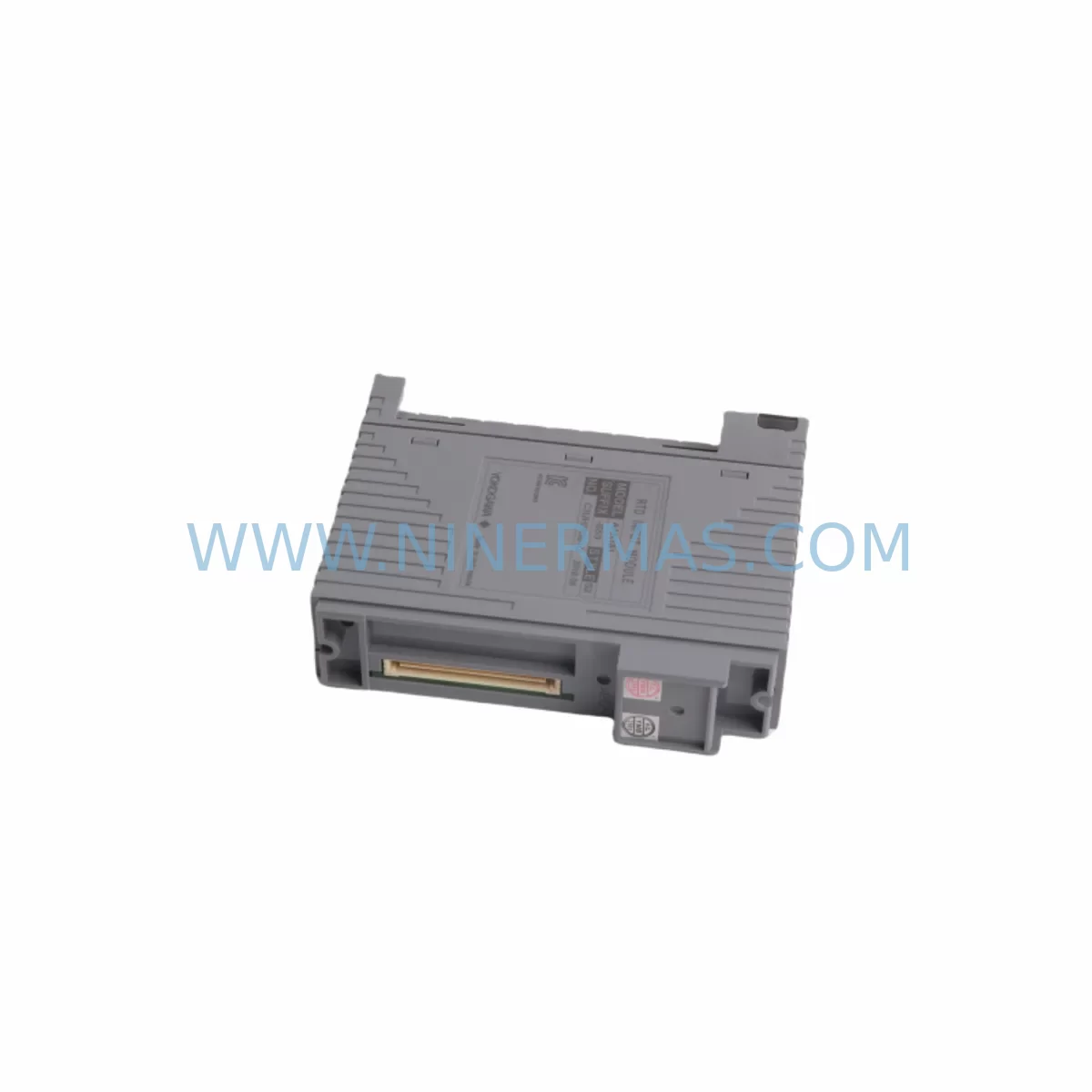

The YOKOGAWA AAR181-S53 S2 is an original analog input module designed for the CENTUM VP Distributed Control System (DCS) platform. As a critical signal acquisition component, it handles 4–20 mA process signals from field transmitters — including pressure, temperature, flow, and level instruments — and converts them into digital values for the CENTUM VP controller. In high-availability process plants such as oil refineries, chemical complexes, LNG terminals, and power generation facilities, a failed or degraded AAR181-S53 S2 can directly trigger loop alarms, process deviations, and unplanned shutdowns. Maintaining a verified, service-ready spare on-site is the most effective strategy to minimize mean time to repair (MTTR) and protect production continuity.

At NINERMAS, every AAR181-S53 S2 unit is sourced from authorized supply chains, inspected against original YOKOGAWA specifications, and dispatched with full test documentation. Our 12-month warranty covers functional integrity under normal industrial operating conditions, giving maintenance engineers and procurement teams the confidence to stock this module as a long-term replacement asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the AAR181-S53 S2 in a live CENTUM VP Field Control Station (FCS) is rarely an isolated task. Experienced maintenance engineers understand that analog input module failures are often symptomatic of broader issues within the same I/O nest or control cabinet. A structured inspection during the replacement window significantly reduces the risk of repeat failures and secondary shutdowns.

Before or during the AAR181-S53 S2 swap, the following components and subsystems should be inspected or tested as part of a complete maintenance cycle:

Power Supply Modules (e.g., YOKOGAWA PW481, PW482): The I/O nest power supply feeds all modules in the station. A degraded power rail can cause intermittent analog input errors that mimic module failure. Verify output voltage stability and ripple before concluding the AAR181-S53 S2 is the root cause.

ESB Bus Coupler and Backplane (e.g., EB401, EB501 ESB Bus units): The ESB Bus backplane carries both power and communication signals to each I/O module slot. Inspect connector pins for oxidation, mechanical damage, or contamination. A faulty backplane slot can damage a replacement module if not addressed first.

Field Terminal Assemblies and Marshalling Cabinets: The 4–20 mA field wiring terminates at terminal blocks before reaching the AAR181-S53 S2. Inspect terminal strips for loose connections, corrosion, or moisture ingress — particularly in humid or coastal environments. Verify loop resistance and cable insulation integrity with a loop calibrator.

Signal Isolators and Barriers (e.g., YOKOGAWA MTL or equivalent Zener barriers): In hazardous area installations, field signals pass through intrinsic safety barriers or galvanic isolators before entering the analog input module. A failed isolator can suppress or distort the 4–20 mA signal, causing the AAR181-S53 S2 to report incorrect values. Replace suspect isolators alongside the module.

Analog Output Modules (e.g., AAV141, AAV142): Control loops that use the AAR181-S53 S2 as the process variable input typically pair with an analog output module driving a control valve or actuator. Verify the AO module is functioning correctly after restoring the AI channel to avoid control loop instability during recommissioning.

Communication Modules and V-net Interface Cards: If the FCS is reporting communication errors alongside the analog input fault, inspect the V-net coupler and communication bus cards. A degraded V-net connection can cause the controller to lose visibility of multiple I/O modules simultaneously.

Fuses and Circuit Protection within the I/O Cabinet: Many CENTUM VP installations include individual fuse protection per I/O nest or per field loop. Check and replace any blown fuses before powering the replacement AAR181-S53 S2 to prevent immediate re-failure.

HMI and Engineering Workstation Alarm Logs (e.g., YOKOGAWA CENTUM VP HIS): Before and after replacement, review the Human Interface Station (HIS) alarm history for recurring channel alarms, diagnostic codes, or communication timeouts associated with the affected FCS. This data helps confirm whether the module was the sole fault source or part of a wider system degradation pattern.

Redundant Controller Modules (e.g., FCU (Field Control Unit) pairs): In redundant FCS configurations, confirm that the standby controller is healthy and that switchover logic is functioning correctly before taking the primary controller offline for module replacement.

Stocking the AAR181-S53 S2 alongside these complementary components as part of a structured spare parts inventory ensures that your maintenance team can execute a complete corrective maintenance action within a single planned window — rather than waiting for secondary parts to arrive after the initial repair.

Site Replacement Workflow

The AAR181-S53 S2 is a hot-swap-capable module within the CENTUM VP architecture, subject to the FCS configuration and site safety procedures. The following workflow is recommended for field replacement to minimize downtime and ensure system integrity:

Step 1 — Pre-Replacement Verification: Confirm the replacement AAR181-S53 S2 matches the installed module’s suffix code (S53 S2) exactly. Suffix codes in YOKOGAWA’s naming convention indicate hardware revision, signal range, and isolation class. Installing a mismatched suffix may cause configuration errors or channel mapping faults in the CENTUM VP builder.

Step 2 — Loop Isolation and Operator Notification: Place all affected control loops in manual mode at the HIS before removing the module. Notify the control room operator and document the affected tag numbers. In safety-instrumented systems, coordinate with the SIS engineer before isolating any loop that feeds a safety function.

Step 3 — Module Removal: Follow YOKOGAWA’s standard ESD precautions. Remove the module from its nest slot using the ejector lever. Inspect the slot connector on the backplane for damage or contamination before inserting the replacement unit.

Step 4 — Module Installation and Auto-Recognition: Insert the AAR181-S53 S2 into the correct slot. CENTUM VP FCS will automatically recognize the module type and apply the stored I/O configuration. Verify that the module status LED indicates normal operation within 30–60 seconds of insertion.

Step 5 — Loop Verification and Return to Auto: Using the HIS or a portable loop calibrator, inject a known 4–20 mA signal at the field terminal and verify that the engineering value displayed on the HIS matches the expected process variable. Once all channels are confirmed, return control loops to automatic mode and document the replacement in the maintenance management system (CMMS).

This workflow applies equally to planned annual maintenance shutdowns and emergency corrective replacements. Having a pre-tested, service-ready AAR181-S53 S2 on the shelf reduces the replacement cycle from days to hours — a critical advantage in continuous process operations where every hour of downtime carries significant production cost.

Spare Parts Support FAQ

Q1: Is the YOKOGAWA AAR181-S53 S2 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAR181 series was originally developed for CENTUM CS 3000 and carried forward into CENTUM VP with hardware revisions indicated by the suffix code. The S53 S2 suffix designates a specific hardware and signal configuration. Compatibility with your installed FCS version should be verified against the YOKOGAWA I/O module compatibility matrix or your system’s hardware revision documentation. NINERMAS can assist with compatibility verification prior to shipment.

Q2: What testing is performed before the AAR181-S53 S2 is shipped?
Each unit undergoes functional verification including power-on self-test, channel signal integrity check, and communication bus response testing before dispatch. Units that do not meet original YOKOGAWA performance specifications are not shipped. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How should the AAR181-S53 S2 be stored as a long-term spare?
Store the module in its original anti-static packaging in a climate-controlled environment (temperature 0°C to 40°C, relative humidity below 75% non-condensing). Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect the module annually for physical condition and connector integrity. NINERMAS recommends rotating spare stock every 3–5 years to ensure modules remain within their operational service life.

Q4: Can NINERMAS supply the AAR181-S53 S2 on a long-term or blanket order basis for multi-site maintenance programs?
Yes. NINERMAS supports long-term supply agreements for critical DCS spare parts including the AAR181-S53 S2 and related CENTUM VP I/O modules. We maintain stock continuity planning for obsolete and end-of-life YOKOGAWA components to support customers managing aging control systems. Contact our technical sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
