Yokogawa AAR145-S50 Service-Ready Spare Part for Industrial Maintenance

Yokogawa AAR145-S50 Service-Ready Spare Part for Industrial Maintenance

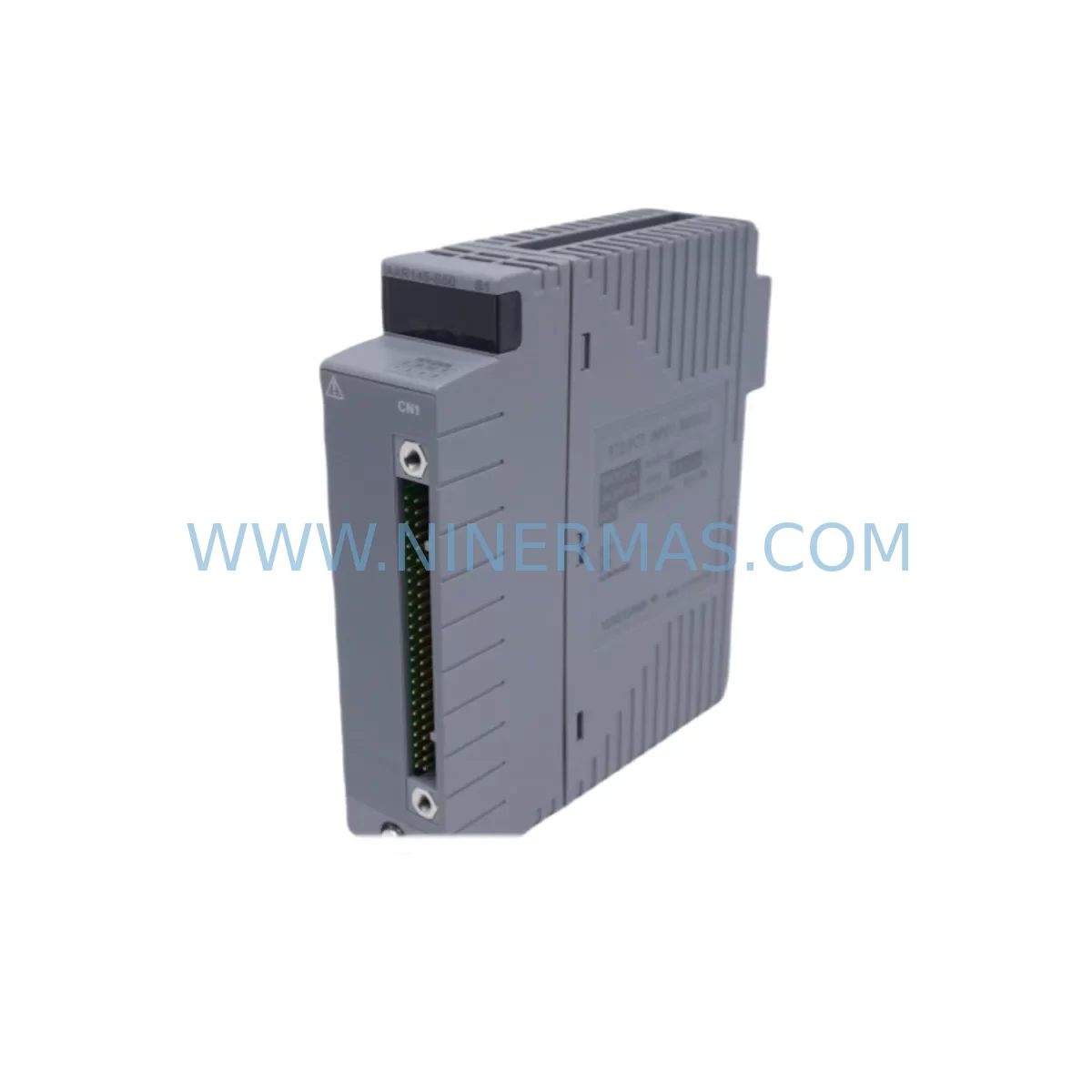

The Yokogawa AAR145-S50 is an original analog input module engineered for deployment within the CENTUM VP and CENTUM CS distributed control system (DCS) platforms. Designed to meet the demanding requirements of continuous process industries — including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing — this module delivers reliable signal acquisition from field transmitters and sensors directly into the DCS control loop.

For maintenance engineers managing aging CENTUM VP or CS installations, unplanned failure of an analog input module such as the AAR145-S50 can trigger immediate process disruption. Sourcing a verified, service-ready replacement with confirmed firmware and hardware compatibility is the fastest path to restoring normal operation. NINERMAS maintains stock of the AAR145-S50 to support emergency callouts, planned turnarounds, and long-term spare parts programs — with pre-shipment functional testing and a 12-month warranty on every unit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CENTUM VP or CS system requires replacement of the AAR145-S50 analog input module, experienced maintenance engineers treat this as a trigger for a broader cabinet inspection. The AAR145-S50 shares its backplane slot environment with other I/O modules, and a failure in one card often indicates thermal stress, power irregularities, or bus degradation that may affect adjacent components.

During the same maintenance window, engineers should inspect and — where applicable — stock spares for the following associated components:

• AAI141-S03 / AAI143-S03 — companion analog input modules in the same CENTUM VP I/O nest; verify channel integrity and terminal block seating.
• AAT141-S00 — analog output module sharing the same field wiring cabinet; check for loop resistance drift and output calibration.
• AIP588-S00 / AIP588-S10 — I/O power supply modules feeding the nest; measure output voltage under load and inspect capacitor condition.
• ACM12-S00 — communication module linking the I/O nest to the field control unit (FCU); confirm firmware version compatibility after module swap.
• ADM51E-S00 — field control unit (FCU) processor card; review diagnostic logs for bus error counts that may indicate upstream signal issues.
• Terminal blocks and field wiring connectors — inspect for corrosion, loose terminations, and insulation degradation on the 4–20 mA signal pairs connected to the AAR145-S50 channels.
• Signal isolators and barriers (e.g., Yokogawa MTL or equivalent) — verify isolation resistance and confirm HART pass-through integrity for smart transmitters on affected channels.
• Fuse holders and protection fuses — check field loop fuses on the marshalling cabinet side; a blown fuse on a single channel can mimic an AAR145-S50 module fault.
• HMI operator station connections — after module replacement, confirm that all affected tag displays on the CENTUM VP HIS (Human Interface Station) are returning valid engineering-unit values.
• Backplane and card cage assembly — inspect the backplane connector pins for oxidation or mechanical damage; a degraded backplane can cause intermittent faults across multiple I/O modules simultaneously.

Maintaining a minimum of one spare AAR145-S50 per control room — alongside matched spares for the AIP588 power supply and ACM12 communication module — is a widely adopted strategy in CENTUM VP installations operating under ISA-55.1 or IEC 61511 maintenance frameworks. This approach reduces mean time to repair (MTTR) from days to hours during unplanned outages.

Site Replacement Workflow

Replacing the AAR145-S50 in a live CENTUM VP or CS 3000 system follows a structured sequence to minimize process impact and ensure signal continuity:

1. Pre-replacement verification: Confirm the replacement AAR145-S50 carries the same suffix revision (S50) and is compatible with the installed FCU firmware version. Cross-reference the CENTUM VP hardware compatibility matrix if the system has been upgraded from CS 3000.
2. Process hold or bypass: Place all affected control loops in manual mode or activate the appropriate bypass in the safety instrumented system (SIS) before removing the faulty module. Coordinate with the control room operator.
3. Hot-swap procedure: The AAR145-S50 supports hot-swap removal in most CENTUM VP configurations. Slide the module out of the card cage, verify the backplane connector is clean, and insert the replacement unit until the locking tab engages.
4. Channel re-commissioning: After insertion, the FCU will automatically re-scan the new module. Verify all 16 channels return to valid process values within the expected engineering-unit range on the HIS display.
5. Loop calibration check: For critical measurement loops (flow, pressure, temperature), perform a live zero/span check against the field transmitter to confirm signal accuracy post-replacement.
6. Documentation update: Record the replaced module serial number, installation date, and test results in the plant maintenance management system (CMMS) to support future lifecycle planning.

This workflow applies equally to planned annual turnarounds and emergency callout scenarios. Having a pre-tested, in-stock AAR145-S50 from NINERMAS eliminates the sourcing delay that is typically the longest component of MTTR in legacy DCS environments.

Spare Parts Support FAQ

Q1: Is the AAR145-S50 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAR145-S50 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 depends on the specific nest and FCU configuration. We recommend confirming the hardware revision and FCU firmware version before ordering. Our technical team can assist with compatibility verification based on your system’s hardware list.

Q2: What pre-shipment testing is performed on each AAR145-S50 unit?
Every AAR145-S50 shipped by NINERMAS undergoes a functional power-on test and signal integrity verification across all 16 channels. Units that do not meet original Yokogawa performance specifications are quarantined and not offered for sale. A test report is available upon request for critical applications.

Q3: Can NINERMAS support long-term supply agreements for the AAR145-S50?
Yes. We offer long-term spare parts supply programs for CENTUM VP and CS 3000 components, including the AAR145-S50, AIP588 power supply modules, and ACM12 communication modules. These programs include reserved stock allocation, priority lead times, and fixed pricing for 12–36 month contract periods — suitable for refineries, power plants, and chemical facilities managing multi-year maintenance budgets.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as specified in the Yokogawa AAR145-S50 hardware manual. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the rated operating range. Warranty claims are processed with a replacement-first policy to minimize your downtime.
