YOKOGAWA AAI841-H00 Retrofit-Compatible Analog Input Module

YOKOGAWA AAI841-H00 Retrofit-Compatible Analog Input Module: Legacy System Compatibility & Smooth Upgrade

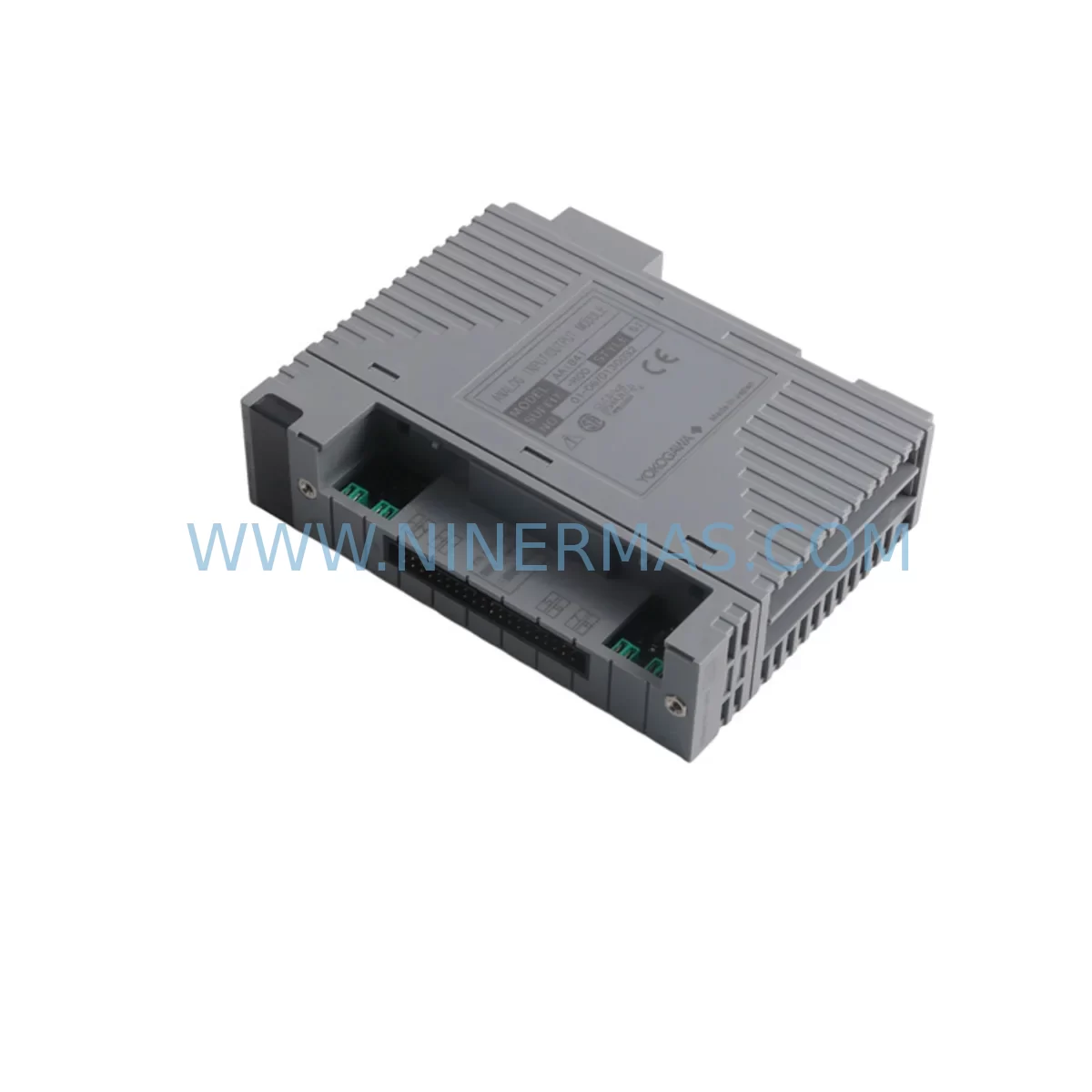

The YOKOGAWA AAI841-H00 is a high-reliability analog input I/O module designed for the CENTUM VP distributed control system platform. As legacy automation infrastructure ages and original spare parts become increasingly scarce, the AAI841-H00 has become a critical component in retrofit projects, discontinued-model replacements, and control cabinet upgrades across process industries including oil & gas, petrochemical, power generation, and water treatment. NINERMAS maintains verified stock of the AAI841-H00 with full functional testing and a 12-month warranty, ensuring your retrofit project proceeds without supply chain disruption.

When planning a retrofit or spare part replacement involving the AAI841-H00, engineers must carefully evaluate several integration factors. Power supply capacity within the existing control cabinet must be confirmed to support the module’s 24 VDC input requirements without overloading the existing YOKOGAWA PW481 or PW482 power supply modules. Terminal wiring must be verified against the original I/O wiring schedule, as field signal cables connected to legacy AAI841 variants may use different terminal block pin assignments depending on the revision level of the installed nest or node unit. Backplane interface compatibility with the CENTUM VP node unit — typically an ANB10D or ANB11D — must be confirmed before installation, as slot addressing and module recognition depend on correct hardware revision matching.

Module address configuration is another critical step. In CENTUM VP engineering environments, the AAI841-H00 must be assigned the correct IOM address within the FCS (Field Control Station) builder to ensure the control application recognizes the new module without requiring a full program reload. Where the original module was part of a running control loop, engineers should prepare a cold-standby switchover plan to minimize process interruption. Program compatibility should be validated in a simulation environment before live cutover, particularly where the analog input channels feed PID control blocks or sequence logic in the FCS application.

HMI screen updates may also be required if the original CENTUM VP HMI — running on HIS (Human Interface Station) workstations — references specific tag names or I/O point addresses tied to the legacy module slot. Communication link integrity between the FCS and the V net or Vnet/IP control network should be verified post-installation to confirm that the replaced module does not introduce any bus communication errors. Installation space within the existing field control unit (FCU) or remote I/O enclosure must also be measured, as some retrofit scenarios involve replacing a single-slot module in a fully populated nest, requiring careful physical access planning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AAI841-H00 retrofit begins with a thorough audit of the existing CENTUM VP system architecture. Engineers should document the current FCS configuration, including the node unit type, nest population, and I/O module slot assignments. In many legacy installations, the AAI841-H00 shares a control cabinet with other aging YOKOGAWA modules such as the AAI835-H00 multi-point analog input module, the AAI543-H00 analog input module for high-density applications, and the AAO145-H00 analog output module — all of which may be approaching end-of-life simultaneously and should be assessed as part of a broader retrofit scope.

Power distribution within the control cabinet deserves particular attention. The PW481 or PW482 power supply modules feeding the I/O nest must have sufficient headroom to support the AAI841-H00 alongside other active modules. If the cabinet also houses communication modules such as the ALR111 FOUNDATION Fieldbus H1 interface module or the ACM12 HART communication module, the cumulative power draw must be recalculated. For systems undergoing protocol migration — for example, from legacy 4–20 mA hardwired I/O to FOUNDATION Fieldbus or HART — the AAI841-H00 serves as a stable interim solution while the broader communication architecture is upgraded in phases.

In remote I/O applications, the AAI841-H00 may be installed in a remote node connected to the FCS via the ESB bus or Vnet/IP. In these configurations, the ESB10D or ESB11D bus interface module must be verified for firmware compatibility with the replacement AAI841-H00. Signal isolators installed upstream of the analog input terminals — such as YOKOGAWA MTL or equivalent DIN-rail signal conditioning modules — should also be inspected to confirm that their output ranges remain within the AAI841-H00’s input specifications. Where field junction boxes connect multiple transmitters to a single I/O module, the wiring schedule must be cross-referenced against the new module’s terminal block layout to avoid miswiring during cutover.

For systems that include YOKOGAWA STARDOM or ProSafe-RS safety instrumented system components in the same control room, the AAI841-H00 retrofit must be coordinated with the safety system maintenance schedule to avoid inadvertent impact on safety loop integrity. Programming cables and engineering workstation software — including CENTUM VP R6 or later engineering tools — should be prepared in advance to allow rapid IOM address reconfiguration and FCS download if required during the cutover window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system retrofit involving the AAI841-H00. The recommended approach is to pre-configure the replacement module offline using a spare FCS engineering environment or a portable CENTUM VP test bench, verifying that the IOM address, channel scaling, and tag assignments match the production configuration exactly before the module is brought to site.

During the physical cutover, field signal cables should be labeled and photographed before disconnection to prevent miswiring. The original AAI841-H00 should be removed and the replacement installed within a single maintenance window, with the FCS placed in manual control mode for all affected loops prior to the swap. After installation, the FCS should be brought back online in a controlled sequence — first verifying module recognition in the CENTUM VP system view, then confirming analog input channel readings against known field transmitter values before returning loops to automatic control.

Where the process cannot tolerate even brief interruption, a parallel wiring strategy can be employed: the replacement module is wired in parallel with the original using a temporary terminal block, allowing the new module to be verified under live signal conditions before the old module is decommissioned. This approach is particularly effective in critical measurement loops such as reactor temperature inputs or compressor surge control signals. All retrofit activities should be documented in the plant’s management of change (MOC) system, and post-retrofit loop checks should be completed and signed off before the maintenance window is closed.

Retrofit Support FAQ

Q1: Is the AAI841-H00 a direct replacement for earlier AAI841 variants?
Yes. The AAI841-H00 is designed as a drop-in replacement for earlier AAI841 series analog input modules within the CENTUM VP platform. Minor firmware or hardware revision differences may require an IOM address re-registration in the FCS engineering tool, but no structural program changes are typically required. NINERMAS can provide revision documentation upon request to assist compatibility verification before shipment.

Q2: What commissioning steps are required after installing the AAI841-H00?
After physical installation, the module must be recognized by the FCS node unit. Engineers should open the CENTUM VP engineering builder, confirm the IOM address assignment for the replaced slot, and perform a partial download if the FCS configuration has been updated. Each analog input channel should then be verified against the field transmitter signal using the CENTUM VP tuning panel or a portable loop calibrator. HMI tag displays on the HIS workstation should be checked to confirm correct process value indication before returning to automatic control.

Q3: How does NINERMAS verify the AAI841-H00 before shipment?
Every AAI841-H00 unit supplied by NINERMAS undergoes functional testing prior to dispatch. Testing includes power-on verification, channel input response checks, and backplane interface validation where test equipment permits. Units are shipped with anti-static packaging and are covered by a 12-month warranty from the date of shipment. Batch traceability records are maintained and can be provided upon request.

Q4: Can NINERMAS supply other CENTUM VP modules needed for a broader retrofit?
Yes. NINERMAS maintains inventory of a wide range of YOKOGAWA CENTUM VP I/O and system modules, including analog output modules, digital input/output modules, power supply modules, and communication interface modules. If your retrofit project requires multiple components, please contact our team with your full bill of materials for a consolidated quotation and coordinated delivery schedule.
